Summary of Contents for Atlona AT-HD600

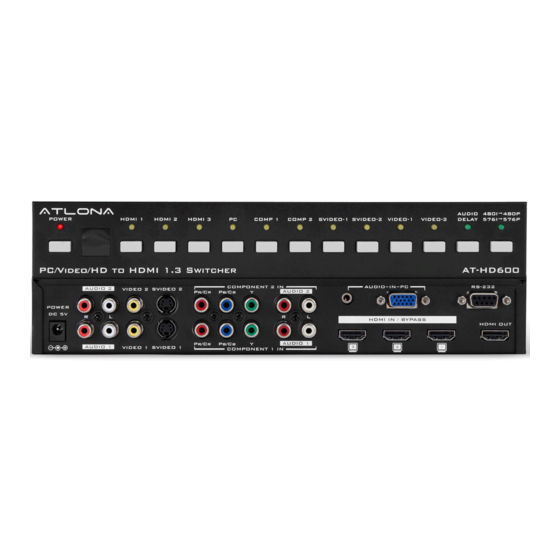

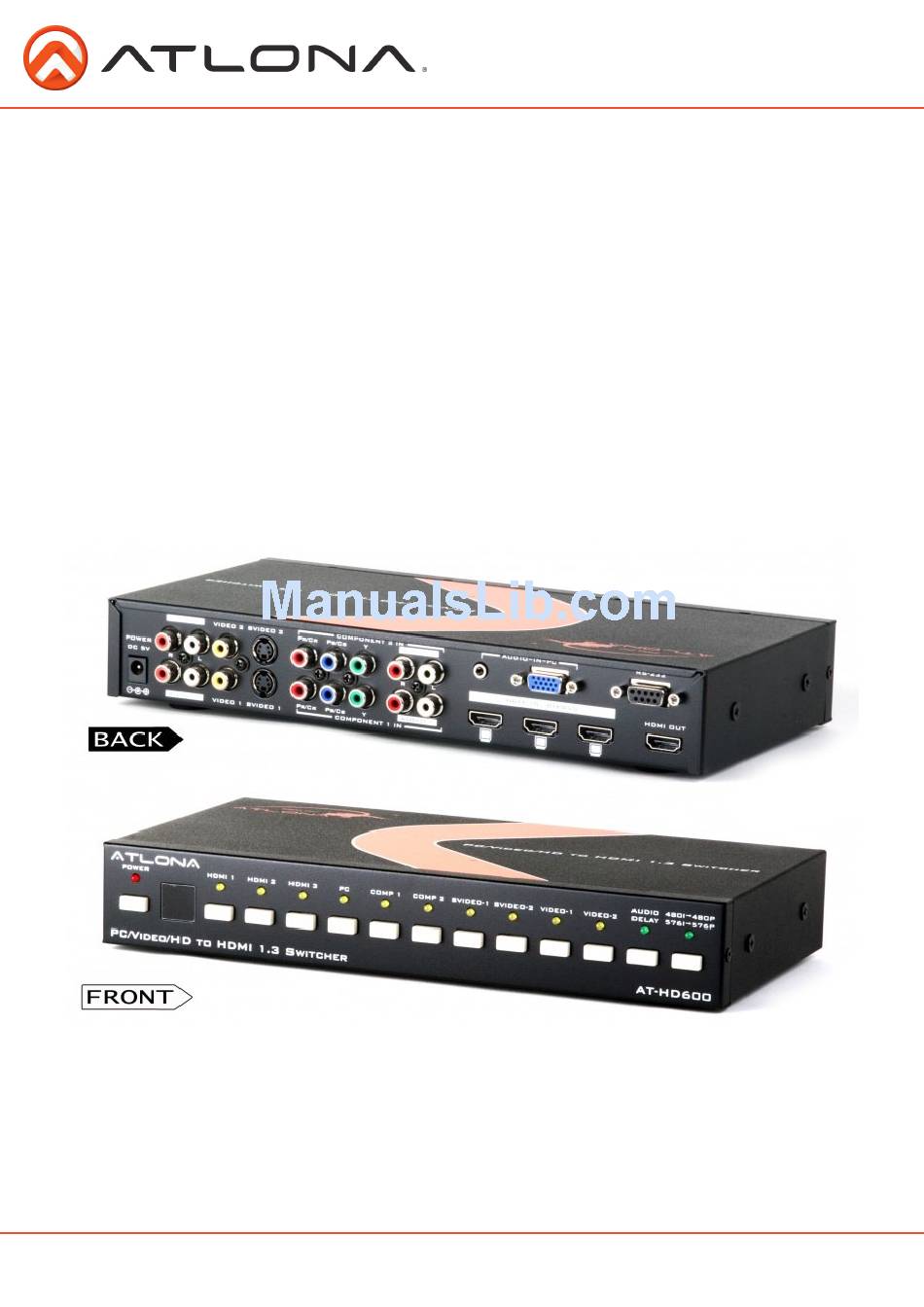

- Page 1 User Manual 10-input Switcher / Scan Converter with Single HDMI (1.3) Output with 3D Support AT-HD600 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
5. RS-232 Remote Control Protocol ..........4 5.1 RS-232 transmission format ..........4 6. Specifications ..........5 7. Connection Diagram ..........6 8. Safety Information ..........7 9. Warranty ..........8 10. Atlona Product Registration ..........9 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
INTRODUCTION Atlona Technologies’ high quality Video Converter converts analog and digital signals to HDMI v1.3 output. The product is compatible to HDMI v1.3 specifications, a cutting edge technol¬ogy which defines to transfer Deep Color (10-bit and 12-bit) video. Simply select from the front panel or remote control to choose the input sources. -
Page 4: Operation Controls And Functions
5. PC input: Connect PC/audio input port to the PC/audio output port ofyour source equipment such as a Note¬book or PC. 6. RS232: 9-pin D-Sub connector for connecting to your PC or other control consoles from remote control. 7. HDMI output: Connect the output port to the HDMI display. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 5: Remote Control
8. HDMI 1/2/3: Press to select HDMI 1,2or3 inputs. RS-232 REMOTE CONTROL PROTOCOL System Remote Controller Definition Definition RS-232 transmission format: Baud Rate : 9600 bps Data Bit : 8 bits Parity : None Stop Bit : 1 bit Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 6: Specifications
1 x HDMI female port (signal link) Power Supply 5VDC/2.6A (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 280(W) x 147(D) x 44(H) Weight (g) 1380 Chassis Material Metal Operating Temperature Operating from 0°C - 48°C Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 7: Connection Diagram
CONNECTION DIAGRAM RS-232 DVD 1 DVD 2 Blu-Ray 1 Blu-Ray 2 LCD TV Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 8: Safety Information
It may also cause damage to your AT-HD620. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. - Page 9 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
-
Page 10: Atlona Product Registration
Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
