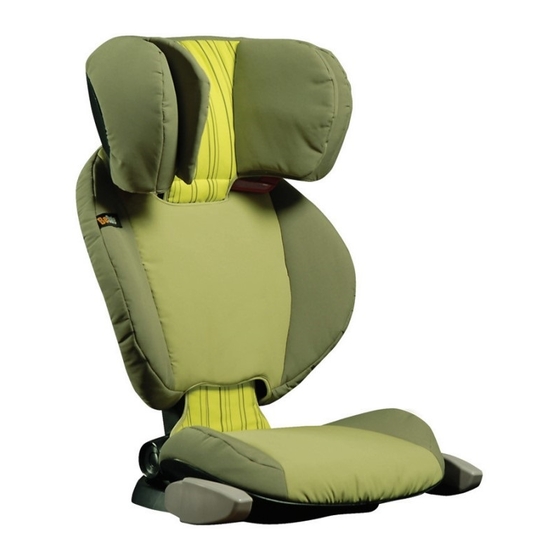

BESAFE iZi Up User Manual
Forward facing baby car seat
Hide thumbs
Also See for iZi Up:
- User manual (60 pages) ,
- User manual (8 pages) ,
- Installation (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for BESAFE iZi Up
Summary of Contents for BESAFE iZi Up

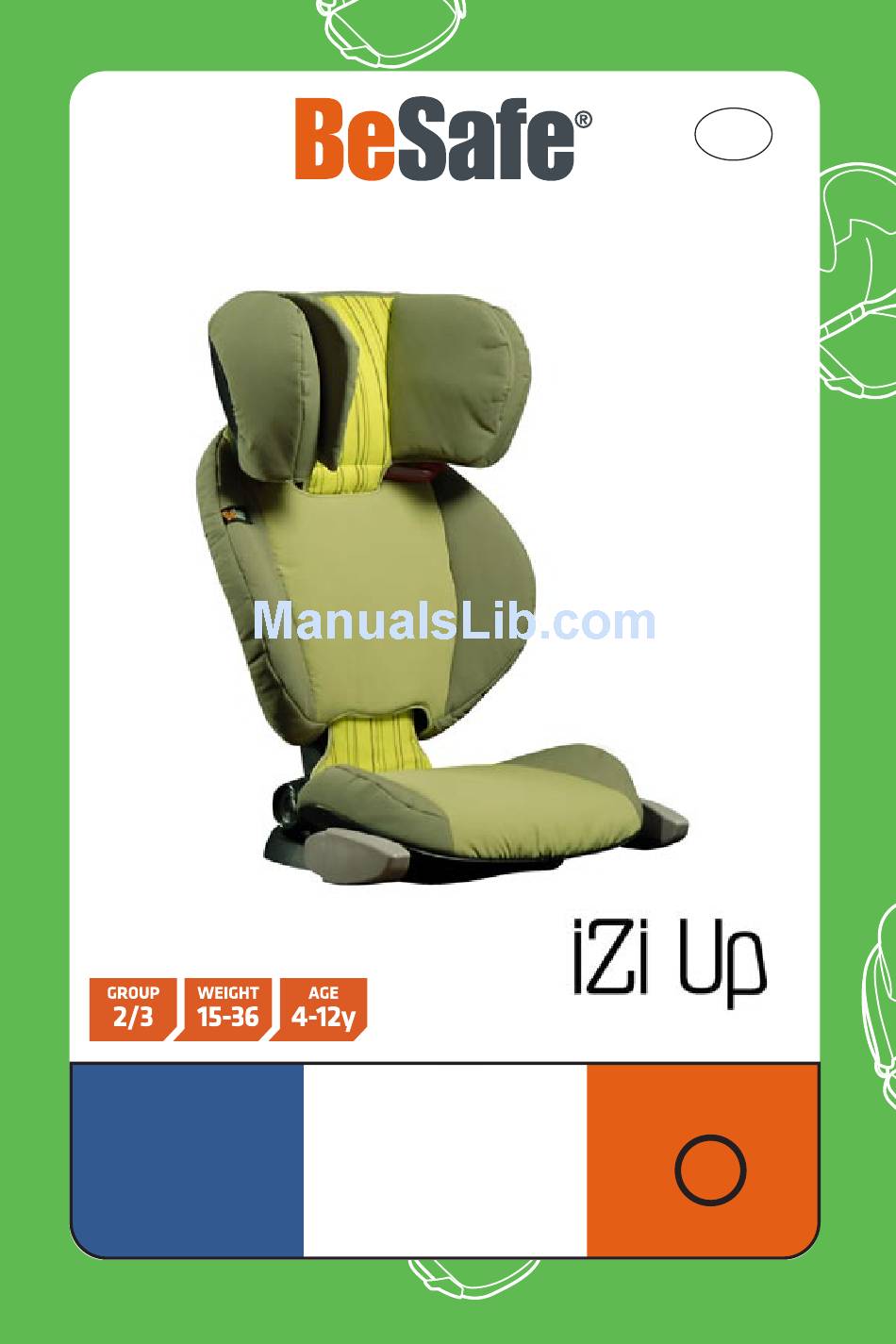

- Page 1 User manual www.besafe.eu ECE R44/04 Complies with revised standard: universal 15-36 kg ECE R/0 Tested and Approved 04443713...
- Page 2 The shoulder belt guides and backrest will move to the correct height and width automatically and simultaniously when adjusting the head rest. The iZi Up can be placed in the sleeping position, by a simple movement. Because of the optimally engineered belt guide system, full safety is guaranteed.
-
Page 3: Table Of Contents
Removing and refitting the cover After an accident Guarantee Warning: Potential misuse Important advice Point of sale information Vital information Only install the iZi Up with a 3-point-belt approved to UN/ECE regulation No. 16 or other equivalent standards. Forward facing installation only. - Page 4 BeSafe advices that child seats should not be bought or sold second-hand. Many seats sold through local advertising have been found to be dangerous. It is recommended not to use the iZi Up on a passenger seat fitted with activated frontal airbag.
- Page 5 Important: belts The Besafe iZi Up can only be used with a 3-point-belt, approved to UN/ECE regulation No. 16 or other equivalent standards. Shoulder belt Lap belt This is a 3-point-belt This is a 2-point belt...
-
Page 6: Preparing To Install
Preparing to install Crucial parts 1 Head rest 2 Cover head rest 3 Back rest 4 Cover back rest 5 Cover seat 6 Seat 7 Sleeping positioning handle 8 Shoulder belt guide 9 Base 10 Carrying handle 11 Storage user manual Storage user manual 12 Height adjusting knob... -
Page 7: Installation In The Car
Installation in the the car The Besafe iZi Up can only be used with a 3-point-belt, approved to UN/ECE regulation No. 16 or other equivalent standards. Make sure the belt is not twisted. The lap belt should be worn over the hips. - Page 8 Adjust the iZi Up to the correct height (6 positions), by turning the height adjusting knob (11). Place the belt in the shoulder belt guide (8). Open the shoulder belt guide (8) by sliding the lower part outwards. Place the belt in the shoulder belt guide (8).
- Page 9 Make sure that the belt always runs from the retractor straight over the shoulder. The shoulder belt should level with your child’s shoulders. The lap belt should be positioned over the hips. Lock the belt in the buckle, click. Remove slack by pulling the belt toward the retractor.
- Page 10 Correct retractor position Make sure the belt is positioned in the green zone.
-
Page 11: Sleeping Position
This can be done by the adult or by the child itself. The sleeping positioning handle (7) automatically returns to its neutral position. When your child gets out of the iZi Up, the seat will automatically return to the upright position. -
Page 12: Removing The Izi Up From The Car
Removing the iZi Up from the car An unoccupied iZi Up should still be fastened with the 3-point-belt. Make sure luggage or other objects are properly secured. Unlock the buckle of the 3-points-belt and open the shoulder belt guide (8). -
Page 13: Removing And Refitting The Cover
Removing and refitting the cover The cover is a safety feature. Never use the iZi Up without it. Removing the cover Pay attention when removing the cover, refitting is done in reverse order. The upholstery of the iZi Up consists of 3 separate cover parts;... - Page 14 Removing the head rest cover: Detach the elastic loops from the fixing hooks (e & f). Remove the elastic cover edges from the surrounding rim (g) on the head rest. Removing the seat cover: Place the seat in sleeping position on the edge of the table (see photo) Detach the elastic loops from the fixing hooks (h &...
-
Page 15: After An Accident
After an accident After an accident, the iZi Up and your car seat belts should be replaced. Although they may look undamaged, if you were to have another accident, the iZi Up and your car seat belts may not be able to protect your child as well as they should. -
Page 16: Guarantee
Guarantee All BeSafe products are carefully designed, manufactured and tested. All BeSafe child safety seats are tested periodically out of our continuous production in our test laboratory. Furthermore they are tested by independent test institutes. Should this product prove faulty within 24 months of purchase due to materials or manufacturing fault, except covers, please return it to the original place of purchase. -
Page 17: Warning: Potential Misuse
Warning: Potential misuse Headrest is too Headrest is too Headrest is at the high correct height Incorrect belt installation Correct installation... -
Page 18: Important Advice
Check frequently. DO NOT use anything, such as a cushion or coat, to raise the iZi Up off the passenger seat. In an accident the iZi Up and the car seatbelts will not be able to protect your child as well as they should. - Page 19 DO NOT use any aggresive cleaning products; these may harm the construction material of the iZi Up. DO NOT use the iZi Up at home. The iZi Up is a car safety product We recommend using BeSafe protection cover...
-
Page 20: Point Of Sale Information
If in doubt, consult either the child restraint manufacturer or the retailer. Only suitable if the approved vehicles are fitted with 3-point-belts, approved to UN/ECE Regulation No. 16 or other equivalent standards. for more information: N-3535 Kroederen, Norway www.besafe.eu 2007 - V10.0...
