Summary of Contents for Cypress DCT-9
-
Page 1: Analog Audio

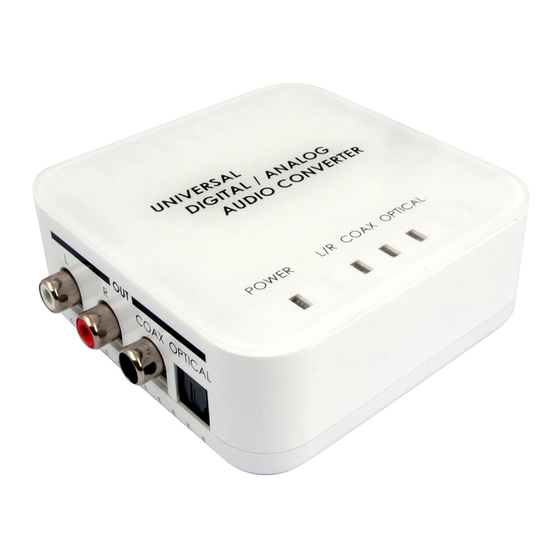

DCT-9 Universal Digital / Analog Audio Converter Operation Manual DCT-9... - Page 2 Cypress also makes no commitment to update or to keep current the information contained in this document. Cypress Technology reserves the right to make improvements to this document and/or product at any time and without notice. Copyright Notice...
-
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents Introduction…………………………………………………..………. Applications……………………..…………………………....…. Package Contents…………………………..…………….....… System Requirements..……………………..….…………..……. Features……………………………………………..……..……… Specifications..………………………………………...………...…. 6.1 Input Audio Reerence Level............6.2 Input Audio with Output Audio Comparison Chart....Operation Controls and Functions………………...……..…….… Top Panel ................. Right Panel …………………………………………..…….… Left Panel ................. Back Panel ……………………………..…………..……...… Connection and Installation …….…………………..…..…..…... -
Page 5: Introduction
1. Introduction This comprehensive audio converter device allows users to make a wide use with audio format and interfaces. With three different types of bidirectional connectors of optical, Coaxial and L/R, this device can convert all three signals into the desire format. Analog audio signal can be converts into digital output and digital audio signal can be converts into analog output. -
Page 6: Specifications
6. Specifications Input Ports Optical, Coaxial and L/R Input Format Toslink, SPIDIF and LPCM 2CH Sample Frequency 32kHz, 44.1kHz, 48kHz and 96kHz Output Ports Coaxial, Optical and L/R L/R Input Impedance 47K Ω L/R Output Impedance 47K Ω ESD Protection Humand body model: ±... -
Page 7: Input Audio With Output Audio Comparison Chart
Input OPTICAL Output Output Signal to Reference Output Reference T.H.D+N Noise Ratio Level/Freq Level 1Vrms ± 0.05 0.01% ↓ >90dB OPTICAL OdBFS COAX 0 dB ± 0.05 0.01% ↓ >90dB 1KHz OPTICAL 0 dB ± 0.05 0.01% ↓ >90dB 6.2 Input Audio with Output Audio Comparison Chart Audio Input Output Output... -
Page 8: Operation Controls And Functions
7. Operation Controls and Functions 7.1 Top Panel UNIVERSAL DIGITAL / ANALOG AUDIO CONVERTER POWER L/R COAX OPTICAL Power: Power LED indicator. When power on the device the LED is green, ① when turn off the device the LED is red. ②... -
Page 9: Left Panel
7.3 Left Panel L/R: Connect to audio equipment ’ s L/R input such like TV or amplifier ① with L/R RCA jack cable. COAX: Connect to audio equipment ’ s coaxial input such like TV or ② amplifier with coaxial cable. OPTICAL: Connect to audio display equipment ’... -
Page 10: Connection And Installation
8. Connection and Installation Coaxial or Optical Amplifier Optical Blue Ray Coaxial Set-top-Box... - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20090810 MPM-DCT9...
