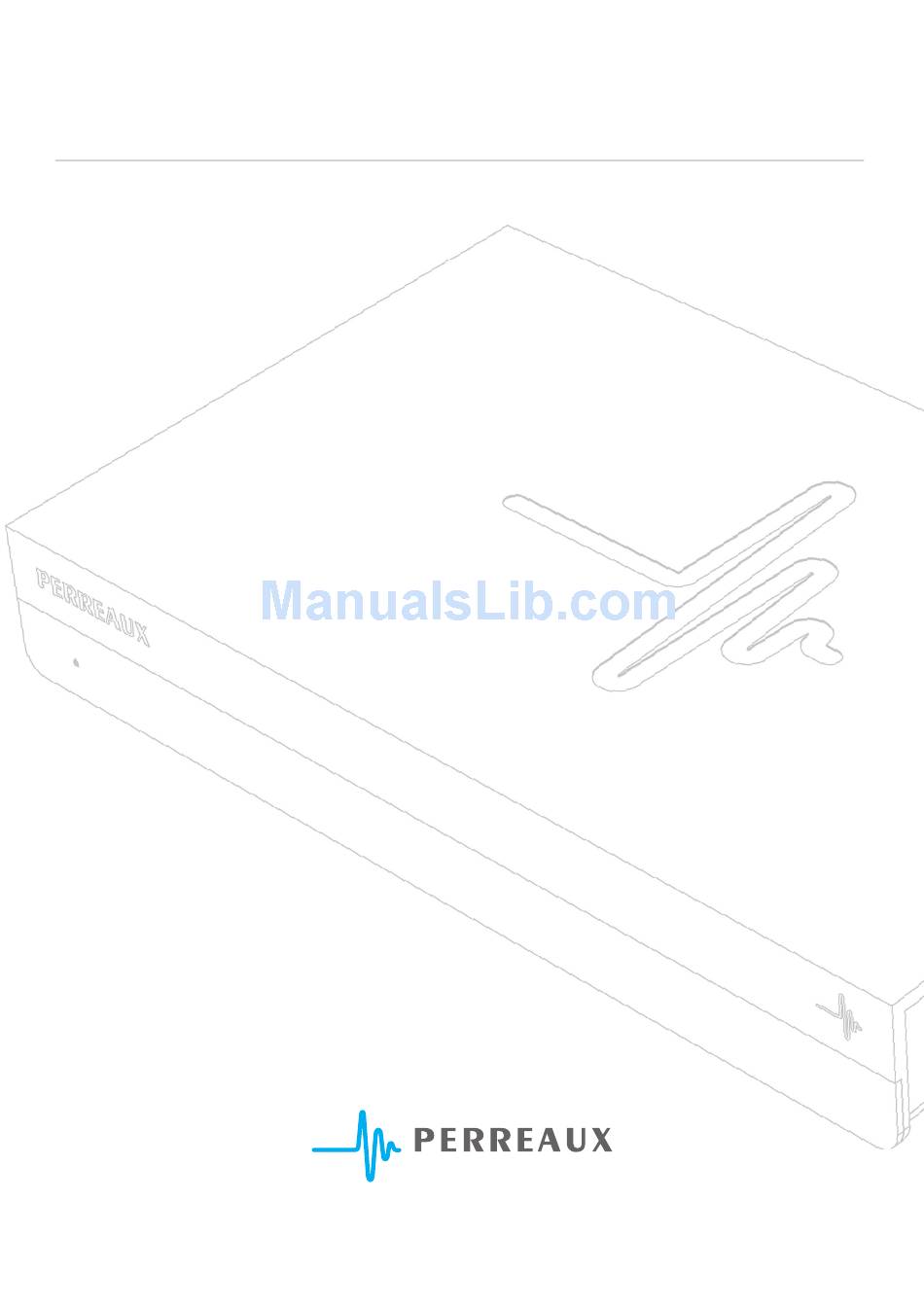

- Page 1 Audiant 100p Stereo Power Amplifier Owners Manual...
-
Page 2: Important Safety Instructions
This device is supplied with a non-rewireable mains plug for the intended country. • Replacement mains leads can be obtained from your Perreaux dealer. Should you need to change the plug please dispose of it carefully. A plug with bared conductors is dangerous if engaged in a live socket. -
Page 3: General Safety Instructions
DO NOT bypass any fuse, replace only with the value and type specified. • DO NOT attempt to repair the device. In the event of a problem, please contact your Perreaux dealer. • DO NOT operate this product in an explosive atmosphere. -
Page 4: Table Of Contents
Perreaux Industries Ltd. assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual. All trademarks and registered trademarks are the property of their respective owners. Perreaux, the Perreaux logo and Audiant are trademarks of Perreaux Industries... -
Page 5: Introduction
Introduction Thank you for choosing this Audiant 100p Stereo Power Amplifier. We sincerely hope it provides you with many years of music listening pleasure. The Audiant 100p is a stereo power amplifier capable of delivering 100W per channel; it incorporates fully balanced input circuitry, a high-current power supply and MOSFET output transistors –... -
Page 6: Installation
Allow at least 80mm (3 inches) above and to each side of the unit and mount the Audiant 100p on a flat surface for air circulation to allow heat to dissipate. -
Page 7: Connecting
The Power switch turns power to the unit on and off. Mains Power Socket The Mains Power Socket is used with the removable mains power cord to supply your Audiant 100p Stereo Power Amplifier with power. Before connecting the 100p to the mains power, please check the voltage label on the rear panel to ensure that your amplifier conforms to the power supply in your area. -
Page 8: Balanced Inputs
This switch is used to select the ‘XLR’ (balanced) or ‘RCA’ (unbalanced) inputs. Trigger Input The trigger input allows the Audiant 100p to be brought in and out of standby by a remotely connected device; for example, another audio component or a home automation system. The trigger input uses 1 / 8 a mono 3.5mm (... -
Page 9: Operation
Operation - Front Panel Standby Button The Standby Button switches the unit between Standby mode (indicated by dim standby LED) and On (indicated by bright standby LED). Standby is a low-power mode where the power consumption is less than 1 Watt. The unit should be left in Standby mode when not in use. -
Page 10: Protection System
Protection System Your Audiant 100p stereo power amplifier is designed to give a lifetime of music listening pleasure, employing protection systems to ensure lasting reliability and give you confidence that your investment will provide lifelong trouble-free enjoyment. The protection system comprises of five main protection methods. In all instances the protection state will be indicated by the standby LED flashing. -
Page 11: Care And Maintenance
Care and Maintenance Notes: Always switch the unit off and remove the power cord from the rear of the unit before attempting to clean your Audiant 100p Stereo Power Amplifier in the manner described below. Never apply liquid directly to the unit. -
Page 12: Technical Specifications
Technical Specifications All specifications are accurate at the time of printing. Perreaux Industries Ltd. reserves the right to adjust specifications without notice. All specifications measured at 240V after a 10 minute warm up period using an Audio Precision ATS-2 Audio Analyser. Measurements taken at 65kHz bandwidth, unless specified otherwise. -
Page 13: Physical Dimensions
Physical Dimensions 67mm (2.6”) 431mm (17.0”) 286mm (11.3”) -
Page 14: Contact Details
Installation Notes Please record the serial number of your Audiant 100p Power Amplifier for future reference. Serial Number: __________________________ _____________________________________________________________________________________________________ _____________________________________________________________________________________________________ _____________________________________________________________________________________________________ _____________________________________________________________________________________________________ _____________________________________________________________________________________________________ _____________________________________________________________________________________________________ _____________________________________________________________________________________________________ _____________________________________________________________________________________________________ _____________________________________________________________________________________________________ _____________________________________________________________________________________________________ Contact Details Perreaux Industries Ltd. PO Box 305 Mosgiel Dunedin 9053... - Page 16 Perreaux Industries Ltd. PO Box 305 Mosgiel Dunedin 9053 New Zealand T: +64 3 489 2975 F: +64 3 489 2976 E: nz.info@perreaux.com W: www.perreaux.com...
