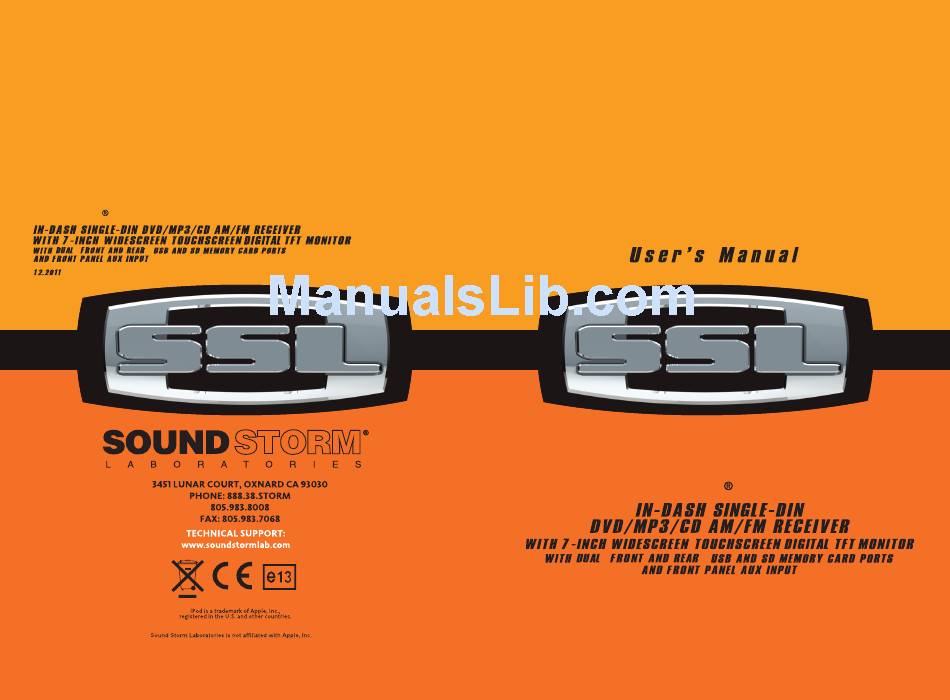

Sound Storm SD720MI User Manual

Full ipod control in-dash single-din dvd/mp3/cd am/fm receiver with 7-inch widescreen touchscreen digital tft monitor with dual (front and rear) usb and sd memory card ports and front panel aux input
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SD720MI
Full iPod Control
(
)
SD720MI
Full iPod Control
(
)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SD720MI and is the answer not in the manual?

Questions and answers

Related Manuals for Sound Storm SD720MI

Summary of Contents for Sound Storm SD720MI

  • Page 1 SD720MI Full iPod Control SD720MI Full iPod Control...
  • Page 2 INSTRUCTIONS INSTRUCTIONS ACCESSORY CONTENTS Accessory Quantity Panel Introduction Wire Basic Functions Remote Control Function USB Cable Turn the Unit On/Off Enter into the Main Interface Keys 2PCS Play SD card/USB memory device Remote controller Radio Function Operation Disc Function Operation Warranty card 2PCS Play/Eject Disc...

  • Page 3: Panel Arrangement

    INSTRUCTIONS INSTRUCTIONS PANEL ARRANGEMENT SD720MI OPEN 2/RPT 3/RDM MODE MUTE SD720MI This unit is with switchable frequency. You can switch from USA frequency to Europe frequency by following the below steps: OPEN Step1. In main menu, press setup icon to enter the setup interface.

  • Page 4: Basic Function

    INSTRUCTIONS INSTRUCTIONS BASIC FUNCTION TROUBLE SHOOTING PROBLEM CAUSE SOLUTION Check fuse Change fuse same as the old one Cannot power on Some factors cause MPU Press RES button on the panel by wrong operation penpoint, then, power on After ignition switch Change battery or fuse off ,setting Reset information and save...

  • Page 5: Wiring Diagram

    INSTRUCTIONS INSTRUCTIONS WIRING DIAGRAM This player is equipped with ISO standard connector, please follow below instruction: Red - ACC ON (+12V) Grey/Grey black - Right front speaker (+/-) ● ● ● White/White black - Left front speaker (+/-) ● Yellow – 12 V Constant Purple/Purple black - Right rear speaker (+/-) Black –...

  • Page 6: Remote Control Function

    INSTRUCTIONS INSTRUCTIONS REMOTE CONTROL FUNCTION CLASSIC 6.SEEK+ ( )/ SEEK- ( )button In normal playback MP3, USB, SD songs, press this button to previous song or next song.
  • Page 7 INSTRUCTIONS INSTRUCTIONS Audio setting Click icon on setup interface to access audio setting interface, as shown in right(PIC 1) diagram: You can turn on or turn off the existing functions on audio setting interface. PIC 1 Steering wheel setting I. Click icon on setup interface so as to access steering wheel setting interface.
  • Page 8 INSTRUCTIONS INSTRUCTIONS Access setup interface Turn on/off Host Click [Setup] icon on main interface to access setup interface. When the ignition switch is put in ACC or ON position,Press[ ] button on the front panel General setting to turn on the unit.After the host starts, hold [ ]button for 3 seconds , the host will turn off.
  • Page 9 INSTRUCTIONS INSTRUCTIONS iPod function operation Radio Function Operation Connect to iPod first, touch [iPod] icon on main interface to access iPod interface, as Enter/exit shown in below diagram. Touch [ RADIO ] icon in the main interface to enter into the radio interface. MY IPOD Touch icon to return to main interface, and then touch other function icons so as to exit...
  • Page 10 INSTRUCTIONS INSTRUCTIONS Disc Function Operation Access next menu Touch it to access the next menu interface. Play/eject disc Time setting Play disc Touch this button to access time setting interface. Insert the disc into the disc slot with the printing surface up, system will detect the disc and automatically take it in to read and play.
