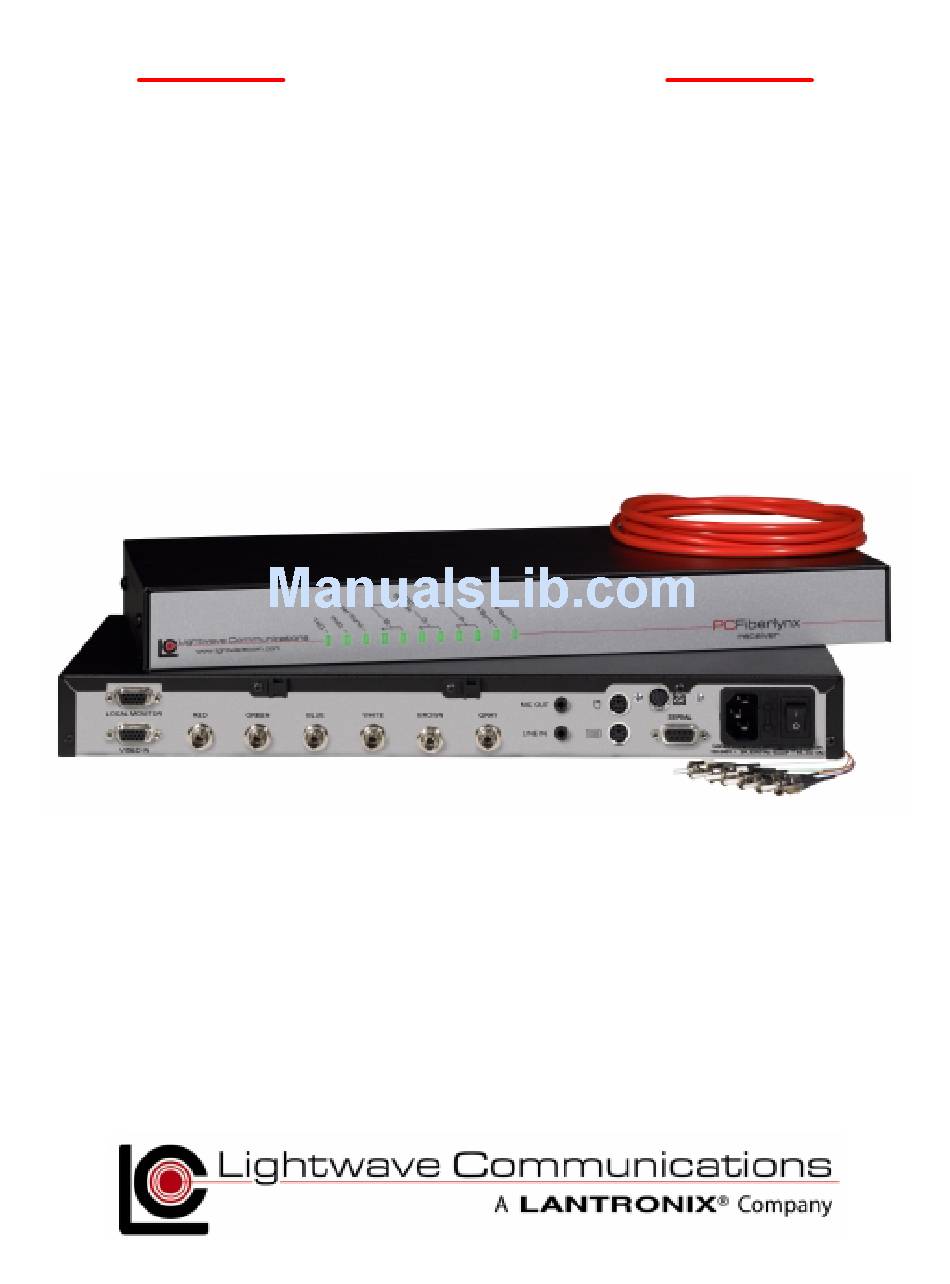

- Page 1 PCFiberlynx PC Fiberlynx KVM Extension System User Guide Part Number 15.00.018 Revision B January 2002...
- Page 2 Lightwave Communications Copyright & Trademark © 2002, Lightwave Communications, a Lantronix Company. All rights reserved. No part of the contents of this book may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Printed in the United States of America. Also electronically distributed via Adobe PDF file format.
- Page 3 Changes or modifications to this device not explicitly approved by Lantronix will void the user's authority to operate this device. The information in this guide may change without notice. The manufacturer assumes no responsibility for any errors that may appear in this guide.
-
Page 4: Declaration Of Conformity
PC Fiberlynx PC Fiberlynx User Guide User Guide Lightwave Communications Lightwave Communications PC Fiberlynx PC Fiberlynx User Guide User Guide Lightwave Communications Lightwave Communications Declaration of Conformity (according to ISO/IEC Guide 22 and EN 45014) Manufacturer’s Name & Address: Lightwave Communications, 100 Washington Street, Milford, CT 06460 USA Declares that the following product: Product Name &... -
Page 5: Table Of Contents
A Lantronix Company PC Fiberlynx User Guide PC Fiberlynx User Guide PC Fiberlynx User Guide PC Fiberlynx User Guide Table of Contents 1: System Overview_______________________________________________________1-1 2: Installation ____________________________________________________________2-2 Desktop Use _______________________________________________________2-2 Rack Mount _______________________________________________________2-2 Elevated Operating Ambient Temperature ________________________________2-3 Reduced Air Flow___________________________________________________2-3... - Page 6 PC Fiberlynx PC Fiberlynx User Guide User Guide Lightwave Communications Lightwave Communications PC Fiberlynx PC Fiberlynx User Guide User Guide Lightwave Communications Lightwave Communications For Your Notes www.lightwavecom.com...
-
Page 7: 1: System Overview
A Lantronix Company PC Fiberlynx User Guide PC Fiberlynx User Guide PC Fiberlynx User Guide PC Fiberlynx User Guide 1: System Overview The PCFiberlynx from Lightwave Communications is an inexpensive fiber optic extension system for PC-compatible or SUN computers. A user may be located up to 1000 meters from the CPU and have complete interaction with the CPU through keyboard, mouse, serial, video, and audio devices. -
Page 8: 2: Installation
PC Fiberlynx User Guide PC Fiberlynx User Guide Lightwave Communications Lightwave Communications PC Fiberlynx User Guide PC Fiberlynx User Guide Lightwave Communications Lightwave Communications 2: Installation Do not open the PCFiberlynx chassis; there are no user-serviceable parts inside. Desktop Use Installation of the PCFiberlynx is simple and requires no special tools for desktop use. -
Page 9: Elevated Operating Ambient Temperature
A Lantronix Company PC Fiberlynx User Guide PC Fiberlynx User Guide PC Fiberlynx User Guide PC Fiberlynx User Guide If rack-mounting the PC Fiberlynx system, the following considerations may apply: Elevated Operating Ambient Temperature If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than the room ambient temperature. -
Page 10: Connecting Fiber Optic Cable
PC Fiberlynx User Guide PC Fiberlynx User Guide Lightwave Communications Lightwave Communications PC Fiberlynx User Guide PC Fiberlynx User Guide Lightwave Communications Lightwave Communications The PC/SUN models of PC Fiberlynx (part numbers 200.100.01xx) are similar to the PC-only version (part numbers 200.100.02xx). The difference is the SUN keyboard and mouse connection is made using a single MiniDIN-8 cable, rather than two PS/2 cables. -
Page 11: Connecting The Cpu
A Lantronix Company PC Fiberlynx User Guide PC Fiberlynx User Guide PC Fiberlynx User Guide PC Fiberlynx User Guide Connecting the CPU Connecting the PC Fiberlynx is simple as it uses industry-standard connectors for each end of the connection: at the CPU end, and at the remote or User end. Both models of PC Fiberlynx will connect in a similar fashion at both ends;... -
Page 12: Ps/2-Only Model
PC Fiberlynx User Guide PC Fiberlynx User Guide Lightwave Communications Lightwave Communications PC Fiberlynx User Guide PC Fiberlynx User Guide Lightwave Communications Lightwave Communications PS/2-Only model PCFiberlynx (PS/2 Only) transmitter Place the CPU with the PCFiberlynx transmitter. Connect the keyboard and mouse ports of the CPU to the keyboard and mouse ports of the PCFiberlynx transmitter using the provided 6 pin mini-DIN cables. -
Page 13: 2.6 Connecting The User Peripherals
A Lantronix Company PC Fiberlynx User Guide PC Fiberlynx User Guide PC Fiberlynx User Guide PC Fiberlynx User Guide 2.6 Connecting the User Peripherals Like the Transmitter end, both models of PC Fiberlynx receiver will connect in a similar fashion;... -
Page 14: Auxiliary Monitors
PC Fiberlynx User Guide PC Fiberlynx User Guide Lightwave Communications Lightwave Communications PC Fiberlynx User Guide PC Fiberlynx User Guide Lightwave Communications Lightwave Communications Auxiliary Monitors The PC Fiberlynx installation supports a total of three monitors when installed. All monitors will have the same video information displayed. -
Page 15: 3: Operation
A Lantronix Company PC Fiberlynx User Guide PC Fiberlynx User Guide PC Fiberlynx User Guide PC Fiberlynx User Guide 3: Operation Once the CPU is operating, the PCFiberlynx will be transparent to the user. It will appear as though the user peripherals are directly attached to the CPU. - Page 16 PC Fiberlynx User Guide PC Fiberlynx User Guide Lightwave Communications Lightwave Communications PC Fiberlynx User Guide PC Fiberlynx User Guide Lightwave Communications Lightwave Communications label appearance status action blinking normal green solid red or not receiving data check fiber connections orange cycle power on both units Master...
- Page 17 A Lantronix Company PC Fiberlynx User Guide PC Fiberlynx User Guide PC Fiberlynx User Guide PC Fiberlynx User Guide Receiver Unit label appearance status action blinking normal green solid green unit not transmitting cycle power data blinking normal green solid red or...
- Page 18 PC Fiberlynx User Guide PC Fiberlynx User Guide Lightwave Communications Lightwave Communications PC Fiberlynx User Guide PC Fiberlynx User Guide Lightwave Communications Lightwave Communications label appearance status action red or high gain mode check fiber connection orange marked “GREEN” check fiber distance between stations Video R normal...
-
Page 19: Serial Port Pinouts
A Lantronix Company PC Fiberlynx User Guide PC Fiberlynx User Guide PC Fiberlynx User Guide PC Fiberlynx User Guide 4: Appendix A Serial Port Pinouts Transmitter Serial Connector Receiver Serial Connector DB9 Female DB9 Male Serial Input Serial Output RS-232... -
Page 20: Physical
PC Fiberlynx User Guide PC Fiberlynx User Guide Lightwave Communications Lightwave Communications PC Fiberlynx User Guide PC Fiberlynx User Guide Lightwave Communications Lightwave Communications 5: Appendix B Specifications Physical Width: 16.25 inches (41.2 cm) Depth: 6.875 inches (7.5 cm) Height: 1.75 inches (4.4 cm) Shipping weight: 20 pounds (9.1 kg) -
Page 21: Interface
A Lantronix Company PC Fiberlynx User Guide PC Fiberlynx User Guide PC Fiberlynx User Guide PC Fiberlynx User Guide Interface B.5.1 Video Connector: HD15 female (VGA) Sync format: separate horizontal and vertical Maximum resolution: 1280 x 1024 B.5.2 Keyboard and Mouse...
