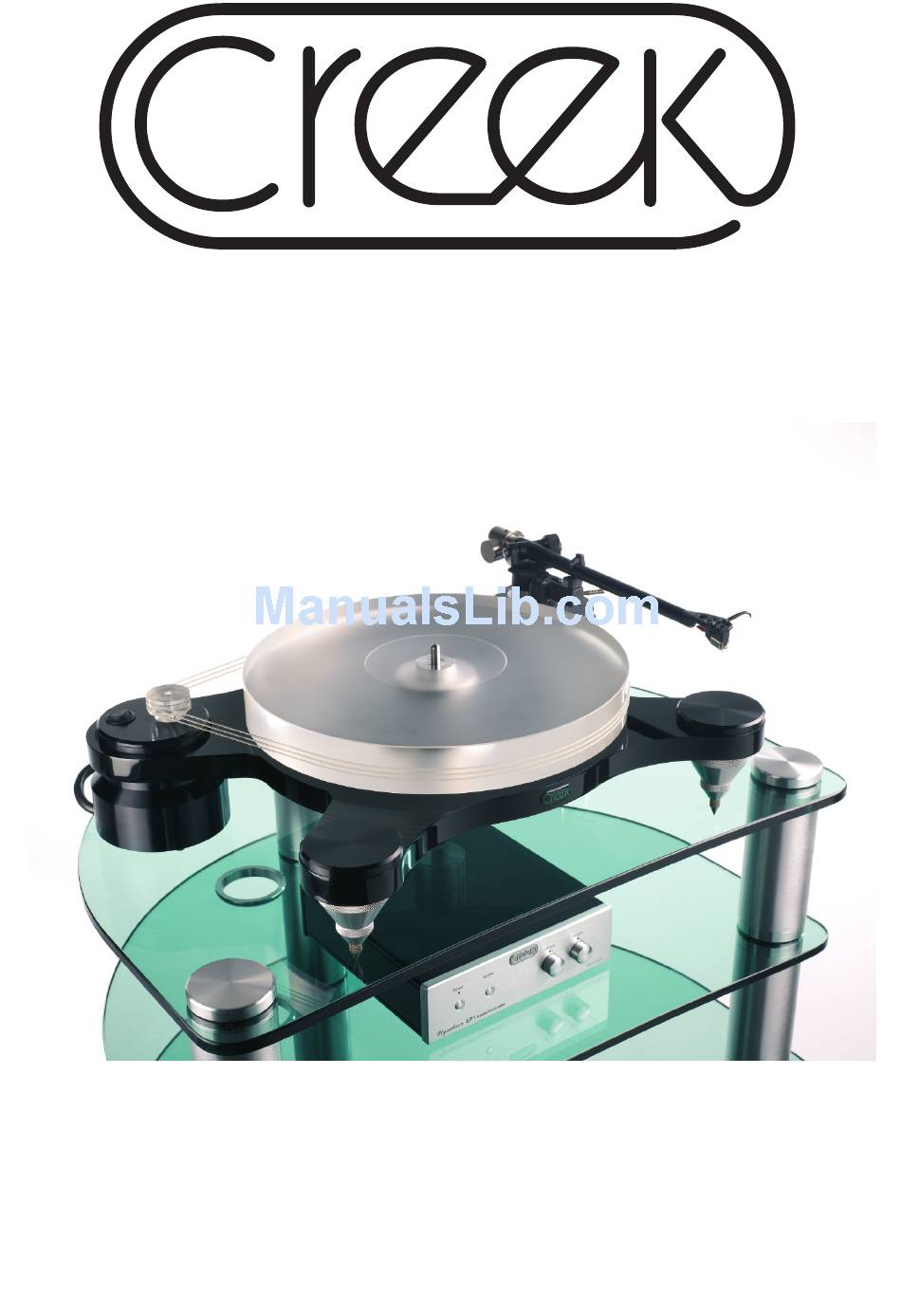

- Page 1 Wyndsor Turntable Assembly Instructions...
- Page 2 Contents of the Packing Case Platter Base, with 3 adjustable feet already fitted Motor, with pulley fitted and power cable Speed controller Creek OBH-Uni power supply Spike washers 2 alternative size arm mounting adjustment rings - 24mm and 25mm Spare oil Bearing...
- Page 3 Please take time to read this manual thoroughly before assembling your turntable, as incorrect assembly could result in damage. The Wyndsor turntable and LP1 speed controller have been designed by Mike Creek to celebrate 25 years as a manufacturer of hi-fi equipment.
- Page 4 For photographic purposes we have chosen to use the Rega RB300 and Goldring MM cartridge. The turntable is mounted on the Creek AR4 rack, which not only supports the turntable but also isolates the vibrations that cause feedback.
- Page 5 It can be adjusted later after everything is in place. (The belts are fitted at a later stage). The Wyndsor turntable accepts many different tonearms. The adjustment ring fitted is 23mm - however two different sizes are included - 24mm and 25mm. Be sure to use the correct one for your tonearm.
- Page 6 Assembly Instructions Cont’d. With the set-up near to completion, lift the feet up individually and place the small metal washer under each spike. This is optional, depending on the surface. Certain surfaces, like the glass one shown, could let the spikes slip. A very small piece of Blu-Tack or other sticky material will help to secure the position of the washers.
- Page 7 It will be necessary to plug the RCA plugs from the tone arm into an appropriate amplifier fitted with a Phono pre-amp, set for either MM or MC cartridge matching. Creek Audio manufactures both moving magnet and moving coil phono pre-amplifiers. Page Seven...
- Page 8 Drive Unit Low voltage AC synchronous motor Platter Bearing Inverted ceramic shaft with polished ball Drive Belts Custom made silicon belts, available from Creek Audio Warranty 5 years Creek Audio Limited 12 Avebury Court Mark Road Hemel Hempstead HP2 7TA England Tel: +44 (0) 1442 260146 E-mail: info@creekaudio.com...
