External Appearance Diagram - Toshiba Ik-Hr1Cs Instruction Manual

Camera control unit
Hide thumbs Also See for IK-HR1CS:

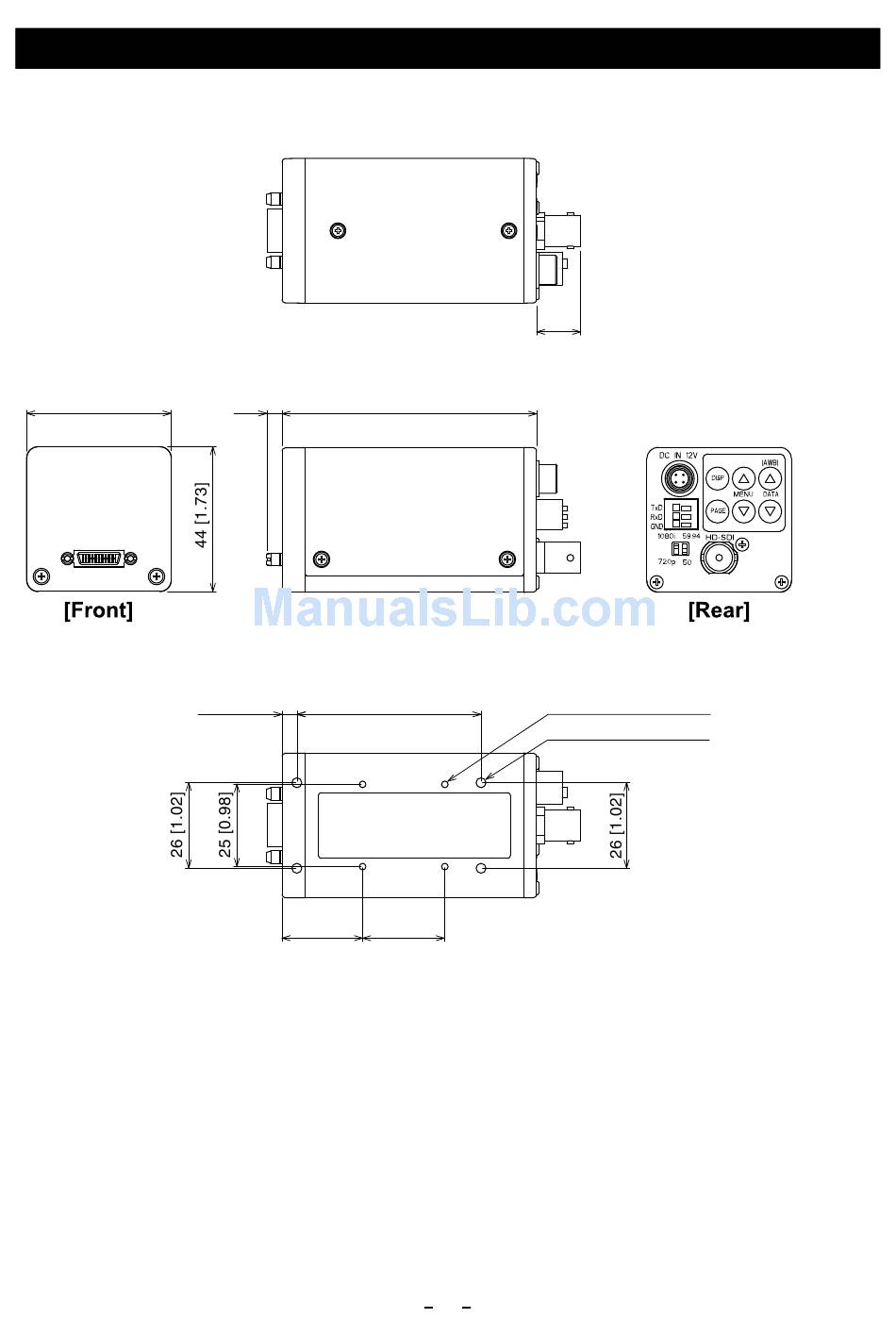

10. EXTERNAL APPEARANCE DIAGRAM

Unit : mm [inch]
13.4
[0.53]
4.5 [0.18]
77.4 [3.05]
44 [1.73]
56 [2.2]
4.5 [0.18]
4-M2 Depth 3 [0.118]
4-M3 Depth 3 [0.118]
24.5 [0.96]
25 [0.98]
