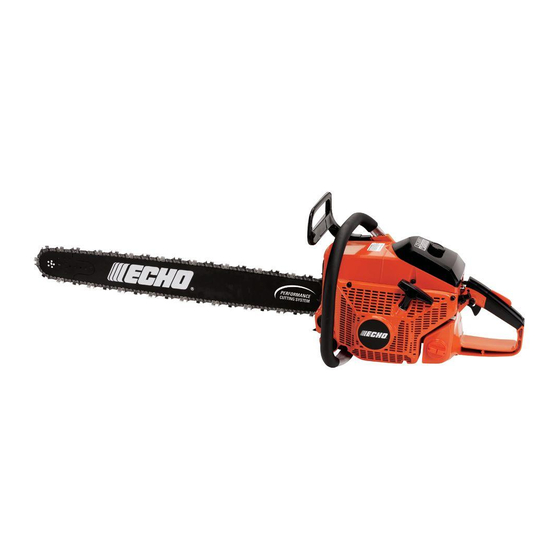

Echo CS-8000 Parts Catalog
  1. Manuals
  2. Brands
  3. Echo Manuals
  4. Chainsaw
  5. CS-8000
  6. Parts catalog

Echo CS-8000 Parts Catalog

Type 1e, 80.7 cc
