- Page 1 Therapeutic Infrared Heat BioSmart ® Owner’s Manual Therapeutic infrared heating systems for a green, healthy environment Save these Instructions Includes: Application Guidelines User Information & Guidelines Operating Instructions Warranty & Servicing For Model BIO-1500PCPremium Classic Edition and Model BIO-1500PB Basic Edition...
- Page 2 Page 1 BioSmart® BIO-1500PCPremium Classic BioSmart® BIO-1500PB Basic Customer/Warranty Service: 800-595-9605...
-
Page 3: Table Of Contents
Page 2 Table of Contents BioSmart® Saves You Money Comfort Levels & Therapeutic Benefits Energy Saving Benefits BioSmart® Heater Features & Functions - 1500PCP BioSmart® Heater Features & Functions - 1500PB Use Restrictions Unpacking & Heater Care Suggestions for Best Performance Operating Instructions at a Glance Detailed Operating Instructions - 1500PB Maintenance Instructions - 1500PCP &... -
Page 4: Biosmart® Saves You Money
Page 3 Congratulations on Your Purchase! Congratulations on purchasing your BioSmart® Therapeutic Quartz Far Infrared Heater! One of the best things about using your new BioSmart Therapeutic Quartz Far ® Infrared Heater is the money you will save on gas and electric bills. Utility field tests show that BioSmart Quartz Far Infrared Heaters ®... - Page 5 Page 4 pollute the air with impurities. This protects the natural humidity level and produces a soft, ion-balanced heat. Using this soft far infrared heat is a better, more comfortable and more healthy way to heat a room. There are also many therapeutic benefits that can be attributed to far infrared heat.
-
Page 6: Comfort Levels & Therapeutic Benefits
Page 5 Why Use a BioSmart® Heater What is Infrared Heat & How Does it Work? Infrared heat, by virtue of its shorter wave length, is able to penetrate solid objects faster than radiant heat. The advantages of infrared heat have been utilized for years as a therapeutic treatment for cardiovascular and general circulation problems. - Page 7 Page 6 This makes far infrared heat the most cost-efficient solution for a supplemental heating source for heating your entire home. If you really want to save on energy costs, the cost of heating with BioSmart far infrared heat is going to be spectacular. ®...
-
Page 8: Biosmart® Heater Features & Functions - 1500Pcp

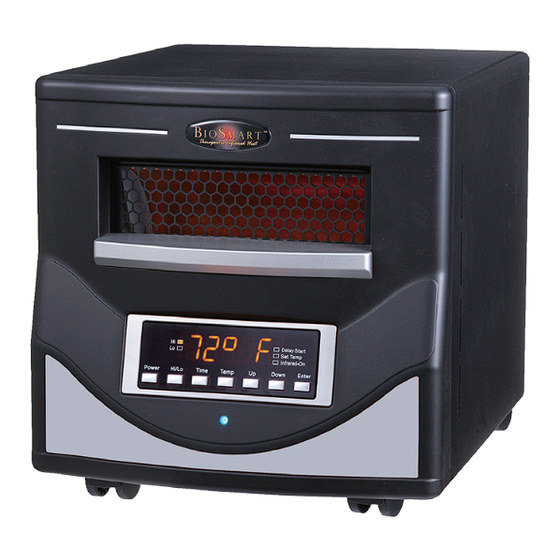

Page 7 BioSmart® Heater Features & Functions Model BIO-1500PCPremium Front of Heater Back of Heater *LED Display (Temp/Timer) *Control Panel Front Grill (Exhaust) Handle Electrostatic Filter (Intake) Cord Wrap Caster Wheels Cabinet *Control Panel & LED Display Remote Enter Down Temperature Time Hi/Lo... -
Page 9: Biosmart® Heater Features & Functions - 1500Pb
Page 8 BioSmart® Heater Features & Functions Model BIO-1500PB Front of Heater *LED Display (Temp) *Control Panel Front Grill (Exhaust) Caster Wheels Cabinet Back of Heater Handle Electrostatic Filter (Intake) Cord Wrap *Control Panel & LED Display ©2010 BioSmart Technologies... -
Page 10: Use Restrictions
Page 9 WARNING IMPROPER USE OF THIS HEATER COULD RESULT IN RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS WARNING ANY REQUIRED SERVICE OTHER THAN FILTER MAINTENANCE SHOULD ONLY BE PERFORMED BY AN AUTHORIZED SERVICE REPRESENTATIVE CAUTION: RISK OF ELECTRICAL SHOCK DO NOT OPEN NO USER-SERVICEABLE PARTS INSIDE USE RESTRICTIONS... -
Page 11: Unpacking & Heater Care
Page 10 Unpacking Your New BioSmart® Heater 1. INSPECT the package for any obvious damage. 2. UNPACK the heater: cut open taped box edges, fold back box flaps. Gently turn entire box upside down; lift box from protective packaging. 3. REMOVE the protective packaging materials and turn upright; find a level and unobstructed location to place the unpacked heater. -
Page 12: Suggestions For Best Performance
Page 11 Suggestions for Best Performance To assure maximum performance of your BioSmart® heater, please review the following recommendations: • Do not locate the heater in an area with a high air exchange rate in and out of the room. Heat produced should be contained in the room. •... -
Page 13: Operating Instructions At A Glance
Page 12 Operating Instructions at a Glance Turning Power On Press the POWER button on the left side of the Control Panel. The heater’s quartz heating elements will light up inside the heater. After a few minutes, once the air within the heater is warm, the heater fan will begin to operate. Turning Power Off Press the POWER button located on the left side of the Control Panel. -
Page 14: Detailed Operating Instructions - 1500Pb
Page 13 Detailed Operating Instructions (1500PB) Turning Power On 1. Press the POWER button on the left side of the Control Panel. The heater’s quartz heating elements will light up inside the heater. 2. After a few minutes, once the air within the heater is warm, the heater fan will begin to operate. -
Page 15: Maintenance Instructions - 1500Pcp & -Pb
Page 14 Maintenance Instructions (1500PCP & -PB) The only maintenance that is required for the heater is the periodic cleaning of the heater’s electrostatic filter (located at the back of the unit). This cleaning should be performed at least once a month, or as dust becomes visible on the filter, to ensure efficient operation of the heater. -
Page 16: Detailed Operating Instructions - 1500Pcp
Page 15 Detailed Operating Instructions (1500PCP) Turning Power On 1. Press the POWER button on the left side of the Control Panel. The heater’s quartz heating elements will light up inside the heater. 2. After a few minutes, once the air within the heater is warm, the heater fan will begin to operate. -
Page 17: Setting The Timer
Page 16 Detailed Operating Instructions (1500PCP) Setting the Timer This feature allows you to set a future time for the heater to turn itself on. For example, if you set the time for 1 hour, the heater will turn on in 1 hour. 1. -
Page 18: Frequently Asked Questions
Page 17 Frequently Asked Questions Q. Why is my heater still running after I have turned it off? A. You will hear the heater fan running after you have turned the power off—this is to allow the heater to cool down, protecting the unit’s components from overheating. -
Page 19: Troubleshooting Your Biosmart® Heater
Page 18 Troubleshooting Your BioSmart® Heater Problem Solution Make sure the electrostatic filter is clean (see Maintenance). The heater’s airflow has Check front grill and look behind rear air intake been reduced. for any objects that could obstruct airflow. If the heater’s airflow is still diminished or has stopped, please call Customer Support. -
Page 20: Biosmart® Heater Specifications - 1500Pcp
Page 19 BioSmart® Heater Specifications (1500PCP) Model BIO-1500PCP—Plastic Cabinet • Cabinet: ABS 94-VO fire retardant nylon/ plastic—black with simulated wood trim • Weight: 21.0lbs • Dimensions: 14” x 13 ½” x 16 ½” H,W,D • Power Requirements: 120 Volt AC •... -
Page 21: Biosmart® Heater Specifications - 1500Pb
Page 20 BioSmart™ Heater Specifications (1500PB) Model BIO-1500PB—Plastic Cabinet • Cabinet: ABS 94-VO fire retardant nylon/ plastic—black with silver trim • Weight: 21.0lbs • Dimensions: 14” x 13 ½” x 16 ½” H,W,D • Power Requirements: 110 Volt AC • Power Consumption: 12.5A, 1500W •... -
Page 22: Diagram Of Biosmart® Heater - 1500Pcp
Page 21 Diagram of BioSmart® Heater (1500PCP) Parts List 19. Temp Sensor Cover 1. Control Panel 20. Top Sheet Metal Panel 2. Register Trim Piece 21. High Limit Switch 3. Control Panel Support (x2) 22. IR Bulb Cover (x4) 4. Main Sheet Metal Body 23. -
Page 23: Diagram Of Biosmart® Heater - 1500Pb
Page 22 Diagram of BioSmart® Heater (1500PB) Parts List 19. Temp Sensor Cover 1. Control Panel 20. Top Sheet Metal Panel 2. Register Trim Piece 21. High Limit Switch 3. Control Panel Support (x2) 22. IR Bulb Cover (x4) 4. Main Sheet Metal Body 23. -
Page 24: Calibration Procedure For The Thermostat - 1500Pcp & -Pb
Page 23 Calibration Procedure for the Thermostat You can change the internal thermostat setting on the heater if it appears that it does not match your wall thermometer. To accomplish this, follow the instructions below: • 1500PB Model: Press POWER & UP simultaneously. The internal thermostat setting will appear on the display. -
Page 25: Electrical Schematics - 1500Pcp & -Pb
Page 24 Electrical Schematic (1500PCP) BLUB ROUND CONTACTS BULB CONNECTORS Terminal Block-1 400 01 40 00 5 4 00 0 6 4 00 0 7 40009 4 0 00 8 40010 40011 40012 40 00 1 Fan switch Temperature 40 004 switch 4 0 0 2 8 40 0 27... -
Page 26: Warranty & Service Information
Page 25 Warranty & Service Information Three-Year Limited Warranty BIOSMART TECHNOLOGIES (BT) warrants this product, to the original purchaser or gift recipient, to be free from defects in workmanship and materials under normal use and service, for a period of one year from the date of purchase. BT further war- rants the infrared heating elements and fan motors, to the origi- nal purchaser or gift recipient, for a period of two additional years from the date of purchase. -
Page 27: Warranty & Service Information
Page 26 Warranty & Service Information (continued) IN NO EVENT SHALL BT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFIT, OR MEDICAL EXPENSES CAUSED BY ANY DEFECT, FAILURE, MISUSE, OR MALFUNCTION OF THE PRODUCT. Note: Some jurisdictions do not allow the exclusion of limita- tion of incidental or consequential damages, so the above limitation or exclusion may not apply to you. - Page 28 BioSmart® Heaters Green Technology for a Modern World North American Distribution and Sales BioSmart Technologies 18324 Cook Road, Suite 1 Yelm, Washington 98597 Customer/Warranty Service: 800-595-9605 www.biosmartsolutions.com...
