Inserting the HDD

(with no HDD currently installed)
1) Place the HDD into the computer in its appropriate spot, making sure to
align the HDD connector with the socket on the mainboard (figure 2-9).
2) Connect the HDD connector securely to the mainboard by gently pressing
the HDD on to the mainboard.
3) Insert and tighten the 3 screws which hold the HDD on the mainboard.
4) Reinstall the keyboard.
1. HDD
2. HDD tab
3. HDD connector
4. HDD socket on mainboard.
2
3
1
4

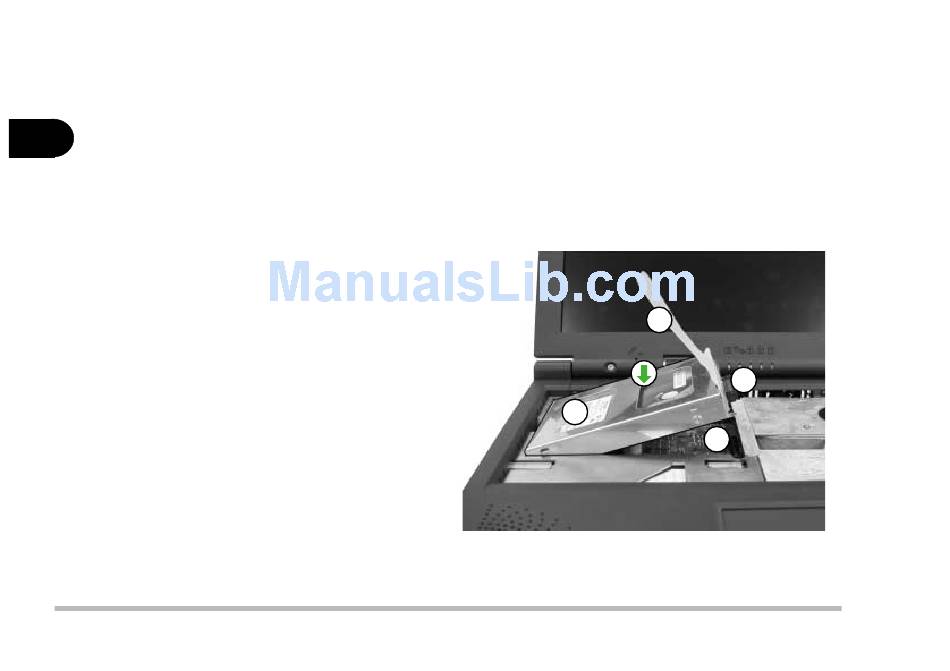

figure 2-9
