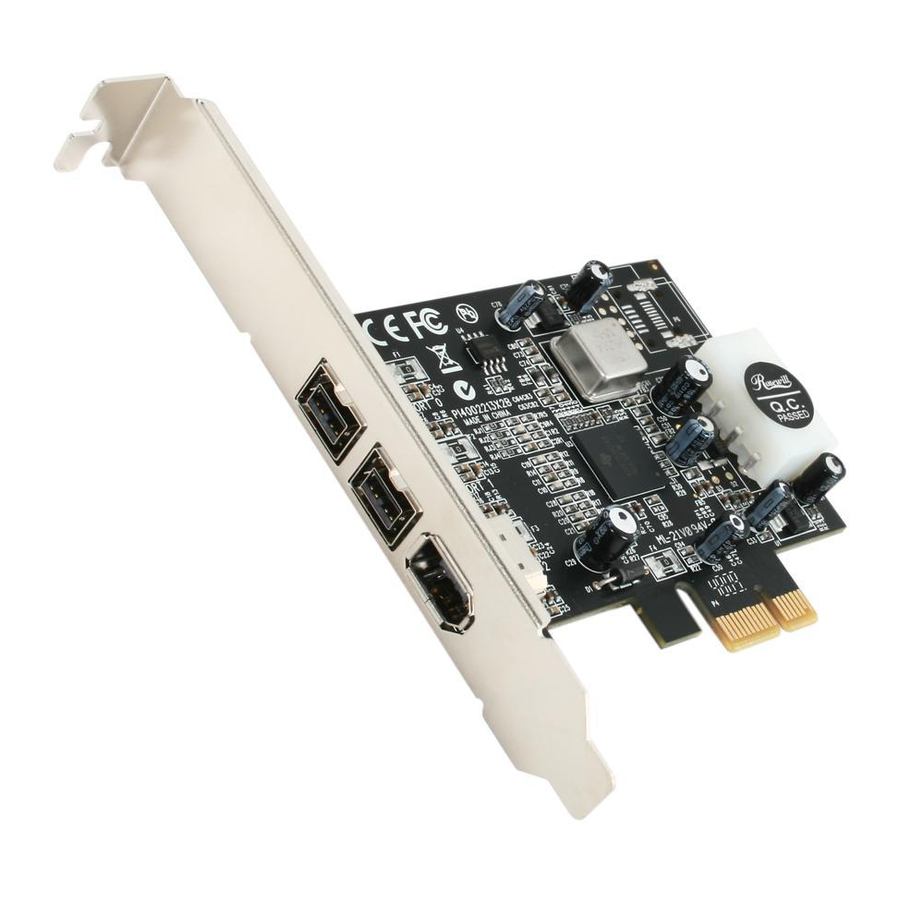

- Page 1 1394a+b PCI Express Card 3 Ports RC-506E User Manual...
-
Page 2: Features And Benefits
1394a+b PCI Express Card 3 Ports RC-506E User Manual Features and Benefits Provides two FireWire 800 (1394b) ports and one 1394a (6-pin) port for multiple 1394b/1394a devices connections Supports data transfer rates of 100, 200, 400 and 800 Mbps ... - Page 3 1394a+b PCI Express Card 3 Ports RC-506E User Manual Optional Accessories IEEE 1394b Cable Ulead Video Studio CD Board Layout...
-
Page 4: Hardware Installation
1394a+b PCI Express Card 3 Ports RC-506E User Manual Hardware Installation 1. Turn Off the power to your computer. 2. Unplug the power cord and remove your computer’s cover. 3. Remove the slot bracket from an available PCIe slot. 4. To install the card, carefully align the card’s bus connector with the selected PCIe slot on the motherboard. - Page 5 Scroll to the IEEE 1394 Bus host controllers icon and click on the plus symbol, the Texas Instruments OHCI Compliant IEEE 1394 Host Controller should be displayed. Thank you for purchasing a quality Rosewill Product. Please register your product at : www.rosewill.com for complete warranty information and future support for your product.
