  • Page 1 Built-In Electric Oven EOB53000...
  • Page 2 We were thinking of you when we made this product...
  • Page 3 Thank you for choosing a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. The Electrolux ambition is to offer a wide variety of quality products that make your life more comfortable.
  • Page 4: Table Of Contents

    4 electrolux contents Contents Safety instructions Description of the Appliance Before Using for the first time Using the Oven Uses, Tables and Tips Cleaning and Care What to do if … Installation Instructions Disposal Guarantee/Customer Service Service The following symbols are used in this user manual: Important information concerning your personal safety and information on how to avoid damaging the appliance.
  • Page 5: Safety Instructions

    5 Child Safety • Never leave children unsupervised when the appliance is in use. Safety whilst using Safety instructions • People (including children) who, be- cause of their physical, sensory or mental capabilities or their inexperi- Electrical safety ence or ignorance are not able to use •...
  • Page 6 6 electrolux safety instructions How to avoid damage to the appliance • Do not line the oven with aluminium foil and do not place baking trays, pots, etc. on the oven floor, as the heat that builds up will damage the oven enamel.
  • Page 7: Description Of The Appliance

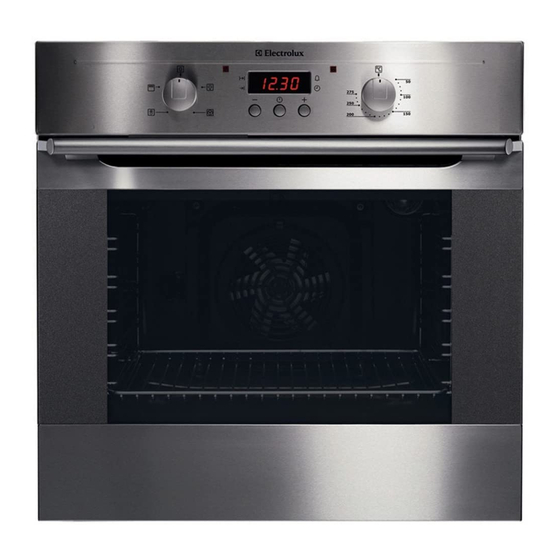

    7 Description of the Appliance General Overview Control panel Door handle Full glass door...
  • Page 8: Control Panel

    8 electrolux description of the appliance Control Panel Oven Power Indicator Temperature Pilot Light Time display Clock function buttons Oven Functions Temperature selector...
  • Page 9: Oven Features

    9 Oven Features Top heat and heating elements Oven lighting Shelf positions Fat Filter Fan heating element Bottom Heat Oven accessories Oven shelf For cookware, cake tins, roasts and grilled foods. Drip pan For roasting or for collecting fat...
  • Page 10: Before Using For The First Time

    10 electrolux before using for the first time Before Using for the first time Setting and changing the time The oven only operates when the time has been set. When the appliance has been con- nected to the electrical supply or...
  • Page 11: Initial Cleaning

    11 Initial Cleaning Before using the oven for the first time you should clean it thoroughly. Caution: Do not use any caustic, abrasive cleaners! The surface could be damaged. To clean metal fronts use commer- cially available cleaning agents.
  • Page 12: Using The Oven

    12 electrolux using the oven Using the Oven Switching the Oven On and Off Oven Power Indicator Temperature Pilot Light Oven Functions Temperature selector 1. Turn the oven functions dial to the desired function. 2. Turn the temperature selector to the Cooling fan desired temperature.
  • Page 13: Oven Functions

    13 Oven Functions The oven has the following functions: Oven function Application Light Using this function you can light up the oven interior, e.g. for cleaning. Convection with For baking on up to three oven levels at the same time.
  • Page 14 14 electrolux using the oven Inserting the oven shelf and roasting tray Inserting the roasting tray: The tray has a small indentation on the left and right. This indentation serves as an anti-tip device and must always point towards the back of the oven.
  • Page 15: Inserting/Removing The Fat Filter

    15 Inserting/Removing the Fat Filter Only use the fat filter when roasting to protect the rear heating elements from fat splashes. Inserting the fat filter Hold the fat filter by the grip and insert the two mounts downwards into the opening on the rear wall of the oven (fan opening).
  • Page 16: Clock Functions

    16 electrolux using the oven Clock Functions Function Indicators Time display Function Indicators Selector Button Button Button Countdown To set a countdown. A signal sounds af- ter the time has elapsed. This function does not affect the func- tioning of the oven.
  • Page 17 17 How to use the clock functions • After a function has been selected, the corresponding function indicator flashes for about 5 seconds. During this period, the desired times can be set using the button. • When the desired time has been set, the function indicator continues to flash for approx.
  • Page 18 18 electrolux using the oven Countdown 1. Press the Selection button re- peatedly until the function indicator Countdown flashes. 2. Using the button set the de- sired Countdown (max. 2 hours 30 minutes). After approx. 5 seconds the display shows the time remaining.
  • Page 19 19 Cook time 1. Press the Selection button re- peatedly until the function indicator Cook time flashes. 2. Using the button set the de- sired cooking time. After approx. 5 seconds the display re- turns to showing the current time. The...
  • Page 20 20 electrolux using the oven End time 1. Press the Selection button re- peatedly until the function indicator End time flashes. 2. Using the button set the de- sired switch-off time. After approx. 5 seconds the display re- turns to showing the current time.
  • Page 21 21 Cook time and End time com- bined Cook time and End time be used simultaneously, if the oven is to be switched on and off auto- matically at a later time. 1. Using the Cook time...
  • Page 22: Uses, Tables And Tips

    22 electrolux uses, tables and tips Uses, Tables and Tips Baking Oven function: Convection with ring heating element Conventional Baking tins • For Conventional dark metal and non-stick tins are suitable. • For Convection with ring heating element bright metal tins are also suitable.
  • Page 23 23 General instructions • Moist recipes (for example, pizzas, fruit flans, etc.) are baked on one lev- • Insert the tray with the bevel at the front. • Cakes and pastries at different • With Conventional...
  • Page 24: Baking Table

    24 electrolux uses, tables and tips Baking table Baking on one oven level Type of Oven Temperature Time Oven function baking level °C Hr: Mins. Baking in tins Ring cake or brioche Convection with 150-160 0:50-1:10 ring heating element Madeira cake/fruit cakes...
  • Page 25 25 Type of Oven Temperature Time Oven function baking level °C Hr: Mins. Cakes/pastries/breads on baking trays Plaited bread/bread crown Conventional 170-190 0:30-0:40 Christmas stollen Conventional 160-180 0:40-1:00 Bread (rye bread) Conventional -first of all...
  • Page 26 26 electrolux uses, tables and tips Type of Oven Temperature Time Oven function baking level °C Hr: Mins. Biscuits Short pastry biscuits Convection with 150-160 0:06-0:20 ring heating element Viennese whirls Convection with 0:20-0:30 ring heating element Viennese whirls Conventional...
  • Page 27 27 Baking on more than one oven level Convection Convection with ring with ring heating heating Time Tempera- element element Type of baking Hours: ture in °C Mins. Shelf positions from bottom 2 levels 3 levels...
  • Page 28: Tips On Baking

    28 electrolux uses, tables and tips Tips on Baking Baking results Possible cause Remedy The cake is not browned Wrong oven level Place cake lower enough underneath The cake sinks (becomes Oven temperature too high Use a slightly lower setting...
  • Page 29: Table For Bakes And Gratins

    29 Table for Bakes and Gratins Tempera- Shelf Time Dish Oven function ture position Hr: Mins. °C Pasta bake Conventional 180-200 0:45-1:00 Lasagne Conventional 180-200 0:25-0:40 Convection with Vegetables au gratin ring heating 160-170 0:15-0:30...
  • Page 30 30 electrolux uses, tables and tips Roasting Oven function: Conventional Convection grilling Roasting dishes • Any heat-resistant ovenware is suita- ble to use for roasting (please read the manufacturer's instructions). • Large roasting joints can be roasted directly in the roasting tray or on the oven shelf with the roasting tray placed below it.
  • Page 31: Roasting Table

    31 Roasting table Tem- Time Shelf pera- Type of meat Quantity Ovenfunction Hours position ture mins. °C Beef Convention- Pot roast 1-1.5 kg 200-250 2:00-2:30 per cm. of Roast beef or fillet thickness per cm.
  • Page 32 32 electrolux uses, tables and tips Tem- Time Shelf pera- Type of meat Quantity Ovenfunction Hours position ture mins. °C Game Saddle of hare, leg of Convention- 220- up to 1 kg 0:25-0:40 hare Convention- Saddle of venison 1.5-2 kg...
  • Page 33: Grill Sizes

    33 Grill sizes Oven function: Grill or Dual grill with maximum temperature setting The empty oven should always be pre-heated with the grill functions for 5 minutes. • For grilling, place the shelf in the recommended shelf position.
  • Page 34: Defrosting Table

    34 electrolux uses, tables and tips Defrosting Oven function: Defrost (no tem- perature setting) • Unwrap the food and place it on a plate on the oven shelf. • Do not cover with a plate or bowl, as these can substantially lengthen the defrosting time.
  • Page 35 35 Drying Oven function: Convection with ring heating element • Use oven shelves covered with greaseproof paper or baking parch- ment. • You get a better result if you switch the oven off halfway through the dry- ing time, open the door and leave the oven to cool down overnight.
  • Page 36: Making Preserves

    36 electrolux uses, tables and tips Making preserves Oven function: Bottom heat • The jars should all be filled to the same level and clamped shut. • For preserving, use only commercial- ly available preserve jars of the same • Place the jars on the baking tray in size.
  • Page 37: Cleaning And Care

    37 Cleaning and Care Oven interior Clean the appliance after each use. In this way, dirt is easier to clean off and is not allowed to burn on. 1. For cleaning, turn the oven light on.
  • Page 38: Oven Lighting

    38 electrolux cleaning and care Oven Lighting Warning: Risk of electric shock! Pri- or to changing the oven light bulb: – Switch off the oven! – Disconnect from the electricity sup- ply. Place a cloth on the oven floor to...
  • Page 39: Oven Ceiling

    39 Oven Ceiling The upper heating element can be fold- ed down to make it easier to clean the oven ceiling. Folding down the heating element Warning: Only fold down the heating element when the oven is switched...
  • Page 40: Oven Door

    40 electrolux cleaning and care Oven door For easier cleaning of the oven interior the oven door of your appliance can be taken off its hinges. Removing the oven door from its hinges 1. Open the oven door as far as it will 2.
  • Page 41 41 Hanging the oven door back on its hinges 1. From the handle side take hold of the oven door with a hand on each side and hold at an angle of approx. 45°. Position the recesses on the bottom of the oven door on the hinges on the oven.
  • Page 42: Oven Door Glass

    42 electrolux cleaning and care Oven door glass The oven door is fitted with two panels of glass mounted one behind the other. The inner panel can be removed for cleaning. Important Rough handling, espe- cially around the edges of the front panel, can cause the glass to break.
  • Page 43 43 4. Take hold of the door trim (B) on the upper edge of the door at both sides and press inwards to release the clip seal. Then remove the door trim by pulling upwards. 5. Take hold of the door glass on its up- per edge and take it out of the guide by pulling it upwards.
  • Page 44 44 electrolux cleaning and care 2. Take hold of the door trim (B) at each side, position it on the inside edge of the door and plug the door trim(B) into the upper edge of the door. On the open side of the door trim (B) there is a guide bar (C).
  • Page 45 45 3. Open the oven door as far as it will 4. Fold up the clamping levers (A) on both door hinges back into their orig- inal positions. 5. Close the oven door.
  • Page 46: What To Do If

    46 electrolux what to do if … What to do if … Problem Possible cause Remedy The oven does not heat up The oven is not switched on Switch the oven on The clock is not set Set the current time on the...
  • Page 47: Installation Instructions

    47 Installation Instructions Attention: The new appliance may only be installed and connected by a registered expert. Please comply with this. If you do not, any damage resulting is not covered by the warranty. Safety information for the installer •...
  • Page 48 48 electrolux installation instructions...
  • Page 49 49...
  • Page 50 50 electrolux installation instructions...
  • Page 51 51...
  • Page 52: Disposal

    52 electrolux disposal Disposal Warning: So that the old appliance can no longer cause any danger, make it unusable before disposing Packaging material of it. To do this, disconnect the appliance The packaging materials are envi- from the mains supply and remove ronmentally friendly and can be re- the mains cable from the appliance.
  • Page 53: Guarantee/Customer Service

    53 Guarantee/Customer Serv- European Guarantee This appliance is guaranteed by Electrolux in each of the countries listed at the back of this user manual, for the period specified in the appli- ance guarantee or otherwise by law. If you move...
  • Page 54 Industriestrasse 10, CH-5506 Mägenwil Svizzera Electrolux Ljubljana d.o.o. Slovenija +38 61 24 25 731 Gerbièeva 98, 1000 Ljubljana Electrolux Slovakia s.r.o., Electrolux Domáce Slovensko +421 2 43 33 43 22 spotrebièe SK, Seberíniho 1, 821 03 Bratisla- Suomi www.electrolux.fi Electrolux Service, S:t Göransgatan 143,...
  • Page 55: Service

    55 Service In the event of technical faults, please first check whether you can remedy the problem yourself with the help of the op- erating instructions (section “What to do if…”). If you were not able to remedy the prob-...
  • Page 56 822 928 096-M-080208-01...
