must be at least 40 mm . Ideally, however,
the appliance should not be positioned be-
low overhanging wall units.
The ventilation space can be:
• directly above the appliance
• behind and above the top cupboard.
In this case, the space behind the top
cupboard must be at least 50 mm deep.
Electrical connection
Before plugging in, ensure that the voltage
and frequency shown on the rating plate
correspond to your domestic power supply.
The appliance must be earthed. The power
supply cable plug is provided with a contact
for this purpose. If the domestic power sup-
ply socket is not earthed, connect the appli-
ance to a separate earth in compliance with
current regulations, consulting a qualified
electrician.
The manufacturer declines all responsibility
if the above safety precautions are not ob-
served.
This appliance complies with the E.E.C. Di-
rectives.

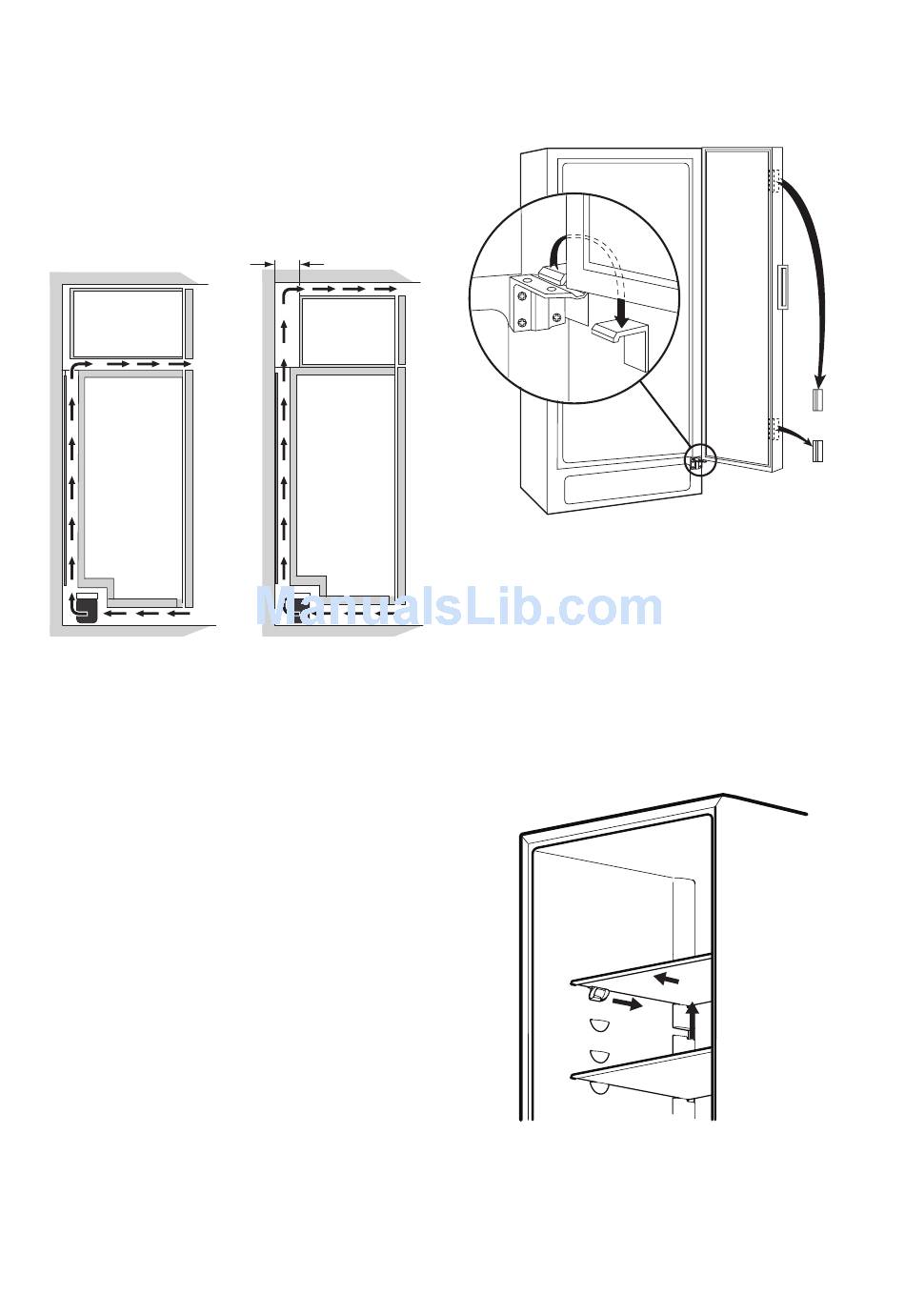

Removing the transport support
Your appliance is equipped with transport
support to secure the door during transpor-
tation.
To remove them do these steps:
1. Open the door.
2. Remove the transport support from the
door sides.
3. Remove the transport support from the
lower hinge (some models).
Important! Some models are fitted with a
silencing pad under the cabinet. Do not
remove this pad.
50mm
Removing the shelf holders
Your appliance is equipped with shelf re-
tainers that make it possible to secure the
shelves during transportation.
To remove them proceed as follows:
1. Move the shelf holders in the direction
2. Lift up the shelves in the rear edge (B)
3. Remove the retainers.
Rear spacers
Install the spacers provided within the ac-
cessory bag as shown in the figure.
Install the adhesive spacers on the back
side of the appliance.
3
of the arrow (A).
and push it forward until it is freed (C).
A
electrolux 11
2
C
B
