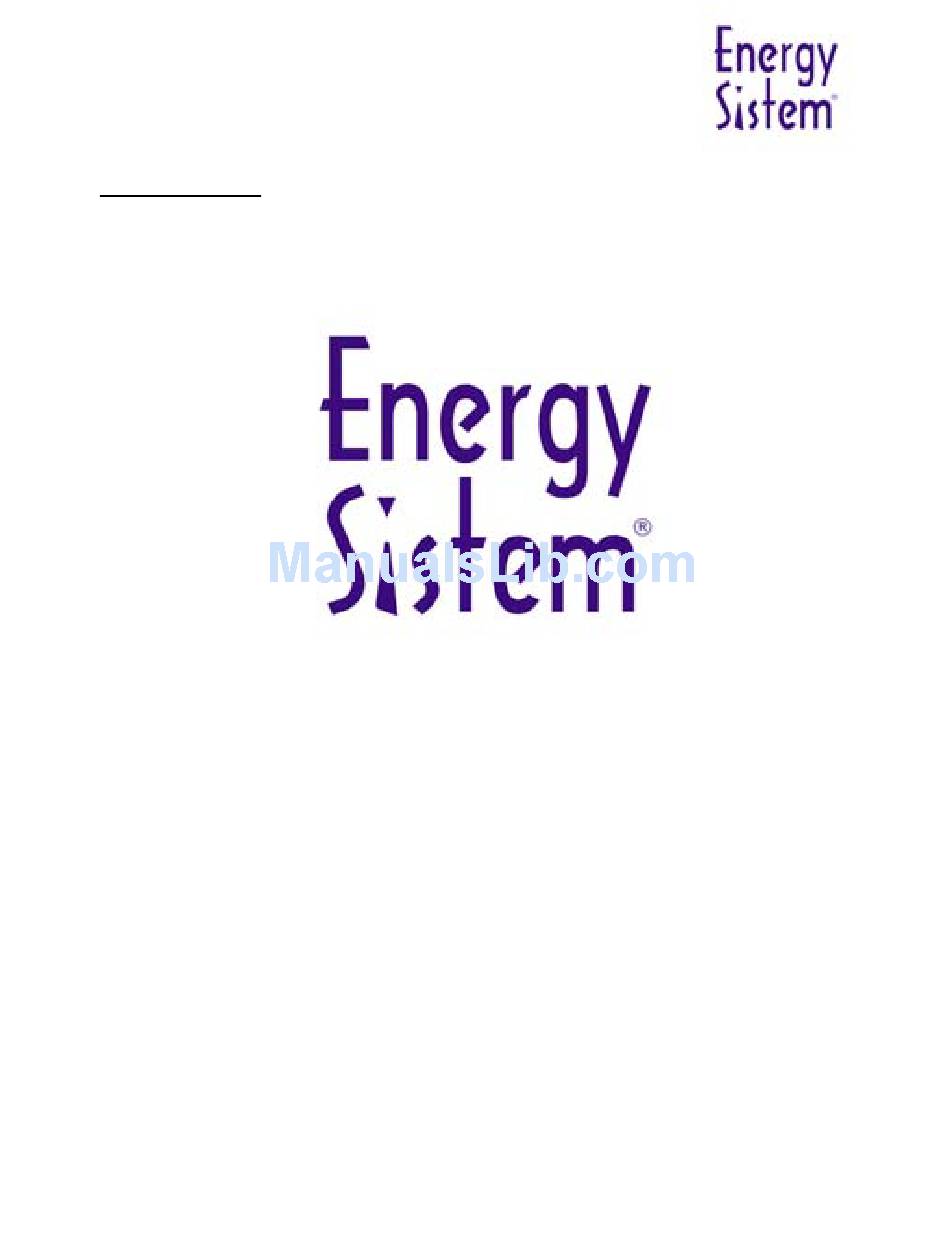

ENGLISH
MP3 ELEGANCE COMPACT
USER MANUAL
V2.1
www.energysistem.com
. 1 .

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP3 ELEGANCE COMPACT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ENERGY SISTEM MP3 ELEGANCE COMPACT

Summary of Contents for ENERGY SISTEM MP3 ELEGANCE COMPACT

  • Page 1 ENGLISH MP3 ELEGANCE COMPACT USER MANUAL V2.1 www.energysistem.com . 1 .
  • Page 2 Notice Please use provided format tool to format your MP3 player, it will not work if you use Windows format Tool. If you haven’t installed the provided Digital Audio Management System, please use the “delete” command to the erase files in your player. The MP3 player will be damage if formatted under Window’s format tool.

  • Page 3: Table Of Contents

    Table of Contents Operational notes ............5 Player overview .............. 7 Accessories ..............9 Battery Replacement ............. 1 0 Liquid Crystal Display ............ 1 1 Turning the power on/off ..........1 2 Playing MP3 music ............1 3 Voice Recording .............. 1 5 To Delete MP3 Files ............
  • Page 4 Formatting the memory of Digital Audio ....3 1 To delete files ..............3 3 To refresh USB connection ........... 3 4 Internal Memory Display ..........3 5 Pre-listen ................. 3 7 Trouble diagnosis ............3 8 Technical Spec ..............4 1 .

  • Page 5: Operational Notes

    Operational Notes • If the Mp3 player will not be operated for a prolonged period, remove the batteries to avoid possible damage caused by electrical leakage. • The Mp3 player should be kept in areas free from extreme temperature changes, moisture and dust. •...
  • Page 6 ♦All buttons make no response and are not workable even after the battery is taken out and reinstalled. Note: To avoid static electricity, please If possible, avoid operating the player in extremely dry environment. If the player stops running under proper operation, please replace the battery.

  • Page 7: Player Overview

    Player Overview ♦ Front FF/Play ( Stop/POWER)/REW LCD (Liquid Crystal Display) Volume Control - A-B Repeat Repeat/Delete USB Port Equalizer/Rec Volume Control + www.energysistem.com . 7 .
  • Page 8 ♦ Back SD / MMC Slot AAA Battery AAA Battery Slot Battery Cover . 8 . www.energysistem.com...

  • Page 9: Accessories

    Accessories Installation CD USB Cable Portable Stereo Earphone Battery AAA ¡Á1 Manual/ Maintenance Certificate www.energysistem.com . 9 .

  • Page 10: Battery Replacement

    Battery Replacement Insert the battery Slide the back cover down toward the arrow direction Insert the battery (AAA ¡Á1) in accordance with positive and nega- tive symbols matching those of the battery Replace the back cover toward the arrow direction. .

  • Page 11: Liquid Crystal Display

    Liquid Crystal Display (LCD) Recording Status Icon Volume Icon USB status Icon Music mode(MP3) Battery Indicator A-B Repeat Hold Icon Title Display Operating Status In- Playing, Pause dicator and Recording Playback Time Indi- status Indicator cator Repeat Status Icon Equalizer Icon Repeat modes include Repeat, Repeat All, Random, Preview and Normal (Normal mode isn’t illustrated in the figure.)

  • Page 12: Turning The Power On/Off

    Turning the power on/off The power will be turned on when PLAY/STOP button is pressed momentarily. In 3 seconds, something will be presented on the screen, and then a glorious picture with blue backlight appears. The backlight will be turned on and last 8 seconds if some button is pressed;...

  • Page 13: Playing Mp3 Music

    Playing MP3 music Turning on the power by pressing PLAY/STOP but- ton momentarily, you could see the following interfaces: When you press PLAY/STOP button again, the cur- rent track will be played as shown above. If you want to select previous/next piece, turn the rolling wheel up and down to get the track.
  • Page 14 Note: The battery status indicator may flicker while MP3 is playing, which results from battery supply vibration while different power is consumed. . 1 4 . www.energysistem.com...

  • Page 15: Voice Recording

    Voice Recording After turning on the power by pressing PLAY/STOP button, press the REC button and hold on for more than 2 seconds to enter into recording status. (See illustration.) Press the PLAY/STOP button to listen to the re- corded files. If there are no recorded files, Track Number will be shown as Press REC button again to start recording, whose interface as follows.
  • Page 16 Note: While recording, all buttons except PLAY/STOP and Hold button are not workable. . 1 6 . www.energysistem.com...

  • Page 17: To Delete Mp3 Files

    To Delete MP3 Files You could delete Mp3 files with buttons as well as using Digital Audio Manager Software that is supplied with this set for free. Delete the MP3 files according to the following steps: Move to a track to be deleted by using NEXT/LAST button.

  • Page 18: Eq (Equalizer)

    EQ (Equalizer) You could have real sound quality of various music tones by selecting NOR- MAL mode with the EQ/REC button. You could experience perfect Jazz, Classic, Rock, Pop sound effect by choosing suitable corresponding mode. Normal mode could bring you original sound effect. JAZZ CLASSIC ROCK...

  • Page 19: Repeat Mode

    Repeat Mode: You could listen to MP3 music files repeatedly by pressing REP/DEL button to choose different repeat mode. Repeat Repeat All Random Preview Normal Repeat: Plays the current MP3 music repeatedly. Repeat All: Plays all MP3 music in order repeatedly until another operation is performed.
  • Page 20 Preview: Plays every first 10 seconds of all MP3 music in order and stops after the last music has been played. Normal: Plays the MP3 music in order and stops after the last music has been played. . 2 0 . www.energysistem.com...

  • Page 21: Repeat Of A-B Section

    Repeat of A-B Section It is used when you want to listen to a certain sec- tion repeatedly during the playback. You could select an intended section by using A-B repeat button. (It is espe- cially suitable for language learner.) While MP3 is playing, press the A-B repeat button to designate the Start position.

  • Page 22: Mmc Card

    SD or MMC Card You could use SD or MMC card to store more mp3 files. The player has to be turned off before inserting or removing an SD or MMC card. Inserting an SD or MMC card: 1 Turn the power off. 2 Pull the card cover out.

  • Page 23: Usb Connection

    USB Connection You could transmit MP3 files through USB port of your PC. Make sure your PC support USB devices. (Refer to the manual of your PC for the information about hardware). Connect the bigger end of the cable to a USB Port of your PC, the smaller to the USB port of the DIGITAL AUDIO player.

  • Page 24: System Requirements

    System Requirements It is important to install Digital Audio manager soft- ware before connecting Digital Audio player to PC. After putting the Installation CD into CD-ROM Drive, USB Driver is installed automatically. The Digital Audio manager software requires the fol- lowing systems: ¤...

  • Page 25: Installation Of Manager Software

    Installation of Manager Software Put the Installation CD into CD-ROM Drive and then it will be installed automatically. You should click the “Next” button on installation screens, and the Digital Audio Manager Software and USB Driver will be installed. It will remind you of restarting your PC when installation is finished.

  • Page 26: How To Use Digital Audio Manager Software

    How to use Digital Audio Manager Software First connect the Digital Audio and your PC with the USB cable. Insert the bigger end of the cable to a USB Port of PC, the smaller to the USB port of the Digital Audio.

  • Page 27: Sending Files To Digital Audio

    Sending files to Digital Audio Before sending, please turn on the Digital Audio and connect it to your PC with presented USB cable. Double click the icon on the desktop. Select files. First, select the folder that includes the files to be transmitted from the left Program Manager.
  • Page 28 Click the Download button or select the “Down- load” option in the tool menu. An interface of Copy will appear. System will set up an EDISK directory automati- cally and place the non-audio files to EDISK in the removable disk of the Digital Audio after you down- load the non-MP3 or WMA files The management system will examine the Digital Audio automatically.

  • Page 29: Sending Files From Digital Audio 2

    Sending files from Digital Audio to PC Digital Audio can also act as a removable electronic disk. You could send files in the disk to your PC with the management system but the audio files are not permitted to send due to copyright protection. Only files in the EDISK are allowed.
  • Page 30 Caution: ♦ Do not pull out the USB cable or memory card while a file is being downloaded. Otherwise it will do harm to your Digital Audio. ♦ If the Digital Audio cannot work by accident, take out the battery and reinsert it after 3 seconds. Reconnect Digital Audio to PC.

  • Page 31: Formatting The Memory Of Digital Audio

    Formatting the memory of Digital Audio Before formatting, be sure that the Digital Audio is turned on and connected to PC. 1. Run the management system of Digital Audio on the desktop. 2. Click Format icon, the dialog box of format will pop Select the disk symbol to be formatted from the Drive column.
  • Page 32 3. Click Start button after finish selecting the driver and it begins to format Digital Audio memory. Note: If there is no external MMC card, please don’t select the second disk symbol. Otherwise you will be told “No Media”. Caution: ♦All the files will be deleted by formatting the memory.

  • Page 33: To Delete Files

    To Delete files Besides deleting files directly by Digital Audio, you could also achieve this by using the management system of Digital Audio. 1. Connect the Digital Audio and PC; turn on the Digital Audio and run management system. 2. Select the files to be deleted. 3.

  • Page 34: To Refresh Usb Connection

    To refresh USB connection For safer use while connecting Digital Audio and PC, you could click the Connection button in the manage- ment system of Digital Audio to refresh the USB connection. . 3 4 . www.energysistem.com...

  • Page 35: Internal Memory Display

    Internal Memory Display The management system of Digital Audio can dis- play the internal memory by numbers and figures. Figure Number In the above figure, yellow represents used memory while green available memory. Click MMC to see the capacity of MMC card as the figure shown.
  • Page 36 . 3 6 . www.energysistem.com...

  • Page 37: Pre-Listen

    Pre-listen After selecting a song in your PC, you could listen to it by using Digital Audio manage system. 1. Choose the song to be listened. 2. Click the Pre-listen button on the top right corner, and then you could enjoy pleasant music pieces from PC. Now, the Pre-listen button changes into Stop button.

  • Page 38: Trouble Diagnosis

    Trouble Diagnosis 1. The LCD display window shows nothing after turning on Digital Audio. •Check to see if the battery has been inserted. •Check to see if the battery needs replacement. •Try reinserting the battery or replace it. •Take out the battery and insert it correctly after 5 seconds.
  • Page 39 devices and needs upgrade. 5. Playing status is unstable after pulling up the MMC card. •You may pull up the MMC card without shutting down the Digital Audio. •You have to restart your Digital Audio to get steady playing status. 6.
  • Page 40 compress, so the player can not show the playback time normally. You can try to compress again by selecting normal ratting. 9.Some MP3 songs can not play in the player Now some MP3 songs use the MepgI Layer1 or Layer2 format compressing, but the player only support the MepgI Layer3 and WMA songs, the other songs maybe play natural but will exist some problem in it.So you try...

  • Page 41: Technical Spec

    Technical Spec Memory Size 32MB/64MB/128MB/256MB Memory Card SD or MMC 28*18Segment Size 79*62*18.5(mm) 90dB Output Frequence 20Hz-20KHz Record Format ADPCM Compress Rate 32Kbps-256Kbps Supported MPEG I layer III Music format www.energysistem.com . 4 1 .
  • Page 42 Headphones. FEATURES: 1. This product can not only work as a general earphone, but as a FM auto frequency modulation radio 2. Can freely work on Mp3/PC/CD PLAYER/Wa1kman and other device, used as general earphone 3. The radio auto frequency modulation, auto search and lock.
  • Page 43 frequency mode; Push SCAN key, the radio will auto search program then locked.Push SCAN again, the radio will search higher frequency. When the radio in 108MHz and have no information, you must push the RESET key and research again. Turn the power switch off, the radio turned off General earphone function: The 3.5mmDC jack can direct insert into Mp3/PC/ CD player, walkman and other audio output device...
  • Page 44 Put on the battery lid NOTICE: 1. The radio only can use one CR2032 battery. 2. If you don’t use the radio, please turn off the power switch. And if you don’t use in a long time, please take out the battery. 3.
