When the appliance is in position swing the clamps
under the bench top and lightly tighten. (Fig. 6)
5. RUBBER SEAL This is to be applied around the
edge of the hob (Fig. 7) leaving a 400mm cutout on
a hidden edge of the unit. This gap is to allow air to
enter for ventilation. NOTE: the rubber seal has talc
powder applied to its surface which should be
wiped off with a damp cloth after the unit has been
installed.
GAS CONNECTION:
Cylinder or network connection must be carried out
according to the relevant local standards.
Flexible Connection.
The supply hose must be visible for its entire length
(max. one metre) and must be secured with a hose
clamp A (Fig. 8A). The hose shall be fitted in such a
way that it cannot come into contact with a moveable
part of the housing unit (eg. drawer) and does not
pass through any space susceptible to becoming
congested. The sealing washer must be fitted.
Rigid Connection.
Connect by using an iron or copper pipe, starting
from the threaded outlet of elbow B (Fig. 8B).
Include an accessible, demountable pipe union in
the connection.
Elbow Positioning.
It is possible to reposition the elbow if required by
loosening the locking nut and elbow by using two
spanners. Retighten the entire assembly after the
elbow has been repositioned.
ELECTRICAL CONNECTION:
Before installing this appliance, the flexible cord must be connected to an approved plug by an authorised
person. The connection of the appliance to mains is effected via a cable located underneath.
This appliance is fitted with an earth connection. This must be connected to a domestic earth. The domestic
power outlet should be located within 600mm of the flexible cord connection point (ref Fig. 4). Whenever
thesocket or the installation does not have available an earthing connection, such connection must be
provided according to the local standards.
BATTERY HOLDER INSTALLATION INSTRUCTIONS
CONNECTED TO
PRODUCT
COMPONENTS:
1. BATTERY HOLDER
(212-2-78)
2. MOUNTING BRACKET (30-24-103)
3. PLASTIC NUT
4. BATTERY 1.5V
(659-1-5)
5. SPRING
6. RETAINING CAP
7. 2 SCREWS
(701-2-103)
i

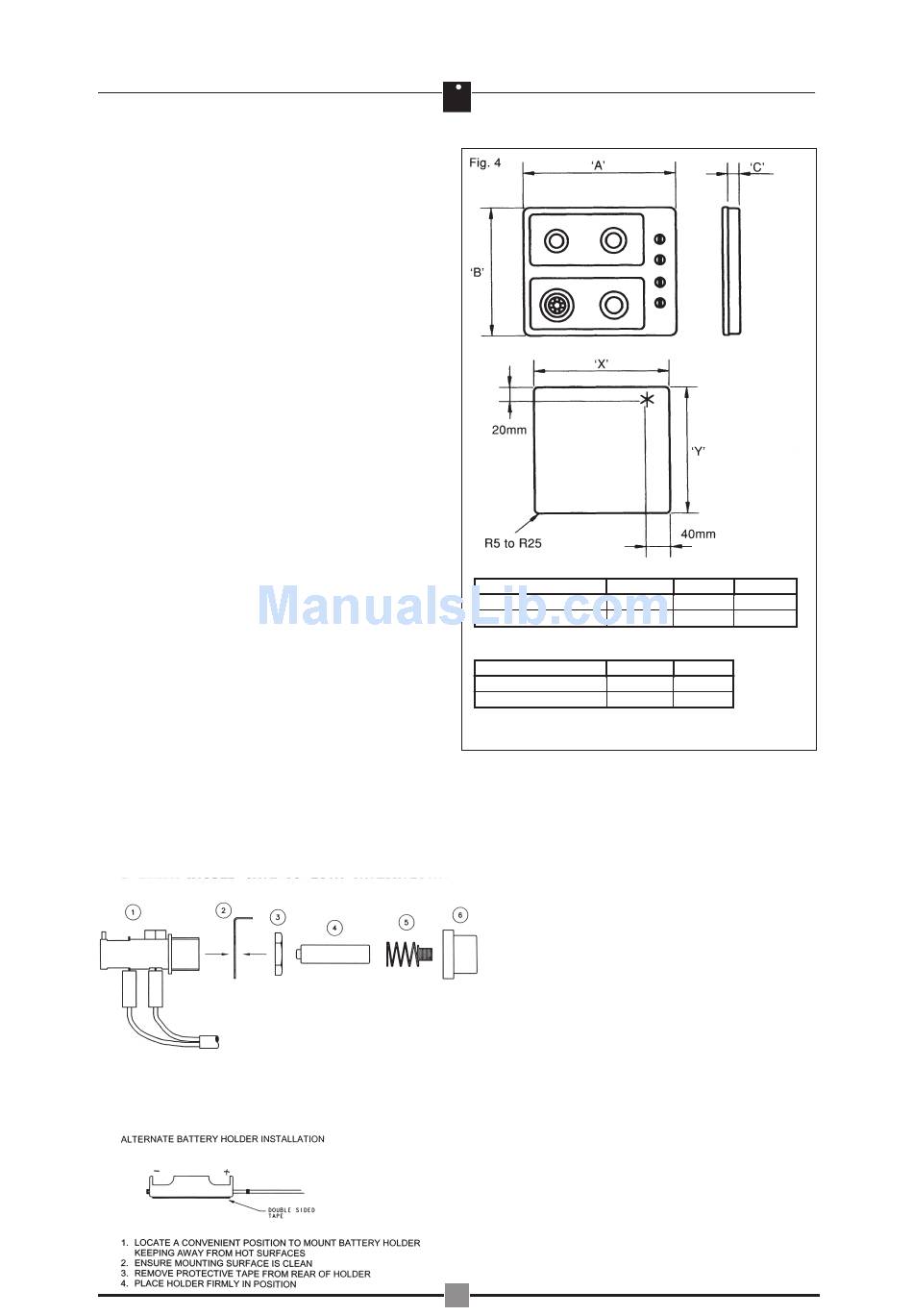

APPLIANCE DIMENSIONS
BENCH CUT-OUT SIZE
*GAS & ELECTRIC CONNECTION POINT
INSTALLATION NOTES:
1. MOUNT THE BRACKET IN AN EASILY ACCESSIBLE
LOCATION UNDER THE BENCHTOP, USING THE TWO
SCREWS PROVIDED.
2. REMOVE THE CAP AND PLASTIC NUT FROM THE
BATTERY HOLDER.
3. PLACE THE THREADED END OF THE BATTERY HOLDER
THROUGH THE LARGE HOLE IN THE BRACKET.
4. SCREW THE PLASTIC NUT ONTO THE BATTERY HOLDER.
5. ENSURE THE BATTERY AND SPRING REMAIN IN THE
HOLDER AND SCREW THE RETAINING CAP ON.
4
MODEL
A
Square Models
600
Rectangular Models
860
MODEL
X
Square Models
570
Rectangular Models
830
NOTE: It will be necessary for Servicing
purposes to disconnect the electrical
power supply.
WEIGHT of the unit is printed on the
appliance identification label.
TESTING APPLIANCE OPERATION:
After installation, test the appliance and
ensure that it operates correctly before
handing it over to the customer. The
following procedure is recommended:
1. Turn on the gas and electricity supply
(if applicable) and attempt ignition. (For
correct procedure, refer to the OPERATING
INSTRUCTIONS). Note that the additional time
needs to be allowed for the initial lighting as
air has to be purged from the pipes.
B
C
535
45
510
45
Y
490
470
