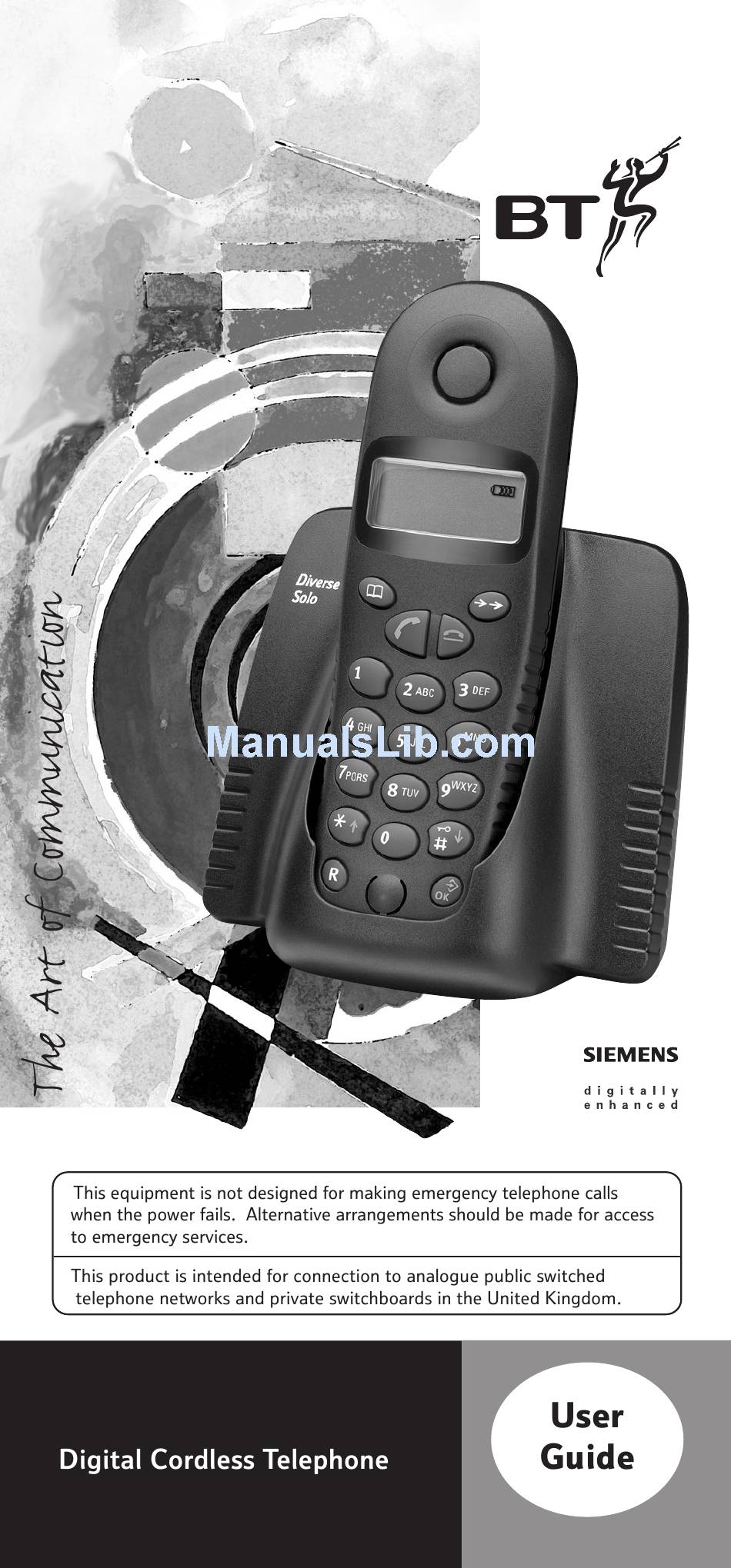

- Page 1 Diverse Solo...
-
Page 2: At A Glance
At a glance Displays the status of your handset. Press to redial one 10 numbers can of the last five be stored, dialled numbers called. and edited in the directory. Long press will give Press to end a you quick access to call or to cancel a the number stored function. - Page 3 You can select a menu function more quickly if, rather than scrolling through the menu, you simply press the relevant buttons when the handset is in the idle state. To set the handset/melody press and then . You can then select the melody you want by scrolling down through the menu and then press the button to confirm.
- Page 5 Introduction If anything is missing, please contact your place of purchase immediately. One Diverse Solo base station. One Diverse Solo handset. One power supply for the base station. One telephone line cord. Two AA rechargeable batteries. Battery compartment cover. Date of purchase:...
-
Page 6: Safety Information
Safety information General Only use the power supply included with the product. Using an unauthorised power supply will invalidate your guarantee and may damage the telephone. The power supply unit number will be either M-GA35-095130F or M-GA35-095132F. For the handset use only approved Nickel Cadmium (NiCad) rechargeable batteries. - Page 7 Setting Up Please note that your handset is NOT registered to the base station. The Diverse Solo handset will be easily registered once you complete the steps 1 to 3 below. Situate your product close enough to the telephone and mains power sockets so that the cables will reach.
- Page 8 The display is protected by a plastic film. Remove the protective film from the display. SEARCH BASE Insert the two batteries supplied, as indicated on the label inside the battery compartment and slide the battery compartment cover shut. The battery cover may be found in the packaging with the batteries. Under no circumstances should non-rechargeable batteries be used.
- Page 9 Eventually they will need to be replaced. New batteries can be obtained from any BT shop or from the Diverse Helpline If you replace the handset batteries with ones that have been fully charged, the battery indicator will not show full until the next charge cycle has been completed.
-
Page 10: Using The Telephone
Ensure that each end of the line cord is fitted into the correct socket. Your Diverse Solo is now ready for use. However, if you experience any difficulties please call the BT Diverse Helpline The range of your Diverse Solo base station is 200 metres outdoors and up to 30 metres indoors under ideal conditions. - Page 11 Enter the phone number first and then check that it is correct. Press the button to dial the number. Press the button. Place the handset back on the base station. When the phone rings, pick up the handset and press the button to answer the call.
- Page 12 You can store up to 10 telephone numbers in the directory. You can enter numbers up to 22 digits. Press the button. Press the button to select the location number between under which you want to store the number. Press the button.
-
Page 13: Handset & Base Settings
To use Caller Display you must first subscribe to the Service from your Network Provider. For more information on BT’s Select Services call BT free on If you subscribe to a Caller Display Service you can see the number of your caller on the handset display (unless the number has been withheld). - Page 14 Press the button. The display shows the volume level. Press the button to select the earpiece volume level you want ( - ). Press the button to confirm. The display will show SAVED and you will hear a confirmation tone. There are 4 ringer volume levels to choose from ( - ).
- Page 15 Press the button to open the menu. Press the button until the display shows LANGUAGE. Press the button. Press the button to select the language you want. Press the button to confirm. The display will show SAVED and you will hear a confirmation tone.
- Page 16 You can restore the handset to its factory settings. Press the button to open the menu. Press the button until the display shows HS RESET. Press the button. Press the button to display RESET YES? and press the button to confirm. If you do not want to reset the handset, press the button when RESET NO? is displayed.
- Page 17 Solo handset, please follow the guidelines below. Providing the other base station is GAP (Generic Access Profile) compliant, you can register your Diverse Solo handset to it. Following the user guide for the base station, put the base on standby for registration.
- Page 18 Help SEARCH BASE...
-
Page 19: General Information
General information Your Diverse Solo is guaranteed for a period of 24 months from the date of purchase. Subject to the terms listed below the guarantee will provide for the repair of, or at BT’s or its agent’s discretion the option to... -
Page 20: Technical Information
Solo has a REN of 1. Any other instrument provided by BT may be assumed to have a REN of 1 unless stated otherwise. A total REN of 4 is allowed. (For example: if Diverse Solo is used in conjunction with three extension telephones, each with a REN of 1, the total REN is 4.) -
Page 21: Setting Pauses
Press the OK button to confirm. Press the DOWN button until the display shows TONE. Press the OK button to confirm. Press the RED PHONE button. Setting pauses Please note If you want to insert a pause into a telephone number you are storing in your directory, start storing the number (see page 12) and where a pause is needed, press and hold button. - Page 22 © British Telecommunications plc 2001. Registered Office: 81 Newgate Street, London EC1A 7AJ. Registered in England No. 1800000. Diverse Solo (08/01) 5 Designed by The Art & Design Partnership Limited. Siemens number: A31008 -G200 -P101-1-7619...
