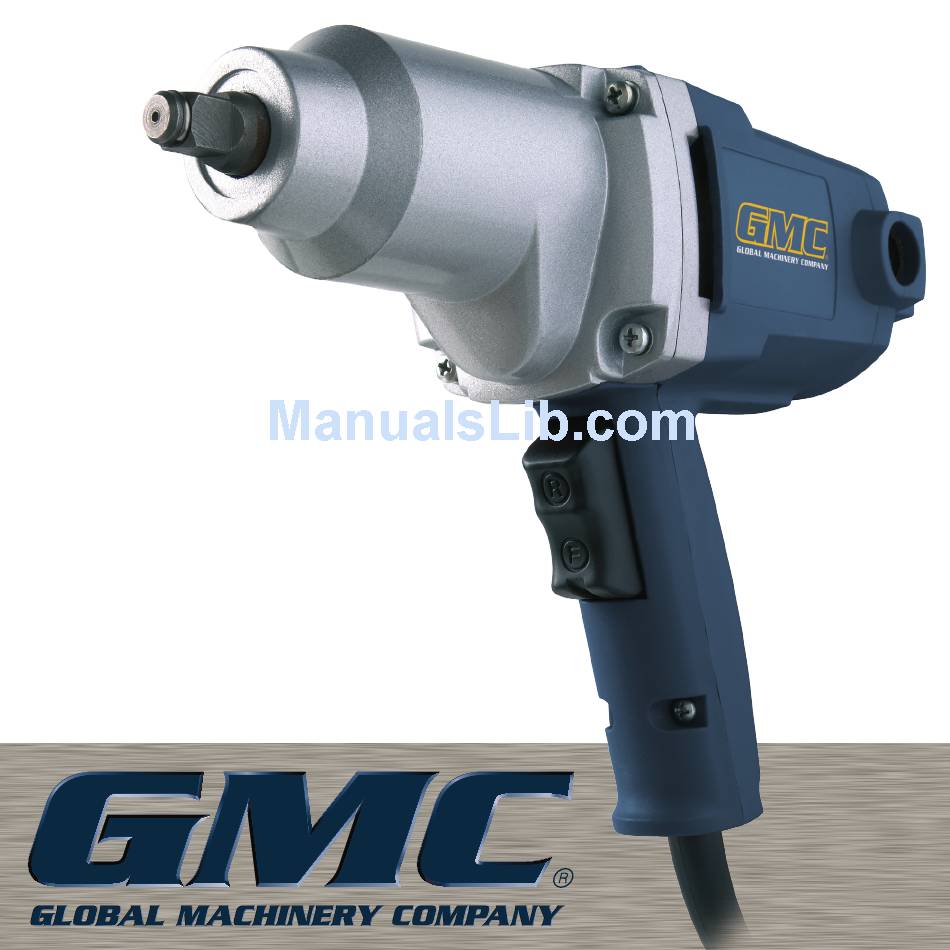

- Page 1 900W 1/2” IMPACT WRENCH IW1000 INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
Contents Warranty Introduction Environmental protection Description of symbols Specifications General safety instructions Additional safety rules for impact wrenches Contents of carton Assembly Know your product Unpacking Assembly Operation Using the impact wrench Trouble shooting Maintenance Brush replacement General inspection Power cord maintenance Warranty Power Tools Whilst every effort is made to ensure your complete satisfaction with this tool, occasionally, due to the mass manufacturing techniques, a tool may not live up to our required level of performance and you may need the assistance of our service department. -
Page 3: Introduction
Introduction Your new GMC power tool will more than satisfy your expectations. It has been manufactured under stringent GMC Quality Standards to meet superior performance criteria. You will find your new tool easy and safe to operate, and, with proper care, it will give you many years of dependable service. -
Page 4: General Safety Instructions
General safety instructions WARNING. Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. -
Page 5: Additional Safety Rules For Impact Wrenches
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e. Maintain power tools. - Page 6 • Remove the plug from the socket before carrying out any adjustment, servicing or maintenance. • When an extension cable is required, you must ensure it has the right ampere rating for your power tool and is in a safe electrical condition. •...
-
Page 7: Contents Of Carton
Contents of carton • 1/2” Impact wrench • Kitbox • Instruction manual Assembly The GMC impact wrench is packed, fully assembled except for the impact socket. Please select the required impact socket and insert correctly (refer to the socket change section of this manual). -
Page 8: Know Your Product
Know your product 1. Drive Shank 2. Trigger Switch 3. Replaceable Brushes 4. Handle/Grip 5. Power Cord... -
Page 9: Unpacking
Unpacking Due to modern mass production techniques, it is unlikely that your GMC Power Tool is faulty or that a part is missing. If you find anything wrong, do not operate the tool until the parts have been replaced or the fault has been rectified. Failure to do so could result in serious personal injury. -
Page 10: Using The Impact Wrench 0
Using the impact wrench The impact wrench can be used for driving nuts and bolts using an impact socket and is suitable for many DIY applications. Operating the Impact Wrench Correct fastening torque may be determined by the kind of bolt, the size of the bolt or the material of the workpiece. It is recommended that a test is performed prior to the final operation, in order to determine the fastening time for the nut or bolt you are using. -
Page 11: Maintenance
Maintenance WARNING. Always ensure that the tool is switched off and the plug is removed from the power point before making any adjustments or maintenance procedures. 1. Keep the tool’s air vents unclogged and clean at all times. 2. Regularly check to see if any dust or foreign matter has entered the grills near the motor and around the on/off switch. - Page 12 GMC customer assist If your product needs repairing, replacing, technical service or you simply need help or advice, please contact us on our Customer Assist Line 300 880 00 (Australia) or 0800 445 7 (New Zealand). For prompt service we suggest you log your service request online at www.gmcservice.com.au. Should you not have access to the Internet, please contact our service department on 300 880 00 (Australia) or 0800 445 7 (New Zealand). 7am – 7pm, 7days a week (AEST). Please note that if repair or replacement is required, you must provide a valid original purchase receipt. You will need the following details at hand to log your service request;...
