Description of the Appliance

3

Control Panel

A
A. Refrigerator power switch
Switches the refrigerator on and off.
B. Temperature display
Shows the average temperature inside the
refrigerator.
C. Temperature adjustment button
Used to set the temperature in the refrigerator.
D. ACTION COOL button
Used to switch the Action Cool feature on and off.
E. Yellow indicator lamp
Lights when Action Cool is operating.
F. Freezer power switch
Switches the freezer on and off.
4
1
2
5
1
1
5
1
7
3
8
9
9
9
9
10
5
ACTION COOL
B C D E

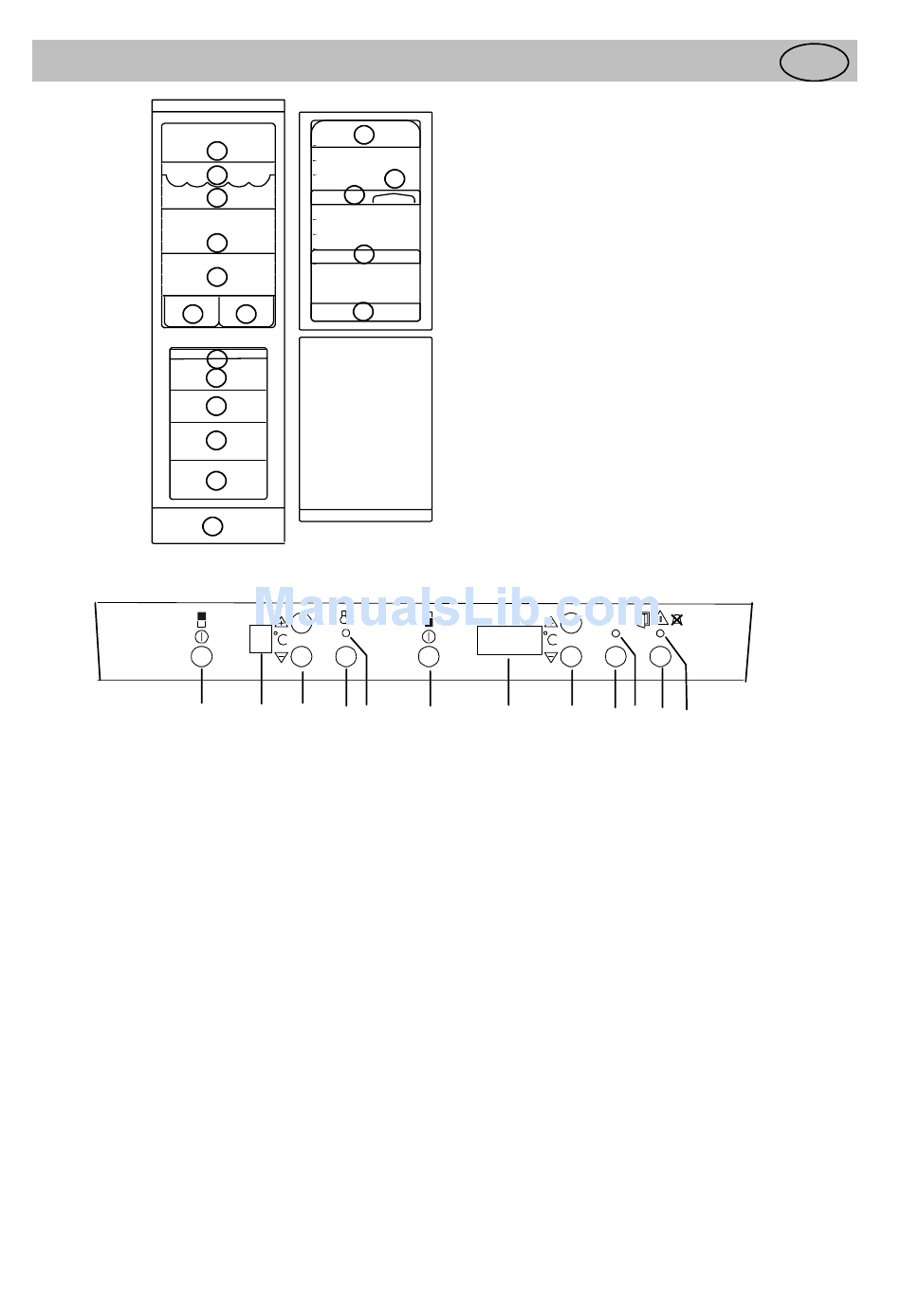

Modell ERB3190
1. Glass shelf
6
2. Bottle shelf
3. Vegetable drawer
4. Butter compartment
5. Door shelf
6. Egg holder
7. Bottle shelf
8. Freezing tray + accumulator
9. Freezing basket
10. Ventilations grille
-- 18
F G
G. Temperature display
Shows the highest temperature inside the freezer.
H. Temperature adjustment button
Used to set the temperature in the freezer.
I. FAST FREEZE button
Used to switch the Fast Freeze feature on and off.
J. Yellow indicator lamp
Lights when Fast Freeze is operating.
K. Alarm shut-off button
Used to turn the audible alarm off.
L. Red warning lamp
Flashes when one of the alarms in the cabinet has
been triggered.
3
*
ACTION FREEZE
H I J K L
