Summary of Contents for Electrolux ERB3190

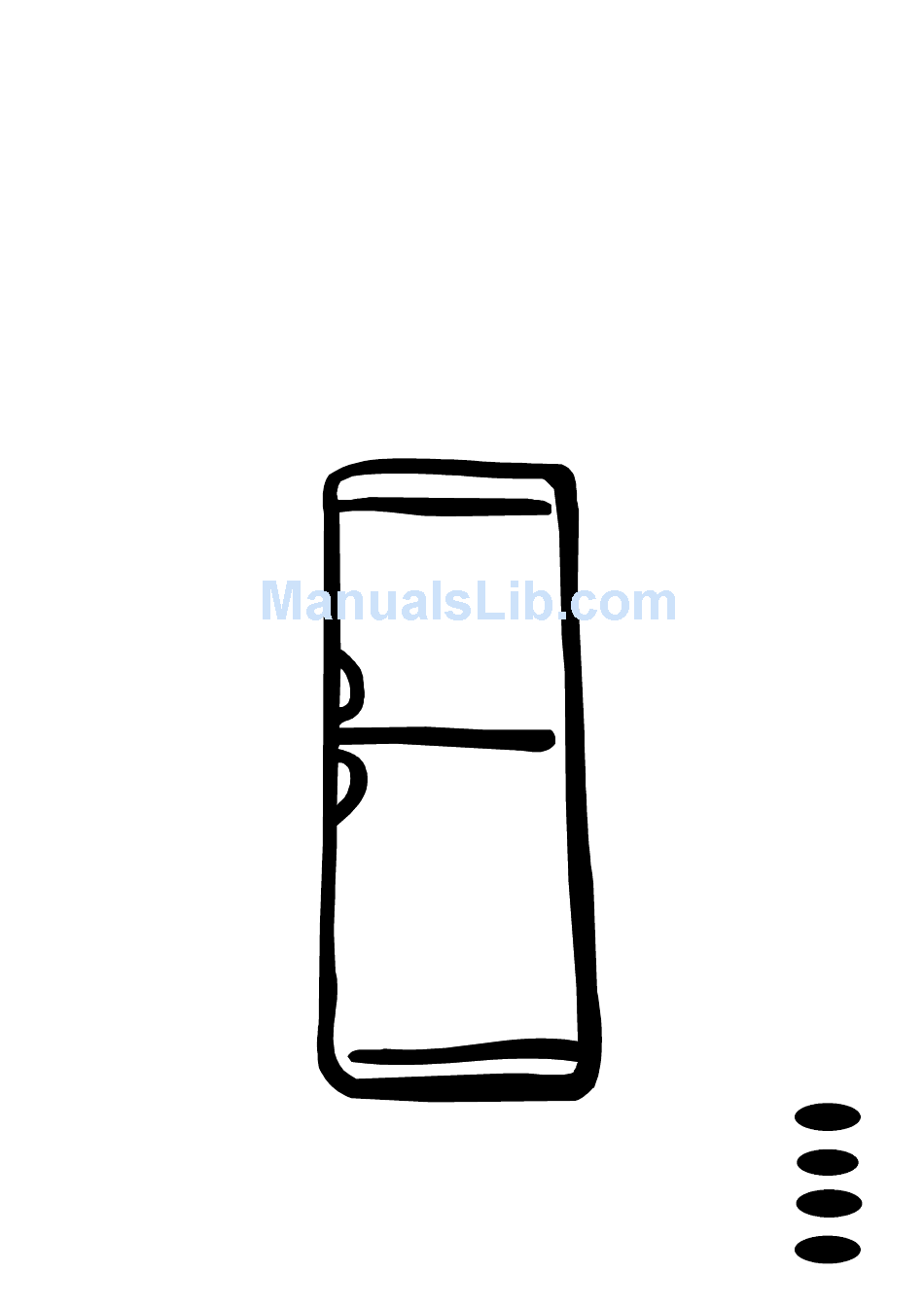

- Page 1 F r i d g e -- F r e e z e r / K ü h l -- G e f r i e r k o m b i n a t i o n / F r i g o r i f e r o -- C o n g e l a t o r e / R é f r i g é r a t e u r -- C o n g é l a t e u r INSTRUKTION BOOK GEBRAUCHSANWEISUNG ISTRUZIONI D’USO NOTICE D’UTILISATION ERB3190 818 34 31--00/9...
-
Page 2: Table Of Contents
Safety instructions Carefully read these instructions to learn how the appliance works and how to care for it. Keep the instruction booklet. It will come in handy if you later sell the cabinet or give it to somebody else. These warnings are provided in the interests of your safety. Ensure that you understand them all before installing or using the appliance. -
Page 3: Description Of The Appliance
Description of the Appliance Modell ERB3190 1. Glass shelf 2. Bottle shelf 3. Vegetable drawer 4. Butter compartment 5. Door shelf 6. Egg holder 7. Bottle shelf 8. Freezing tray + accumulator 9. Freezing basket 10. Ventilations grille Control Panel... -
Page 4: Before Use
Before use Position and clean the cabinet as explained in the section "Installation". Check that the drain hose at the rear of the cabinet discharges into the drip tray. Before inserting the power plug into the outlet and switching on the cabinet for the first time, leave it standing upright for about 4 hours. -
Page 5: Switching Off
Switching off Switch off the cabinet by pressing the power switch. Keep the button pressed for approx. 1 second. - 18 Power to the cabinet is completely interrupted only when the power plug is disconnected. If the freezer is turned off, the refrigerator will also turn off. -
Page 6: Freezing
Freezing Press the fast freeze button approx. 24 hours prior to placing the food in the freezer. You need not press the fast-freeze button when freezing smaller quantities of food during any 24-hour period. Fast freeze is automatically switched off apporox 50 hours after the button has been pressed. -
Page 7: To Start The Fridge And Set The Correct Temperature
Freezer tray Use the freezer tray to freeze berries and vegetables. After about 4 hours the food will be thoroughly frozen and can then be packaged normally. Food that is frozen in this way will not stick together, enabling you to use only the amount required. Ice cubes Fill the ice tray to max. -
Page 8: Measuring The Temperature
Meat, fish and milk should be put in the coldest part of the cabinet. The temperature will be affected by: · How often the door is opened · How much food is stored · Position of the appliance (See chapter Installation) Measuring the temperature If the temperature is measured using a standard,... -
Page 9: Cabinet Interior
Cabinet interior The shelves and door compartments are removable and can easily be re-arranged. Certain shelves must be lifted up by the rear edge to enable them to be removed. The lower door compartment and the glass shelf above the vegetable drawer must not be moved. They are required for proper air circulation inside the cabinet. -
Page 10: Maintenance And Cleaning
Maintenance and Cleaning Removing the ventilation grille The ventilation grille can be removed, e.g. to wash the grille. Make sure the door is open when removing the ventilation grille. Unsnap the upper edge of the grille by pulling outward/downward. Then pull the grille straight out to completely remove it. -
Page 11: Defrosting The Freezer
Defrosting the freezer Avoid opening the refrigerator door during defrosting, as the cooling is off. If the freezer is turned off, the refrigerator will also turn off. A certain amount of frost will always form on the freezer shelves and around the top compartment. Defrost the freezer when the frost layer reaches a thickness of about 3-5 mm. -
Page 12: Something Not Working
Something Not Working Before contacting your local Service Force Centre check the following point: Problem Possible cause / Remedy " " is displayed in the temperature An error has occurred in measuring the temperature. Call your display. service representative. (The cooling system will continue to keep food products cold, but temperature adjustment will not be possible.) The yellow Action Freeze and red... -
Page 13: Guarantee Conditions
Too much frost and ice are produced. Make sure that the door is completely closed and that the insulating strip is complete and clean. The compressor operates continuously. Set a warmer temperature. Make sure that the door is completely closed and that the insulating strip is complete and clean. -
Page 14: Technical Specification
Technical specification ERB3190 Model 192 l Volume fridge Volume freezer 91 l 595 mm Width 2000 mm Height 600 mm Depth Energy consumption 179 kWh/year A + + Energy class Rated power Freezing capacity 12 kg/24 hours Installation Mains Cable... -
Page 15: Installing The Cabinet
Before installing the cabinet Affix the supplied plastic peaces at the rear of the cabinet. Installing the cabinet When two appliances are placed beside each other, the distances enclosed in the plastic wrapping should be glued between the appliances. As shown in the illustration. -
Page 16: Door Reversal
Door Reversal 1. Close the cabinet and remove the plug from the electrical socket. 2. Remove the ventilation grille. There is a part on the grille that can be removed. Remove and reposition it on the other side. 3. Put the cabinet on a wooden board when it is laid down. - Page 17 qÜÉ=bäÉÅíêçäìñ=dêçìé=áë=íÜÉ=ïçêäÇDë=ä~êÖÉëí=éêçÇìÅÉê=çÑ=éçïÉêÉÇ=~ééäá~åÅÉë=Ñçê=âáíÅÜÉåI=ÅäÉ~åáåÖ=~åÇ=çìíÇççê=ìëÉK jçêÉ=íÜ~å=RR=ãáääáçå=bäÉÅíêçäìñ=dêçìé=éêçÇìÅíë=EëìÅÜ=~ë=êÉÑêáÖÉê~íçêëI=ÅççâÉêëI=ï~ëÜáåÖ=ã~ÅÜáåÉëI=î~Åììã=ÅäÉ~åÉêëI ÅÜ~áå=ë~ïë=~åÇ=ä~ïå=ãçïÉêëF=~êÉ=ëçäÇ=É~ÅÜ=óÉ~ê=íç=~=î~äìÉ=çÑ=~ééêçñK=rpa=NQ=Äáääáçå=áå=ãçêÉ=íÜ~å=NRM=ÅçìåíêáÉë ~êçìåÇ=íÜÉ=ïçêäÇK aáÉ=bäÉÅíêçäìñJdêìééÉ=áëí=ÇÉê=ïÉäíïÉáí=Öê∏≈íÉ=eÉêëíÉääÉê=îçå=Ö~ëJ=ìåÇ=ëíêçãÄÉíêáÉÄÉåÉå=dÉê®íÉå=ÑΩê=ÇáÉ=hΩÅÜÉI=òìã oÉáåáÖÉå=ìåÇ=ÑΩê=cçêëí=ìåÇ=d~êíÉåK=gÉÇÉë=g~Üê=îÉêâ~ìÑí=ÇáÉ=bäÉÅíêçäìñJdêìééÉ=áå=ΩÄÉê=NRM=i®åÇÉêå=ÇÉê=bêÇÉ=ΩÄÉê=RR jáääáçåÉå=mêçÇìâíÉ=EhΩÜäëÅÜê®åâÉI=eÉêÇÉI=t~ëÅÜã~ëÅÜáåÉåI=pí~ìÄë~ìÖÉêI=jçíçêë®ÖÉå=ìåÇ=o~ëÉåã®ÜÉêF=ãáí=ÉáåÉã tÉêí=îçå=êìåÇ=NQ=jêÇK=rpaK fä=dêìééç=bäÉÅíêçäìñ==ÉD=áä=éáìD=Öê~åÇÉ=éêçÇìííçêÉ=ãçåÇá~äÉ=Çá=~éé~êÉÅÅÜá~íìêÉ=éÉê=ä~=ÅìÅáå~I=éÉê=ä~=éìäáòá~=É=Çá ~ííêÉòò~íìêÉ==éÉê=áä=Öá~êÇáå~ÖÖáç=É=éÉê=ìëç=ÑçêÉëí~äÉK=läíêÉ=RR=ãáäáçåá=Çá=éêçÇçííá=ÇÉä=dêìééç=bäÉÅíêçäìñ==E=èì~äá=ÑêáÖçêáÑÉêáI ÅìÅáåÉI=ä~î~Äá~åÅÜÉêá~I=ä~î~ëíçîáÖäáÉI=~ëéáê~éçäîÉêÉI=ãçíçëÉÖÜÉ=É=ê~ë~ÉêÄ~=F=îÉåÖçåç=îÉåÇìíÉ=çÖåá=~ååç=áå=éáìD=Çá=NRM m~Éëá=ÇÉä=ãçåÇç=éÉê=ìå=î~äçêÉ=Çá=ÅáêÅ~=NQ=ãáäá~êÇá=Çá=Ççää~êáK iÉ=dêçìéÉ=bäÉÅíêçäìñ=Éëí=äÉ=éêÉãáÉê=Ñ~ÄêáÅ~åí=ãçåÇá~ä=ÇD~éé~êÉáäë=ÇçãÉëíáèìÉëI=ÇDÉåíêÉíáÉå=Éí=éçìê=äDÉñí¨êáÉìêK mäìë=ÇÉ=RR=ãáääáçåë=ÇÉ=éêçÇìáíë=Çì=dêçìéÉ=bäÉÅíêçäìñ=EíÉäë=èìÉ=ê¨ÑêáÖ¨ê~íÉìêëI=Åìáëáåá≠êÉëI=ä~îÉJäáåÖÉI=~ëéáê~íÉìêëI íêçå´çååÉìëÉëI=íçåÇÉìëÉë=¶=Ö~òçåF=ëçåí=îÉåÇìë=ÅÜ~èìÉ=~åå¨É=éçìê=ìå=ãçåí~åí=ÇDÉåîáêçå=NQ=ãáääá~êÇë=ÇDbìêçë Ç~åë=éäìë=ÇÉ=NRM=é~óë=¶=íê~îÉêë=äÉ=ãçåÇÉK MARIESTAD DT--AV...
