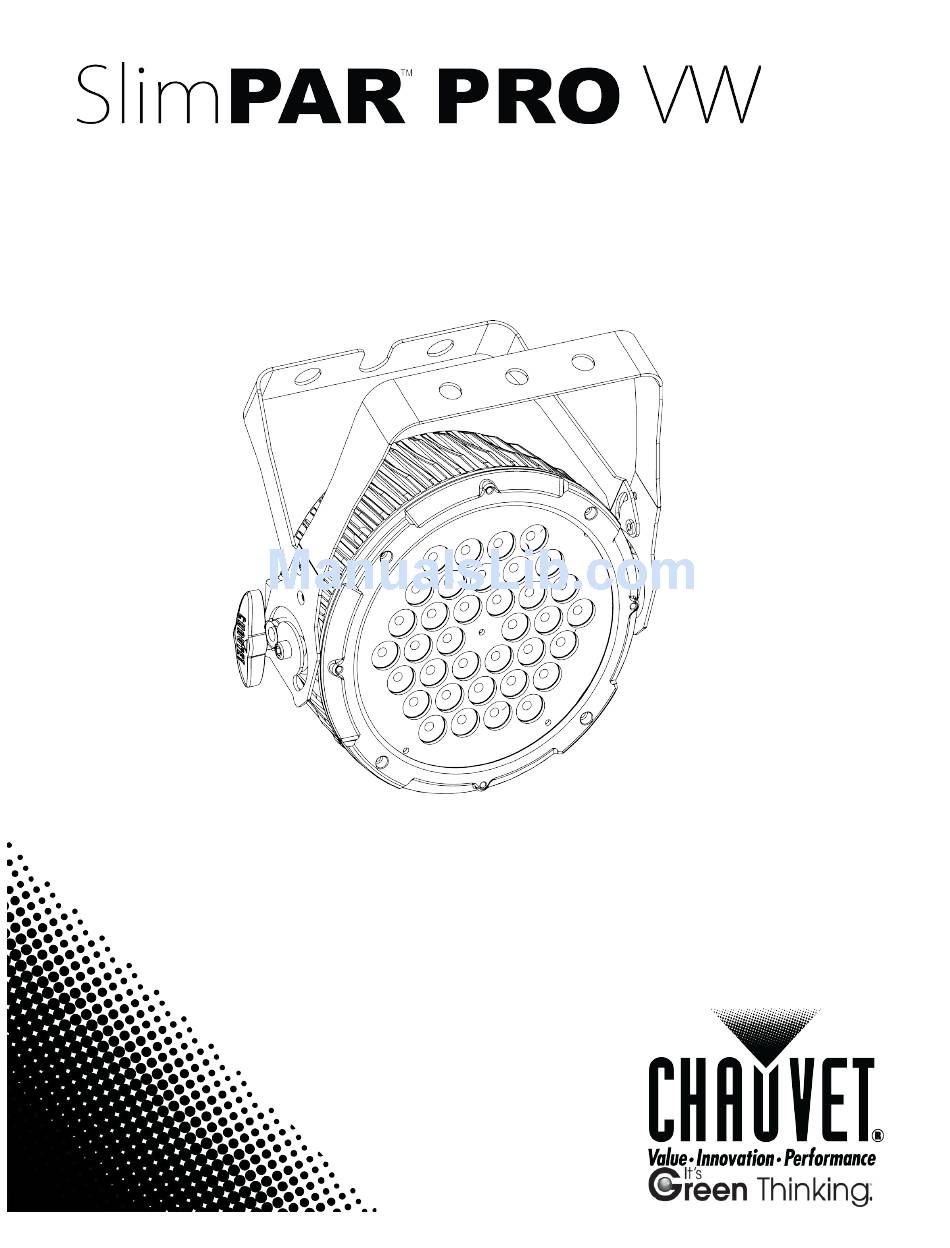

- Page 1 User Manual...
-
Page 2: Table Of Contents
ABLE OF ONTENTS 1. BEFORE YOU BEGIN ................................3 ..................................3 HAT IS INCLUDED ................................3 NPACKING NSTRUCTIONS ................................3 ANUAL ONVENTIONS ......................................3 CONS ................................. 4 AFETY NSTRUCTIONS 2. INTRODUCTION ..................................5 ................................... 6 RODUCT VERVIEW 3. SETUP .....................................7 AC P .................................... -
Page 3: Before You Begin
In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Manual Conventions CHAUVET® manuals use the following conventions to differentiate certain types of information from the regular text. EANING... -
Page 4: Safety Notes
Never disconnect the power cord by pulling or tugging on the cord. • Never carry the fixture directly from the cord. Always use the hanging/mounting bracket. • Avoid direct eye exposure to the light source while it is on. SlimPAR Pro VW User Manual Rev. 3... -
Page 5: Introduction
2. I NTRODUCTION SlimPAR Pro VW User Manual Rev. 3... -

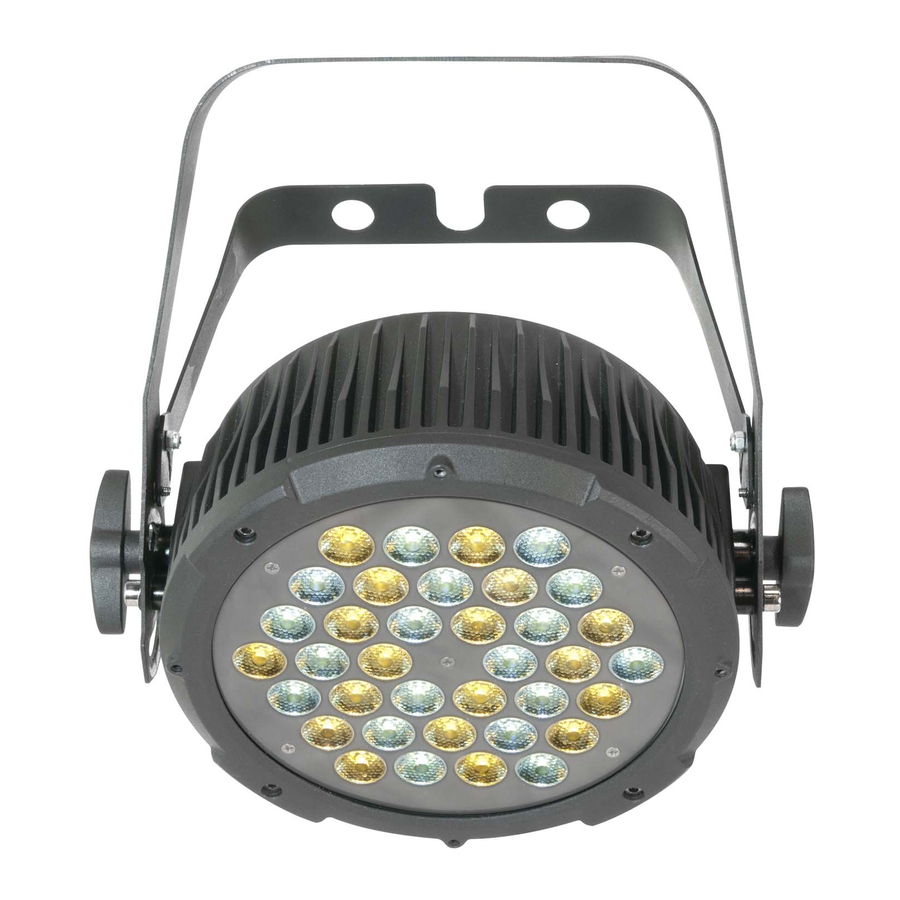

Page 6: Product Overview
Product Overview Control Panel (LED Display) DMX In Power In DMX Out Fuseholder Power Out Bracket Adjustment Knob Bracket Adjustment Knob Safety Hanging Bracket SlimPAR Pro VW User Manual Rev. 3... -
Page 7: Setup
Additional power link out The power linking shown in this document is for the CHAUVET® North American version ONLY! Therefore, it is the customer’s responsibility to check with the Dealer/Distributor regarding power linking on the local version of the product. Connections and availability may change, depending on the power requirements and/or regulations of each country/region. -
Page 8: Mounting
Do not use tools for this step, as it may cause damage. • Use the rubber feet to support the fixture in a sitting position. • Safety cables must always be used. Bracket Adjustment Bracket Adjustment Knob Knob Safety SlimPAR Pro VW User Manual Rev. 3... -
Page 9: Lens Assembly Replacement
Do not over-tighten the screws as this could cause damage. Put the front cover in place and reinstall the five Allen screws. Allen screw Allen screw Allen screw Allen screw Lens assembly Front cover SlimPAR Pro VW User Manual Rev. 3... -
Page 10: Operating Instructions
Color S000~S020 Strobe speed ( =no strobe) P--1~P--5 Program selection Auto Program S000~S100 Run speed There is no strobing in the following modes: . For full function control, use 7- Channel DMX mode. SlimPAR Pro VW User Manual Rev. 3... -
Page 11: Dmx Operation
). By selecting the strobe function will remain off. 11. Press <ENTER> to save the final color setting. This will move the selection to the following color. However, this is necessary to save the modification. SlimPAR Pro VW User Manual Rev. 3... -
Page 12: Dmx Channel Values
0%~100% (slow~fast) Dimmer Speed 000 051 Default dimmer speed 052 101 Linear dimmer 102 152 Non-linear dimmer 1 153 203 Non-linear dimmer 2 204 255 Non-linear dimmer 3 SlimPAR Pro VW User Manual Rev. 3... -
Page 13: Maintenance
Package must be clearly labeled with a Return Merchandize Authorization Number (RMA #). Products returned without the RMA # will be refused. Call CHAUVET® and request an RMA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 14: Technical Specifications
Data pin configuration ......................pin 1 shield, pin 2 (-), pin 3 (+) Protocols ..............................DMX-512 USITT DMX Channels (user-configurable) ........................... 2, 3, 7 ORDERING INFORMATION SlimPAR™ Pro VW ..............................SPPVW Optional 17° (Narrow) Lens ........................SPPVWLENS17 WARRANTY INFORMATION Warranty ............................2-year limited warranty SlimPAR Pro VW User Manual Rev. 3... -
Page 15: Contact Us
5200 NW 108 Sunrise, FL 33351 voice: 954.929.1115 fax: 954.929.5560 toll free: 800.762.1084 Technical Support CHAUVET® 5200 NW 108 Sunrise, FL 33351 voice: 954.929.1115 (Press 4) 954.929.5560 (Attention: Service) fax: World Wide Web www.chauvetlighting.com SlimPAR Pro VW User Manual Rev. 3...
