Summary of Contents for Iiyama ProLite T5561MTS
-

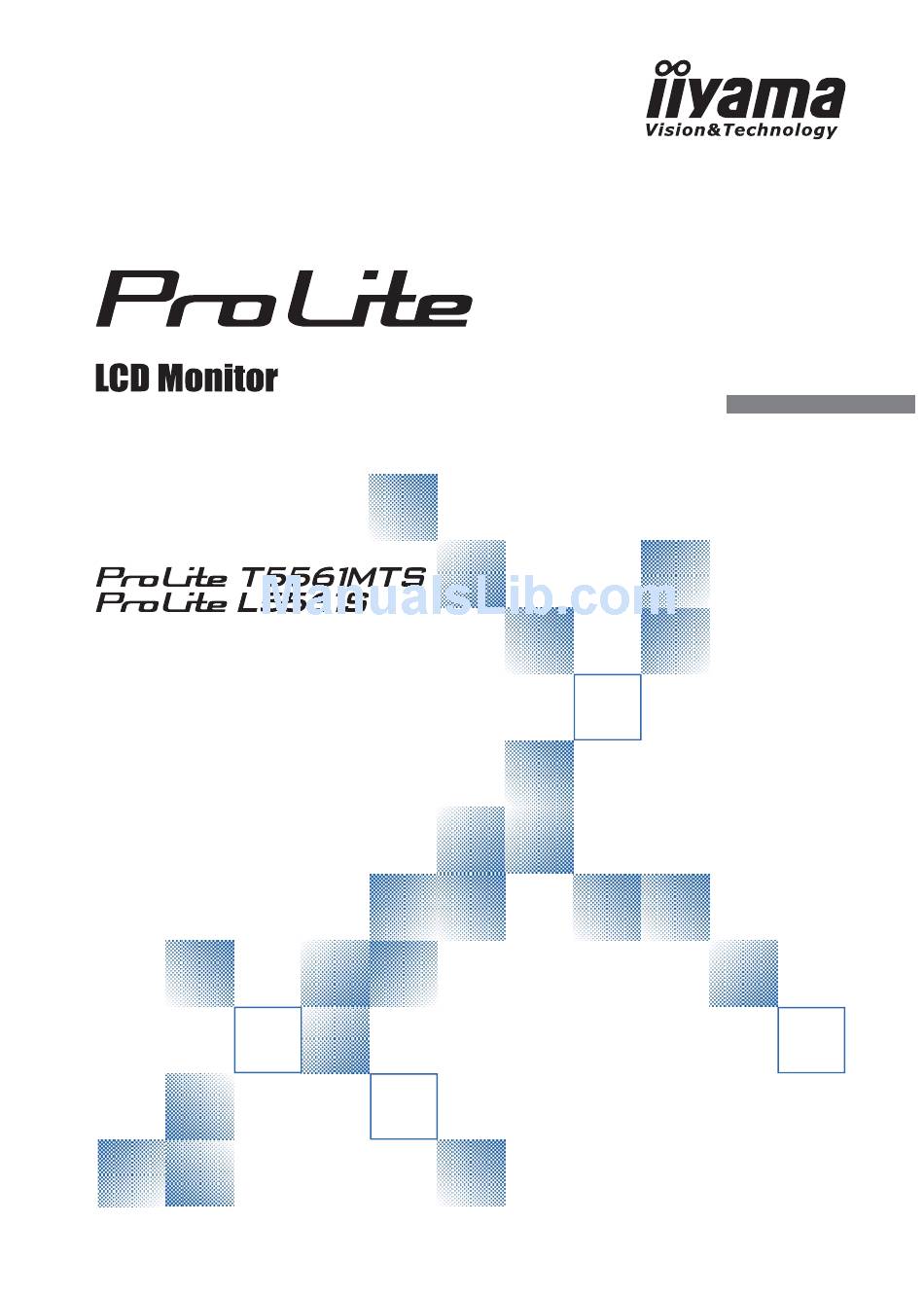

Page 1: User Manual
USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for... -
Page 3: Ce Marking Declaration Of Conformity
IIYAMA CORPORATION: Breguetlaan 8, 1438BC Oude Meer The Netherlands We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com... -
Page 4: Table Of Contents
BEFORE YOU OPERATE THE MONITOR ........4 FEATURES ..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 UNPACKING .................5 SPECIAL NOTES ON : ProLite T5561MTS........5 CONTROLS AND CONNECTORS : MONITOR ......6 INSTALLATION ................8 CONTROLS AND CONNECTORS : REMOTE CONTROL ..10 PREPARING THE REMOTE CONTROL ........11 BASIC OPERATION ..............12... -
Page 5: For Your Safety
STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fi re or electric shock. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 7: Special Notes On Lcd Monitors
Power Switch for hours. Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, fl ickering or not lighting up. Never attempt to replace it by yourself. -
Page 8: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 9: Unpacking
Moving the monitor requires at least two people. If not, it may drop and could result in a serious injury. When moving/shipping the monitor, please hold by the white handles. SPECIAL NOTES ON : ProLite T5561MTS CAUTION Permanent damage can occur if Sharp Edged, Pointed or Metal items are used to activate Touch. -
Page 10: Controls And Connectors : Monitor
If power off and select LED on via menu "Front LED ON" Power Off If power on and select LED on via menu "Front LED OFF" Remote Sensor Remote Sensor <Right Side > Touch USB* Touch USB Connector * Available for ProLite T5561MTS only. 6 BEFORE YOU OPERATE THE MONITOR... - Page 11 <Back> RS485 RS485 RS232C AC IN Line Component Video S-Video Video AC OUT DisplayPort HDMI1 HDMI2 Audio Extender Component Audio Composite Audio 100-200V2A DisplayPort DisplayPort DisplayPort Connector HDMI1 HDMI HDMI Connector HDMI2 HDMI HDMI Connector DVI-D 24pin DVI-D 24pin Connector D-SUB mini 15pin D-SUB mini 15pin Connector PC Audio In...
-
Page 12: Installation
INSTALLATION CAUTION Follow the manual instructions for the type of mount you have selected. Refer all servicing to qualifi ed service personnel. Moving the monitor requires at least two people. Before installing, please make sure the wall is strong enough to hold the necessary weight of the display and the mount. - Page 13 [Installation Note] *Available for ProLite T5561MTS only. The touch kit of this monitor is an optical device that utilizes infrared light source and sensitive sensors for touch detection. Notice the incident light that contains large quantities of infrared light may affect touch screen operation and performance.
-
Page 14: Controls And Connectors : Remote Control
CONTROLS AND CONNECTORS : REMOTE CONTROL Turns the monitor ON and OFF. VGA / DVI / HDMI1 / COMP1 / Selects the source. AV1(VIDEO1) / HDMI2 ECO+ Brightness of back-light is reduced. ECO- Brightness of back-light is increased. P-SOURCE Selects the secondary sub source. MENU Opens the monitor's on-screen menu systems. -
Page 15: Preparing The Remote Control
PREPARING THE REMOTE CONTROL To use the remote control, insert the two dry batteries. CAUTION Do not use any other batteries other than those specifi ed in this manual for the Remote Control. Do not insert old and new batteries together in the Remote Control. Make sure that the terminals match the "+"... -
Page 16: Basic Operation
BASIC OPERATION Turning the monitor ON [Monitor] [Remote Control] T h e m o n i t o r i s t u r n e d O n a n d t h e P o w e r Indicator turns to Green when you press the Power Button on the monitor or the Remote Control. - Page 17 Move the cursor vertically [Monitor] [Remote Control] Select adjustment by pressing the Button while the menu page is displayed on the screen. MENU Move the cursor horizontally [Monitor] [Remote Control] S e l e c t m e n u o r s e t t i n g , o r p e r f o r m t h e adjustment by pressing the Button while the menu page is displayed on the screen.
- Page 18 Adjust the volume of sound [Remote Control] Press the Volume+ / Volume- Button on the Remote Control to adjust the volume of sound when the menu page is not displayed on the screen. MENU Switch the input signal [Monitor] [Remote Control] This is activated when you successively press...
-
Page 19: Connecting Your Monitor
The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama offi... - Page 20 [ Connection example with the peripheral device ] CAUTION Turn off the power switch and unplug the monitor and peripherals before connection to avoid electric shock or damage. NOTE Refer to the user manual of peripherals at the same time. ...
-
Page 21: Computer Setting
Windows XP/Vista/7 Plug & Play : ProLite T5561MTS Windows 95/98/2000/Me/XP/Vista/7 Plug & Play : ProLite L5561S The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows 95/98/2000/Me/XP/Vista/7 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. -
Page 22: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 40. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 31 for SCREEN ADJUSTMENTS. - Page 23 OSD LOCK MODE: LOCK: Press ENTER, ENTER, EXIT, EXIT, ENTER and EXIT on the Remote Control in sequence and OSD will be locked. UNLOCK: Press ENTER, ENTER, EXIT, EXIT, ENTER and EXIT on the Remote Control in sequence and OSD will be Unlocked. OPERATING THE MONITOR 19...
-
Page 24: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Image Settings Image Settings Scheme User Brightness Contrast Sharpness Saturation Backlight Colour Temperature & Gamma Adjustment Item Problem / Option Button to Press Displays a picture on a screen set by Image User Settings adjustments. For displaying outdoor scenery images. Vivid Scheme * For movie and video environment. -
Page 25: Image Settings
Image Settings Image Settings Colour Temperature & Gamma Gamma Colour Temerature User Red Gain Green Gain Blue Gain Red Offset Green Offset Blue Offset Adjustment Item Problem / Option Button to Press High contrast Gamma Normal User Go to adjustment menu of Gain and Offset. Greenish white 5000K Colour Temperature... - Page 26 Display Settings Display Settings Main Main Aspect Ratio Full Screen Zoom Auto Scan Select Source PIP Mode PIP Position Top-Left Aspect Ratio Full Screen Side By Side Scale Auto Scan Select Source Adjustment Item Problem / Option Button to Press Full Screen Expansion display Displayed at the same magnifi...
- Page 27 Display Settings Display Settings Main Aspect Ratio Full Screen Zoom Auto Scan Select Source PIP Mode PIP Position Top-Left Aspect Ratio Full Screen Side By Side Scale Auto Scan Select Source Adjustment Item Problem / Option Button to Press PIP function is turned off. Sub screen is displayed at maximum size.
- Page 28 PIP = Picture in Picture With this function, you can display two different picture. Main Screen Main Screen Sub Screen Sub Screen Side by Side Small Middle Large PIP Screen Table Main HDMI1 HDMI2 Displayport Component S-Video Video HDMI1 HDMI2 Displayport Component S-Video...
- Page 29 Audio Settings Audio Settings Volume Bass Treble Balance HDMI HDMI Audio Input Adjustment Item Problem / Option Button to Press Too soft Volume Too loud Too weak Bass Too strong Too weak Treble Too strong Adjust the volume balance of the speaker right Balance and left.
- Page 30 Real Time Clock Buttons : Number select, Move the cursor vertically MENU Button: Return previous menu item iiyama Logo displayed when the monitor is turned on. Start Up Logo iiyama Logo does not display when the monitor is turned on.
- Page 31 Advanced Settings Advanced Setting Auto Adjustment Image Position Phase Clock VGA ADC Settings Flesh Tone IRFM Baud Rate 115200 Light Sensor WOD Mode Monitor ID Factory Reset Adjustment Item Problem / Option Button to Press Return to Menu. 1,2,4 Auto Adjustment * Adjust Position, Clock and Phase automatically.
-
Page 32: Advanced Settings
Advanced Settings Advanced Setting Auto Adjustment Image Position Phase Clock VGA ADC Settings Flesh Tone IRFM Baud Rate 115200 Light Sensor WOD Mode Monitor ID Factory Reset Adjustment Item Problem / Option Button to Press Return to Menu. Factory Reset Factory-preset data is restored. - Page 33 Advanced Settings Advanced Setting VGA ADC Settings ADC Mode Default User ADC Calibration Restore ADC to Default Adjustment Item Problem / Option Button to Press Factory Mode Default ADC Mode User Setting Mode User Return to Menu. User ADC Calibration* Press Button.
-
Page 34: System Status
System Status System Status Channel Information Source Resolution Main 1920x1080@60.0Hz Firmware Version V0.20d Adjustment Item Problem / Option Button to Press Displays information regarding the current input signal coming from the graphic card in your computer. System Status NOTE See your graphic card user guide for more information about changing the resolution and refresh. -
Page 35: Screen Adjustments
If the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama.com). Adjust the image by following the procedure below to get the desired picture. - Page 36 C Press the AUTO Button. (Auto Adjustment : Remote Control) D Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust. E Adjust the V-Position so that the top and bottom of the picture frame will fi...
- Page 37 G Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern. In case the strong fl icker or blurs remain on a part of the screen, repeat steps F and NOTE G because the Clocks may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from C again.
-
Page 38: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. -
Page 39: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem Check ... -
Page 40: Recycling Information
RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. 36 Recycling information... -
Page 41: Appendix
APPENDIX SPECIFICATIONS : ProLite T5561MTS Touch Technology Optical Screen Light transmission Communication USB serial transfer system Size Category 55" LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 55" (138.5cm) Pixel pitch 0.63mm H × 0.63mm V Brightness 400cd/m... -
Page 42: Specifications : Prolite L5561S
SPECIFICATIONS : ProLite L5561S Size Category 55" LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 55" (138.5cm) Pixel pitch 0.63mm H × 0.63mm V Brightness 500cd/m (Typical: with Touch panel) Contrast ratio 5000 : 1 (Typical: with Touch panel) Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical) Response time... -
Page 43: Dimensions
DIMENSIONS 1325.5mm/52.2” 1212.0mm/47.7” 1298.0mm/51.1” 654.5mm/25.8” MODEL PLL5561S-B1 70.0mm/2.8” 133.0mm/5.2” PLT5561MTS-B1 86.0mm/3.4” 149.0mm/5.9” APPENDIX 39... -
Page 44: Compliant Timing
COMPLIANT TIMING Timing 31.469 59.940 25.175 37.861 72.809 31.500 VGA 640x480 37.500 75.000 31.500 43.269 85.008 36.000 35.156 56.250 36.000 37.879 60.317 40.000 SVGA 800x600 48.077 72.188 50.000 46.875 75.000 49.500 53.674 85.060 56.250 48.363 60.004 65.000 56.476 70.069 75.000 XGA 1024x768 60.023 75.029 78.750...
