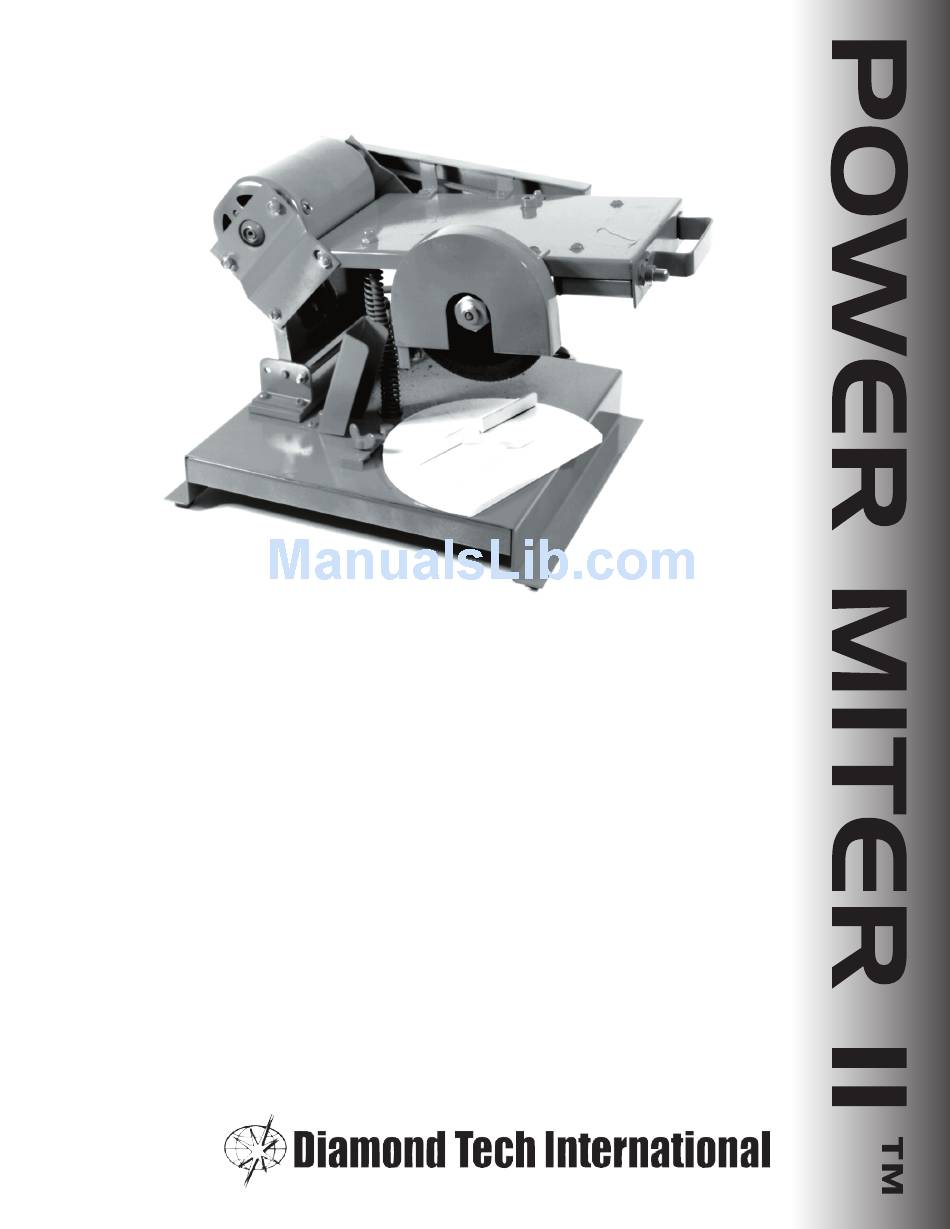

- Page 1 Power Miter II™ Chop Saw Operations Manual “Safe, Reliable and Easy to Operate”...
-
Page 2: Safety Instructions For Miter Saw
• For extra stability - Drill holes into your workbench to accommodate the rubber feet of the Power Miter II Saw, or remove the feet and bolt your saw directly to your workbench. • This saw is designed to cut soft metals (lead, zinc, brass, aluminum) and soft wood. It is not... -
Page 3: Plan Ahead To Protect Your Eyes, Hands, Face And Ears
Safety Instructions for Miter Saw BEFORE YOU BEGIN INSPECT YOUR MITER SAW. • Disconnect The Miter Saw to reduce the risk of injury from accidental starting before changing the setup, changing the blade, or adjusting anything. • The blade teeth should always point downward at the front of the saw. •... -
Page 4: Inspect Your Workpiece
Safety Instructions for Miter Saw Dress For Safety Any power tool can throw foreign objects into the eyes. This can result in permanent eye damage. Wear safety goggles (not glasses) that comply with ANSI Z87.1 (or in Canada CSA Z94-3-M88). Everyday eyeglasses have only impact resistant lenses. -
Page 5: Motor Specifications And Electrical Requirements
Safety Instructions for Miter Saw Keep Children Away. • Keep all visitors a safe distance from the miter saw. • Make sure bystanders are clear of the miter saw and workpiece. Don’t Force Tool. • It will do the job better and safer at its designed rate. Feed the saw into the workpiece only fast enough to let the blade cut without bogging down or binding. -
Page 6: Basic Saw Operations
Unpacking WARNING: To reduce the risk of injury from unexpected starting or electrical shock, do not plug the power cord into a source of power during unpacking and assembly. This cord must remain unplugged whenever you are working on the saw. WARNING: If any part is missing or damaged, do not plug the saw in until the missing or damaged part is correctly replaced. -
Page 7: Workpiece Support
WARNING: Always use both Blade Support Washers to maintain stability and safety of the Blade NOTE: Use only Power Miter II™ blades designed for use with your Power Miter II™ Saw. After installing new blade, make sure that the blade clears the Miter/Angle Guide Slot at the 0°... -
Page 8: Troubleshooting Guide
Diamond Tech International Warranty Your Power Miter II Saw is fully guaranteed for three years. If failure occurs for any reason other than misuse during this period, it will be corrected free of charge when product is shipped to our distribution center.
