Door reversal

Before starting work, unplug the appliance. To reverse
the opening direction of the door proceed as follows:
remove the lower hinge (3), pin (1) and foot (2);
unscrew the front left foot and screw it back in on the
opposite side;
remove the two screws which mask the holes for fix-
ing the hinge from the front left hand side;
slide out the door from pin (5), unscrew the latter and
then screw it down into the hinge provided on the op-
posite side;
remove the two plugs, to reveal the holes for the hinge
pivots, and remount them on the other side;
reassemble the door;

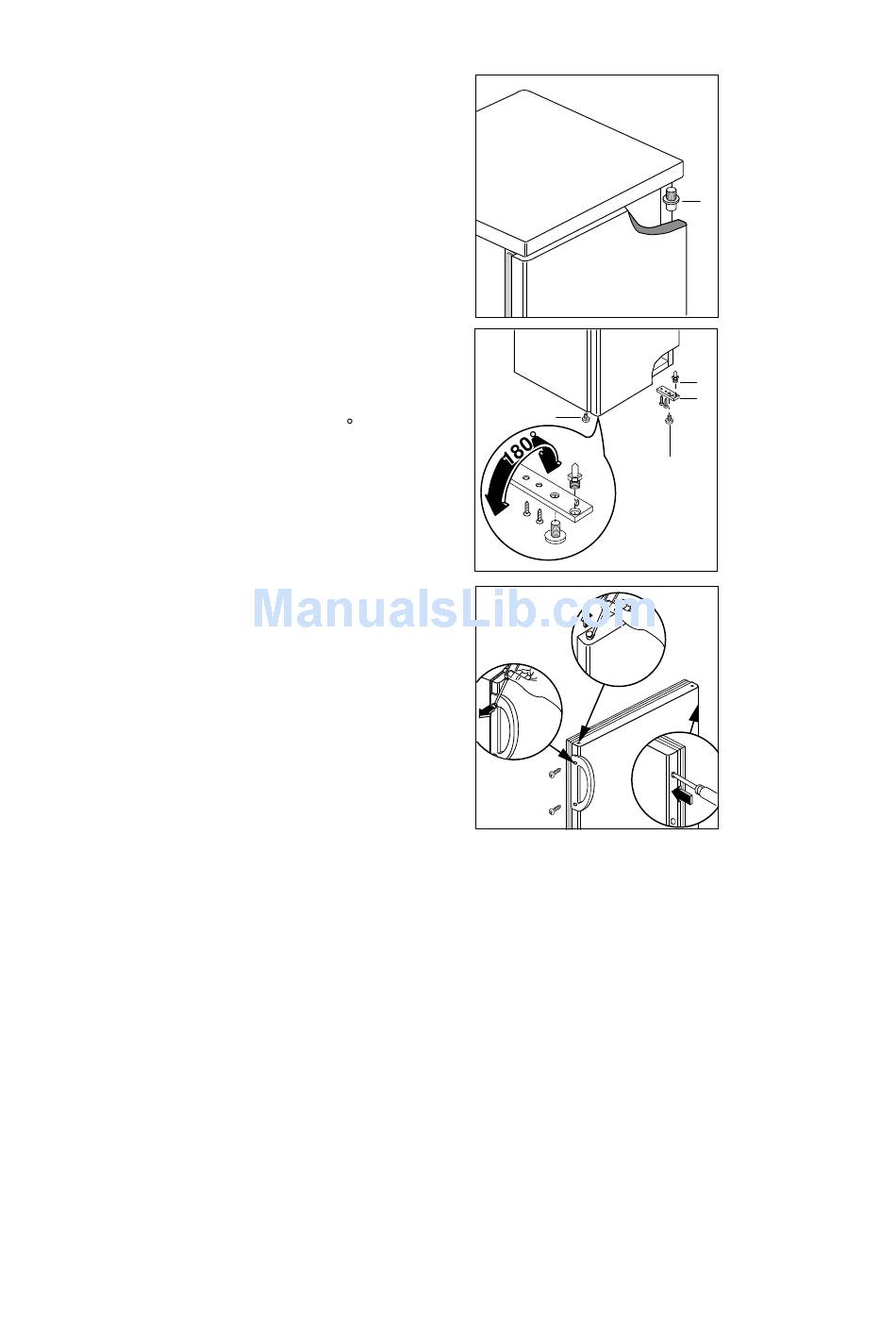

refit the lower hinge (turning it through 180 ), the pin
and the foot on the opposite side, as shown in the fig-
ure.
Unscrew the handle. Refit it on the opposite side after
having pierced the plugs with a punch. Cover the
holes left open with the plugs contained in the docu-
mentation pack.
Attention
After having reversed the opening direction of the
door check that all the screws are properly tight-
ened and that the magnetic seal adheres to the
cabinet. If the ambient temperature is cold (i.e. in
Winter), the gasket may not fit perfectly to the cabinet.
In that case, wait for the natural fitting of the gasket or
accelerate this process by heating up the part in-
volved with a normal hairdrier.
