- Page 1 USER'S MANUAL SX-6600/6600F SX-6700/6700F SX-6750/6750F 03 type Oct. 24. 2002 [SX6K-03] USR-003...
- Page 2 -- Consult the dealer or an experienced radio/TV technician for help. ===== Notes ===================================== 1. The contents of this manual are subject to change without notice. 2. Uniwell cannot be held responsible if other products, which are not approved by Uniwell, are used for options or expendable supplies.
-
Page 3: Table Of Contents
CONTENTS ATTENTION..........................1 I. INTRODUCTION ....................... 2 PART NAMES ........................3 SPECIFICATIONS......................4 II. INSTALLATION ....................... 6 REPLACING PAPER ROLLS..................7 REPLACING INK RIBBON ................... 9 DAILY MAINTENANCE ....................10 III. DISPLAY......................... 12 IV. KEY LAYOUT........................ 13... -
Page 4: Attention
ATTENTION Thank you very much for purchasing Uniwell Electronic Cash Registers. This ECR has many programmable features, hardware combinations and options. Please consult your dealer as to your particular requirements, as this ECR can be configured, through both hardware and software (programming) to suit a variety of different applications. -
Page 5: Introduction

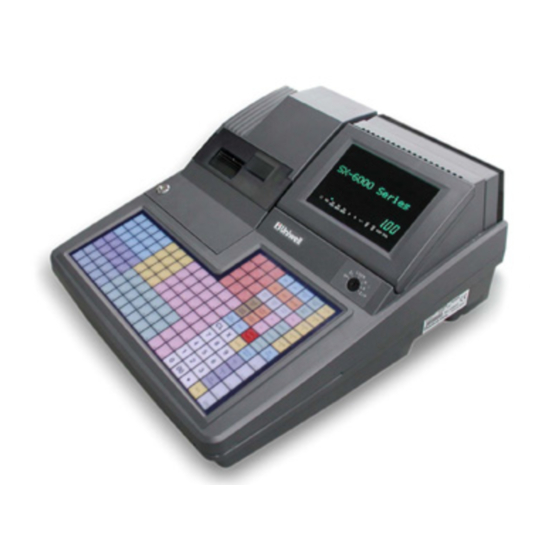

I. INTRODUCTION SX-6000-03 series is Hospitality POS terminals for Restaurants, Bars / Pubs and Quick Service Stores having a lot of functions like scanning system, clerk interrupt system, item track system and Inter Register Communication, and so on as follows: SX-6600 2-station dot matrix printer model (44.5 mm, 3.0 lines/sec., 24 char.) SX-6700... -
Page 6: Part Names
12 digits numeric printer cover lock 2-line front display Upper: 16 digits alphanumeric Lower: 12 digits numeric power switch control lock clerk iButton SX-6600F (option) (flat keyboard type) 2-station dot matrix printer model card reader SX-6700F (option) (flat keyboard type) -
Page 7: Specifications
SPECIFICATIONS SX-6600/6600F SX-6700/6700F SX-6750/6750F Epson M-U420 Epson M-T245 Citizen LT-1320 Printer model 2-station impact dot matrix 2-station thermal 1-station thermal with or without auto cutter with an auto cutter with an auto cutter Printing speed 3.0 lines/sec 14 lines/sec 21.5 lines/sec Columns/line receipt 24 columns... - Page 8 INTERFACE CHANNEL CONTENTS up to 32 units including an ECR master or PC as IRC master (Tensai2000) via NA-720 8 kitchen printer TP-420 : shuttle impact dot matrix printer without auto cutter TP-422 : shuttle impact dot matrix printer with auto cutter TP-522 : serial impact dot matrix printer with auto cutter TP-722 : thermal printer with auto cutter A RS485...
-
Page 9: Installation
II. INSTALLATION Suggestions for Installation 1) ECR should not be installed in extremely hot or cold places exposed to direct sunlight for extended period of time, or places where ECR may come into contact with excessive dust or liquid. 2) Use the specified power supply according to ECR models. Do not connect with other machines which may cause electricity line noise. -
Page 10: Replacing Paper Rolls
REPLACING PAPER ROLLS SX-6600 (Epson M-U420) SX-6700 (Epson M-T245) SX-6750 (Citizen LT-1320) Single thermal roll Single thermal roll Fine quality paper roll TF50KS-E (Jujyo Seishi) TF50KS-E2C (Nihon Seishi) 44.5 mm x ø83 mm 44.5 mm x ø83 mm 80 mm x ø80 mm Regarding terminal printers, refer to the respective printer's User's Manual. - Page 11 SX-6750 a) Using the scissors, cut the leading edge of the paper roll straight. b) Insert the paper shaft though the core of the new paper right wrong roll. c) Place the new paper in the correct position on the printer's paper roll bed.
-
Page 12: Replacing Ink Ribbon
REPLACING INK RIBBON Regarding terminal printers, refer to the respective printer's User's Manual. SX-6600 (M-U420) Ink ribbon: ERC-32 Lift the printer cover and remove the old ribbon. Turn the ribbon feed knob to stretch tight. While tilting the ribbon cassette forward slightly, insert the ribbon between the print head and the paper; push the ribbon cassette firmly into place. -
Page 13: Daily Maintenance
DAILY MAINTENANCE 1. Cleaning of ECR In order to keep ECR clean, please wipe the cabinet, display or keyboard with a soft piece of cloth regularly. In order to remove heavy dirt, please wipe them using a soft piece of cloth which is dipped in a neutral detergent with water and is tightly squeezed. - Page 14 3. In Case that the Auto-Cutter on SX-6750 Printer Does Not Return If the auto-cutter is locked by a paper jam or if something come into the auto-cutter and locked, please follow the sequences below: a) Turn the power switch off. Open the printer cover. b) Pull the cutter lock lever forward and pull the auto-cutter unit.
-
Page 15: Display
III. DISPLAY FRONT DISPLAY Upper line: 16 digits alphanumeric (7 x 5 dots) Lower line : 12 digits numeric (7 segments) R-OFF TOTAL PRICE MENU MENU REAR DISPLAY (Standard) 12 digit numeric LAMP CONDITION MEANING not used registration mode (clerk assignment condition) FLASHING training mode 2nd PRICE... -
Page 16: Key Layout
IV. KEY LAYOUT Control key position range: M key " " RECEIPT BUFFER CLERK There are three standard control keys PRINT 1 Z key (M, Z, X) and one optional control key (R). X key Ä Ö Ü CLERK R key VOID REFUND PERSON (option) - Page 17 Control key position range: M key Ä Ö Ü (BACK SP) (SPACE) (DOUBLE) There are three standard control keys " " Z key (M, Z, X) and one optional control key RECEIPT BUFFER OFF COM- PRINT 1 PULSORY (R). X key R key Å...
