Installing the shelf supports
Install the shelf supports in the opposite
sequence.
Valid with telescopic runners:
The retaining pins on the tele-
scopic shelf runners must point to
the front!
CAUTION!
Make sure that the longer fixing
wire is in the front. The ends of
the two wires must point to the
rear. Incorrect installation can
cause damage to the enamel.
11.3 Cleaning the top oven
glass panels
The door glass on your product
can be different in type and shape
from what you see in diagrams.
The number of glasses can be dif-
ferent.

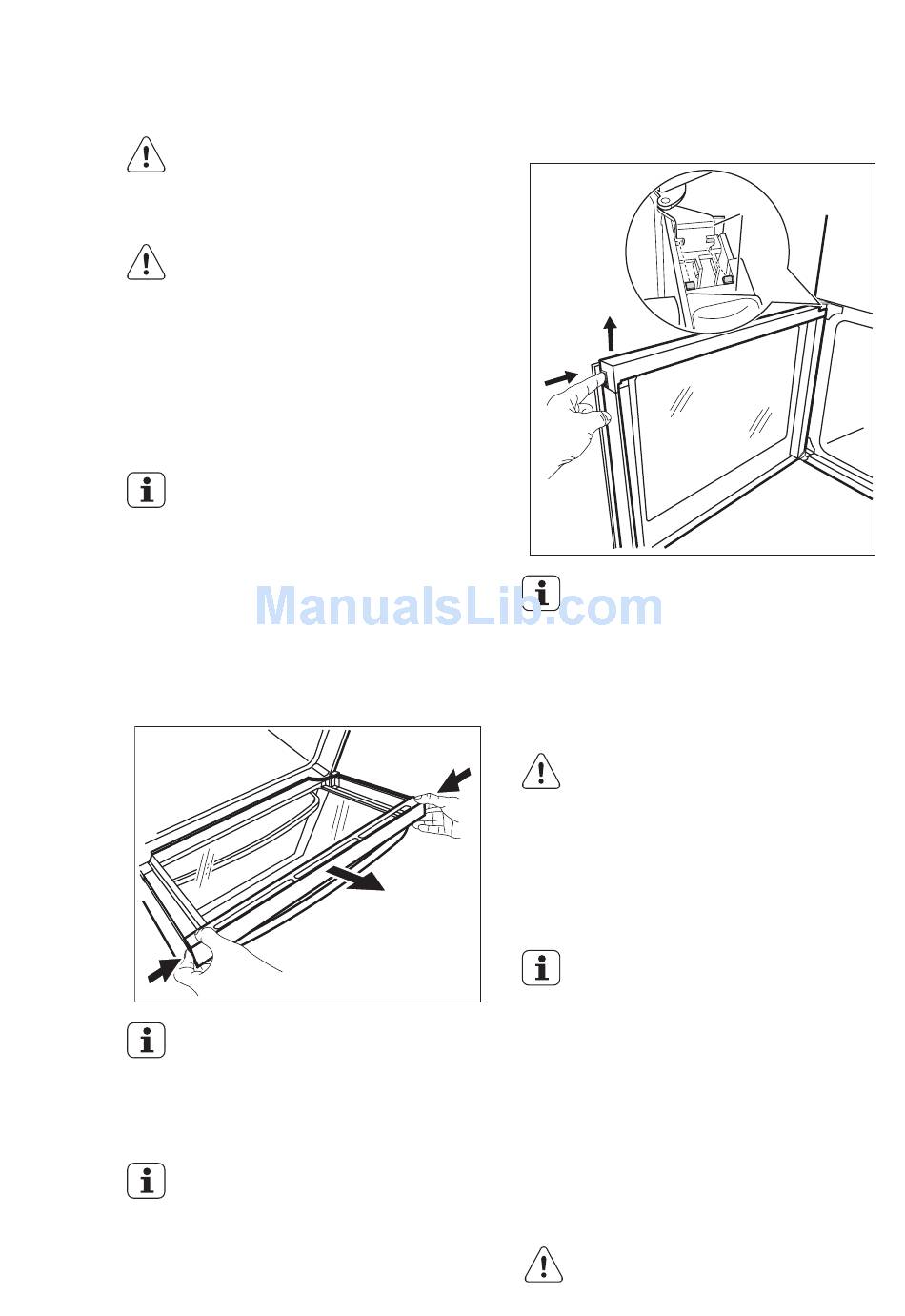

Removing the glass:
1.
Open the door.
2.
Push the door trim at both sides to
release the clips. Refer to the picture.
3.
Remove the glass panels.
1
To replace the glass obey the pro-
cedure in opposite sequence.
11.4 Cleaning the main oven
glass panels
The door glass on your product
can be different in type and shape
from the example you see in the
diagram. The number of glasses
can also be different.
Removing the glass:
1.
Push the door trim at one side to re-
move it. Refer to the diagram.
2.
Pull up the trim.
3.
Remove the glass panels.
1

11.5 Oven lamp

1
Before you change the oven lamp:
2
• Switch off the oven.
• Remove the fuses in the fuse box or
switch off the circuit breaker.
Replacing the oven lamp
1.
You can find the lamp glass cover at
the back of the cavity.
Turn the lamp glass cover counter-
clockwise to remove it.
2.
Clean the glass cover.
3.
Replace the oven lamp with applica-
ble 300°C heat-resistant oven lamp.
ENGLISH
A
2
To replace the glass panels, do
the above steps in the opposite
sequence. Before you lower the
trim, attach the A trim part to the
door. Refer to the diagram.
WARNING!
There is a danger of electrical
shock!
Put a cloth on the bottom of the
oven for protection of the oven
light and glass cover.
Use the same oven lamp type.
21
