Electrolux EGL4401X Use & Care Manual page 13

Outdoor grill with electronic ignition
Table of Contents

Advertisement

Side cutouts are needed on each side to feed
ignitor wires to the ignitor plates and allow
access to side gas connections .
(Size: 25 cm high x 12.5 cm long, set 1
back from front edge)
GFI Electrical outlet
for rotisserie motor
*Required Ignitor cutout
for front or side mount
*A minimum 8 cm clearance is
required between the back of the
grill hood and a non-combustible
surface.

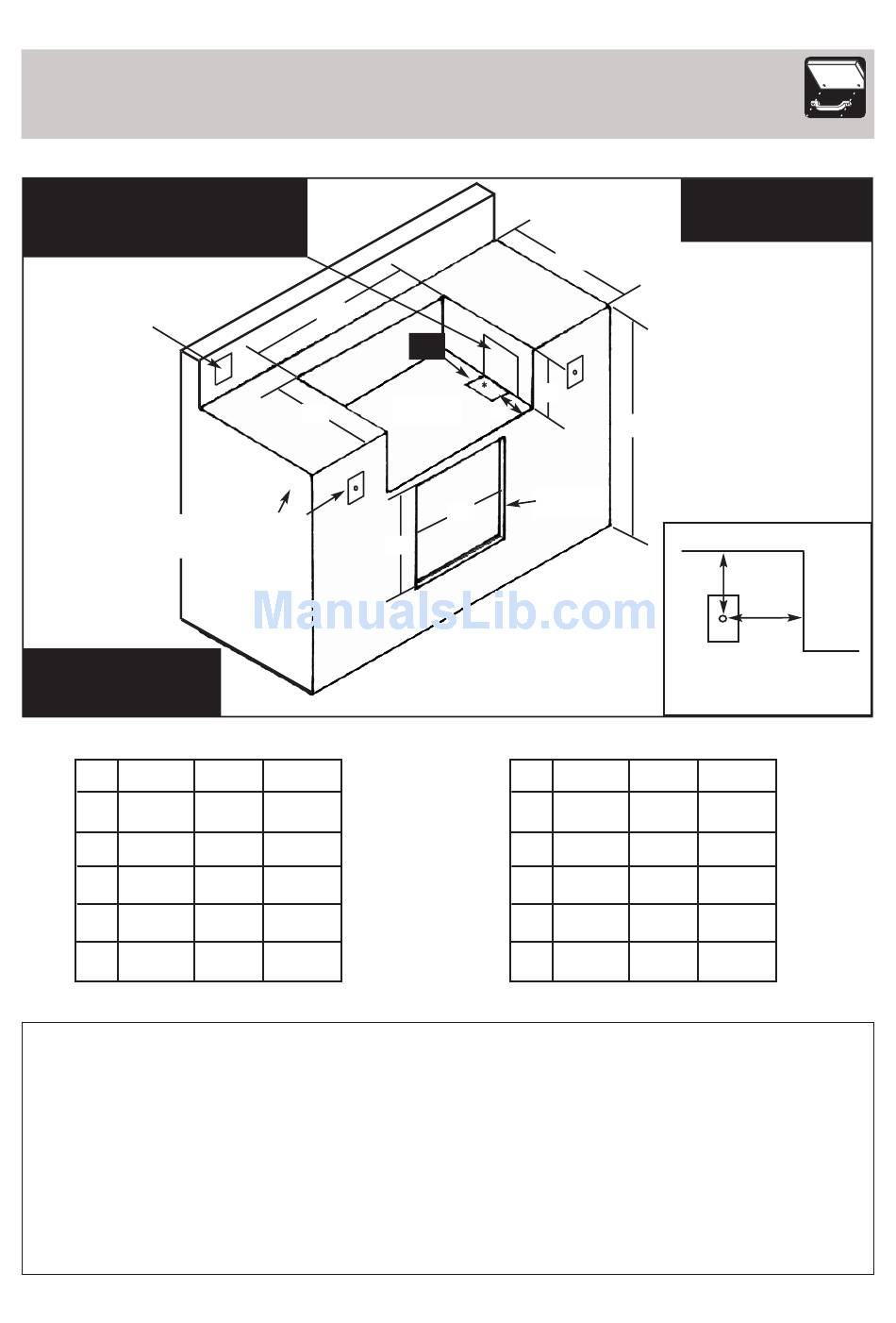

Built-in dimensions without using a Trim Kit
44
Grill
A
112 cm
112 cm
53 cm
B
33 cm
C
D
N/A
E
N/A
Additional Requirements:
* Gas connection cut out in floor support needs to be 10 cm wide x 23 cm long, set 5 cm back
from front edge.
* Ignitor cutout is equal to a standard electrical outlet with a minimum depth of 6 cm.
* If using a backsplash apron or rear wall, locate electrical service on the left hand side for
rotisserie motor connection.
* A minimum clearance of 30 cm from the back must be maintained between the grill
and any combustible construction such as wood siding of a residence, 8 cm minimum
for non-combustible construction.
Built-In Instructions
for model EGL4401X
A
B
Single
Dual
Access
Access Door
Door
N/A
N/A
N/A
N/A
N/A
N/A
46 cm
92 cm
47 cm
47 cm
*Gas
Cutout
C
Floor Support
5 cm
area for grill
Opening
for access
D
door(s)
E
Built-in dimensions using a Trim Kit
A
B
C
D
E
11
Note: Make sure to use a
non-combustible base and
sides for the structure
70 cm Min.
90 cm Max.
IGNIT OR PLATE
INSTALLATION
counter top
ca 10 cm
ca 10 cm
Distance to center of ignitor
button from side of gril
44
Single
Dual
Access
Grill
Access Door
Door
112 cm
112 cm
N/A
N/A
54 cm
N/A
N/A
22 cm
N/A
N/A
N/A
46 cm
92 cm
47 cm
N/A
47 cm
Grill

Hide quick links:

Advertisement

Table of Contents
loading

Subscribe to Our Youtube Channel

This manual is also suitable for:

Egl4400xEgl3001xEgl3000x

Table of Contents
