Fixing the hood

• Use template N2. Position the template on the front edges of the
wall unit (right wall unit, B side) – (left wall unit, C side) WITHOUT
CONSIDERING THE THICKNESS OF THE FRONT WALL UNIT
DOORS, and make the holes as indicated. Fig. 11
• If the side wall units are not heavy enough ONLY:
a. If necessary, fix the hood to the wall, putting template N1 on the
wall so its upper edge coincides with the upper edge of template
N2. Fig. 11-12
b. Make the holes as indicated.
Fix 2 hooks R to the wall with screws and dowels. Fig. 12
c. Hang the hood onto the hooks and adjust the position of the
hood with headless screws S1 and adjusting the position of the
hooking brackets with screws S2. Fig. 12
• Fix the hood to the side wall units with 4 screws P. Fig. 11
• Mount the lower corner Q (*) to the hood with two screws and
plastic washers T. They will serve to cover possible spaces between
the rear of the hood and the wall. Fig. 11-12
• Fit the grille.

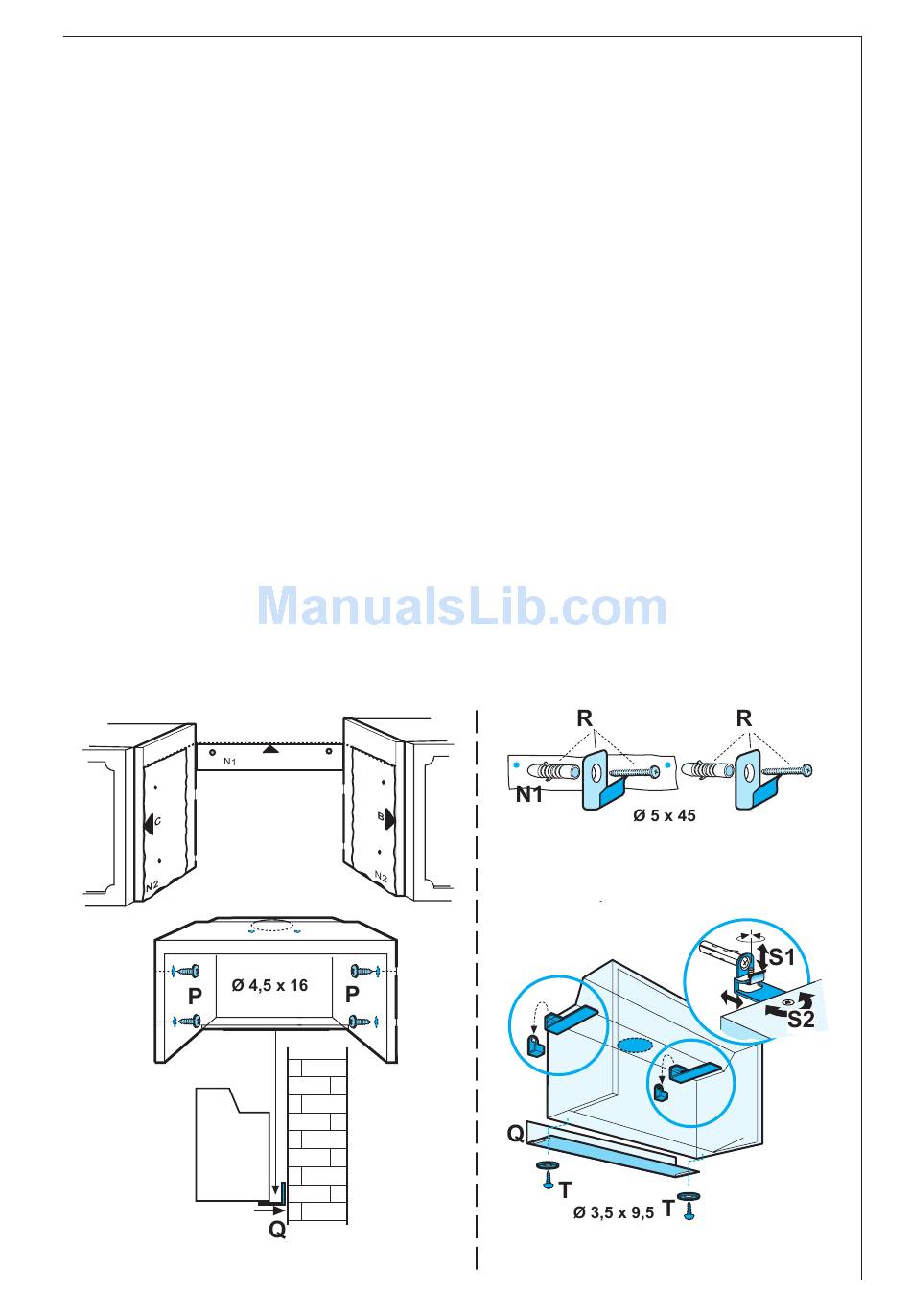

Fig. 11
Fig. 12
