Congratulations on your purchase of this precision audio component and thank you for your selection of
Parasound. Your P/LD-2000 Balanced Line Drive Preamplifier has been designed with the latest
technology to become the heart of the finest music systems. Premium parts and advanced design by
renowned circuit designer John Curl combined with full remote control make the P/LD-2000 one of the
finest preamplifier values ever offered. You have made an excellent choice.
Please take a few moments to read these instructions thoroughly so you may fully understand the
sophisticated capabilities of your new preamplifier.
Unpacking
Remove the remote control handset and the AC cord which are packed separately inside the carton. We
recommend using only this specially selected cord for the best musical reproduction.
Save your carton and inserts for future safe transport in case you move or the unit requires shipping for
repair. The printed carton itself is not strong enough for safe shipping, so you must place this carton
into an additional outer "overcarton" before shipment.
Before you proceed, find the serial number which is located on the rear panel of the unit and note it here
for future reference or in case the unit is ever stolen ____________________
Placement
Keep your Parasound P/LD-2000 shaded from direct sunlight which can interfere with its remote control
sensor. It should be placed away from moisture or heat sources such as hot air registers or radiators. If
you stack your components, we suggest you place your P/LD-2000 below or alongside other
components which may generate heat. Proximity to some power amplifiers may contaminate low level
signals with radiated hum from their transformers.
E
R
'
S

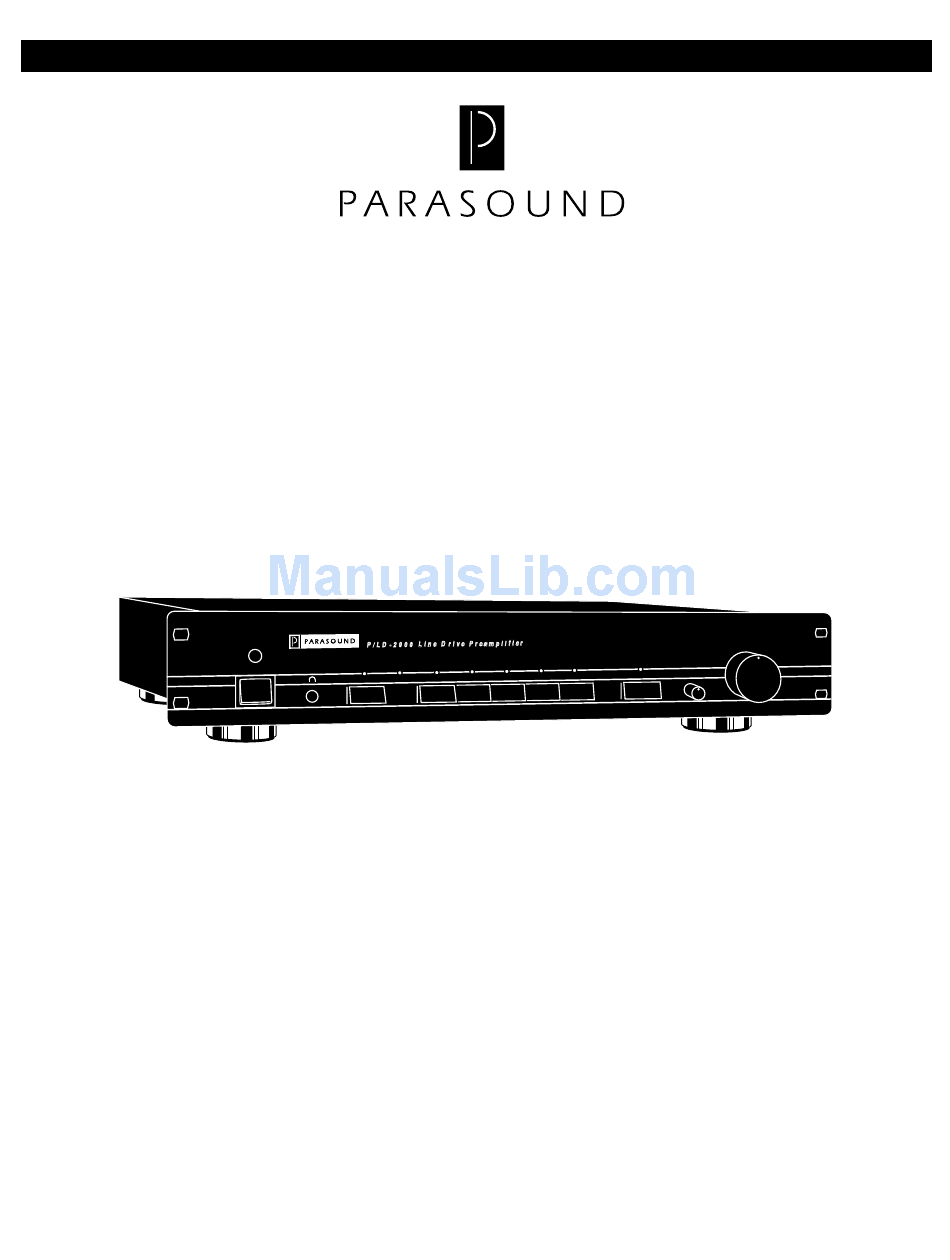

P/LD -20 0 0 Balanced Line Drive Preamplif ier
P o l a r i t y
P o l a r i t y
M u t e
M u t e
P o w e r
P o w e r
M
T u n e r
T u n e r
C D
C D
A u x
A u x
V i d e o
V i d e o
T a p e
T a p e
-1-
A
N
U
V o l u m e
V o l u m e
B a l a n c e
B a l a n c e
D i r e c t
D i r e c t
A
L
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Parasound P/LD-2000
Summary of Contents for Parasound P/LD-2000
- Page 1 Premium parts and advanced design by renowned circuit designer John Curl combined with full remote control make the P/LD-2000 one of the finest preamplifier values ever offered. You have made an excellent choice.
- Page 2 P/LD-2000 Front and Rear Panel Controls and Connections Infrared Receiving Eye Polarity Invert Indicator Balance Control V o l u m e B a l a n c e D i r e c t T u n e r...
- Page 3 Output Connections Unbalanced Output Connections There are two pairs of unbalanced output jacks on the rear panel of your P/LD-2000. One pair is direct with fixed polarity output and the other is normal with polarity switchable by a precision relay.
- Page 4 The External Remote Control connector is a standard 1/8" (3.5 mm) “mini” size jack. The center conductor is for + and the outer conductor is for - . Your Authorized Parasound Dealer or Custom Installer can recommend a compatible repeater system.
- Page 5 Windex. Never use any solvents or abrasives. Your P/LD-2000 has corrosion-free gold RCA jacks, but each year it is a good idea to twist the input plugs to preserve perfect signal transfer by removing corrosion which might have accumulated on the connecting plugs themselves.
- Page 6 Service if you suspect a problem. We will suggest other diagnostic tests you can easily perform and which will save you a lot of trouble. If we determine that your P/LD-2000 should be returned to Parasound for inspection and possible servicing, you must first obtain a Return Authorization number from Parasound. You will be asked to re-pack the unit in its original carton and cardboard packing plus an additional outer box over its own box for proper protection in transit.
- Page 7 P/LD-2000 Specifications Frequency Response 5 Hz - 150 kHz, +0/-2 dB, full output Total Harmonic Distortion < 0.003%, 1 kHz < 0.005%, 20 kHz IM Distortion < 0.003% Unmeasureable Maximum Output > 10 V before clipping Impedances Unbalanced inputs 30 k , 5% Balanced inputs 30 k per leg, 5% Line outputs <...
-
Page 8: Special Features
Rewiring for 220 - 240 V 50 Hz Operation Your P/LD-2000 may be rewired for operation abroad. This involves changing several of the power transformer wires. Please refer this conversion to a skilled electronics technician to avoid personal injury or possible harm to the unit. -
Page 9: Parasound Limited Warranty (Usa Only)
For Returns: Call, write, or fax Parasound’s Technical Services Department. If it is decided that the unit should be returned for inspection at Parasound, it must be packed in its original carton as well as an additional outer carton. An RA number will be issued which must appear on the outer carton. A note stating the nature of the defect should accompany the unit.
