Behringer MEASUREMENT CONDENSER MICROPHONE ECM8000 Specifications

MEASUREMENT CONDENSER MICROPHONE
ECM8000 Technical Specifications

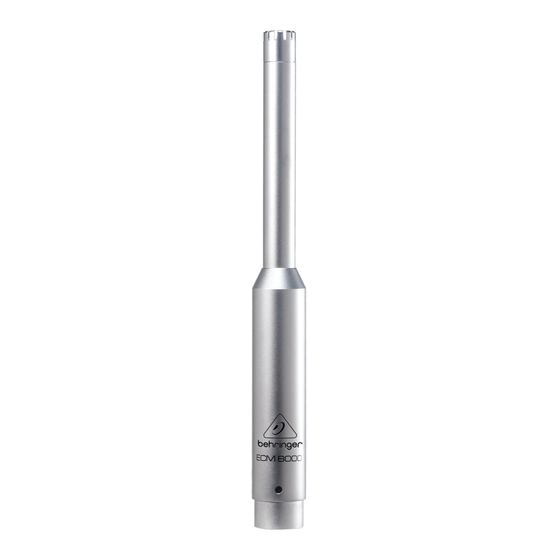

Ultra-Linear Measurement Condenser Microphone
© 2011 MUSIC Group IP Ltd. Technical specifications and appearance are subject to change without notice. The information contained herein is correct at the time of printing. All trademarks are the property of their respective owners.
MUSIC Group IP Ltd. accepts no liability for any damages or loss which may be suffered by any person who relies either wholly or in part upon any description, photograph or statement contained herein.

FEATURES

•
Ultra-linear condenser microphone for measurement and recording application
•
Perfectly suited for room equalization application plus
high-resolution studio recording and live applications
•
Exceptionally flat frequency response and ultra-high sound resolution
•
Evenly weighted, true omnidirectional pattern
•
Works with phantom power from +15 to +48 V
•
Perfect for use with the BEHRINGER ULTRACURVE or any other analyzer
•
Ultra-low noise transformerless FET input eliminates low-frequency distortion
•
Gold-plated 3-pin XLR connector for highest signal integrity
•
Swivel stand mount and transport case included
•
High-quality components and exceptionally rugged construction ensure long life
•
Conceived and designed by BEHRINGER Germany
Transfer Function Mag -dB volts/volts (0.33 oct) (eg)
+15,0
+10,0
+5,0
0
-5,0
-10,0
-15,0
-20,0
-25,0
auto
100 200 300 1000
log Frequency -Hz

SPECIFICATIONS

Type
Impedance
Sensitivity
Bandwidth
Connector
Phantom power
Weight
BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made
from time to time to existing products without prior notice. Specifications and appearance may differ from those listed or illustrated.
2K 3K 10000 20K 30K
electret condenser, omni-directional
600 Ohms
- 60 dB
15 Hz to 20 kHz
gold-plated XLR
+15 V to +48 V
approx. 120 g
0˚
-30 dB
-40 dB
-50 dB
-60 dB
-70 dB
90˚
