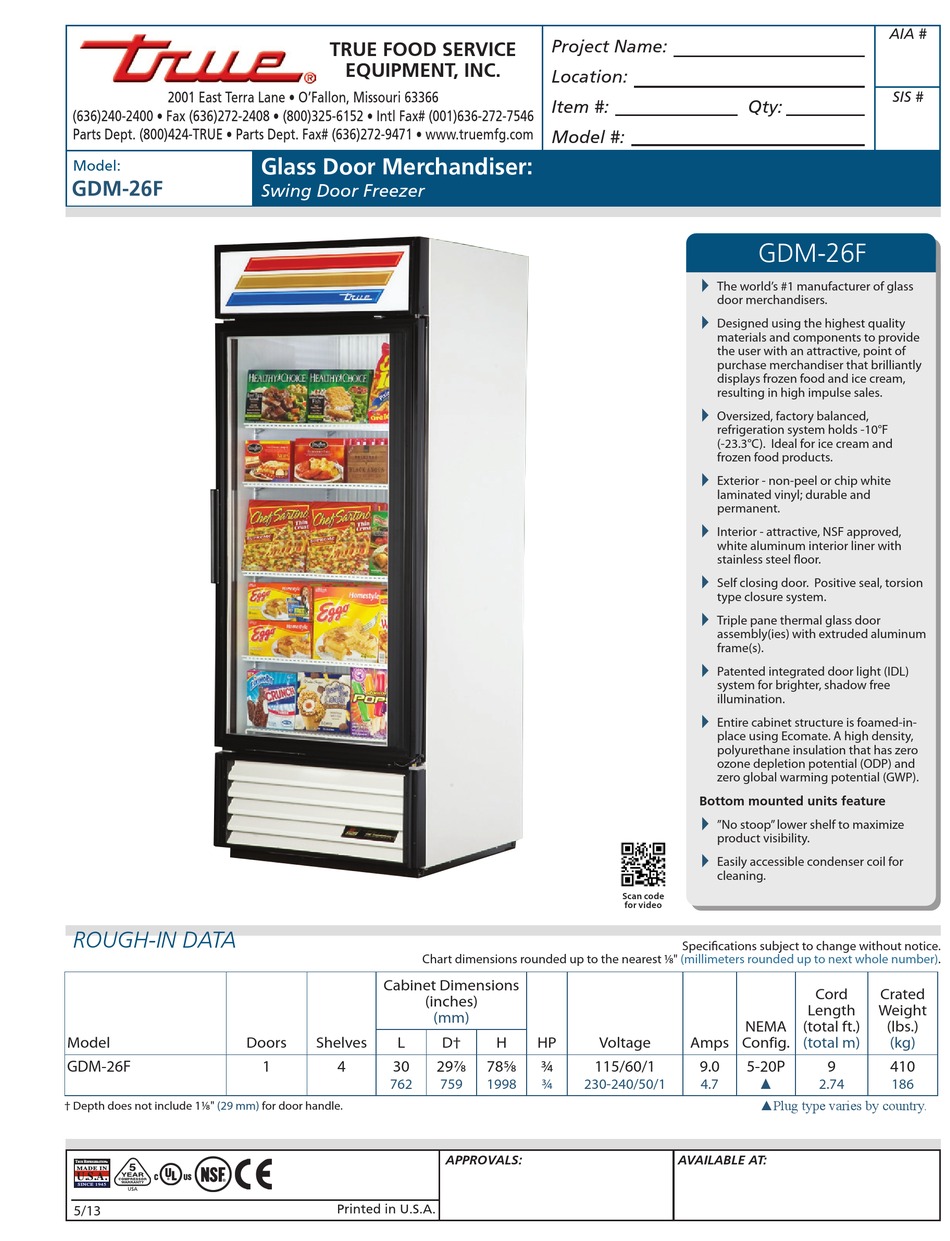

True GDM-26F Specifications

2001 East Terra Lane • O'Fallon, Missouri 63366
(636)240-2400 • Fax (636)272-2408 • (800)325-6152 • Intl Fax# (001)636-272-7546
Parts Dept. (800)424-TRUE • Parts Dept. Fax# (636)272-9471 • www.truemfg.com
Model:
GDM-26F
ROUGH-IN DATA
Model
GDM-26F
† Depth does not include 11/8" (29 mm)
T R
RUE EFRIGERATION
®
MADE IN
U.S.A.
SINCE 1945
5/13
TRUE FOOD SERVICE
EQUIPMENT, INC.

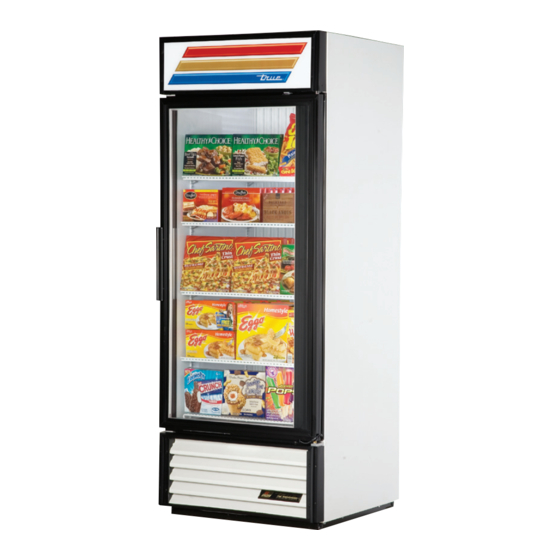

Glass Door Merchandiser:
Swing Door Freezer
Chart dimensions rounded up to the nearest 1/8"
Cabinet Dimensions
(inches)
Doors Shelves L
1 4 30
762
for door handle.
Printed in U.S.A.
Project Name:
Location:
Item #:
Model #:
(mm)
D† H HP Voltage
297/8 785/8 3/4 115/60/1
759 1998 3/4 230-240/50/1
APPROVALS:
Qty:
GDM-26F

The world's #1 manufacturer of glass
door merchandisers.

Designed using the highest quality
materials and components to provide
the user with an attractive, point of
purchase merchandiser that brilliantly
displays frozen food and ice cream,
resulting in high impulse sales.

Oversized, factory balanced,
refrigeration system holds -10°F
(-23.3°C). Ideal for ice cream and
frozen food products.

Exterior - non-peel or chip white
laminated vinyl; durable and
permanent.

Interior - attractive, NSF approved,
white aluminum interior liner with
stainless steel floor.

Self closing door. Positive seal, torsion
type closure system.

Triple pane thermal glass door
assembly(ies) with extruded aluminum
frame(s).

Patented integrated door light (IDL)
system for brighter, shadow free
illumination.

Entire cabinet structure is foamed-in-
place using Ecomate. A high density,
polyurethane insulation that has zero
ozone depletion potential (ODP) and
zero global warming potential (GWP).
Bottom mounted units feature

"No stoop" lower shelf to maximize
product visibility.

Easily accessible condenser coil for
cleaning.
Scan code
for video
Specifications subject to change without notice.
(millimeters rounded up to next whole
NEMA
Amps Config.
9.0 5-20P
▲
4.7
▲Plug type varies by country.
AVAILABLE AT:
AIA #
SIS #
number).
Cord Crated
Length Weight
(total ft.) (lbs.)
(total m) (kg)
9 410
2.74 186
