Replacement Procedures

Fuse Replacement
The motor drive circuit contains two fuses. They are located on the power distribution PWA. If it becomes
necessary to replace these fuses, follow the procedure in Table 36 and refer to Figure 36 for fuse location.
Step
Remove AC power from actuator.
1
Remove the 6 screws and the extended cover of the actuator case. See Figure 35.
2
Lay assembly down on a flat surface.
3
Remove connectors from CPU and power distribution PWA.
4
Remove power distribution PWA.
5
Locate the two fuses on the power distribution PWA. See Figure 36. Carefully remove and
6
replace fuse(s) with Wickmann T1 type 6A 250V, or equivalent (not available from Honeywell).
Reinstall power distribution PWA.
7
Reconnect connectors to CPU and power distribution PWA.
8
Install a new gasket and replace extended cover. Secure to actuator with screws.
9
Revision 6 HercuLine™ 2000 Series Actuator - Installation, Operation and Maintenance Manual
7/07
Disconnect power before opening the actuator case to replace the fuse(s). A
potentially lethal shock hazard exists inside the case if the unit is opened while
powered.

Table 36 Motor Drive Fuse Replacment Procedure

Relay connector #1 }
Relay PWA#1
Relay connector #2
Relay connector #3 }
Relay PWA#2
Relay connector #4

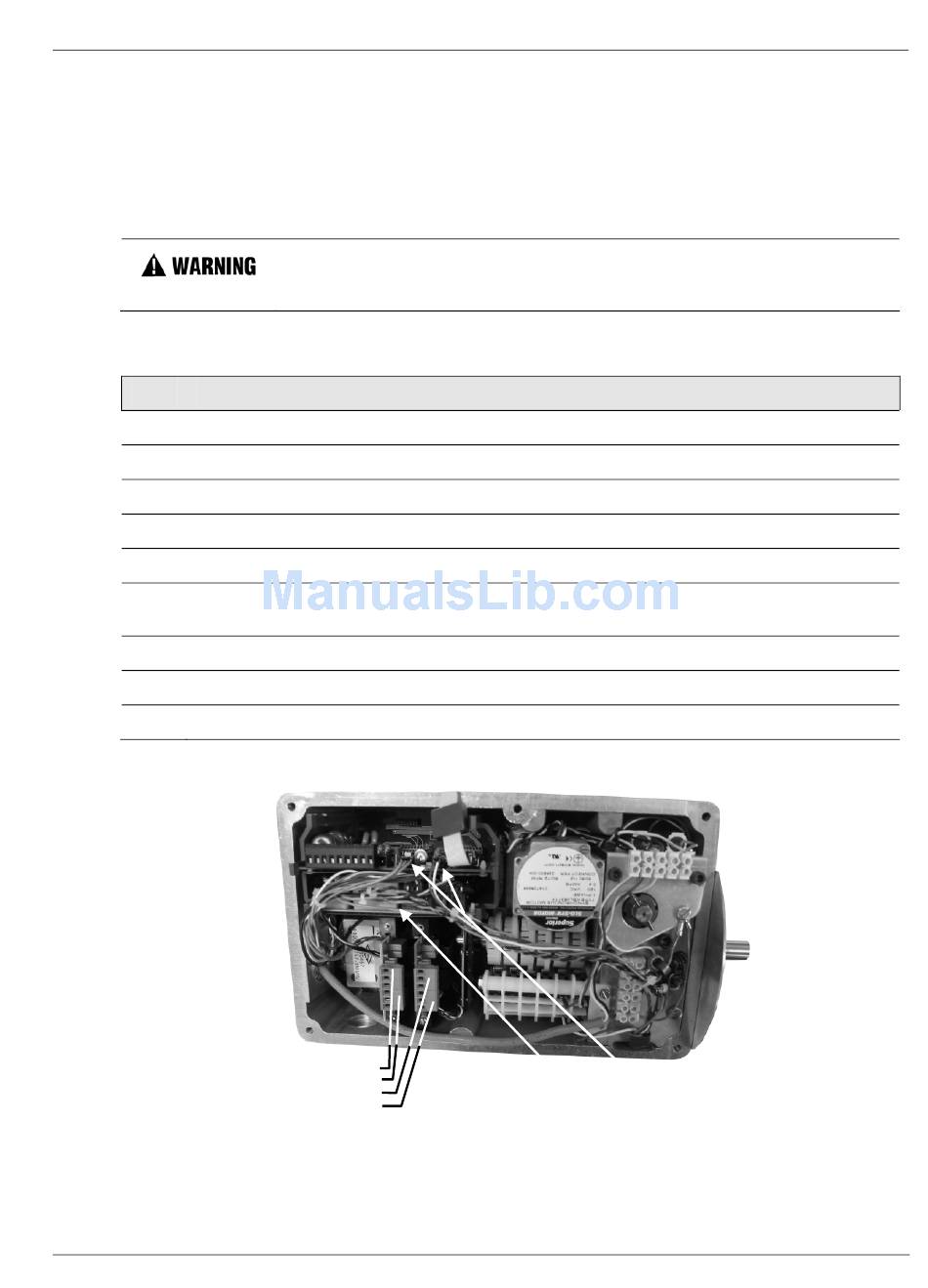

Figure 35 Power Distribution PWA and Relay PWA Locations

Action
Power CPU
distribution connections
PWA
Maintenance
Replacement Procedures
89
