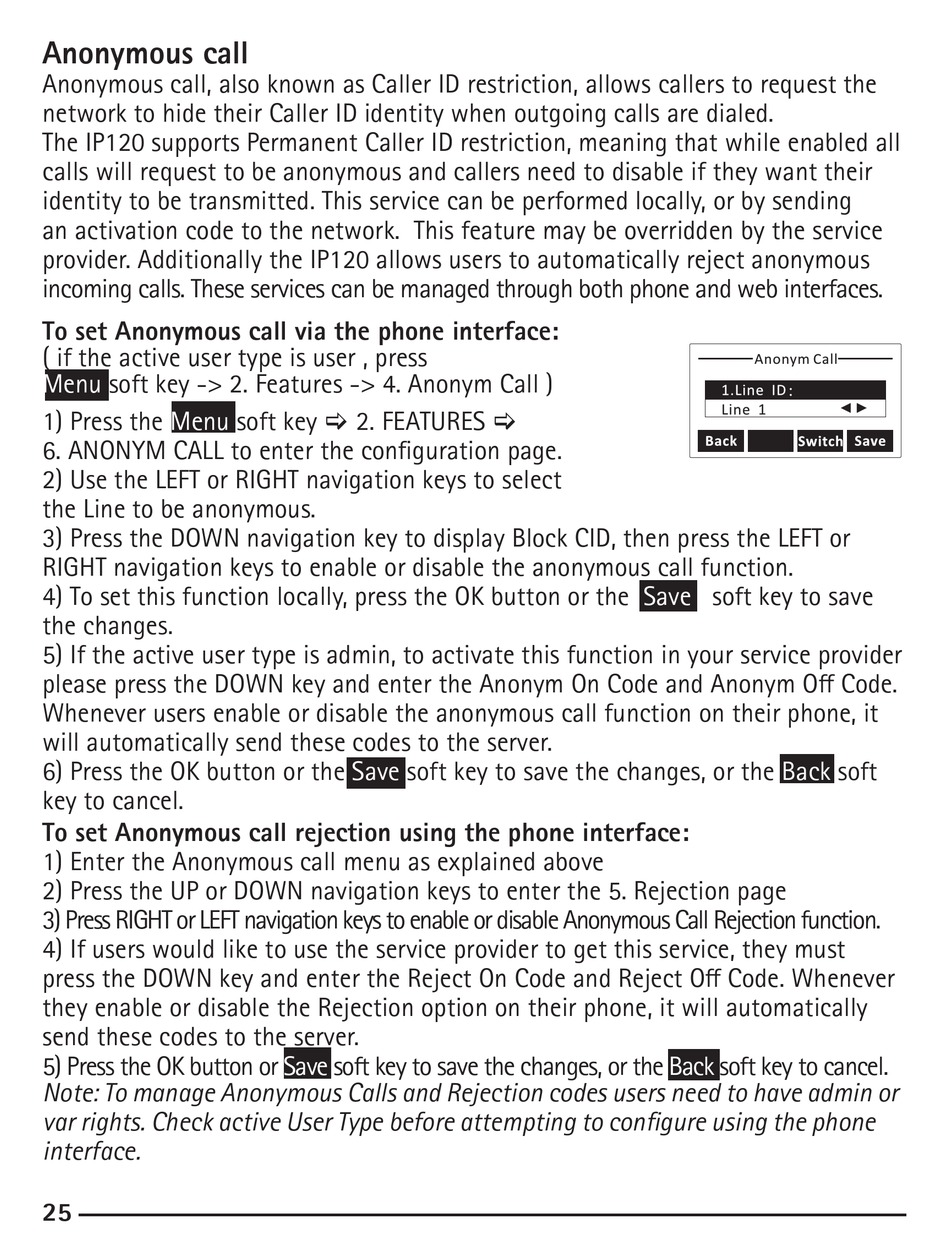

Anonymous Call - RCA IP120 Operation Manual

Anonymous call

Anonymous call, also known as Caller ID restriction, allows callers to request the
network to hide their Caller ID identity when outgoing calls are dialed.
The IP120 supports Permanent Caller ID restriction, meaning that while enabled all
calls will request to be anonymous and callers need to disable if they want their
identity to be transmitted. This service can be performed locally, or by sending
an activation code to the network. This feature may be overridden by the service
provider. Additionally the IP120 allows users to automatically reject anonymous
incoming calls. These services can be managed through both phone and web interfaces.
To set Anonymous call via the phone interface:
( if the active user type is user , press
Menu soft key -> 2. Features -> 4. Anonym Call )
1) Press the Menu soft key [ 2. FEATURES [
6. ANONYM CALL to enter the configuration page.
2) Use the LEFT or RIGHT navigation keys to select
the Line to be anonymous.
3) Press the DOWN navigation key to display Block CID, then press the LEFT or
RIGHT navigation keys to enable or disable the anonymous call function.
4) To set this function locally, press the OK button or the Save soft key to save
the changes.
5) If the active user type is admin, to activate this function in your service provider
please press the DOWN key and enter the Anonym On Code and Anonym Off Code.
Whenever users enable or disable the anonymous call function on their phone, it
will automatically send these codes to the server.
6) Press the OK button or the Save soft key to save the changes, or the Back soft
key to cancel.
To set Anonymous call rejection using the phone interface:
1) Enter the Anonymous call menu as explained above
2) Press the UP or DOWN navigation keys to enter the 5. Rejection page
3) Press RIGHT or LEFT navigation keys to enable or disable Anonymous Call Rejection function.
4) If users would like to use the service provider to get this service, they must
press the DOWN key and enter the Reject On Code and Reject Off Code. Whenever
they enable or disable the Rejection option on their phone, it will automatically
send these codes to the server.
5) Press the OK button or Save soft key to save the changes, or the Back soft key to cancel.
Note: To manage Anonymous Calls and Rejection codes users need to have admin or
var rights. Check active User Type before attempting to configure using the phone
interface.
25
