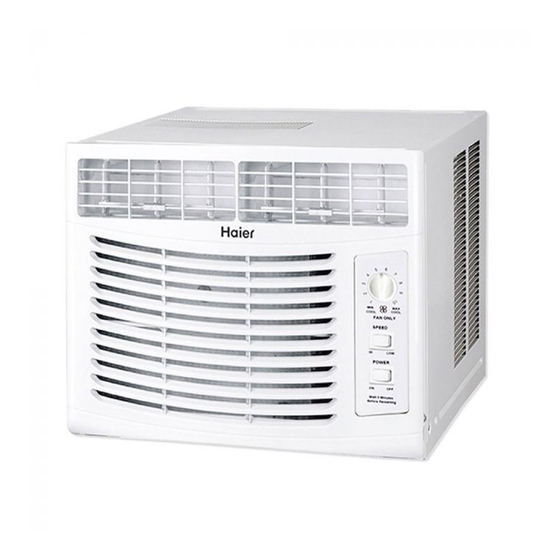

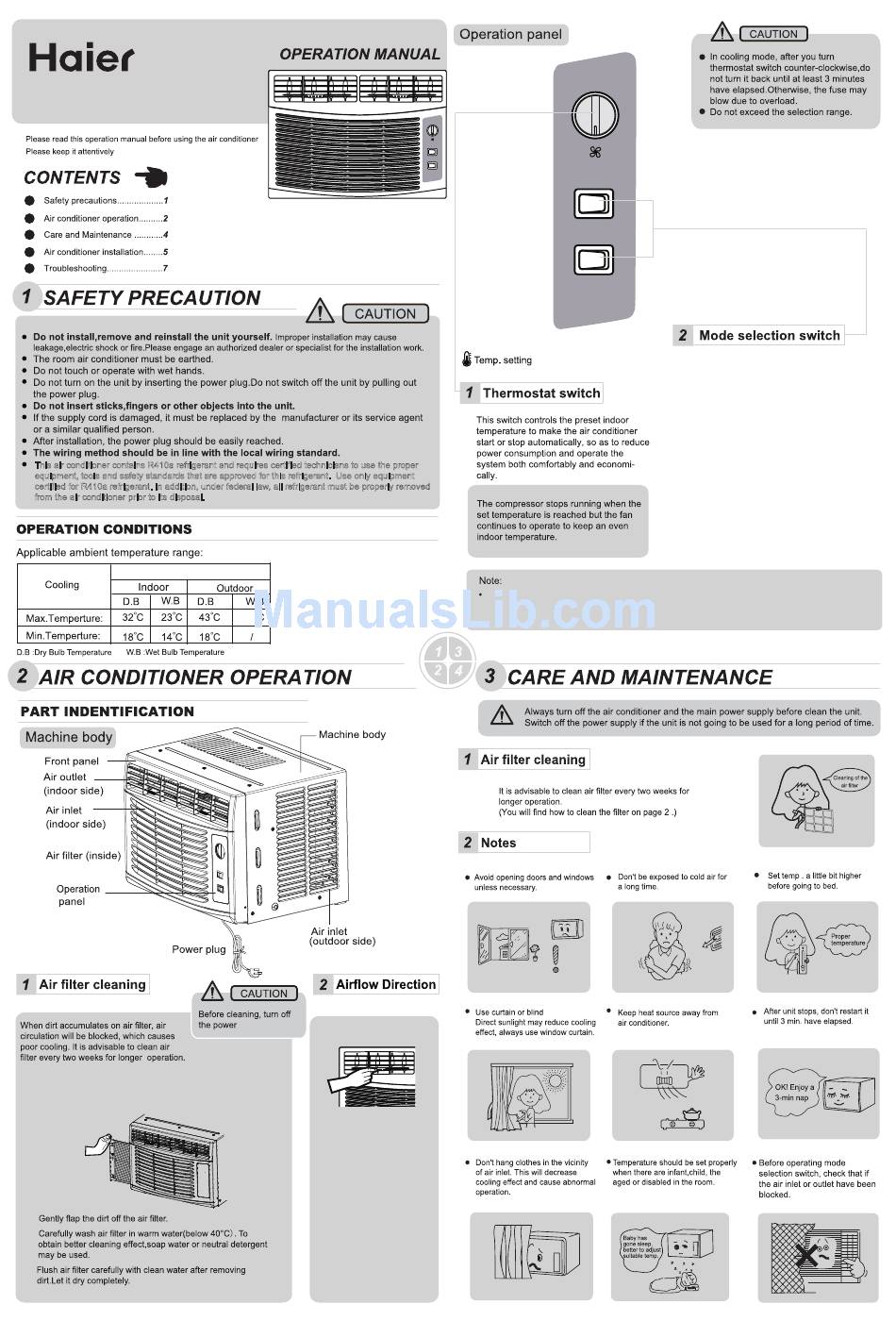

Haier HW-05LMA13 Operation Manual

HW-05LMA13
0010563803
This air conditioner contains R410a refrigerant and requires certified technicians to use the proper
equipment, tools and safety standards that are approved for this refrigerant. Use only equipment
certified for R410a refrigerant. In addition, under federal law, all refrigerant must be properly removed
from the air conditioner prior to its disposal.
T4
1. Turn off the air conditioner.
2. Grasp the filter handle and pull the filter out.The filter will
slide out easily.
3.
4.
5.

ROOM AIR CONDITIONER

28
The air directional louvers
let you control the direction
of the airflow. The airflow
can be directed left to right.
5
4
3
2
5 6
4 7
1
3 8
2 9
1 10
MIN MAX
COOL COOL
FAN ONLY
SPEED
MIN
COOL
HI LOW
POWER
FAN ONLY
ON OFF
Wait 3 Minutes
Before Restarting
SPEED
HI
POWER
ON
Wait 3 Minutes
Before Restarting
Do not try to operate your air conditioner in the Cool mode when outside temperature is
below 18°C. The inside evaporator coil will freeze up, and the air conditioner will not
operate properly.
6
7
8
9
10
MAX
COOL
LOW
OFF
POWER
The Power switch turns the air conditioner on or off.
NORMAL FAN
Press the SPEED switch to either HI or LOW
Set the thermostat control to the FAN ONLY setting
NORMAL COOL
Press the SPEED switch to either HI or LOW
Set the thermostat control to the desired temperature
setting. If the room is not satisfactory after a
reasonable amount of time, adjust the thermostat
control to the appropriate setting to meet your needs.
MAX COOL
Press the SPEED switch to HI.
Set the thermostat control to MAX COOL mark.
QUIETER OPERATION
Press the SPEED switch to LOW
Set the thermostat control as needed.
