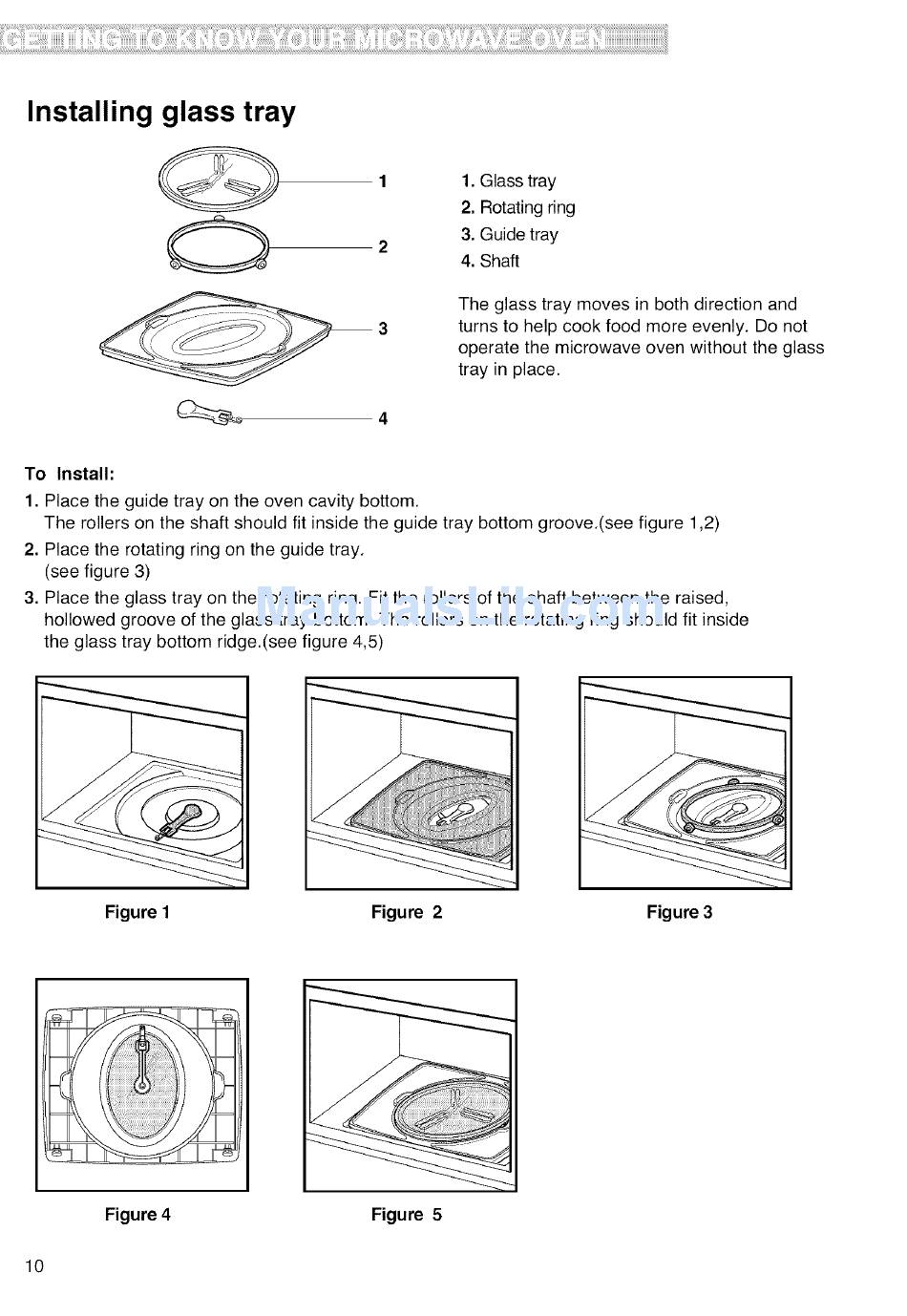

Installing glass tray
1. Glass tray
2. Rotating ring
3. Guide tray
4. Shaft
The glass tray moves in both direction and
turns to help cook food more evenly. Do not
operate the microwave oven without the glass
tray in place.
To Install:
1. Place the guide tray on the oven cavity bottom.
The rollers on the shaft should fit inside the guide tray bottom groove.(see figure 1,2)
2. Place the rotating ring on the guide tray.
(see figure 3)
3. Place the glass tray on the rotating ring. Fit the rollers of the shaft between the raised,
hollowed groove of the glass tray bottom. The rollers on the rotating ring should fit inside
the glass tray bottom ridge.(see figure 4,5)
Figure I Figure 2 Figure 3
Figure 4 Figure 5
