Synchronising SmartView Multiscreen Serial units
Adder SmartView Multiscreen Serial units are available in two forms:
• SVMS4-S units support a single video display
• SVMS4-DS units support two video displays

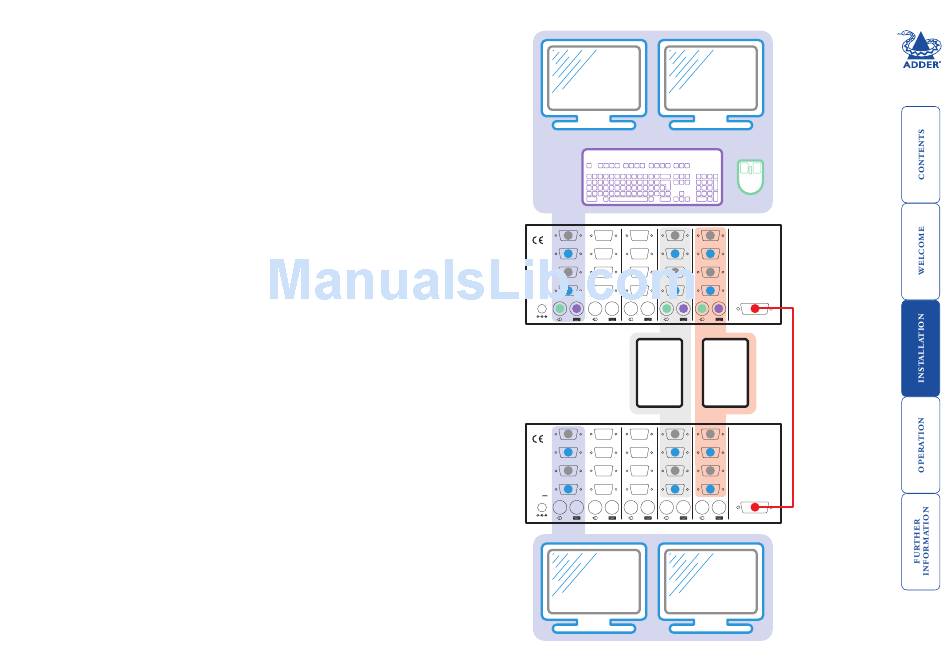

Where more video monitors are required, you can connect two Adder
SmartView Multiscreen Serial units (of the same type) together to switch twice
the number of video and serial channels.
The various video outputs from each system are shared between corresponding
ports of the two Adder units, with their keyboard and mouse connections
going only to the master Adder unit. A synchronisation cable is then connected
between the ports of the two Adder units (see page 18 for pinout
OPTIONS/FLASH
details).
Whenever the master Adder unit's channel is switched, it sends a command to
the slave unit to make it do the same.
The slave unit requires the optional power adapter because it does not have
keyboard connections to either of the systems.
The SmartView Multiscreen Serial may also be synchronised together with
AdderView GEM products as their
Use any of the standard methods to switch between channels.
ports operate in the same way.
OPTIONS
INDOOR
USE ONLY
D 4D 3D
Master C 4C 3C
unit
B 4B 3B
OPTIONAL
POWER
5V
A 4A 3A
1A
PC2
Computer
systems
INDOOR
USE ONLY
D 4D 3D
C 4C 3C
Slave
unit
B 4B 3B
OPTIONAL
POWER
5V
A 4A 3A
1A
2D 1D
2C 1C
2B 1B
2A 1A
OPTIONS / FLASH
PC1
Synchronisation
cable
(see page 18
for cable pin-out)
2D 1D
2C 1C
2B 1B
2A 1A
OPTIONS / FLASH
