Summary of Contents for La Crosse Technology C84612

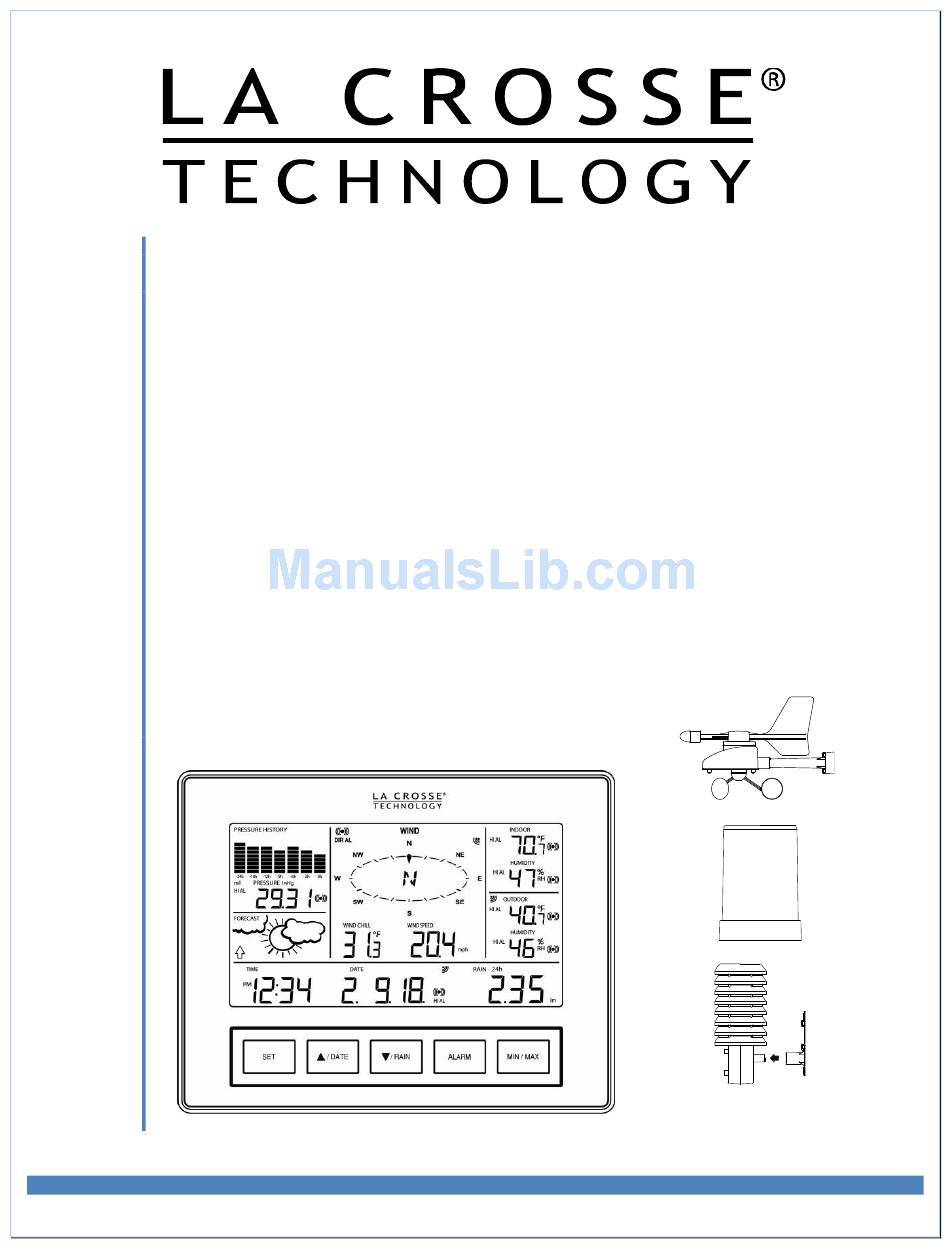

- Page 1 C84612 Wireless Professional Weather Center Hardware Manual...
-
Page 2: Table Of Contents
The system works as a stand-alone Weather Station or a Remote Monitoring Weather Station when using the included La Crosse Alerts Gateway.* There is no app or software to install. All remote monitoring is done on www.lacrossealerts.com... - Page 3 Storm Alarm on/ off set .......................12 Wind direction display type ....................13 Factory reset procedures ....................13 To exit the manual setting mode ..................14 WEATHER ALARM OPERATIONS FOR THE WEATHER STATION DISPLAY ....14 The following weather alarms can be set in alarm mode ..........14 Default weather alarm value ....................14 Pressure alarms ........................15 Indoor temperature alarms: ....................15...
- Page 4 Weather Station ........................24 Gateway ..........................25 STAND-ALONE WEATHER STATION OR INTERNET CONNECTED WEATHER STATION WITH REMOTE MONITORING & ALERTS ............25 SPECIFICATIONS .........................26 Indoor temperature ......................26 Indoor humidity ........................26 Outdoor temperature ......................26 Outdoor humidity .........................26 Wind speed/ gust ........................26 Wind chill..........................26 Rainfall ..........................26 Outdoor data reception Interval ..................26 Air pressure .........................26 Transmission range ......................27...
-
Page 5: Inventory Of Contents
OPTIONAL FEATURES INSTANT TRANSMISSION is the state-of-the-art new wireless transmission technology, exclusively designed and developed by La Crosse Technology®. INSTANT TRANSMISSION offers you an immediate update of all the outdoor data measured from the transmitters; follow the climatic variations in real-time! -
Page 6: Features
The Professional Weather Station can be used as a stand-alone system. No software is required to connect the outdoor sensors to the display. Wireless Weather Station Information & Manuals: www.lacrossetechnology.com/c84612. Weather station with a computer and Internet connection (optional) •... -
Page 7: Wireless Thermo-Hygro Sensor (Tx59Un-1-It)
W IRELESS THERMO-HYGRO SENSOR (TX59UN-1-IT) • Monitors backyard temperature and humidity • Transmission of temperature and humidity data • 200 ft. wireless range (free of obstructions) to weather station • 2 "C" Alkaline batteries (included) W IRELESS SOLAR POW ERED W IND SENSOR (TX63U-IT) •... -
Page 8: Function Buttons
STEP 2: • It is important to allow sufficient light to reach the solar panel while activating the wind sensor. Make sure the lights are on in the setup room and the solar panel is facing a 60W light bulb or brighter. •... -
Page 9: Set Button
SET BUTTON • Hold for 3 seconds to enter the SET mode, where the following can be changed: LCD contrast, Manual time setting, 12/24 hour time display, Date setting, °F/°C temperature unit, Wind speed unit, Rainfall unit, Pressure unit, Relative pressure reference setting, Weather tendency threshold setting, Storm warning threshold setting, Storm Alarm On/ Off setting, Wind direction display type and Factory reset •... -
Page 10: Program Menu
When the signal from an outdoor transmitter is successfully received by the Weather Station, the corresponding icon will be switched on. (If not successful, the icon will not be shown on the LCD). The user can see whether the last reception was successful ( icon is on) or not ( icon is off). -
Page 11: 12/24 Hour Time Display
The time will be updated automatically with the time from the Internet when the display is synchronized with the gateway. The time can be set manually by following the steps below. 1. The hour digit will flash. 2. Press the ▲/DATE button or ▼/RAIN button to set the hour. 3. -
Page 12: Relative Air Pressure Unit
The rainfall unit can be set to read in inch or mm. The default unit is inch. 1. Press the ▲/DATE button or ▼/RAIN button to toggle between the unit “inch” or “mm” 2. Press the SET button to confirm and to enter the RELATIVE AIR PRESSURE UNIT. RELATIVE AIR PRESSURE UNIT The relative air pressure can be set to read in inHg (inches of mercury) or hPa (hectopascal). -
Page 13: Wind Direction Display Type
The storm warning display (flashing downward weather tendency arrow) can be accompanied by a ring of the alarm. Switch the acoustic storm warning alarm On (AON) or Off (AOFF) (Default OFF). 1. The digit "AOFF" will flash. 2. Press the ▲/DATE button or ▼/RAIN button to switch the alarm On or Off. ("AOFF"... -
Page 14: To Exit The Manual Setting Mode
8. After waiting for 10 minutes, insert the batteries into the thermo-hygro sensor, and rain sensor making sure to align the "+" symbol on the batteries with the markings on the battery cover and inside the battery compartment. 9. Within 2 minutes of inserting the batteries into the sensors, insert the batteries into the display, making sure to align the "+"... -
Page 15: Pressure Alarms
Rainfall in 24 hours High 1.96 in 32°F Temperature Relative Humidity High 104°F (In or Out) (In or Out) High PRESSURE ALARMS 1. In the normal display mode, press the ALARM button once. The high- pressure alarm display will show. 2. -
Page 16: Outdoor Temperature Alarms
5. Press the SET button to switch the alarm on or off. The icon indicates the alarm is switched 6. Press the ALARM button once. The low indoor humidity alarm display will show. 7. Press and hold the SET button for about 2 seconds. The humidity digit will flash. -
Page 17: Wind Gust Alarm
W IND GUST ALARM 1. The wind gust alarm display will show. 2. Press and hold the SET button for about 2 seconds. The wind gust digit will flash. 3. Press the ▲/DATE button or ▼/RAIN button to set the wind gust alarm value. -
Page 18: Display Modes
To compensate for fluctuation of the weather data (which may cause Weather data Hysteresis the weather alarm to ring constantly if the measured reading is close to the alarm level), a hysteresis function has been implemented for each Temperature 1.8°F weather alarm. -
Page 19: Weather Forecasting Icons
W EATHER FORECASTING ICONS For every sudden or significant change in the air pressure, the weather icons will update accordingly to represent the change in weather. Every time a new average pressure value has been obtained (once per minute); this value is compared with an internal reference value. -
Page 20: Air Pressure History Graph
AIR PRESSURE HIST ORY GRAPH The LCD shows the relative air pressure value and the air pressure history on a bar graph. Press the SET button to toggle between Mode1 and Mode2 of the display. • Mode 1: The bar graph displays the air pressure history of the past 24 hours in seven steps. -
Page 21: Min/Max Weather Data
The 1hour, 24-hour, week, month or total rainfall measurement is displayed in the unit of inch or mm. For all measurements, it is important time and date are set correctly on your display. • 1-HOUR RAIN: The 1-hour rain reflects rain that has fallen from current time and back 1-hour. It updates every four minutes (15 measurements). -
Page 22: Common Terms
A fictional temperature that is felt by human beings under certain conditions instead of the measured temperature which can be taken into account during low temperatures. For La Crosse Technology® products, these conditions are a Temperature below 40°F and a wind velocity above 5 mph. -
Page 23: Wind Sensor
If the sensor wireless reception icons drop from the weather station as you move them into their intended locations, the sensors may be too far from the wireless weather station. Try moving the weather station or the sensors closer and wait a few minutes to see if the wireless reception icons display again. -
Page 24: Rain Sensor
RAIN SENSOR Mount the rain sensor on a level surface in an open area within the 200 foot wireless range of the thermo-hygro sensor and on the same side of the house. • Mount the rain sensor at least 6 feet off the ground and level for optimum wireless transmission. •... -
Page 25: Gateway
Gateway Set and Activation Card is not required. Wireless weather station information and manual are available at: www.lacrossetechnology.com/c84612 2. (OPTION 2) Internet-connected weather station with remote monitoring and alerts uses the included Gateway Set and Activation Card to enable the included Remote Monitoring & Text/E-mail Alerts from www.lacrossealerts.com... -
Page 26: Specifications
Note: See the included Activation Card for the activation key to enable remote monitoring and alerts.* There is no app or software to install. All remote monitoring is done on www.lacrossealerts.com with an account that you create if you wish to use these added features.* SPECIFICAT IONS INDOOR TEMPERATURE... -
Page 27: Transmission Range
TRANSMISSION RANGE Rain to Thermo-hygro: 200 feet in open space Wind to Thermo-hygro: 200 feet in open space Thermo-hygro to Weather Station: 200 feet in open space Weather Station to Gateway: 200 feet in open space POW ER CONSUMPTION W EATHER CENTER 3 x C size batteries (IEC LR14, 1.5V) Approximately 24 months (Alkaline batteries recommended) THERMO-HYGRO TRANSMITTER... -
Page 28: Alert And Monitoring Disclaimer
Customers may be unable to receive text messaging or data service in some areas due to unavailability of service. (2) La Crosse shall not be liable for accuracy, usefulness or availability of data transmitted via the service. Users are solely responsible for damages to persons or property by service use. -
Page 29: Warranty Information
Ltd or La Crosse Technology, Ltd’s authorized service center. La Crosse Technology, Ltd will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. - Page 30 States do not allow the exclusion of consequential or incidental damages therefore the above exclusion of limitation may not apply to you. For warranty work, technical support, or information contact: La Crosse Technology, Ltd 2817 Losey Blvd. S. La Crosse, WI 54601...
