FAVI Fixed Frame Projection Screen User Manual

FAVI Fixed Frame Projection Screen

1.) Preparing to assemble your screen:

You will need a large floor area to assemble the screen. The floor should be clean

and covered by a soft material such as towels or blankets to keep the screen clean

and prevent damage.

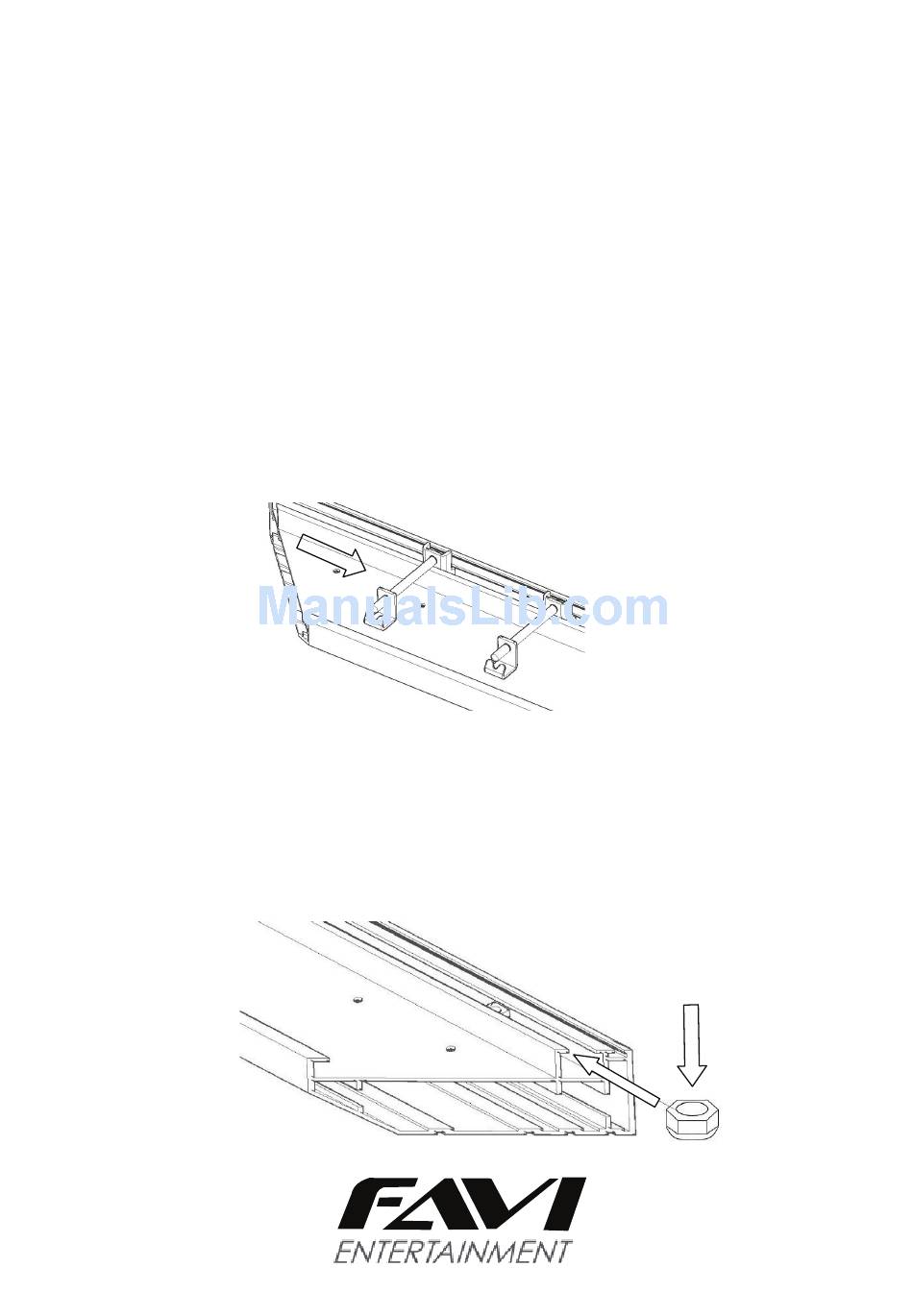

Step 1: Insert the screen tensioners into the frame. The tensioners should be spaced about 8 to

10 inches apart. The number of screen tensioners you have will depend on the size of the screen.

Step 2: Select the frame piece that will become the top side of the screen. Insert four of the M5

lock nuts into the ends of this frame piece with the nylon locking rings facing down towards the front

of the screen frame. Then insert two lock nuts into each side piece that will later join this top piece.

These lock nuts will be used later to attach the mounting brackets to the top corners of the screen.

User Guide

M5 lock nut

Table of Contents

Do you have a question about the FAVI Fixed Frame Projection Screen and is the answer not in the manual?

Page 1 User Guide FAVI Fixed Frame Projection Screen 1.) Preparing to assemble your screen: You will need a large floor area to assemble the screen. The floor should be clean and covered by a soft material such as towels or blankets to keep the screen clean and prevent damage.
Page 2 Step 3: Insert the four plastic corner pieces into the ends of the frame pieces. The last section of frame should have two of the corner pieces installed and inserted as shown in the image below. Step 4: After the frame corners are installed, use the M3 screws to secure them into place. You should have a total of 16 of these screws.
Page 3 Step 5: Insert the four steel support rods into the sleeves located on the four sides of the screen material. Make sure to insert these carefully so they do not puncture through the sleeves. Step 6: Attach the four supporting rods to the screen tensioners on all four sides of the frame. Step 7: With the support rods attached to the screen tensioners, you can now adjust the tension on the screen by adjusting the screws on the screen tensioners.
Page 4 You should have 8 of these screws. Four go in each top corner. (M5 screws) (M5 lock nut) Step 2: Mount the screen onto the wall using suitable mounting screws. FAVI recommends that you hire a professional to mount this screen for you.
