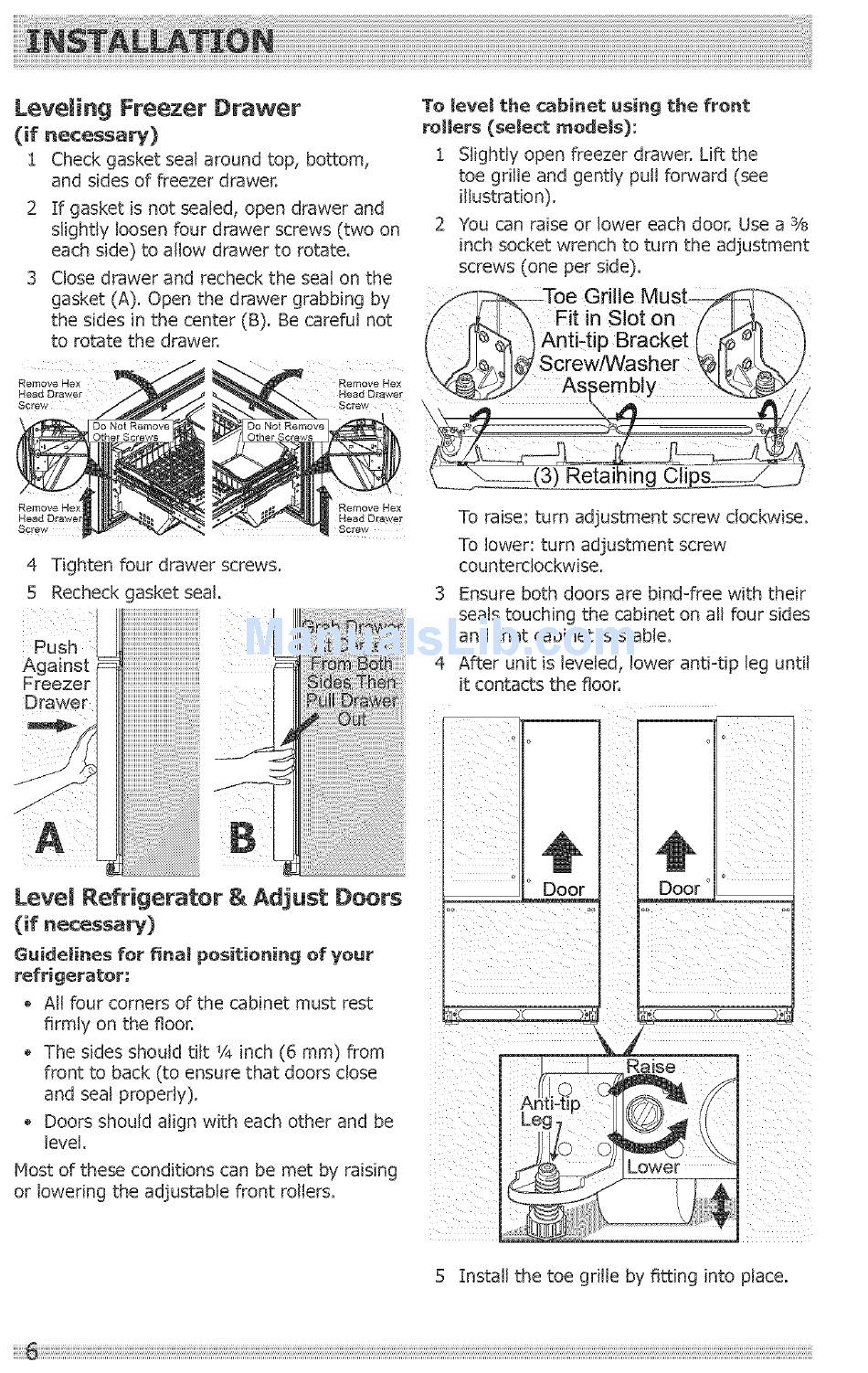

Level Refrigerator - Frigidaire 242292001 Use & Care Manual

Leveling Freezer Drawer
(if necessary)
1 Check gasket seal around top, bottom,
and sides of freezer drawer.
2 If gasket is not sealed, open drawer and
slightly loosen four drawer screws (two on
each side) to allow drawer to rotate.
3 Close drawer and recheck the seal on the
gasket (A). Open the drawer grabbing by
the sides in the center (B). Be careful not
to rotate the drawer.
Head Drawer Head Drawer
Screw Screw
Remove He×
Head Drawer
Screw
4 Tighten four drawer screws.
5 Recheck gasket seal.
Push
Against
Freezer
D rawe r
A
Level Refrigerator & Ad ust Doors
(if necessary)
Guidelines for fina_ positioning of your
refrigerator:
All four corners of the cabinet must rest
firmly on the floor.
The sides should tilt v_ inch (6 mm) from
front to back (to ensure that doors close
and seal properly).
Doors should align with each other and be
level.
Host of these conditions can De met by raising
or lowering the adjustable front rollers.
To leve_ the cabinet using the front
rollers (select mode_s):
& Slightly open freezer drawer. Lift the
toe grille and gently pull forward (see
illustration).
2 You can raise or lower each door. Use a %
inch socket wrench to turn the adjustment
screws (one per side).
_,s_e Grille Must_
it in Slot on / I_
nti:tip Bracket ( _f_ _ 1
crew/Washer _1 _/_,_
Assembly "4,_
\,
8
\_ -_3-) Retaihing _s_/
To raise: turn adjustment screw clockwise.
To lower: turn adjustment screw
counterclockwise.
Ensure both doors are bind-free with their
seals touching the cabinet on all four sides
and that cabinet is stable.
After unit is leveled, lower anti-tip leg until
it contacts the floor.
o o
°° Door
6
o
Door
5 Install the toe grille by fitting into place.
