1. Upper spray
2. Top rack
3. Model and serial number label
4. Water inlet opening [in tub wall]
5. FLEXI-FOLD DOWN™ flexible tines
Control Panel

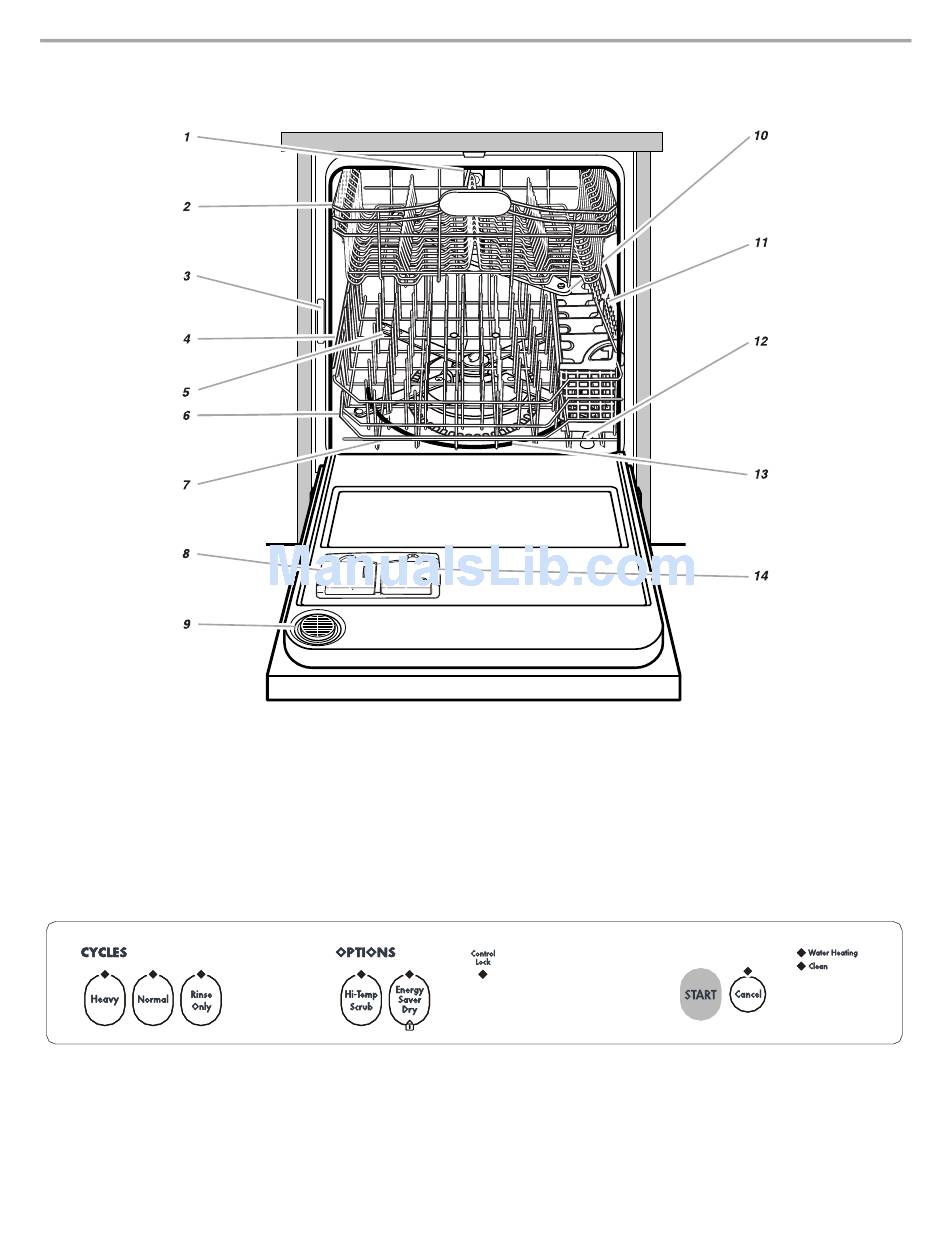

PARTS AND FEATURES
6. 4-way HYDRO SWEEP™
spray arm
7. Bottom rack
8. Detergent dispenser
9. Vent
10. Middle spray arm
11. Silverware basket
12. Overfill protection float
13. Heating element
14. Rinse aid dispenser
5
