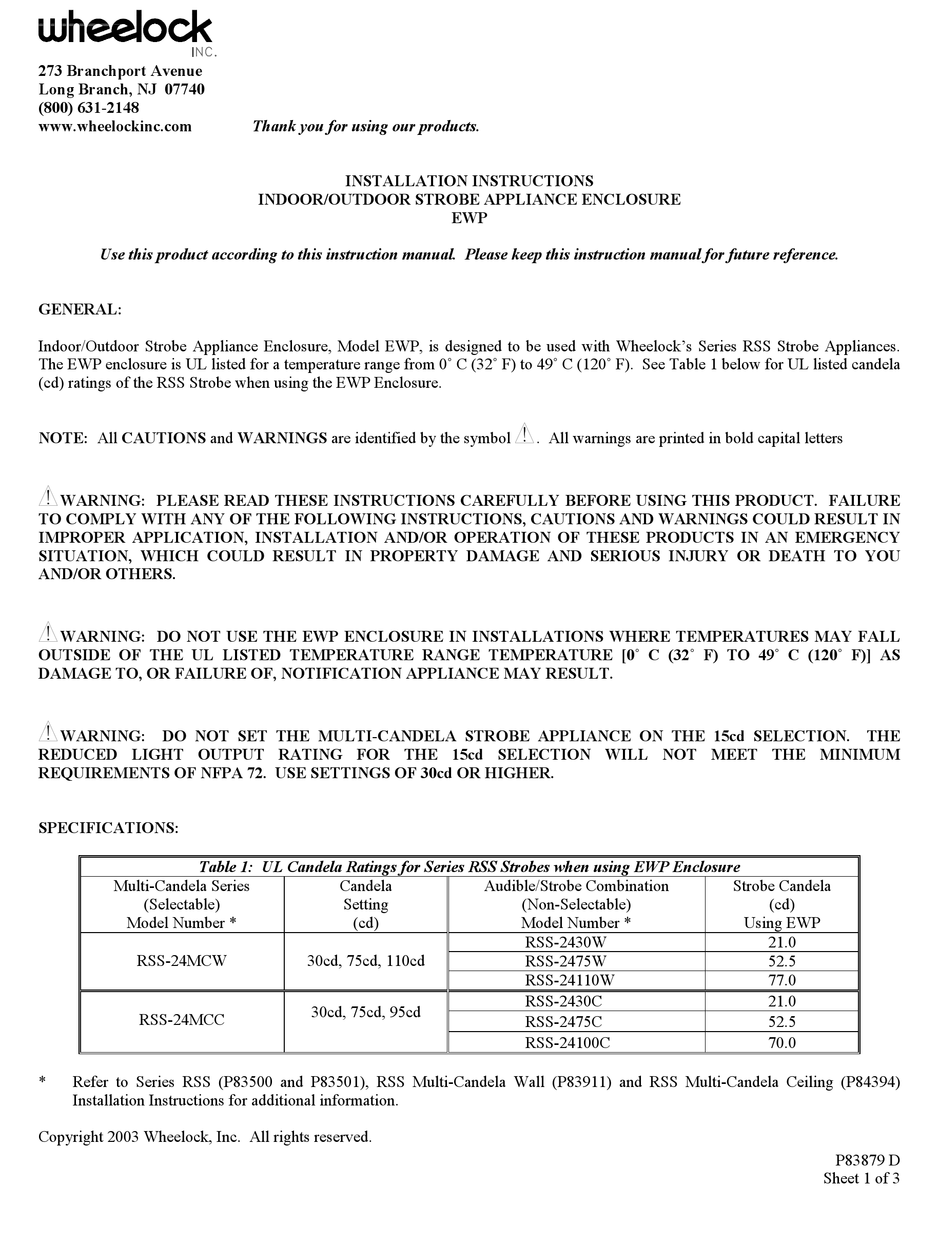

273 Branchport Avenue
Long Branch, NJ 07740
(800) 631-2148
www.wheelockinc.com
Use this product according to this instruction manual. Please keep this instruction manual for future reference.
GENERAL:
Indoor/Outdoor Strobe Appliance Enclosure, Model EWP, is designed to be used with Wheelock's Series RSS Strobe Appliances.
The EWP enclosure is UL listed for a temperature range from 0û C (32û F) to 49û C (120û F). See Table 1 below for UL listed candela
(cd) ratings of the RSS Strobe when using the EWP Enclosure.
NOTE: All CAUTIONS and WARNINGS are identified by the symbol
WARNING: PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT. FAILURE
TO COMPLY WITH ANY OF THE FOLLOWING INSTRUCTIONS, CAUTIONS AND WARNINGS COULD RESULT IN
IMPROPER APPLICATION, INSTALLATION AND/OR OPERATION OF THESE PRODUCTS IN AN EMERGENCY
SITUATION, WHICH COULD RESULT IN PROPERTY DAMAGE AND SERIOUS INJURY OR DEATH TO YOU
AND/OR OTHERS.
WARNING: DO NOT USE THE EWP ENCLOSURE IN INSTALLATIONS WHERE TEMPERATURES MAY FALL
OUTSIDE OF THE UL LISTED TEMPERATURE RANGE TEMPERATURE [0û C (32û F) TO 49û C (120û F)] AS
DAMAGE TO, OR FAILURE OF, NOTIFICATION APPLIANCE MAY RESULT.
WARNING: DO NOT SET THE MULTI-CANDELA STROBE APPLIANCE ON THE 15cd SELECTION. THE
REDUCED LIGHT OUTPUT RATING FOR THE 15cd SELECTION WILL NOT MEET THE MINIMUM
REQUIREMENTS OF NFPA 72. USE SETTINGS OF 30cd OR HIGHER.
SPECIFICATIONS:
Table 1: UL Candela Ratings for Series RSS Strobes when using EWP Enclosure
Multi-Candela Series
(Selectable)
Model Number *
RSS-24MCW
RSS-24MCC
*
Refer to Series RSS (P83500 and P83501), RSS Multi-Candela Wall (P83911) and RSS Multi-Candela Ceiling (P84394)
Installation Instructions for additional information.
Copyright 2003 Wheelock, Inc. All rights reserved.
Thank you for using our products.
INSTALLATION INSTRUCTIONS
INDOOR/OUTDOOR STROBE APPLIANCE ENCLOSURE
Candela
Setting
(cd)
30cd, 75cd, 110cd
30cd, 75cd, 95cd
EWP
. All warnings are printed in bold capital letters
Audible/Strobe Combination
(Non-Selectable)
Model Number *
RSS-2430W
RSS-2475W
RSS-24110W
RSS-2430C
RSS-2475C
RSS-24100C
Strobe Candela
(cd)
Using EWP
21.0
52.5
77.0
21.0
52.5
70.0
P83879 D
Sheet 1 of 3
