Use this product according to this instruction manual. Please keep this instruction manual for future reference.
GENERAL:
Wheelock's Dry Contact Interface (DCI-24-24) is a handy interface for powering telephone bells, chimes, horns, strobes and other
extension alerts for electronic key systems. The wall-mountable unit is a quick and convenient way to provide power for up to 5
signals. This capability can be doubled by simply using one DCI to actuate another.
The unit is attractively packaged for wall mounting and comes with a six foot power cord to reach a 115 VAC receptacle. Two wires
are directly connected from the dry contact closure of the key system unit (KSU) to the DCI input terminals. An extra input terminal
is provided on the DCI so it can also be activated by 24VDC if available at the KSU or at an individual telephone station set. One pair
of wires is run from the DCI output terminals to the alerts, through modular telephone terminal blocks.
NOTE: All CAUTIONS and WARNINGS are identified by the symbol
WARNING: PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT. FAILURE
TO COMPLY WITH ANY OF THE FOLLOWING INSTRUCTIONS, CAUTIONS AND WARNINGS COULD RESULT IN
IMPROPER APPLICATION, INSTALLATION AND/OR OPERATION OF THESE PRODUCTS IN AN EMERGENCY
SITUATION, WHICH COULD RESULT IN PROPERTY DAMAGE AND SERIOUS INJURY OR DEATH TO YOU
AND/OR OTHERS.
INSTALLATION INFORMATION:

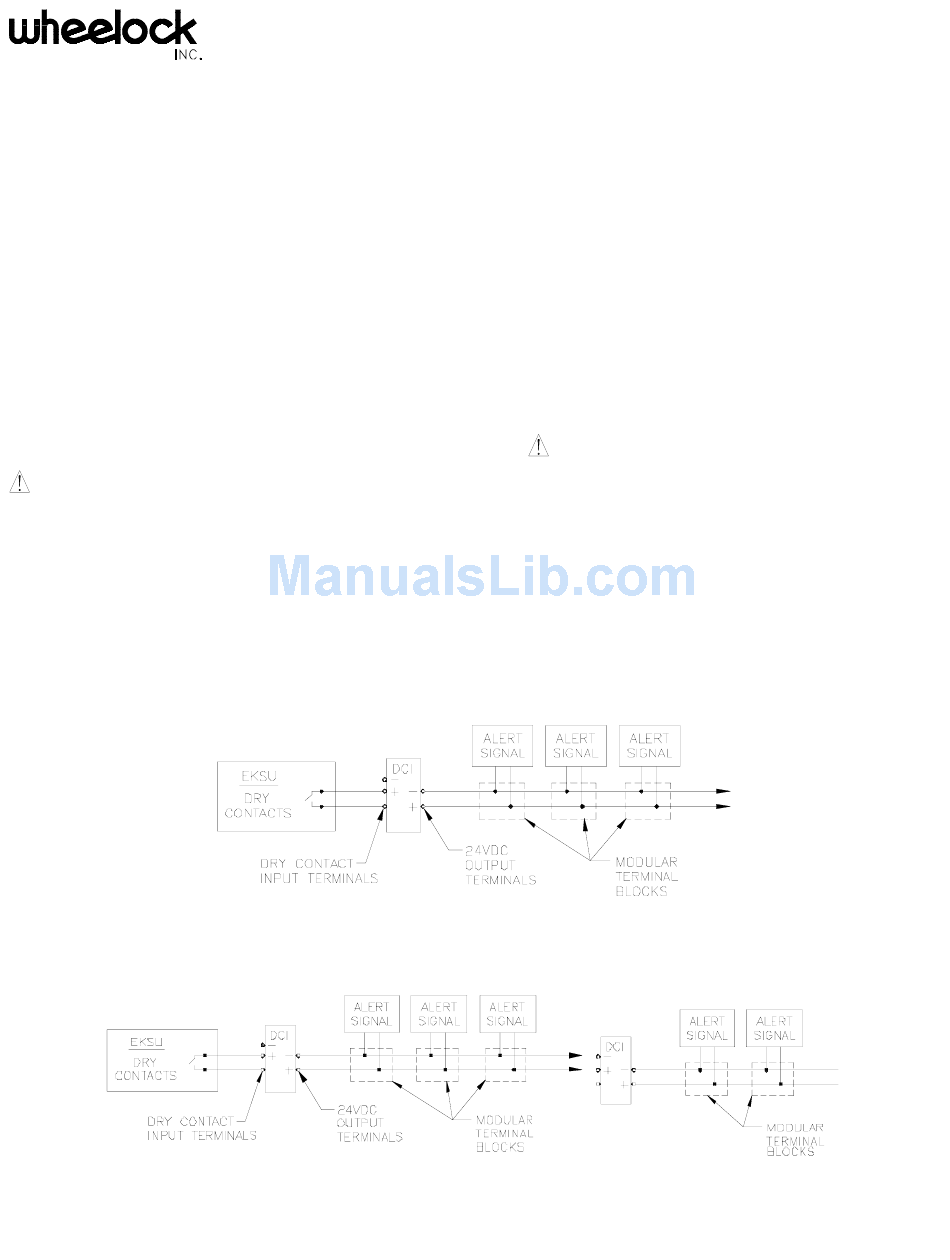

The various circuit configurations that the DCI could be used in are shown in Figures 1, 2 or 3.
Connect the DCI Dry Contact closure provided by electronic key system control unit or telephone set to drive up to 5 alert signals (see
rating chart for alerts) as shown in Figure 1.
Connect more than one DCI to drive multiple alert signals (the 24VDC output of the DCI is wired to the 24VDC input terminals of a
second DCI (see rating chart for alerts) as shown in Figure 2.
Copyright 1987, 1988, 1989, 1991, 1993, 1994 Wheelock, Inc. All rights reserved.
Thank you for using our products.
INSTALLATION INSTRUCTIONS
DRY CONTACT INTERFACE
DCI-24-24
Figure 1.
Figure 2.
All warnings are printed in bold capital letters.
P81234 H
Sheet 1 of 4
Advertisement
Table of Contents
Related Manuals for Wheelock DCI-24-24
Summary of Contents for Wheelock DCI-24-24
- Page 1 GENERAL: Wheelock's Dry Contact Interface (DCI-24-24) is a handy interface for powering telephone bells, chimes, horns, strobes and other extension alerts for electronic key systems. The wall-mountable unit is a quick and convenient way to provide power for up to 5 signals.
- Page 2 Connect the DCI to 24VDC provided by electronic key system control unit or telephone set to drive up to 5 alert signals (see rating chart for alerts) as shown in Figure 3. Figure 3. MOUNTING INFORMATION: Hang the DCI vertically on the two mounting screws supplied. Space the screws vertically on 2" centers per Figure 4, within 6 feet of a 115VAC power receptacle.
- Page 3 ALERT SIGNALS RATING CHART: The following 24VDC alert signals are recommended for use with the DCI-24-24. Refer to Wheelock specification sheets for complete description of these signals. SPECIFICATIONS: Table 2. Alert Wheelock Rating Maximum Signals Signal Model Number Per Signal...
-
Page 4: Limited Warranty
IN NO EVENT SHALL WHEELOCK BE LIABLE FOR ANY CLAIM OF ANY KIND UNLESS IT IS PROVEN THAT OUR PRODUCT WAS A DIRECT CAUSE OF SUCH CLAIM. FURTHER, IN NO EVENT, INCLUDING IN THE CASE OF A CLAIM OF NEGLIGENCE, SHALL WHEELOCK BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
