Removing SFP Modules

Class 1 laser product. Statement 1008
Warning
Attach an ESD-preventive wrist strap to your wrist and to a bare metal surface.
Step 1
Find the send (TX) and receive (RX) markings on the module top.
Step 2
On some SFP modules, the TX and RX markings might be replaced by arrows that show the direction of
the connection, either send or receive.
If the module has a bale-clasp latch, move it to the open, unlocked position.
Step 3
Align the module in front of the slot opening, and push until you feel the connector snap into place.
Step 4
If the module has a bale-clasp latch, close it.
Step 5
For fiber-optic SFP modules, remove the dust plugs and save.
Step 6
Connect the SFP cables.
Step 7

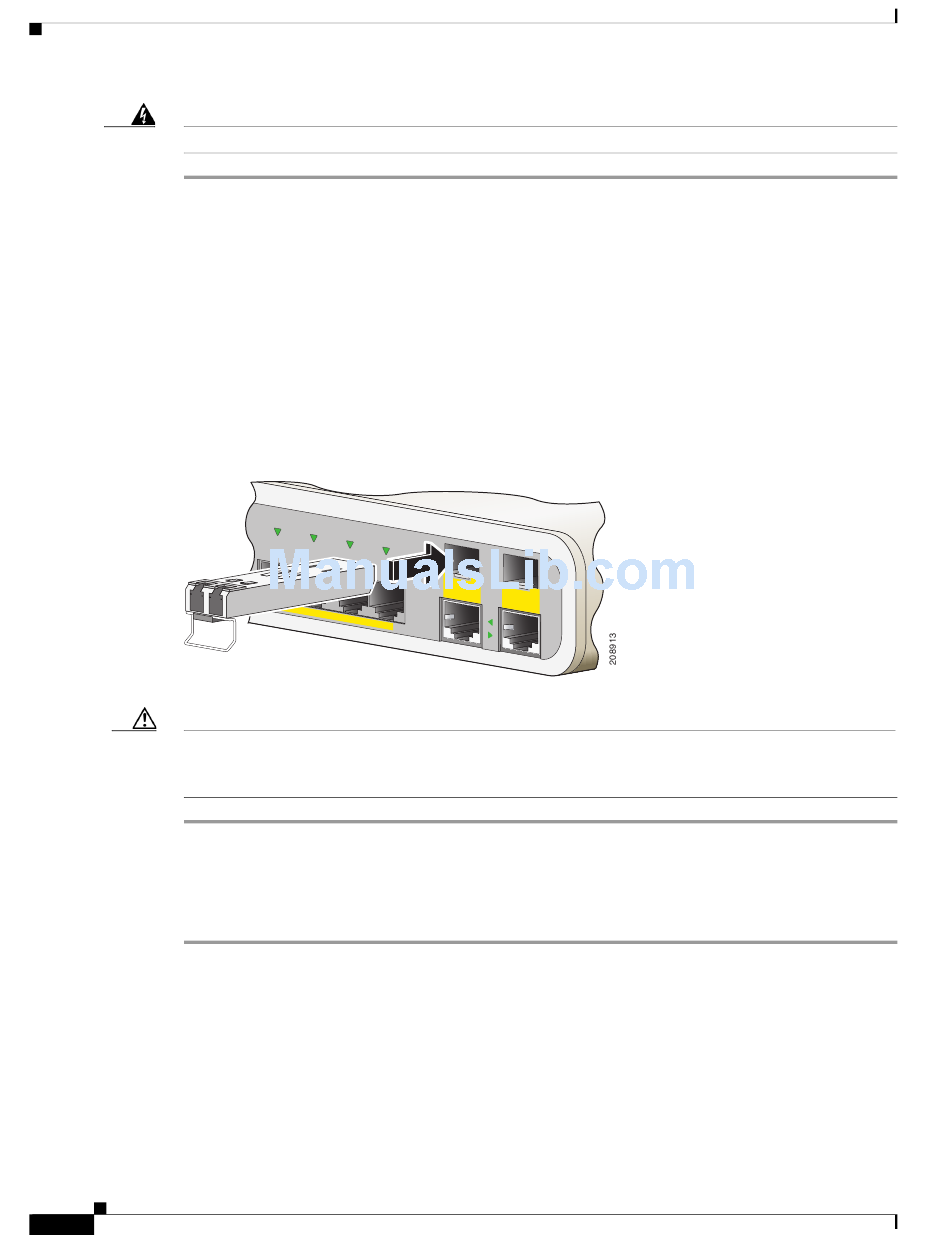

Figure 2-34
Do not remove the dust plugs from the fiber-optic SFP module port or the rubber caps from the
Caution
fiber-optic cable until you are ready to connect the cable. The plugs and caps protect the SFP module
ports and cables from contamination and ambient light.
Removing SFP Modules
Attach an ESD-preventive wrist strap to your wrist and to a bare metal surface.
Step 1
Disconnect the cable from the SFP module. For reattachment, note which cable connector plug is send
Step 2
(TX) and which is receive (RX).
Insert a dust plug into the optical ports of the SFP module.
Step 3
If the module has a bale-clasp latch, pull the bale out and down to eject it. If the latch is obstructed and
Step 4
you cannot use your finger, use a small, flat-blade screwdriver or other long, narrow instrument.
Step 5 Grasp the SFP module, and carefully remove it from the slot.
Place the module in an antistatic bag or other protective environment.
Step 6
Catalyst 3560-C and 2960-C Switch Hardware Installation Guide
2-32
Installing an SFP Module
C a t a ly s
5
6
7
8
t 3 5 6 0
- C G
S e r ie s
P o E
9
1 0
Chapter 2 Switch Installation
OL-23803-02
