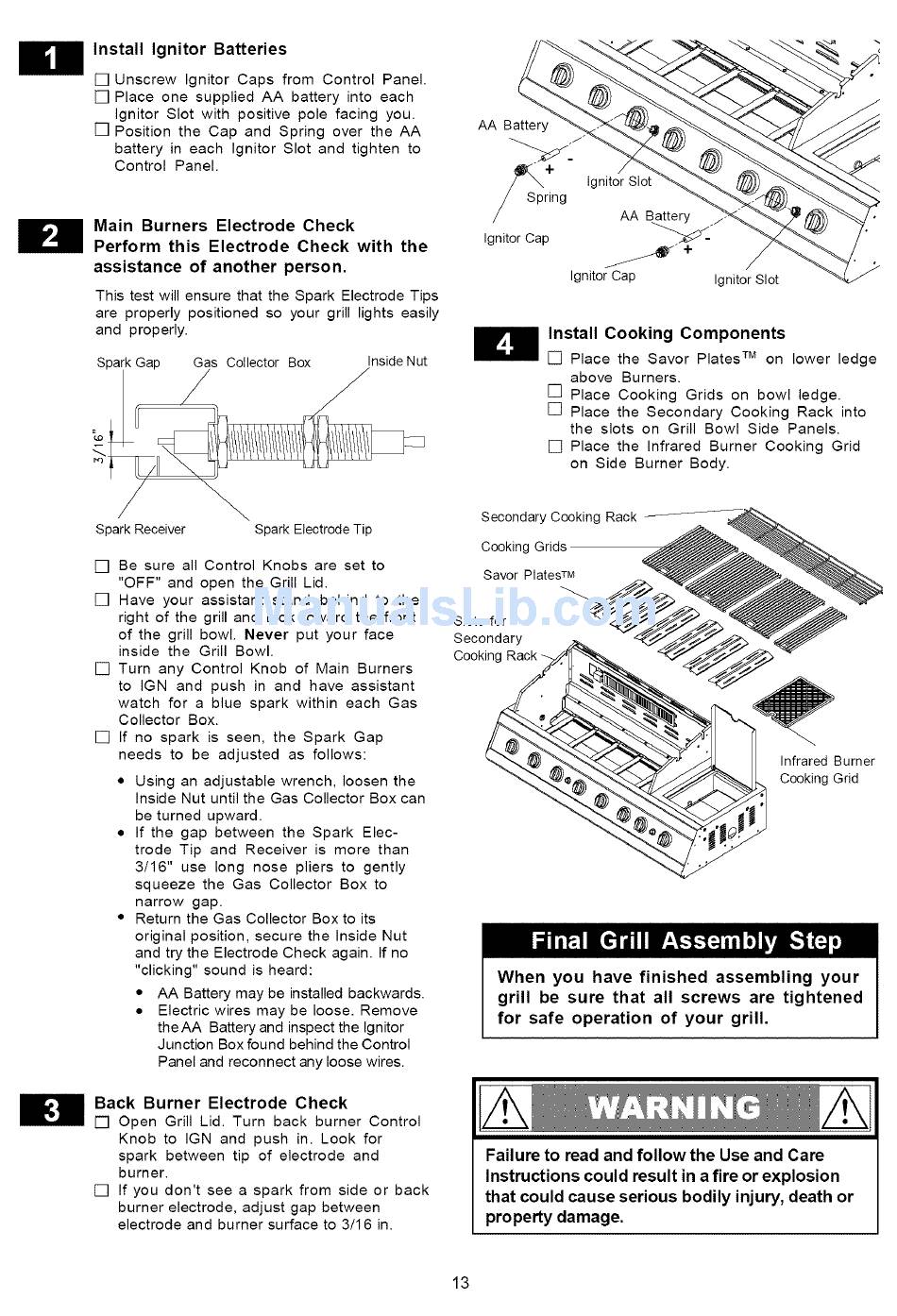

Final Grill Assembly Step - Kenmore 141.16686 Operator's Manual

Install
Ignitor
Batteries
[] Unscrew Ignitor Caps from Control Panel.
[] Place one supplied AA battery into each
ignitor Slot with positive pole facing you.
[] Position the Cap and Spring over the AA
battery in each Ignitor Slot and tighten to
Control Panel.
Main Burners Electrode Check
Perform this Electrode Check with the
assistance of another person.
This test will ensure that the Spark Electrode Tips
are properly positioned so your grill lights easily
and properly.
AA Battery
ring
Ignitor Cap
ignitor Slot
AA Battery
Ignitor Cap Ignitor Slot
Install
Cooking Components
[] Place the Savor Plates
TM
on lower ledge
above Burners.
[] Place Cooking Grids on bowl ledge.
[] Place the Secondary Cooking Rack into
the slots on Grill Bowl Side Panels.
[] Place the Infrared Burner Cooking Grid
on Side Burner Body.
Spark Receiver Spark Electrode Tip
[] Be sure all Control Knobs are set to
"OFF" and open the Grill Lid.
[] Have your assistant stand behind to the
right of the grill and look toward the front
of the grill bowl. Never put your face
inside the Grill Bowl.
[] Turn any Control Knob of Main Burners
to IGN and push in and have assistant
watch for a blue spark within each Gas
Collector Box.
[] If no spark is seen, the Spark Gap
needs to be adjusted as follows:
• Using an adjustable wrench, loosen the
Inside Nut until the Gas Collector Box can
be turned upward.
• If the gap between the Spark Elec-
trode Tip and Receiver is more than
3/16" use long nose pliers to gently
squeeze the Gas Collector Box to
narrow gap.
• Return the Gas Collector Box to its
original position, secure the Inside Nut
and try the Electrode Check again. If no
"clicking" sound is heard:
• AA Battery may be installed backwards.
• Electric wires may be loose. Remove
theAA Battery and inspect the Ignitor
Junction Box found behind the Control
Panel and reconnect any loose wires.
Back Burner Electrode Check
[] Open Grill Lid. Turn back burner Control
Knob to IGN and push in. Look for
spark between tip of electrode and
burner.
[] If you don't see a spark from side or back
burner electrode, adjust gap between
electrode and burner surface to 3/16 in.
Secondary Cooking Rack
Cooking Grids
Savor PlatesTM
Slots for
Secondary
Cooking
Infrared Burner
Cooking Grid
When you have finished assembling your
grill be sure that all screws are tightened
for safe operation of your grill.
and follow the Use and Care
Instructions could result in a fire or explosion
that could cause serious bodily injury, death or
property damage.
13
