Point

Immobilizer Installation Manual

1. Select a location under the dash that will allow you to use the tie wraps to

securely fasten the control unit.

2. Mount the control unit as high as possible to ensure maximum security.

3. Do not mount the control unit near moving parts.

4. Avoid areas that are in the direct path of air blowing from the vents.

5. Route wires from this point, leaving slack for ease of service.

NOTE: All wires are BLACK. Each wire has a WHITE label to identify

their purpose (see Wiring Diagram). Remove the white label after you

make your wire connections.

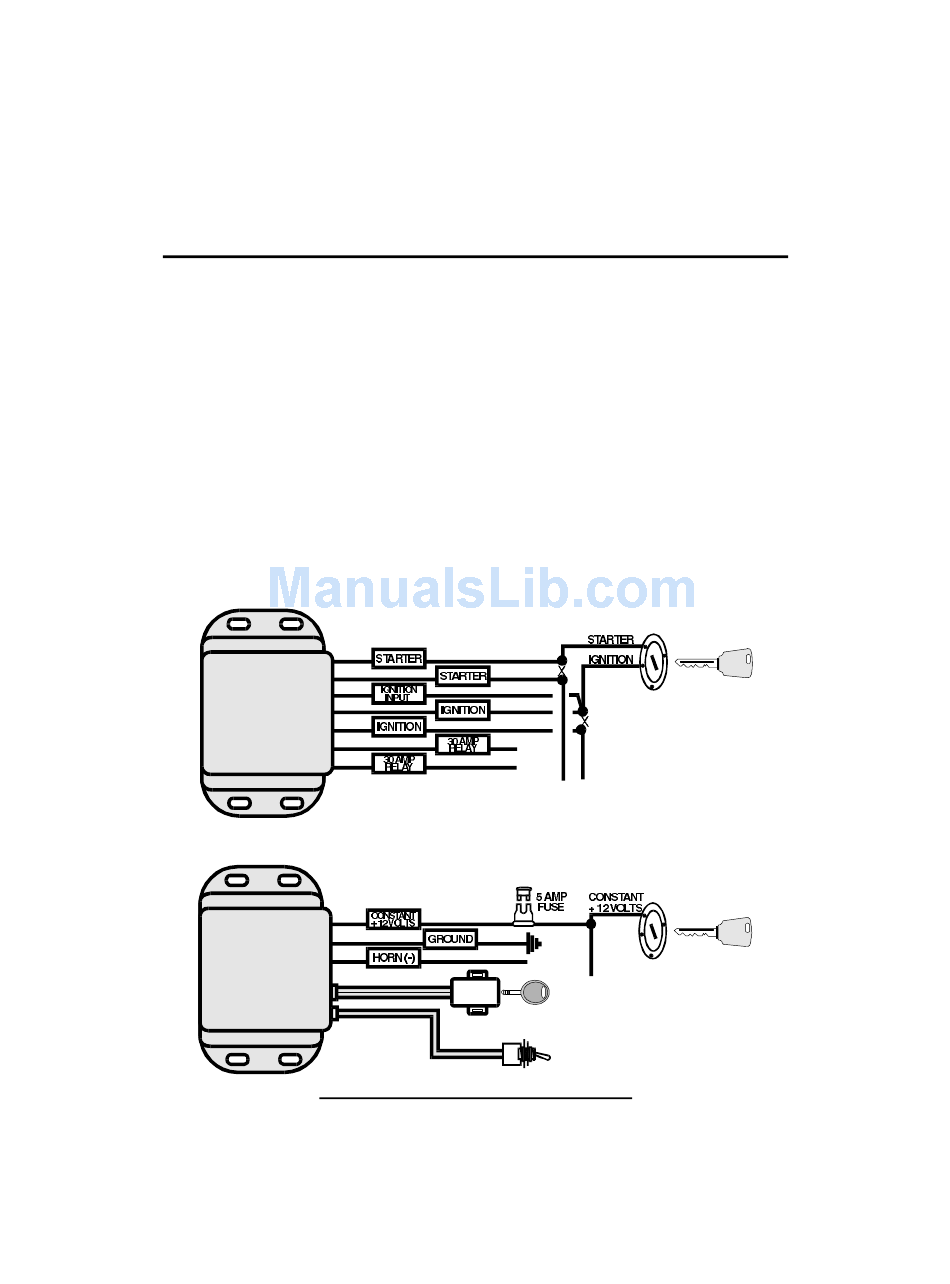

Wiring Diagram

Table of Contents

Do you have a question about the Point 3 Immobilizer and is the answer not in the manual?

Page 1: Wiring Diagram
Point Immobilizer Installation Manual Control Unit 1. Select a location under the dash that will allow you to use the tie wraps to securely fasten the control unit. 2. Mount the control unit as high as possible to ensure maximum security. 3.
Page 2 Ignition Disable CAUTION: Make sure the wires are solidly connected. The ignition circuit may draw very high current. We recommend that all connections be soldered. 1. Locate the ignition switch loom under the dashboard. 2. Use a voltmeter to locate the one wire that shows +12 volts when the ignition key is in the "ON,"...
Page 3 Additional Disable Circuit The wires labeled 30 amp relay are used to immobilize a third circuit on the vehicle. This wire can be used to interrupt a secondary ignition wire or fuel pump relay. CAUTION: Make sure the wires are solidly connected. The disable circuit may draw very high current.
Page 4 Immobilizer will automatically exit programming. 8. In the event of a lost or stolen coded key, repeat steps 5 & 6 four times. This will automatically erase the missing coded key from memory. © 1999 Avital Technologies, Inc. Part Number: 32-3310...
