Post Processing Steps; Sample Upload Instruction Xml File - Dell Powerconnect W-Airwave User Manual

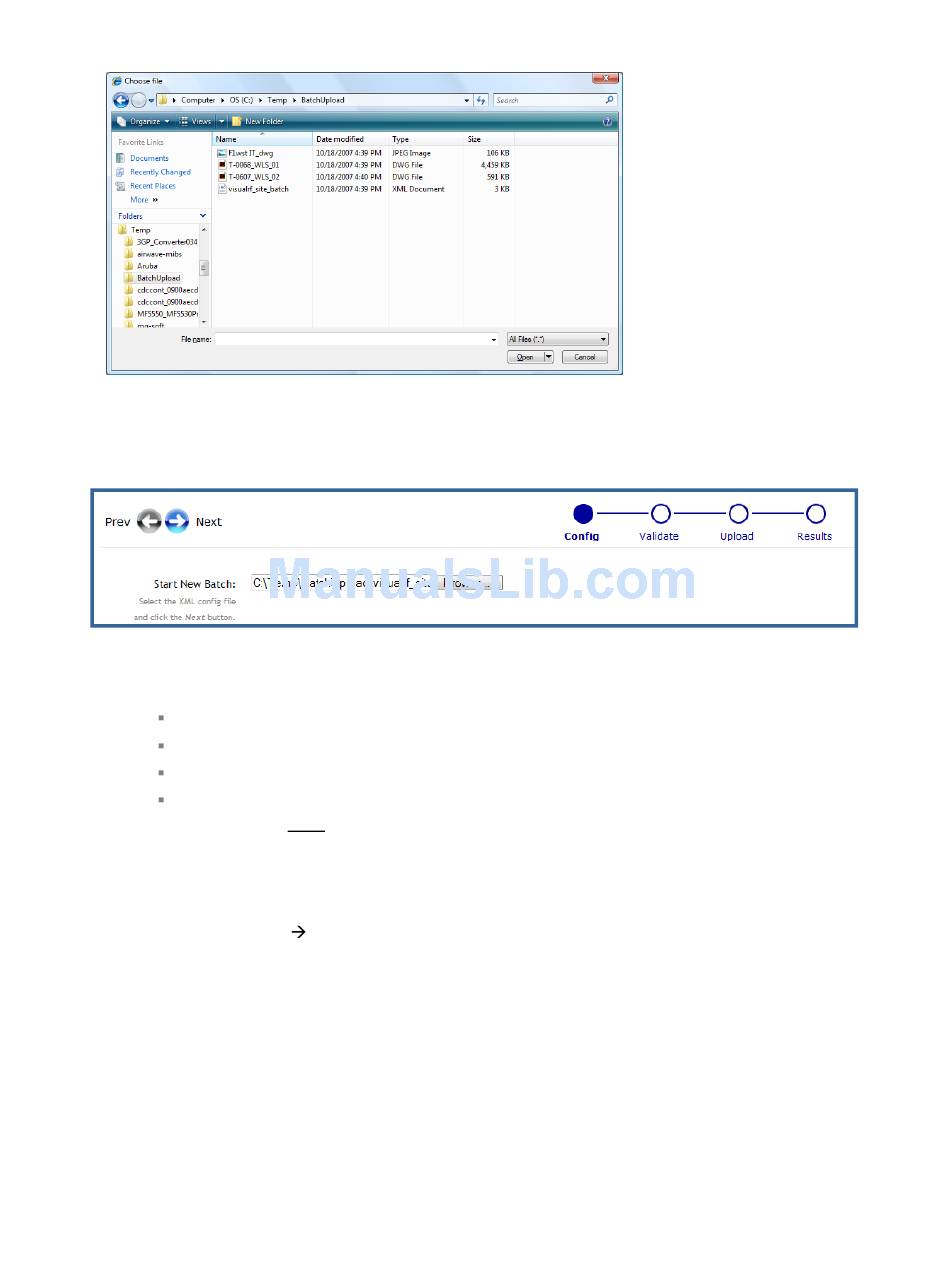

Figure 61. "File Explorer Window"
6. Select the xml file containing the upload instructions and click the Open button
7. The File Explorer Window will disappear you will return to the Batch Floor Upload Wizard
Figure 62. "Batch CAD Importation Wizard with upload Instruction File selected"
8. Click Next button
9. The application will validate the following information
Well formed XML
All drawing files are accessible
All APs are present
All Building and Campuses are present
10. If there are any error none of the floor plans are created

Post Processing Steps

1. Decrease the Location Caching Timer to previous value.
2. Review the VisualRF

Sample Upload Instruction XML File

<?xml version='1.0' encoding='ISO-8859-1'?>
<visualrf:site_batch xmlns:visualrf='http://www.airwave.com'
xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance'
version='1' origin='lower-left'>
<floor name='T-0607' number='21' building-id='218'>
<image filename='T-0607_WLS_02.dwg'/>
<access-points>
<access-point id="29648" x="177.51" y="293.15"/>
<access-point id="29678" x="312.78" y="293.63"/>
<access-point id="29746" x="450.95" y="292.60"/>
Visual RF and Visual RF Plan | User Guide P
Floor Plans page to ensure server is keeping up.
