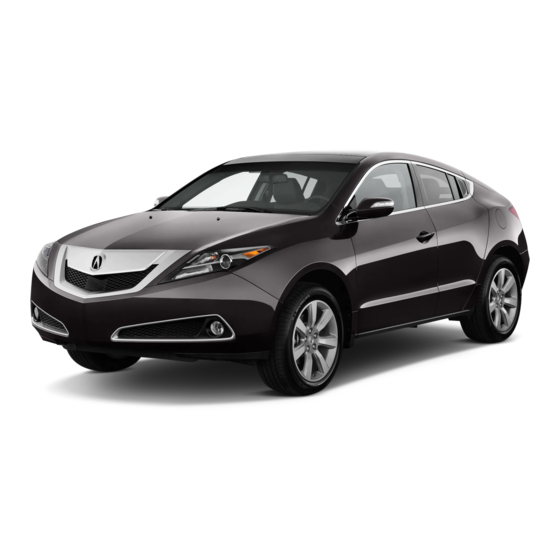

Acura 2012 zdx automobile owner's manual
Hide thumbs Also See for 2012 ZDX:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Navigation Manual
2012 ZDX
Owner's Manual
(Unlinked)
This document does not contain hyperlinks and may be formatted for printing instead of web use. This is due to changes
in content and specifications of the vehicle that happen throughout the model year. This manual will be replaced with a
hyperlinked version at the end of the model year.
P/N 00X31-SZN-
6200
© 2011 American Honda Motor Co., Inc. - All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2012 ZDX and is the answer not in the manual?

Questions and answers

Related Manuals for Acura 2012 ZDX

Summary of Contents for Acura 2012 ZDX

  • Page 1 2012 ZDX Owner’s Manual (Unlinked) This document does not contain hyperlinks and may be formatted for printing instead of web use. This is due to changes in content and specifications of the vehicle that happen throughout the model year. This manual will be replaced with a hyperlinked version at the end of the model year.
  • Page 2 This owner’s manual should be considered a permanent part of the 2 Safe Driving P. 21 vehicle and should remain with the vehicle when it is sold. For Safe Driving P. 22 Seat Belts P. 27 Airbags P. 35 2 Instrument Panel P. 67 This owner’s manual covers all models of your vehicle.

  • Page 3: Table Of Contents

    Contents Quick Reference Guide P. 2 Child Safety P. 50 Exhaust Gas Hazard P. 64 Safety Labels P. 65 Safe Driving P. 21 Instrument Panel P. 67 Opening and Closing the Tailgate P. 114 Security System P. 120 Opening and Closing the Windows P. 123 Operating the Switches Around the Steering Wheel P.
  • Page 4 Visual Index ❙ Blind Spot Information System (BSI) Alert Indicator (P 246) ❙ Indicators (P 68) ❙ Gauges (P 87) ❙ Multi-Information Display (P 88) ❙ Navigation System () See Navigation System Manual ❙ Hazard Warning Button ❙ Climate Control System (P 163) ❙...
  • Page 5 ❙ Headlights/Turn Signals (P 131) ❙ Fog Lights (P 133) ❙ Brightness Control (P 136) ❙ Paddle Shifter (Shift down) (P 231) ❙ SEL/RESET Button (P 88) ❙ (Information) Button (P 88) ❙ Paddle Shifter (Shift up) (P 231) ❙ Wipers/Washers (P 134) ❙...
  • Page 6 Visual Index ❙ Driving Position Memory System Buttons (P 139) ❙ Power Tailgate Button (P 117) ❙ Panoramic Glass Roof/ Sunshade Switch (P 126) ❙ Map Lights (Front) (P 152) ❙ Rearview Mirror (P 141) ❙ HomeLink® Button (P 195) ❙...
  • Page 7 ❙ Side Curtain Airbags (P 45) ❙ Coat Hook (P 158) ❙ Grab Handle ❙ Seat Belt (Installing a Child Seat) (P 58) ❙ Seat Belt to Secure a Child Seat (P 60) ❙ Sunglasses Holder (P 159) ❙ Sun Visors ❙...
  • Page 8 Visual Index ❙ Maintenance Under the Hood (P 277) ❙ Windshield Wipers (P 134, 298) ❙ Power Door Mirrors (P 142) ❙ Door Lock/Unlock Control (P 106) ❙ Headlights (P 131, 291) ❙ Front Turn Signal/Parking/Side Marker/Daytime Running Lights (P 131, 293) ❙...

  • Page 9: Child Safety

    Safe Driving (P 21) Airbags (P 35) ● Your vehicle is fitted with airbags to help protect you and your passengers during a moderate-to-severe collision. Child Safety (P 50) ● All children 12 and younger should be seated in the rear seat. ●...

  • Page 10: Instrument Panel

    Instrument Panel (P 67) System Indicators Gauges /Multi-Information Display (P 87) (P 88) Supplemental System Indicators (P 68) Restraint System Indicator System Indicators Lights Reminders Electronically Turn Signal and Controlled Power Lights On Indicator Fog Light Indicator Hazard Warning Steering System Indicators (ECPS) Indicator System Message...
  • Page 11 Controls (P 101) Turn Signals Lights Wipers and Washers (P 131) (P 131) (P 134) Turn Signal Control Lever Light Control Switches Wiper/Washer Control Lever Right Adjustment Ring High Beam : Long Delay : Short Delay Beam Flashing Left Pull toward you to spray washer fluid.

  • Page 12: Power Door Mirrors (P

    Steering Wheel Power Door Mirrors Power Windows (P 140) (P 142) (P 123) ● With the ignition switch in ON ● With the ignition switch in ON ● To adjust, push and hold the adjustment , move , open the selector switch to L or R. and close the power windows.

  • Page 13: Climate Control System

    Climate Control System Clock (P 163) (P 102) ● Press the driver's or passenger’s AUTO button to activate the climate control system. Models without navigation system ● Press the button to turn the system on or off. ● Press the button to defrost the windshield.
  • Page 14 Features ● Audio Remote Controls (P 190) (P 167) VOL Button Audio system (P 168) MODE Button () See Navigation System Manual For navigation system operation Audio Display CH Button ● VOL (Volume) Button Press to adjust the volume up/down. ●...
  • Page 15 Driving (P 209) Automatic Transmission (P 227) ● Shift to and depress the brake pedal when starting the engine. Paddle Shifters (P 230) ● Paddle shifters allow you to shift gears much like a manual transmission (1st through 6th). This is useful for engine braking. ●...

  • Page 16: Tire Pressure Monitoring

    VSA® OFF Button Refueling (P 244) (P 263) ● The vehicle stability assist (VSA®) system Fuel recommendation: Premium unleaded gasoline with a pump octane number helps stabilize the vehicle during 91 or higher required cornering, and helps maintain traction Fuel tank capacity: 21.00 US gal (79.5 L) while accelerating on loose or slippery road surfaces.
  • Page 17 Maintenance (P 269) Under the Hood (P 277) ● Check engine oil, engine coolant, and windshield washer Wiper Blades (P 298) fluid. Add when necessary. ● Replace blades if they leave streaks ● Check brake fluid. across the windshield. ● Check the battery regularly. Pull the hood release handle under the corner of the dashboard.

  • Page 18: Handling The Unexpected

    Handling the Unexpected (P 317) Flat Tire Engine Won’t Start Overheating (P 319) (P 326) (P 332) ● If the battery is dead, jump start using a ● Park in a safe location. If you do not see ● Park in a safe location and replace the booster battery.

  • Page 19: What To Do If

    What to Do If The ignition switch does The steering wheel may be locked. ● Try to turn the steering wheel left and right not turn from ● while turning the ignition key. Why? Move the steering wheel left and right while ●...
  • Page 20 Why do the doors lock If you do not open the doors within 30 seconds, the doors are after I unlocked the doors relocked automatically for security. using a remote transmitter? Why does the beeper The beeper sounds when: sound when I open the The key is left in the ignition switch.

  • Page 21: California Proposition 65 Warning

    California Proposition 65 Warning To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the WARNING: This product contains or emits vehicle manufacturer, other parties, such as law enforcement, that chemicals known to the state of California to cause have the special equipment, can read the information if they have cancer and birth defects or other reproductive...

  • Page 22: A Few Words About Safety

    A Few Words About Safety You will find this important safety information in a variety of forms, including: Your safety, and the safety of others, is very important. And ● Safety Labels - on the vehicle. operating this vehicle safely is an important responsibility. ●...

  • Page 23: Safe Driving

    Safe Driving You can find many safety recommendations throughout this chapter, and throughout this manual. For Safe Driving Side Airbags ........42 Important Safety Precautions ..... 22 Side Curtain Airbags ......45 Important Handling Information..24 Airbag System Indicators....46 Your Vehicle’s Safety Features....

  • Page 24: For Safe Driving

    For Safe Driving The following pages explain your vehicle’s safety features and how to use them properly. The safety precautions below are ones that we consider to be among the most important. Important Safety Precautions 1Important Safety Precautions ■ Always wear your seat belt Some states, provinces and territories prohibit the use A seat belt is your best protection in all types of collisions.
  • Page 25 uuFor Safe DrivinguImportant Safety Precautions ■ Pay appropriate attention to the task of driving safely Engaging in cell phone conversation or other activities that keep you from paying close attention to the road, other vehicles, and pedestrians could lead to a crash. Remember, situations can change quickly, and only you can decide when it is safe to divert some attention away from driving.

  • Page 26: Important Handling Information

    uuFor Safe DrivinguImportant Handling Information Important Handling Information Your vehicle has higher ground clearance than a passenger vehicle designed for use 1Important Handling Information only on pavement. Higher ground clearance has many advantages for off-highway Failure to operate your vehicle correctly might result driving.

  • Page 27: Your Vehicle's Safety Features

    uuFor Safe DrivinguYour Vehicle’s Safety Features Your Vehicle’s Safety Features 1Your Vehicle’s Safety Features Your vehicle is equipped with many features that work together to help protect you and your passengers during a crash. Some features do not require any action on your part. These include a strong steel framework that forms a safety cage around the passenger compartment, front and rear crush zones, a collapsible steering...
  • Page 28 uuFor Safe DrivinguYour Vehicle’s Safety Features ■ 1Safety Checklist Safety Checklist If the door and tailgate open indicator is on, a door For the safety of you and your passengers, make a habit of checking these items and/or the tailgate is not completely closed. Close all each time before you drive.

  • Page 29: Seat Belts

    Seat Belts About Your Seat Belts Seat belts are the single most effective safety device because they keep you 1About Your Seat Belts connected to the vehicle so that you can take advantage of many built-in safety WARNING features. They also help keep you from being thrown against the inside of the vehicle, against other passengers, or out of the vehicle.

  • Page 30: Seat Belt Reminder

    uuSeat BeltsuAbout Your Seat Belts ■ Proper use of seat belts 1About Your Seat Belts Follow these guidelines for proper use: If a rear seat passenger moves around and extends • All occupants should sit upright, well back in the seat, and remain in that position the seat belt, the lockable retractor may activate.

  • Page 31: Automatic Seat Belt Tensioners

    uuSeat BeltsuAbout Your Seat Belts ■ 1Automatic Seat Belt Tensioners Automatic Seat Belt Tensioners The seat belt tensioners can only operate once. The front seats are equipped with automatic seat belt tensioners to enhance safety. If a tensioner is activated, the SRS indicator will come on.
  • Page 32 uuSeat BeltsuAbout Your Seat Belts ■ Seat Belt e-pretensioners 1Seat Belt e-pretensioners If the automatic seat belt tensioners are activated Vehicles equipped with CMBS also have seat during a collision, both of the front seat belt belt e-pretensioners in the front seats that assemblies and all related components must be automatically start to retract if your vehicle replaced.

  • Page 33: Fastening A Seat Belt

    uuSeat BeltsuFastening a Seat Belt Fastening a Seat Belt After adjusting a front seat to the proper position, and while sitting upright and well 1Fastening a Seat Belt back in the seat: No one should sit in a seat with an inoperative seat 2 Adjusting the Seats P.
  • Page 34 uuSeat BeltsuFastening a Seat Belt 3. Position the lap part of the belt as low as 1Fastening a Seat Belt possible across your hips, then pull up on WARNING the shoulder part of the belt so the lap part Lap belt fits snugly.

  • Page 35: Advice For Pregnant Women

    uuSeat BeltsuFastening a Seat Belt ■ 1Advice for Pregnant Women Advice for Pregnant Women Each time you have a checkup, ask your doctor if it is If you are pregnant, the best way to protect yourself and your unborn child when okay for you to drive.

  • Page 36: Seat Belt Inspection

    uuSeat BeltsuSeat Belt Inspection Seat Belt Inspection Regularly check the condition of your seat belts as follows: 1Seat Belt Inspection • Pull each belt out fully, and look for frays, cuts, burns, and wear. WARNING • Check that the latches work smoothly and the belts retract easily. If a belt does not retract easily, cleaning the belt may correct the problem.

  • Page 37: Airbags

    Airbags Airbag System Components Continued...
  • Page 38 uuAirbagsuAirbag System Components The front, front side, and side curtain An electronic control unit that continually Impact sensors that can detect a airbags are deployed according to the monitors and records information about moderate to severe front impact, side direction and severity of impact. The airbag the sensors, the airbag activators, the impact, or if your vehicle is about to system includes:...
  • Page 39 uuAirbagsuAirbag System Components ■ 1Important facts about your airbags Important facts about your airbags Do not attempt to deactivate your airbags. Together, Airbags can pose serious hazards. To do their job, airbags must inflate with airbags and seat belts provide the best protection. tremendous force.

  • Page 40: Types Of Airbags

    uuAirbagsuTypes of Airbags Types of Airbags Your vehicle is equipped with three types of airbags: 1Types of Airbags • Front airbags: Airbags in front of the driver’s and front passenger’s seats. The airbags can inflate whenever the ignition switch • Side airbags: Airbags in the driver’s and front passenger’s seat-backs. is in ON •...
  • Page 41 uuAirbagsuFront Airbags (SRS) ■ Operation Front airbags are designed to inflate during moderate-to-severe frontal collisions. When the vehicle decelerates suddenly, the sensors send information to the control unit which signals one or both front airbags to inflate. A frontal collision can be either head-on or angled between two vehicles, or when a vehicle crashes into a stationary object, such as a concrete wall.
  • Page 42 uuAirbagsuFront Airbags (SRS) ■ When front airbags should not deploy Minor frontal crashes: Front airbags were designed to supplement seat belts and help save lives, not to prevent minor scrapes, or even broken bones that might occur during a less than moderate-to-severe frontal crash. Side impacts: Front airbags can provide protection when a sudden deceleration causes a driver or front passenger to move towards the front of the vehicle.

  • Page 43: Advanced Airbags

    The passenger’s advanced front airbag system dashboard. has weight sensors. Make sure the floor mat behind the front passenger’s Although Acura recommends against carrying seat is hooked to the floor mat anchor. An improperly Passenger’s an infant or small child in front, if the sensors...

  • Page 44: Side Airbags

    uuAirbagsuSide Airbags Side Airbags The side airbags help protect the upper torso of the driver or a front passenger 1Side Airbags during a moderate-to-severe side impact. Do not attach accessories on or near the side airbags. They can interfere with the proper operation of the ■...
  • Page 45 uuAirbagsuSide Airbags ■ When a side airbag deploys with little or no visible damage Because the airbag system senses sudden acceleration, a strong impact to the side of the vehicle’s framework can cause a side airbag to deploy. In such cases, there may be little or no damage, but the side impact sensors detected a severe enough impact to deploy the airbag.

  • Page 46: Side Airbag Cutoff System

    uuAirbagsuSide Airbags ■ 1Side Airbag Cutoff System Side Airbag Cutoff System To reduce the likelihood that a front passenger may be injured by an inflating side Sensor that airbag, the passenger side airbag is automatically turned off when: monitor the passenger’s height.

  • Page 47: Side Curtain Airbags

    uuAirbagsuSide Curtain Airbags Side Curtain Airbags The side curtain airbags help protect the heads of the driver and passengers in outer 1Side Curtain Airbags seating positions during a moderate-to-severe side impact or rollover. The side curtain airbags are most effective when an occupant is wearing their seat belt properly and ■...

  • Page 48: Airbag System Indicators

    uuAirbagsuAirbag System Indicators Airbag System Indicators If a problem occurs in the airbag system, the SRS indicator will come on and a 1SRS (Supplemental Restraint System) Indicator message appears on the multi-information display. WARNING ■ SRS (Supplemental Restraint System) Indicator Ignoring the SRS indicator can result in serious injury or death if the airbag systems ■...

  • Page 49: Passenger Airbag Off Indicator

    uuAirbagsuAirbag System Indicators ■ 1Passenger Airbag Off Indicator Passenger Airbag Off Indicator If the indicator comes on with no front passenger and ■ When the passenger airbag off no objects on the passenger’s seat, or with an adult U.S. Canada indicator comes on riding there, something may be interfering with the The indicator comes on to alert you that the...
  • Page 50 uuAirbagsuAirbag System Indicators ■ 1Side Airbag Off Indicator Side Airbag Off Indicator When you turn the ignition switch to ON , the ■ When the side airbag off indicator comes on indicator should come on for a few seconds and then go out.

  • Page 51: Airbag Care

    If it is necessary to remove or modify a front seat to accommodate a person with disabilities, contact an Acura dealer. For U.S. vehicles you can also contact Acura Client Service at 800-382-2238. For Canadian vehicles you can also contact...

  • Page 52: Child Safety

    Child Safety Protecting Child Passengers Each year, many children are injured or killed in vehicle crashes because they are 1Protecting Child Passengers either unrestrained or not properly restrained. In fact, vehicle accidents are the WARNING number one cause of death of children age 12 and under. Children who are unrestrained or To reduce the number of child deaths and injuries, every state, Canadian province improperly restrained can be seriously...
  • Page 53 uuChild SafetyuProtecting Child Passengers • Any child who is too small to wear a seat belt correctly must be restrained in an 1Protecting Child Passengers approved child seat that is properly secured to the vehicle using either the lap belt WARNING portion of the lap/shoulder belt or the lower anchors of the LATCH system.

  • Page 54: Protecting Infants

    uuChild SafetyuSafety of Infants and Small Children Safety of Infants and Small Children ■ 1Protecting Infants Protecting Infants WARNING An infant must be properly restrained in a rear-facing, reclining child seat until the infant reaches the seat maker’s weight or height limit for the seat, and the infant is Placing a rear-facing child seat in the front at least one year old.
  • Page 55 uuChild SafetyuSafety of Infants and Small Children ■ 1Protecting Smaller Children Protecting Smaller Children WARNING If a child is at least one year old and within the weight range indicated by the child seat manufacturer, the child should be properly restrained in a firmly secured Placing a forward-facing child seat in the forward-facing child seat.
  • Page 56 uuChild SafetyuSafety of Infants and Small Children ■ 1Selecting a Child Seat Selecting a Child Seat Installation of a LATCH-compatible child seat is Most child seats are LATCH-compatible (Lower Anchors and Tethers for CHildren). simple. Some have a rigid-type connector, while others have a flexible-type connector. Both are equally easy to use.
  • Page 57 uuChild SafetyuSafety of Infants and Small Children ■ Installing a LATCH-Compatible Child Seat A LATCH-compatible child seat can be installed in either of the two outer rear seats. A child seat is attached to the lower anchors with either the rigid or flexible type of connectors.
  • Page 58 uuChild SafetyuSafety of Infants and Small Children 3. Place the child seat on the vehicle seat then 1Installing a LATCH-Compatible Child Seat Lower Anchors attach the child seat to the lower anchors For your child’s safety, when using a child seat according to the instructions that came installed using the LATCH system, make sure that the with the child seat.
  • Page 59 uuChild SafetyuSafety of Infants and Small Children 4. Raise the head restraint, then route the Anchor tether strap between the head restraint legs, and secure the tether strap hook onto the anchor. 5. Tighten the tether strap as instructed by the Tether Strap child seat maker.
  • Page 60 uuChild SafetyuSafety of Infants and Small Children ■ 1Installing a Child Seat with a Lap/Shoulder Seat Belt Installing a Child Seat with a Lap/Shoulder Seat Belt A child seat that is not properly secured will not 1. Place the child seat on the vehicle seat. adequately protect a child in a crash and may cause 2.
  • Page 61 uuChild SafetyuSafety of Infants and Small Children 6. Make sure the child restraint system is 1Installing a Child Seat with a Lap/Shoulder Seat Belt firmly secured by rocking it forward and To deactivate a lockable retractor, release the buckle back and side to side; little movement and allow the seat belt to wind up all the way.
  • Page 62 uuChild SafetyuSafety of Infants and Small Children ■ Adding Security with a Tether 1Adding Security with a Tether Since a tether can provide additional security to the A tether anchorage point is provided behind Tether Anchorage Points lap/shoulder seat belt installation, we recommend each rear seating position.
  • Page 63 uuChild SafetyuSafety of Infants and Small Children ■ Using the center anchor Center Position Tether 1. Lower the head restraint. Strap 2. Route the tether strap over the head Hook restraint and seat-back. Make sure the strap is not twisted. 3.

  • Page 64: Safety Of Larger Children

    uuChild SafetyuSafety of Larger Children Safety of Larger Children ■ 1Safety of Larger Children Protecting Larger Children WARNING The following pages give instructions on how to check proper seat belt fit, what kind of booster seat to use if one is needed, and important precautions for a child who Allowing a child age 12 or under to sit in must sit in front.
  • Page 65 uuChild SafetyuSafety of Larger Children ■ 1Booster Seats Booster Seats When installing a booster seat, make sure to read the If a lap/shoulder seat belt cannot be used instructions that came with it, and install the seat properly, position the child in a booster seat in accordingly.

  • Page 66: Exhaust Gas Hazard

    Exhaust Gas Hazard Carbon Monoxide Gas The engine exhaust from this vehicle contains carbon monoxide, a colorless, 1Carbon Monoxide Gas odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon WARNING monoxide gas will not get into the interior. Carbon monoxide gas is toxic.

  • Page 67: Safety Labels

    Safety Labels Label Locations These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels carefully. If a label comes off or becomes hard to read (except for the U.S. dashboard label which may be removed by the owner), contact a dealer for a replacement.

  • Page 69: Instrument Panel

    Instrument Panel This chapter describes the buttons, indicators, and gauges that are used while driving. Indicators ..........68 Multi-Information Display Warning and Information Messages...... 80 Gauges and Multi-Information Display Gauges..........87 Multi-Information Display ....88...

  • Page 70: Indicators

    Indicators Indicator Name On/Blinking Explanation Message Comes on for a few seconds when Comes on while driving - Make sure ● ● you turn the ignition switch to ON the parking brake is released. Check the , then goes off. brake fluid level.
  • Page 71 uuIndicatorsu Indicator Name On/Blinking Explanation Message Comes on when you turn the Readiness codes are part of the on board ● ● ignition switch to ON , and diagnostics for the emissions control goes off either when the engine systems. starts or after several seconds if the 2 Testing of Readiness Codes P.
  • Page 72 uuIndicatorsu Indicator Name On/Blinking Explanation Message Shift Position Indicates in which position your shift ● — 2 Shifting P. 228 Indicator lever is. Comes on for a few seconds when Blinks while driving - Avoid sudden ● ● you turn the ignition switch to ON starts and acceleration and have the Transmission , then goes off.
  • Page 73 uuIndicatorsu Indicator Name On/Blinking Explanation Message Comes on and the beeper sounds if The beeper stops and the indicator ● ● you are not wearing a seat belt when goes off when you and the front you turn the ignition switch to ON passenger fasten their seat belts.
  • Page 74 uuIndicatorsu Indicator Name On/Blinking Explanation Message Comes on for a few seconds when Stays on constantly or does not ● ● you turn the ignition switch to ON come on at all - Have the vehicle , then goes off. checked by a dealer.
  • Page 75 uuIndicatorsu Indicator Name On/Blinking Explanation Message Comes on for a few seconds if you turn Goes off when all doors and the tailgate ● ● the ignition switch to ON , then goes are closed. Door and off. Tailgate Comes on if any door or the tailgate is not ●...
  • Page 76 uuIndicatorsu Indicator Name On/Blinking Explanation Message Comes on for a few seconds when you Comes on while driving - Stop in a ● ● turn the ignition switch to ON safe place, check tire pressures, and Comes on if the tire pressure of any of the inflate the tire(s) if necessary.
  • Page 77 uuIndicatorsu Indicator Name On/Blinking Explanation Message The turn signal indicators blink when Does not blink or blinks rapidly - A ● ● you operate the turn signal lever. turn signal light bulb has blown. Turn Signal If you press the hazard warning Change the bulb immediately.
  • Page 78 uuIndicatorsu Indicator Name On/Blinking Explanation Message Comes on briefly when you turn the Blinks - You cannot start the engine. ● ● ignition switch to ON , then Turn the ignition switch to LOCK goes off. pull the key out, and then insert the key Comes on if the immobilizer system and turn it to ON again.
  • Page 79 uuIndicatorsu Indicator Name On/Blinking Explanation Message Comes on when you press the ● CRUISE MAIN — 2 Cruise Control* P. 232 CRUISE button. Indicator Comes on if you have set a speed for CRUISE CONTROL ● — 2 Cruise Control* P. 232 cruise control.
  • Page 80 uuIndicatorsu Indicator Name On/Blinking Explanation Message Comes on for a few seconds when ● ACC (Adaptive you change the power mode to ON, Cruise Control) Comes on while driving - Have the ● then goes off. Indicator vehicle checked by a dealer. Comes on if there is a problem with ●...
  • Page 81 uuIndicatorsu Indicator Name On/Blinking Explanation Message Comes on for a few seconds when ● you change the power mode to ON, then goes off. Stays on while BSI is turned off. ● — Comes on when mud, snow, or ice ●...

  • Page 82: Multi-Information Display Warning And Information Messages

    uuIndicatorsuMulti-Information Display Warning and Information Messages Multi-Information Display Warning and Information Messages The following messages appear only on the multi-information display. Press the (information) button to see the message again with the system message indicator on. Message Condition Explanation Appears when the fuel fill cap is loose or is not ●...
  • Page 83 uuIndicatorsuMulti-Information Display Warning and Information Messages Message Condition Explanation Appears when the scheduled maintenance is due soon. ● Consequently, SERVICE DUE NOW and SERVICE 2 Maintenance Minder Messages on the Multi- ● Information Display P. 274 PAST DUE follow. Models without Appears when you open the driver’s door while the Remove the key from the ignition switch.
  • Page 84 uuIndicatorsuMulti-Information Display Warning and Information Messages Models with adaptive cruise control Message Condition Explanation Appears for about three seconds when ACC has been You can resume the set speed after the condition that ● ● automatically canceled. caused ACC to cancel improves. Press the RES/ACCEL button.
  • Page 85 uuIndicatorsuMulti-Information Display Warning and Information Messages Message Condition Explanation Appears for five seconds when you change the IDS ● (Integrated Dynamics System) mode. 2 IDS (Integrated Dynamics System) P. 252 Appears when there is a problem with the sensor on the Have your vehicle checked by a dealer.
  • Page 86 uuIndicatorsuMulti-Information Display Warning and Information Messages Models with keyless access system Message Condition Explanation Appears after you unlock and open the driver’s door. ● 2 Starting the Engine P. 223 Appears three seconds after the TO START ENGINE ● message appears. 2 Starting the Engine P.
  • Page 87 uuIndicatorsuMulti-Information Display Warning and Information Messages Models with keyless access system Message Condition Explanation Appears after the driver’s door is opened when the Press the ENGINE START/STOP button twice with your ● ● power mode is in ACCESSORY. foot off the brake pedal to change the power mode to VEHICLE OFF (LOCK).
  • Page 88 uuIndicatorsuMulti-Information Display Warning and Information Messages Models with keyless access system Message Condition Explanation Appears when you shift into P after having turned off Remove the keyless access remote with the power ● ● the keyless access system main switch. mode OFF.

  • Page 89: Gauges And Multi-Information Display

    Gauges and Multi-Information Display Gauges Gauges include the speedometer, tachometer, fuel gauge, and related indicators. They are displayed when the ignition switch is in ON w ■ Speedometer Displays your driving speed in mph (U.S.) or km/h (Canada). ■ Tachometer Shows the number of engine revolutions per minute.

  • Page 90: Multi-Information Display

    uuGauges and Multi-Information DisplayuMulti-Information Display Multi-Information Display The multi-information display shows the odometer, trip meter, outside temperature indicator, and other gauges. It also displays important messages such as warnings and other helpful information. ■ Switching the Display Press the ( information) button or the SEL/RESET button to change the display.
  • Page 91 uuGauges and Multi-Information DisplayuMulti-Information Display Tire Pressure for Keyless Memory each tire Settings Trip Computer SH-AWD Torque Black Screen Distribution Monitor Button SEL/RESET Button Continued...
  • Page 92 uuGauges and Multi-Information DisplayuMulti-Information Display Odometer Trip A Trip B Engine Oil Life Outside Temperature SEL/RESET Button. ■ Odometer Shows the total number of miles (U.S.) or kilometers (Canada) that your vehicle has accumulated.

  • Page 93: Trip Meter

    uuGauges and Multi-Information DisplayuMulti-Information Display ■ 1Trip Meter Trip Meter Switch between trip meter A and trip meter B by Shows the total number of miles (U.S.) or kilometers (Canada) driven since the last pressing the SEL/RESET button. reset. Meters A and B can be used to measure two separate trips. ■...

  • Page 94: Average Speed

    uuGauges and Multi-Information DisplayuMulti-Information Display ■ 1Average Speed Average Speed You can choose to reset Trip A information when you Shows the average speed in mph or km/h since the last time Trip A or Trip B was refuel. reset. 2 Customized Features P.
  • Page 95 uuGauges and Multi-Information DisplayuMulti-Information Display ■ SH-AWD® Torque Distribution Monitor The indicators on the display show the amount of torque being transferred to the right front, left front, right rear, and left rear wheels. 2 SH-AWD® (Super Handling-All Wheel Drive ) P.

  • Page 96: Customized Features

    uuGauges and Multi-Information DisplayuMulti-Information Display ■ 1Customized Features Customized Features To customize other features, press the button. Use the multi-information display to customize certain features. 2 List of customizable options P. 96 2 Example of customization settings P. 99 ■ How to customize Customization is possible when you see the driver’s Press the...
  • Page 97 uuGauges and Multi-Information DisplayuMulti-Information Display ■ Customization flow Press the button to select Keyless Memory Settings and press the SEL/RESET button. ACC SETUP SEL/RESET PRE-RUNNING CAR DETECT BEEP ACC DISPLAY SPEED UNIT CHG SETTING SEL/RESET LANGUAGE SELECTION ADJUST OUTSIDE TEMP. DISPLAY METER SETUP SEL/RESET TRIP COMPUTER TRIP A INFO RESET...
  • Page 98 uuGauges and Multi-Information DisplayuMulti-Information Display ■ List of customizable options Setup Group Customizable Features Description Selectable settings Pre-running Car Detect Causes the system to beep when a vehicle ahead of , OFF Beep you gets too close. ACC Setup ACC Display Speed Unit Changes the ACC display speed unit.
  • Page 99 uuGauges and Multi-Information DisplayuMulti-Information Display Setup Group Customizable Features Description Selectable settings Changes the driver’s seat, the steering wheel, and Memory Position Link , OFF the outside mirror positions to a stored setting. Position Setup Auto Tilt and Telescope Moves the steering wheel fully up when you get in/ , OFF Steering Wheel get out of the vehicle.
  • Page 100 uuGauges and Multi-Information DisplayuMulti-Information Display Setup Group Customizable Features Description Selectable settings Changes the setting for the automatic locking Shift from P , With VEH Auto Door Lock feature. , OFF Shift to P , IGN Off, OFF Changes the setting for when the doors and the Auto Door Unlock tailgate unlock automatically.
  • Page 101 uuGauges and Multi-Information DisplayuMulti-Information Display ■ Example of customization settings The steps for changing the TRIP COMPUTER TRIP A INFO RESET setting to MANUAL ONLY are shown below. The default setting for Trip Computer Trip A Info Reset is WITH REFUEL. 1.
  • Page 102 uuGauges and Multi-Information DisplayuMulti-Information Display 4. Press the button until TRIP COMPUTER TRIP A INFO RESET appears on the display, then press the SEL/RESET button. 5. Press the button and select MANUAL ONLY, then press the SEL/RESET button. 6. Press the button until EXIT appears in the display, then press the SEL/RESET button.

  • Page 103: Controls

    Controls This chapter explains how to operate the various controls necessary for driving. Setting the Clock ......102 Opening and Closing the Panoramic Driving Position Memory System ..138 Locking and Unlocking the Doors Glass Roof........126 Adjusting the Steering Wheel ..140 Key Types and Functions ....

  • Page 104: Setting The Clock

    Setting the Clock Clock Models without navigation system 1Clock You can adjust the time in the clock display with the ignition switch in ON w You can switch the clock display between 24 hours and 12 hours when in the menu mode. ■...

  • Page 105: Locking And Unlocking The Doors

    Locking and Unlocking the Doors Key Types and Functions This vehicle comes with the following keys: 1Key Types and Functions All of the keys have an immobilizer system. The ■ immobilizer system helps to protect against vehicle Master Keys theft. Use the keys to start and stop the engine, and 2 Immobilizer System P.
  • Page 106 uuLocking and Unlocking the DoorsuKey Types and Functions ■ Retractable master keys 1Retractable master keys The master key folds up inside the remote If the key is not fully extended, the immobilizer Release Button transmitter. system may not work properly, and the engine may 1.

  • Page 107: Key Number Tag

    uuLocking and Unlocking the DoorsuKey Types and Functions ■ 1Valet Key Valet Key When you need to leave a key with a third party, Can be used to start and stop the engine, and leave the valet key. lock and unlock driver’s door. ■...

  • Page 108: Locking/Unlocking The Doors From The Outside

    uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside Locking/Unlocking the Doors from the Outside 1Using the Remote Transmitter ■ Using the Remote Transmitter If you do not open a door or the tailgate within 30 ■ Locking the doors seconds of unlocking vehicle with the remote Press the LOCK button.
  • Page 109 uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside ■ 1Locking/Unlocking the Doors Using a Key Locking/Unlocking the Doors Using a Key When you lock the driver’s door with a key, all of the Fully insert the key and turn it. other doors, tailgate, and fuel fill door lock at the same time.
  • Page 110 uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside ■ 1Using the Keyless Access System Using the Keyless Access System • The driver must carry the keyless access remote and When you carry the keyless access remote, not leave it in the vehicle when you get out. you can lock/unlock the doors and the •...
  • Page 111 uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside ■ Unlocking the vehicle 1Using the Keyless Access System Grab the front passenger’s door handle or • Even within the 32 inches (80 cm) radius, you may press the tailgate release button. not be able to lock/unlock the doors with the uAll doors and the tailgate unlock.

  • Page 112: Low Keyless Access Remote Signal Strength

    uuLocking and Unlocking the DoorsuLow Keyless Access Remote Signal Strength Low Keyless Access Remote Signal Strength The vehicle transmits radio waves to locate the keyless access remote when locking/ 1Low Keyless Access Remote Signal Strength unlocking the doors, unlocking the tailgate, or to start the engine. Communication between the keyless access remote and the vehicle consumes the keyless access remote’s In the following cases, locking/unlocking the doors or unlocking the tailgate or...

  • Page 113: Locking/Unlocking The Doors From The Inside

    uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Inside Locking/Unlocking the Doors from the Inside ■ 1Using the Lock Tab Using the Lock Tab When you lock the door using the lock tab on the ■ Locking a door To Lock Lock Tab driver’s door, all the other doors, tailgate, and fuel fill...

  • Page 114: Childproof Door Locks

    uuLocking and Unlocking the DoorsuChildproof Door Locks Childproof Door Locks The childproof door locks prevent the rear doors from being opened from the inside 1Childproof Door Locks regardless of the position of the lock tab. To open the door from the inside when the childproof door lock is on, put the lock tab in the ■...

  • Page 115: Auto Door Locking/Unlocking

    uuLocking and Unlocking the DoorsuAuto Door Locking/Unlocking Auto Door Locking/Unlocking Your vehicle locks all doors and unlocks the driver’s door automatically when a 1Auto Door Locking/Unlocking certain condition is met. You can turn off or change to another auto door locking/unlocking setting using the multi-information ■...

  • Page 116: Opening And Closing The Tailgate

    Opening and Closing the Tailgate Precautions for Opening/Closing the Tailgate Always make sure individuals and objects are clear of the tailgate before opening or 1Precautions for Opening/Closing the Tailgate closing it. WARNING ■ Opening the tailgate Closing a power tailgate while anyone is •...
  • Page 117 uuOpening and Closing the TailgateuOpening/Closing the Tailgate Opening/Closing the Tailgate When all the doors are unlocked, the tailgate 1Opening/Closing the Tailgate is unlocked. Push up inside the tailgate handle Models with keyless access system and lift open the tailgate. Even if the tailgate is locked, you can open the tailgate when carrying the keyless access remote.
  • Page 118 Installing aftermarket components other than genuine Acura accessories on the power tailgate may prevent it from fully opening or closing. *1: Models with the keyless access system have an ENGINE START/STOP button instead of an ignition switch.

  • Page 119: Remote Transmitter

    uuOpening and Closing the TailgateuOpening/Closing the Power Tailgate ■ 1Opening/Closing the Power Tailgate Remote Transmitter If the power tailgate meets resistance while opening To open or close the power tailgate, do the or closing, the auto reverse feature reverses the Tailgate following: direction.
  • Page 120 uuOpening and Closing the TailgateuOpening/Closing the Power Tailgate ■ 1Power Tailgate Close Button Power Tailgate Close Button If you push the tailgate release button inside the Press the button on the tailgate to close the Power handle while the tailgate is automatically opening or power tailgate.
  • Page 121 uuOpening and Closing the TailgateuOpening/Closing the Power Tailgate ■ 1Power Tailgate Fail-Safe Mode Power Tailgate Fail-Safe Mode If you try to manually close the power tailgate The power tailgate fail-safe mode detects if there is an extra load on the tailgate (for immediately after it fully opens, the power tailgate example, it is covered with snow).

  • Page 122: Security System

    Security System Immobilizer System The immobilizer system prevents a key that has not been pre-registered from 1Immobilizer System starting the engine. Each key contains electronic transmitters that use electronic NOTICE signals to verify the key. Leaving the ignition key in the vehicle can result in theft or accidental movement of the vehicle.
  • Page 123 uuSecurity SystemuSecurity System Alarm ■ Setting the security system alarm 1Security System Alarm The security system alarm automatically sets when the following conditions have Do not set the security system alarm when someone been met: is in the vehicle or a window is open. The system can •...
  • Page 124 uuSecurity SystemuSecurity System Alarm ■ Panic Mode ■ The PANIC button on the remote transmitter Panic Button If you press the PANIC button for approximately one second, the following will occur for about 30 seconds: • The horn sounds. • Some exterior lights flash. ■...

  • Page 125: Opening And Closing The Windows

    Opening and Closing the Windows Opening/Closing the Power Windows The power windows can be opened and closed when the ignition switch is in ON 1Opening/Closing the Power Windows , using the switches on the doors. The driver side switches can be used to open WARNING and close all of the windows.
  • Page 126 uuOpening and Closing the WindowsuOpening/Closing the Power Windows ■ Opening/Closing Windows without Auto-Open/Close Function To open: Push the switch down. To close: Pull the switch up. Close Release the switch when the window reaches the desired position. Open ■ 1Opening Windows, Panoramic Glass Roof, and Sunshades with Opening Windows, Panoramic Glass Roof, and Sunshades with the Remote Transmitter the Remote Transmitter...
  • Page 127 uuOpening and Closing the WindowsuOpening/Closing the Power Windows ■ Opening/Closing the Windows, Panoramic Glass Roof, and Sunshades with the Key or the Built-in Key To open: Unlock the driver’s door with the key. Within 20 seconds of returning the key to Close Open the central position, turn the key in the unlock...

  • Page 128: Opening And Closing The Panoramic Glass Roof

    Opening and Closing the Panoramic Glass Roof ■ 1Opening/Closing the Panoramic Glass Roof Opening/Closing the Panoramic Glass Roof WARNING You can only operate the panoramic glass roof and the sunshades switches when the ignition switch is in ON w . Use the switch in the front of the ceiling to open Opening or closing the panoramic glass and close the panoramic glass roof and the sunshades.

  • Page 129: Operating The Switches Around The Steering Wheel

    Operating the Switches Around the Steering Wheel Ignition Switch Models without keyless access remote 1Ignition Switch You cannot take the key out unless the shift lever is If you open the driver’s door when the key is in LOCK LOCK: Insert and remove the key in this or ACCESSORY , a warning buzzer will sound position.

  • Page 130: Engine Start/Stop Button

    uuOperating the Switches Around the Steering WheeluENGINE START/STOP Button ENGINE START/STOP Button 1ENGINE START/STOP Button ENGINE START/STOP Button Operating Range Operating Range VEHICLE OFF (LOCK) Indicator in the button is off. ACCESSORY Indicator in the button is on. Indicator in the button blinks (from ON to You can start the engine when the keyless access ACCESSORY).
  • Page 131 uuOperating the Switches Around the Steering WheeluENGINE START/STOP Button ■ Ignition Switch and Power Mode Comparison LOCK (0) Ignition Switch (with/without ACCESSORY (I) ON (II) START (III) Position the key) Without Keyless Engine is turned off Engine is turned off. Normal key position Use this position to ●...
  • Page 132 uuOperating the Switches Around the Steering WheeluENGINE START/STOP Button ■ Keyless Access System On and Off The keyless access system main switch is in the glove box. Switch the keyless access system on Keyless Access Remote or off. System Main Switch Turning off the keyless access system cancels all the system features.

  • Page 133: Turn Signals

    uuOperating the Switches Around the Steering WheeluTurn Signals Turn Signals The turn signals can be used when the ignition Right Turn switch is in ON w Left Turn Light Switches ■ 1Light Switches Manual Operation If you remove the key from the ignition switch while Rotating the light switch turns the lights on the lights are on, a chime sounds when the driver’s...

  • Page 134: Automatic Lighting Control

    uuOperating the Switches Around the Steering WheeluLight Switches ■ 1Automatic Lighting Control Automatic Lighting Control We recommend that you turn on the lights manually Automatic lighting control can be used when when driving at night, in a dense fog, or in dark areas the ignition switch is in ON w such as long tunnels or parking facilities.

  • Page 135: Fog Lights

    uuOperating the Switches Around the Steering WheeluFog Lights Fog Lights When the low beam headlights are on, turn 1Fog Lights the fog light switch on to use the fog lights. When the fog lights are on, the indicator in the instrument panel will be on.

  • Page 136: Wipers And Washers

    uuOperating the Switches Around the Steering WheeluWipers and Washers Wipers and Washers The windshield wipers and washers can be 1Wipers and Washers used when the ignition switch is in ON w NOTICE Do not use the wipers when the windshield is dry. ■...

  • Page 137: Headlight Washers

    uuOperating the Switches Around the Steering WheeluWipers and Washers ■ 1Headlight Washers Headlight Washers The headlight washers use the same fluid reservoir as Turn the headlights on and press the the windshield washers. Headlight headlight washer button to operate. Washer Button The headlight washers also operate when you turn the windshield washers for the first time after the ignition switch is turned to ON w...

  • Page 138: Brightness Control

    uuOperating the Switches Around the Steering WheeluBrightness Control Brightness Control When the parking lights are turned on and the 1Brightness Control ignition switch is in ON w , you can use the Instrument panel brightness varies, depending on + or - button to adjust instrument panel whether the exterior lights are on or off.

  • Page 139: Rear Defogger/Heated Door Mirror Button

    uuOperating the Switches Around the Steering WheeluRear Defogger/Heated Door Mirror Button Rear Defogger/Heated Door Mirror Button Press the rear defogger and heated door 1Rear Defogger/Heated Door Mirror Button mirror button to defog the rear window and NOTICE mirrors when the ignition switch is in ON w When cleaning the inside of the rear window, be careful not to damage the heating wires.

  • Page 140: Driving Position Memory System

    uuOperating the Switches Around the Steering WheeluDriving Position Memory System Driving Position Memory System You can store two driver’s seat (except for power lumbar), steering wheel and 1Driving Position Memory System outside mirror positions with the driving position memory system. Using the multi-information display, you can disable When you unlock and open the driver’s door with a remote transmitter, or keyless the automatic seat, steering wheel and outside...
  • Page 141 uuOperating the Switches Around the Steering WheeluDriving Position Memory System ■ 1Storing a Position in Memory Storing a Position in Memory After you press the SET button, the storing operation 1. Adjust the driver’s seat, the steering wheel and will be canceled when: Memory Button 1 the outside mirrors to the desired position, and •...

  • Page 142: Adjusting The Steering Wheel

    uuOperating the Switches Around the Steering WheeluAdjusting the Steering Wheel Adjusting the Steering Wheel The steering wheel height and distance from your body can be adjusted so that you 1Adjusting the Steering Wheel can comfortably grip the steering wheel in an appropriate driving posture. WARNING Push and hold the adjustment switch to move the steering wheel in, out, up or down.

  • Page 143: Adjusting The Mirrors

    Adjusting the Mirrors Interior Rearview Mirror Adjust the angle of the rearview mirror when you are sitting in the correct driving 1Adjusting the Mirrors position. Keep the inside and outside mirrors clean and adjusted for best visibility. ■ Automatic Dimming Rearview Mirror Adjust the mirrors before you start driving.

  • Page 144: Power Door Mirrors

    uuAdjusting the MirrorsuPower Door Mirrors Power Door Mirrors You can adjust the door mirrors when the ignition switch is in ON w Selector Switch ■ Mirror position adjustment L/R selector switch: Select the left or right mirror. After adjusting the mirror, return the switch to the center position.

  • Page 145: Adjusting The Seats

    Adjusting the Seats Adjusting the Seat Positions Adjust the driver’s seat as far back as possible 1Adjusting the Seats Allow sufficient while allowing you to maintain full control of space. WARNING the vehicle. You should be able to sit upright, well back in the seat and be able to Sitting too close to a front airbag can result adequately press the pedals without leaning...
  • Page 146 uuAdjusting the SeatsuAdjusting the Seat Positions ■ 1Adjusting the Seat-Backs Adjusting the Seat-Backs WARNING Adjust the driver’s seat-back to a comfortable, upright position, leaving ample space Reclining the seat-back too far can result in between your chest and the airbag cover in serious injury or death in a crash.
  • Page 147 uuAdjusting the SeatsuAdjusting the Seat Positions ■ 1Adjusting the Head Restraints Adjusting the Head Restraints WARNING Your vehicle is equipped with head restraints in all seating positions. Improperly positioning head restraints reduces their effectiveness and increases Head restraints are most effective for the likelihood of serious injury in a crash.
  • Page 148 uuAdjusting the SeatsuAdjusting the Seat Positions ■ Changing the Rear Seat Head Restraint Positions A passenger sitting in a back seating position Center should adjust the height of their head restraint to an appropriate position before the vehicle begins moving. To raise the center head restraint: Push up on the bottom.
  • Page 149 uuAdjusting the SeatsuAdjusting the Seat Positions ■ 1Removing and Reinstalling the Head Restraints Removing and Reinstalling the Head Restraints WARNING Head restraints can be removed for cleaning or repair. Failure to reinstall, or correctly reinstall, the To remove a front or rear center head restraint: head restraints can result in severe injury Pull the restraint up as far as it will go.

  • Page 150: Maintain A Proper Sitting Position

    uuAdjusting the SeatsuAdjusting the Seat Positions ■ 1Maintain a Proper Sitting Position Maintain a Proper Sitting Position WARNING After all occupants have adjusted their seats and head restraints, and put on their seat belts, it is very important that they continue to sit upright, well back in their seats, with Sitting improperly or out of position can their feet on the floor, until the vehicle is safely parked and the engine is off.

  • Page 151: Rear Seats

    uuAdjusting the SeatsuRear Seats Rear Seats ■ 1Folding Down the Rear Seats Folding Down the Rear Seats The rear seat-backs can be folded down to 1. Store the center seat belt buckle into the accommodate bulkier items in the cargo area. pocket in the rear seat-back.
  • Page 152 uuAdjusting the SeatsuArmrest Armrest ■ Using the Rear Seat Armrest Pull down the armrest in the center seat-back.

  • Page 153: Interior Lights/Interior Convenience Items

    Interior Lights/Interior Convenience Items Interior Lights ■ 1Interior Light Switches Interior Light Switches In the door activated position, the map lights fade ■ out and go off about 30 seconds after the doors and The map lights come on regardless of whether the tailgate are closed.
  • Page 154 uuInterior Lights/Interior Convenience ItemsuInterior Lights ■ 1Map Lights Map Lights When the ceiling light switch is in the door activated The map lights can be turned on and off by position and any door is open, the map light will not Front pressing the (map light) button.

  • Page 155: Interior Convenience Items

    uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items Interior Convenience Items ■ 1Glove Box Glove Box WARNING Pull the handle to open the glove box. You can lock the glove box with the master key or An open glove box can cause serious injury the built-in key.

  • Page 156: Console Compartment

    uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ 1Console Compartment Console Compartment The console compartment light comes on when the Your vehicle has a multi-function center parking lights are on. console. It includes beverage holders, storage Sliding Tray compartments, an armrest, storage trays for coins or small items, and a sliding tray.
  • Page 157 uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ Under-floor Storage Area Pull the handle to open the cargo floor lid. Handle ■ Side Storage Compartment Located on the side panel in the cargo area. Pull up the handle and remove the lid. Handle Continued...

  • Page 158: Beverage Holders

    uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ 1Beverage Holders Beverage Holders NOTICE ■ Front seat beverage holders Spilled liquids can damage the upholstery, carpeting, Slide the lid and the tray to use the front seat and electrical components in the interior. beverage holders.

  • Page 159: Accessory Power Sockets

    uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ 1Accessory Power Sockets Accessory Power Sockets NOTICE The accessory power sockets can be used when the ignition switch is in ACCESSORY Do not insert an automotive type cigarette lighter q or ON w element.
  • Page 160 uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ 1Coat Hooks Coat Hooks The coat hooks are not designed for large or heavy There are coat hooks on the rear left and right items. grab handles. Pull them down to use them. ■...
  • Page 161 uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ 1Sunglasses Holder Sunglasses Holder Keep the holder closed while driving except when To open the sunglasses holder, push on the accessing stored items. lid. To close, push it again until it latches. You can store eyeglasses and other small items in this holder.
  • Page 162 uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ 1Front Seat Heaters Front Seat Heaters WARNING The ignition switch must be in ON w to use the seat heaters. The HI setting heats the seats Heat induced burns are possible when faster than the LO setting. using seat heaters.
  • Page 163 uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ 1Front Seat Heaters and Seat Ventilation Front Seat Heaters and Seat Ventilation WARNING If the power mode is in ON: Seat heater - The HI setting heats the seats Heat induced burns are possible when faster than the LO setting.
  • Page 164 uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ 1Rear Seat Heaters Rear Seat Heaters WARNING If the ignition switch is in ON w : The HI setting heats the seats faster than the LO Heat induced burns are possible when setting. using seat heaters.

  • Page 165: Climate Control System

    Climate Control System Using Automatic Climate Control The automatic climate control system maintains the interior temperature you select. 1Using Automatic Climate Control The system also selects the proper mix of heated or cooled air that will, as quickly as If any buttons are pressed while using the climate possible, raise or lower the interior temperature to your preference.

  • Page 166: Defrosting The Windshield And Windows

    uuClimate Control SystemuUsing Automatic Climate Control ■ 1Defrosting the Windshield and Windows Defrosting the Windshield and Windows For your safety, make sure you have a clear view Pressing the (windshield defroster) button through all the windows before driving. turns the air conditioner system on and automatically switches the system to fresh air Do not set the temperature near the upper or lower limit.

  • Page 167: Synchronized Mode

    uuClimate Control SystemuSynchronized Mode Synchronized Mode 1Synchronized Mode When you press the button, the system changes to synchronized mode. When the system is in dual mode, the driver’s side temperature, the passenger’s side temperature and mode control can be set separately. You can set the temperature and mode control synchronously for the driver side and the passenger side in synchronized mode.

  • Page 168: Automatic Climate Control Sensors

    uuClimate Control SystemuAutomatic Climate Control Sensors Automatic Climate Control Sensors The automatic climate control system is Sunlight Sensor equipped with a sunlight sensor, an interior temperature and humidity sensor. Do not cover or spill any liquid on them. Temperature and Humidity Sensor...

  • Page 169: Features

    Features This chapter describes how to operate technology features on models without the navigation system. Audio System Audio Error Messages Bluetooth® HandsFreeLink® About Your Audio System....168 CD Changer........188 Using HFL ........197 USB Adapter Cable ......169 iPod®/USB Flash Drive....... 189 HFL Menus ........

  • Page 170: Audio System

    Audio System About Your Audio System On models with the navigation system, see the Navigation System Manual for 1About Your Audio System operation of the audio system, AcuraLink , Bluetooth® HandsFreeLink®, and voice XM® Radio is available on a subscription basis only. commands for these features.

  • Page 171: Usb Adapter Cable

    uuAudio SystemuUSB Adapter Cable USB Adapter Cable 1. Unclip the USB connector and loosen the 1USB Adapter Cable adapter cable. • Do not leave the iPod® or USB flash drive in the 2. Install the iPod® dock connector or the USB vehicle.

  • Page 172: Audio System Theft Protection

    uuAudio SystemuAudio System Theft Protection Audio System Theft Protection The audio system is disabled when it is disconnected from the power source, such as 1Audio System Theft Protection when the battery is disconnected or goes dead. Find the audio system’s security code and serial number on the radio code card.

  • Page 173: Audio System Basic Operation

    Audio System Basic Operation To use the audio system function, the ignition switch must be in ACCESSORY q or 1Audio System Basic Operation ON w These indications are used to show how to operate Use the selector knob or SETUP button to the selector knob.

  • Page 174: Adjusting The Sound

    uuAudio System Basic OperationuAdjusting the Sound Adjusting the Sound 1Adjusting the Sound Press the SETUP button, and rotate The SVC has four modes: OFF, LOW, MID, and select Sound Settings, then press . Rotate HIGH. to scroll through the following choices: SVC adjusts the volume level based on the vehicle speed.

  • Page 175: Playing The Am/Fm Radio

    uuAudio System Basic OperationuPlaying the AM/FM Radio Playing the AM/FM Radio Preset Buttons (1-6) To store a station: 1. Tune to the selected station. 2. Pick a preset button and hold it (Volume/Power) Knob until you hear a beep. Press to turn the audio system ON To listen to a stored station, select a and OFF.
  • Page 176 uuAudio System Basic OperationuPlaying the AM/FM Radio ■ 1Playing the AM/FM Radio Radio Data System (RDS) The ST indicator appears on the display indicating Provides text data information related to your selected RDS capable FM station. stereo FM broadcasts. Stereo reproduction in AM is not available. ■...

  • Page 177: Playing The Xm® Radio

    uuAudio System Basic OperationuPlaying the XM® Radio Playing the XM® Radio (Volume/Power) Knob Press to turn the audio system ON and OFF. Turn to adjust the volume. TITLE Button Preset Buttons (1-6) Press and release to cycle the To store the channel: display between the name, 1.
  • Page 178 uuAudio System Basic OperationuPlaying the XM® Radio ■ 1Playing the XM® Radio To Play the XM® Radio In the channel mode, all available channels are 1. Press the button to select the XM® radio band (XM1 or XM2). selectable. In the category mode, you can select a 2.

  • Page 179: Playing A Cd

    uuAudio System Basic OperationuPlaying a CD Playing a CD Your audio system supports audio CDs, CD-Rs, and CD-RWs in either MP3 or WMA format. With the CD loaded, press the CD button. (Volume/Power) Knob DISC Button Press to turn the audio system ON Press to play a CD.
  • Page 180 uuAudio System Basic OperationuPlaying a CD ■ 1Playing a CD How to Select a File from a Folder with the Selector Knob (MP3/WMA) NOTICE Do not use CDs with adhesive labels. The label can 1. Press to switch the display to a folder list. Folder Selection cause the CD to jam in the unit.
  • Page 181 uuAudio System Basic OperationuPlaying a CD ■ 1How to Select a Play Mode How to Select a Play Mode Press the RETURN button to go back to the previous You can select repeat, random, and scan modes when playing a track or file. display, and press the SETUP button to cancel this 1.

  • Page 182: Playing An Ipod

    uuAudio System Basic OperationuPlaying an iPod® Playing an iPod® Connect the iPod® using your dock connector to the USB adapter cable, then press the USB/AUX button. 2 USB Adapter Cable P. 169 USB Indicator Comes on when an iPod® is connected.
  • Page 183 uuAudio System Basic OperationuPlaying an iPod® ■ 1Playing an iPod® How to Select a File from the iPod® Menu Available operating functions vary on models or 1. Press to display the iPod® menu. versions. Some functions may not be available on the vehicle’s audio system.
  • Page 184 uuAudio System Basic OperationuPlaying an iPod® ■ 1How to Select a Play Mode How to Select a Play Mode Play Mode Menu Items You can select repeat and shuffle modes when playing a file. NORMAL PLAY 1. Press the SETUP button. SHUFFLE OFF: Turns off the shuffle mode.

  • Page 185: Playing A Usb Flash Drive

    uuAudio System Basic OperationuPlaying a USB Flash Drive Playing a USB Flash Drive Your audio system reads and plays sound files on a USB flash drive in either MP3, WMA, or AAC format. Connect your USB flash drive to the USB adapter cable, then press the USB/AUX button.
  • Page 186 uuAudio System Basic OperationuPlaying a USB Flash Drive ■ 1Playing a USB Flash Drive How to Select a File from a Folder with the Selector Knob Use the recommended USB flash drives. 1. Press to switch the display to a folder list. Folder Selection 2 General Information on the Audio System P.
  • Page 187 uuAudio System Basic OperationuPlaying a USB Flash Drive ■ 1How to Select a Play Mode How to Select a Play Mode Play Mode Menu Items You can select repeat, random, and scan modes when playing a file. NORMAL PLAY 1. Press the SETUP button. REPEAT ONE TRK: Repeats the current file.

  • Page 188: Playing Bluetooth® Audio

    uuAudio System Basic OperationuPlaying Bluetooth® Audio Playing Bluetooth® Audio Your audio system allows you to listen to music from your Bluetooth®-compatible 1Playing Bluetooth® Audio phone. Not all Bluetooth-enabled phones with streaming This function is available when the phone is paired and linked to the vehicle’s audio capabilities are compatible with the system.
  • Page 189 uuAudio System Basic OperationuPlaying Bluetooth® Audio ■ 1To Play Bluetooth® Audio Files To Play Bluetooth® Audio Files To play the audio files, you may need to operate your 1. Make sure that your phone is paired and phone. If so, follow the phone maker’s operating linked to HFL.

  • Page 190: Audio Error Messages

    Audio Error Messages CD Changer If a disc error occurs, you may see the following error messages. Error Message Cause Solution Turn the audio system off and allow the changer to cool down ● HEAT ERROR High temperature until the error message is cleared. Current track/file will be skipped.

  • Page 191: Ipod®/Usb Flash Drive

    uuAudio Error MessagesuiPod®/USB Flash Drive iPod®/USB Flash Drive If an error occurs while playing an iPod® or USB flash drive, you may see the following error messages. If you cannot clear the error message, contact a dealer. Error Message Solution ERROR There is a problem with the USB adapter unit.

  • Page 192: Audio Remote Controls

    Audio Remote Controls Allows you to operate the audio system while driving. 1Audio Remote Controls MODE Button The CD mode appears only when a CD is loaded. Cycles through the audio modes as follows: MODE Button FM1 FM2 AM XM1 XM2 CD AUX When in the AUX mode, the following are operable CH (Channel) from the remote controls:...

  • Page 193: General Information On The Audio System

    General Information on the Audio System XM® Radio Service ■ 1Subscribing to XM® Radio Subscribing to XM® Radio Contact Information for XM® Radio: 1. You need your radio ID ready before registering for subscription. US: XM® Radio at www.siriusxm.com, or (800) 852- To see the ID in the display: Turn the selector knob until 0 appears.

  • Page 194: Recommended Cds

    uuGeneral Information on the Audio SystemuRecommended CDs Recommended CDs • Use only high-quality CD-R or CD-RW discs labeled for audio use. 1Recommended CDs • Use only CD-R or CD-RW discs on which the recordings are closed. A Dual-disc cannot play on this audio unit. If recorded •...
  • Page 195 uuGeneral Information on the Audio SystemuRecommended CDs ■ Protecting CDs 1Protecting CDs Follow these precautions when handling or storing CDs: NOTICE • Store a CD in its case when it is not being played. Do not insert a damaged CD. It may be stuck inside •...

  • Page 196: Compatible Ipod® And Usb Flash Drives

    uuGeneral Information on the Audio SystemuCompatible iPod® and USB Flash Drives Compatible iPod® and USB Flash Drives ■ 1iPod® Model Compatibility iPod® Model Compatibility This system may not work with all software versions of these devices. Model iPod classic ® iPod ®...

  • Page 197: Homelink® Universal Transceiver

    HomeLink® Universal Transceiver The HomeLink® Universal Transceiver can be programmed to operate up to three 1HomeLink® Universal Transceiver remote controlled devices around your home, such as garage doors, lighting, or HomeLink® is a registered trademark of Johnson home security systems. Controls., Inc.
  • Page 198 uuHomeLink® Universal TransceiveruTraining HomeLink ■ 1Training HomeLink Training a Button Retraining a Button 1. Position the remote transmitter you wish to link 1 to 3 inches (3 - 8 cm) from the If you want to retrain a programmed button for a HomeLink button you want to program.

  • Page 199: Bluetooth® Handsfreelink

    For a list of compatible phones, pairing procedures, and special feature capabilities: Models without navigation system • U.S.: Visit www.acura.com/handsfreelink, or call Bluetooth® HandsFreeLink® (HFL) allows you to place and receive phone calls using (888) 528-7876. your vehicle’s audio system, without handling your cell phone.

  • Page 200: Information Display

    uuBluetooth® HandsFreeLink®uUsing HFL ■ 1Bluetooth® HandsFreeLink® Help Features Bluetooth® Wireless Technology • To hear general HFL information and help, say “Tutorial.” Bluetooth® name and logos are registered • Say “Hands free help” any time to get help or hear a list of commands. trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Honda Motors Co., Ltd., is ■...

  • Page 201: Hfl Menus

    uuBluetooth® HandsFreeLink®uHFL Menus HFL Menus The ignition switch must be in ACCESSORY q or ON w to use HFL. 1HFL Menus To use HFL, you must first pair your Bluetooth- compatible cell phone to the system while the vehicle is parked. Press the (HFL Talk) button each time you give a command “Phone setup”...
  • Page 202 uuBluetooth® HandsFreeLink®uHFL Menus “Store” “Phonebook” Store a phonebook entry. “Edit” Edit the number of an existing phonebook entry. “Delete” Delete a phonebook entry. “List” Hear a list of all stored phonebook entries. Transfer contacts from your phone to HFL. “Receive contact” “System setup”...
  • Page 203 uuBluetooth® HandsFreeLink®uHFL Menus ■ 1Phone Setup Phone Setup Press the button and wait for a beep before ■ To pair a cell phone giving a command. 1. If no phone has been paired to the system before, HFL gives you information about how to pair the first phone.
  • Page 204 uuBluetooth® HandsFreeLink®uHFL Menus ■ To hear the name of all paired phones 1Phone Setup 1. Say “Phone Setup.” If no other phones are found or paired when trying to 2. Say “List” after the prompts. switch to another phone, HFL will inform you that the 3.
  • Page 205 uuBluetooth® HandsFreeLink®uHFL Menus ■ 1Making a Call Making a Call Press the button and wait for a beep before You can make calls using any phone number or a name in the HFL phonebook, and giving a command. redial the last number called. HFL uses a Class 2 Bluetooth, with has a maximum ■...
  • Page 206 uuBluetooth® HandsFreeLink®uHFL Menus ■ 1Receiving a Call Receiving a Call Call Waiting Press the button to answer the call, or the button to hang up. When there Press the button and put the original call on hold is an incoming call, a call notification (if activated) sounds and a message appears on to answer the incoming call.
  • Page 207 uuBluetooth® HandsFreeLink®uHFL Menus ■ 1HFL Phonebook HFL Phonebook • Avoid using duplicate name entries. You can store up to 50 names with their associated numbers in HFL. The numbers • Avoid using “home” as a name entry. you store can be account numbers or passwords. These numbers can be sent to a •...
  • Page 208 uuBluetooth® HandsFreeLink®uHFL Menus ■ To list all names in the phonebook 1. Say “Phonebook.” 2. Say “List” after the prompts. 3. HFL begins reading the names in the order they were stored. 4. When you hear a name you want to call, say “Call.” ■...
  • Page 209 uuBluetooth® HandsFreeLink®uHFL Menus ■ 1System Setup System Setup Press the button before a command. This command group allows you to change or customize HFL basic settings. Once a passcode is set, you are required to enter the ■ To set a four-digit passcode to lock the HFL system for security passcode with every new key cycle to use HFL.
  • Page 210 uuBluetooth® HandsFreeLink®uHFL Menus ■ To activate or deactivate the auto transfer function 1System Setup The call on your cell phone can be automatically transferred to HFL when you get Press the button before a command. into the vehicle and turn on the ignition. 1.
  • Page 211 Driving This chapter discusses driving, refueling, and information on items such as accessories. Before Driving Starting the Engine ......223 Braking Driving Preparation ......210 Brake System ........253 Precautions While Driving ....226 Maximum Load Limit......213 ABS (Anti-lock Brake System) ... 255 Automatic Transmission ....

  • Page 212: Before Driving

    Before Driving Driving Preparation Check the following items before you start driving. ■ Exterior Checks 1Exterior Checks • Make sure there are no obstructions on the windows, door mirrors, exterior NOTICE lights, or other parts of the vehicle. When doors are frozen shut, use warm water around Remove any frost, snow, or ice.
  • Page 213 uuBefore DrivinguDriving Preparation ■ 1Interior Checks Interior Checks The headlight aim is set by the factory, and does not • Store or secure all items on board properly. need to be adjusted. However, if you regularly carry Carrying too much cargo, or improperly storing it, can affect your vehicle’s heavy items in the cargo area or tow a trailer, have handling, stability, stopping distance, and tires, and make it unsafe.
  • Page 214 uuBefore DrivinguDriving Preparation • Be sure items placed on the floor behind the front seats cannot roll under the seats. They can interfere with the driver’s ability to operate the pedals, the operation of the seats, or the operation of the sensors under the seats. •...

  • Page 215: Maximum Load Limit

    uuBefore DrivinguMaximum Load Limit Maximum Load Limit The maximum load for your vehicle is 830 lbs (380 kg). 1Maximum Load Limit See Tire and Loading Information label attached to the driver’s doorjamb. WARNING Overloading or improper loading Label Example can affect handling and stability and cause a crash in which you can be hurt or killed.
  • Page 216 uuBefore DrivinguMaximum Load Limit (5) Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may not safely exceed the available cargo and luggage load capacity calculated in step 4. (6) If your vehicle will be towing a trailer, load from your trailer will be transferred to your vehicle.

  • Page 217: Towing A Trailer

    Towing a Trailer Towing Preparation ■ 1Towing Load Limits Towing Load Limits WARNING Your vehicle can tow a trailer if you carefully observe the load limits, use the proper equipment, and follow the towing guidelines. Check the load limits before driving. Exceeding any load limit or improperly ■...
  • Page 218 uuTowing a TraileruTowing Preparation ■ 1Towing Equipment and Accessories Towing Equipment and Accessories Make sure that all equipment is properly installed and Towing equipment varies by the size of your trailer, how much load you are towing, maintained, and that it meets federal, state, province/ and where you are towing.
  • Page 219 Each pin’s purpose and wiring color Right Turn Signal code are shown in the image. (Green) When using a non-Acura trailer lighting harness and converter, get the connector and pins for your vehicle from a dealer. +B Turn/stop (White)

  • Page 220: Driving Safely With A Trailer

    uuTowing a TraileruDriving Safely with a Trailer Driving Safely with a Trailer ■ 1Driving Safely with a Trailer Things You Need To Know Before Towing a Trailer Parking • Have the trailer properly serviced and keep it in good condition. In addition to the normal precautions, place wheel •...

  • Page 221: Towing Your Vehicle

    uuTowing a TraileruTowing Your Vehicle ■ 1Driving in Hilly Terrain Driving in Hilly Terrain If you use the paddle shifters when driving uphill and • Monitor your temperature gauge. If it nears the red (Hot) mark, turn off the air downhill, select 2nd or 3rd gear, depending on the conditioning and reduce speed.

  • Page 222: Off-Highway Driving Guidelines

    Off-Highway Driving Guidelines General Information Your vehicle has been designed primarily for use on pavement, however, its higher 1Off-Highway Driving Guidelines ground clearance allows you to occasionally travel on unpaved roads. WARNING It is not designed for trail-blazing, or other challenging off-road activities. Improperly operating this vehicle on or If you decide to drive on unpaved roads, you will find that it requires somewhat off-pavement can cause a crash or...

  • Page 223: Avoiding Trouble

    uuOff-Highway Driving GuidelinesuAvoiding Trouble Avoiding Trouble • Check Out Your Vehicle before you leave the pavement and make sure that all scheduled maintenance has been completed. Pay special attention to the condition of the tires, and check the tire pressures. •...
  • Page 224 uuOff-Highway Driving GuidelinesuAvoiding Trouble • Crossing a Stream - Avoid driving through deep water. If you encounter water in your route (a small stream or large puddle, for example), evaluate it carefully before going ahead. Make sure it is shallow, flowing slowly, and has firm ground underneath.

  • Page 225: When Driving

    When Driving Starting the Engine 1. Make sure the parking brake is applied. 1Starting the Engine Keep your foot firmly on the brake pedal when starting the engine. The engine is harder to start in cold weather and in thinner air found at altitudes above 8,000 feet (2,400 meters).

  • Page 226: Stopping The Engine

    uuWhen DrivinguStarting the Engine 1Starting the Engine Models without keyless access remote 3. Turn the ignition switch to START e Models with keyless access remote You do not need to hold the ENGINE START/STOP without depressing the accelerator pedal. button to start the engine. •...
  • Page 227 uuWhen DrivinguStarting the Engine ■ Hill start assist system 1Hill start assist system Hill start assist feature helps to prevent the vehicle from rolling on inclines as you Hill start assist may not prevent the vehicle from move your foot from the brake pedal to the accelerator. rolling downhill on a very steep or slippery slope, and will not operate on small inclines.

  • Page 228: Other Precautions

    uuWhen DrivinguPrecautions While Driving Precautions While Driving ■ 1Precautions While Driving Driving Guidelines for Your Utility Vehicle NOTICE Utility vehicles have a significantly higher rollover rate than other types of vehicles. Do not operate the shift lever while pressing the To prevent rollovers or loss of control: accelerator pedal.

  • Page 229: Automatic Transmission

    uuWhen DrivinguAutomatic Transmission Automatic Transmission ■ Creeping The following conditions cause the engine to run at high revolutions, and increase creeping: • Immediately after the engine starts. • When the climate control system is in use. Keep the brake pedal firmly depressed when stopped. ■...

  • Page 230: Shifting

    uuWhen DrivinguShifting Shifting Change the shift position in accordance with your driving needs. 1Shifting You cannot turn the ignition switch to LOCK ■ Shift lever positions and remove the key unless the shift lever is in You cannot change the power mode from ON to Park VEHICLE OFF (LOCK) unless the shift lever is in Used when parking or starting the...
  • Page 231 uuWhen DrivinguShifting ■ 1Shift Lever Operation Shift Lever Operation NOTICE When you change the shift lever from vice versa, come to a complete stop and keep the brake pedal depressed. Operating the shift lever before the vehicle has come to a complete standstill can damage the transmission. Tachometer’s red zone Use the shift lever position indicator to check the lever position before pulling away.

  • Page 232: Sequential Shift Mode

    uuWhen DrivinguShifting ■ Sequential Shift Mode Use the paddle shifters to change between 1st and 6th gears without removing your hands from the steering wheel. The transmission will switch to the sequential shift mode. ■ When the shift lever is in D : The vehicle will go into the sequential shift mode momentarily, and the gear position indicator will come on.
  • Page 233 uuWhen DrivinguShifting ■ Second gear lock mode 1Sequential Shift Mode Operation If you pull the + paddle shifter while stopped or driving at 6 mph (10 km/h) or less, Each paddle shift operation makes a single gear the gear position will be locked in 2nd gear. This makes it easier to pull away on change.

  • Page 234: Cruise Control

    uuWhen DrivinguCruise Control Cruise Control Maintains a constant vehicle speed without having to keep your foot on the 1Cruise Control accelerator. Use cruise control on freeways or open roads where you can travel at a WARNING constant speed with little acceleration or deceleration. Improper use of the cruise control can lead When to use to a crash.
  • Page 235 uuWhen DrivinguCruise Control ■ To Set the Vehicle Speed DECEL/SET Button Press and release On when cruise control begins Take your foot off the pedal and press the DECEL/SET button when you reach the desired speed. The moment you release the DECEL/SET button, the set speed is fixed, and cruise control begins.
  • Page 236 uuWhen DrivinguCruise Control ■ 1To Adjust the Vehicle Speed To Adjust the Vehicle Speed You can set the vehicle speed using the DECEL/SET Increase or decrease the vehicle speed using the RES/ACCEL or DECEL/SET buttons button on the steering wheel when adjusting the on the steering wheel.

  • Page 237: Acc (Adaptive Cruise Control)

    uuWhen DrivinguACC (Adaptive Cruise Control) ACC (Adaptive Cruise Control) Maintains a constant vehicle speed and a safe distance between your vehicle and the 1ACC (Adaptive Cruise Control) vehicle ahead of you without having to keep your foot on the brake pedal or WARNING accelerator.
  • Page 238 uuWhen DrivinguACC (Adaptive Cruise Control) ■ 1ACC (Adaptive Cruise Control) To Set the Vehicle Speed Do not use ACC under these conditions: DECEL/SET Button • In poor visibility. • In heavy traffic. • When you must slow down and speed up repeatedly.
  • Page 239 uuWhen DrivinguACC (Adaptive Cruise Control) ■ 1When in Operation When in Operation If the vehicle ahead of you slows down abruptly, or if The radar sensor monitors the distance between your vehicle and a vehicle ahead of another vehicle cuts in front of you, the beeper you.
  • Page 240 uuWhen DrivinguACC (Adaptive Cruise Control) ■ There is no vehicle ahead 1When in Operation Your vehicle cruises at the set speed. Limitations Use the brake pedal to maintain a safe distance with ■ A vehicle ahead is within ACC range and going slower than the set speed other vehicles in the following cases.
  • Page 241 uuWhen DrivinguACC (Adaptive Cruise Control) ■ 1To Adjust the Vehicle Speed To Adjust the Vehicle Speed If a vehicle ahead is going at a speed slower than your Increase or decrease the vehicle speed using the RES/ACCEL or DECEL/SET buttons increased set speed, ACC may not accelerate your on the steering wheel.
  • Page 242 uuWhen DrivinguACC (Adaptive Cruise Control) ■ To Change Vehicle Distance Press the (distance) button to change ACC range. Each time you press the button, the ACC range for the distance between your vehicle and the vehicle ahead of you changes to short, middle and long.
  • Page 243 uuWhen DrivinguACC (Adaptive Cruise Control) ■ 1To Cancel To Cancel Resuming the prior set speed: After you have To cancel adaptive cruise control, do any of MAIN canceled adaptive cruise control, you can resume the the following: Button prior set speed while it is still displayed. Press the •...
  • Page 244 uuWhen DrivinguACC (Adaptive Cruise Control) ■ 1To Switch ACC to Cruise Control To Switch ACC to Cruise Control Always be aware which mode you are in. When you Press and hold the (distance) button for one second. are driving in Cruise mode, be more cautious about keeping a safe distance from a vehicle ahead of you.

  • Page 245: Vsa® (Vehicle Stability Assist), Aka Esc (Electronic Stability Control), System

    uuWhen DrivinguVSA® (Vehicle Stability Assist), aka ESC (Electronic Stability Control), System VSA® (Vehicle Stability Assist), aka ESC (Electronic Stability Control), System 1VSA® (Vehicle Stability Assist), aka ESC (Electronic Stability Control), System VSA® helps to stabilize the vehicle during cornering if the vehicle turns more or less The VSA®...
  • Page 246 uuWhen DrivinguVSA® (Vehicle Stability Assist), aka ESC (Electronic Stability Control), System ■ 1VSA® (Vehicle Stability Assist), aka ESC (Electronic Stability VSA® On and Off Control), System This button is on the driver side control panel. Without VSA®, your vehicle will have normal braking VSA®...

  • Page 247: Sh-Awd

    uuWhen DrivinguSH-AWD® (Super Handling-All Wheel Drive SH-AWD® (Super Handling-All Wheel Drive The system controls and transfers varying amounts of engine torque to each wheel 1SH-AWD® (Super Handling-All Wheel Drive in accordance with the driving conditions. NOTICE Avoid continuously driving in sand or mud where a SH-AWD®...

  • Page 248: Bsi (Blind Spot Information)

    uuWhen DrivinguBSI (Blind Spot Information) BSI (Blind Spot Information) Is designed to detect vehicles in specified alert zones adjacent to your vehicle, 1BSI (Blind Spot Information) particularly in harder to see areas commonly known as “blind spots.” WARNING When vehicles in adjacent lanes are approaching your vehicle from behind, the Failure to visually confirm that it is safe to appropriate indicator comes on, providing assistance when you change lanes.
  • Page 249 uuWhen DrivinguBSI (Blind Spot Information) ■ 1BSI (Blind Spot Information) BSI On and Off The BSI alert indicator may not come on under Press the BSI OFF button until you hear a beep to turn on and off the system. A following conditions: message on the multi-information display appears for five seconds and indicates •...

  • Page 250: Tire Pressure Monitor

    uuWhen DrivinguTPMS (Tire Pressure Monitoring System) TPMS (Tire Pressure Monitoring System) Monitors the tire pressure while you are driving. If your vehicle’s tire pressure 1TPMS (Tire Pressure Monitoring System) becomes significantly low, the low tire pressure/TPMS indicator comes on and a Conditions such as low ambient temperature and message appears on the multi-information display.
  • Page 251 uuWhen DrivinguTPMS (Tire Pressure Monitoring System) If any tire has low pressure, LOW TIRE PRESSURE is displayed on the multi- information display. Check the pressure of each tire by pressing the button. CHECK TIRE PRESSURE is displayed when a tire has significantly low pressure. The specific tire is displayed on the screen.

  • Page 252: Federal Explanation

    uuWhen DrivinguTire Pressure Monitoring System (TPMS) - Required Federal Explanation Tire Pressure Monitoring System (TPMS) - Required Federal Explanation Each tire, including the spare (if provided), should be checked monthly when cold and inflated to the inflation pressure recommended by the vehicle manufacturer on the vehicle placard or tire inflation pressure label.
  • Page 253 uuWhen DrivinguTire Pressure Monitoring System (TPMS) - Required Federal Explanation Please note that the TPMS is not a substitute for proper tire maintenance, and it is the driver’s responsibility to maintain correct tire pressure, even if under-inflation has not reached the level to trigger illumination of the TPMS low tire pressure telltale.

  • Page 254: Ids (Integrated Dynamics System)

    uuWhen DrivinguIDS (Integrated Dynamics System) IDS (Integrated Dynamics System) Constantly controls your vehicle’s dampers and power steering assist according to 1IDS (Integrated Dynamics System) current road conditions, vehicle speed, and steering operation. IDS (Integrated Dynamics System) controls the You can choose between two modes, sport mode and comfort mode, according to dampers and power steering assist, using the following two main systems: your driving taste.

  • Page 255: Braking

    Braking Brake System ■ 1Parking Brake Parking Brake NOTICE Use the parking brake to keep the vehicle stationary when parking. Release the parking brake fully before driving. The To apply: rear brakes and axle can be damaged if you drive Push the pedal down with your foot.

  • Page 256: Foot Brake

    uuBrakinguBrake System ■ 1Foot Brake Foot Brake Check the brakes after driving through deep water, Your vehicle is equipped with disc brakes at all four wheels. A power assist helps or if there is a buildup of road surface water. If reduce the effort needed on the brake pedal.

  • Page 257: Abs (Anti-Lock Brake System)

    uuBrakinguABS (Anti-lock Brake System) ABS (Anti-lock Brake System) ■ 1ABS (Anti-lock Brake System) NOTICE Helps prevent the wheels from locking up, and helps you retain steering control by The ABS may not function correctly if you use an pumping the brakes rapidly, much faster than you. incorrect tire type and size.

  • Page 258: Brake Assist System

    uuBrakinguBrake Assist System Brake Assist System Designed to assist the driver by generating greater braking force when you depress the brake pedal hard during emergency braking. ■ Brake assist system operation Press the brake pedal firmly for more powerful braking. When brake assist operates, the pedal may wiggle slightly and an operating noise may be heard.

  • Page 259: Cmbs Tm (Collision Mitigation Braking System Tm )

    uuBrakinguCMBS (Collision Mitigation Braking System CMBS (Collision Mitigation Braking System Can assist you when there is a possibility of your vehicle colliding with the vehicle in 1CMBS (Collision Mitigation Braking System front of yours. The CMBS is designed to alert you, then reduce your vehicle speed Important Safety Reminder when a possible collision is likely unavoidable to help minimize collision severity.
  • Page 260 uuBrakinguCMBS (Collision Mitigation Braking System ■ Collision Alert Stages The system has three alert stages for a possible collision. However, depending on the circumstances, CMBS may not go through all of the stages before initiating the last stage. CMBS Distance between vehicles The radar sensor Audio &...
  • Page 261 uuBrakinguCMBS (Collision Mitigation Braking System ■ 1CMBS (Collision Mitigation Braking System CMBS On and Off The CMBS may automatically shut off and the Press this button for about one second to turn CMBS indicator comes and stays on when: on and off the system. •...
  • Page 262 uuBrakinguCMBS (Collision Mitigation Braking System ■ 1CMBS (Collision Mitigation Braking System With Little Chance of a Collision Avoid the following conditions that may cause the The CMBS may activate even when you are aware of a vehicle ahead of you, or radar aim to be temporarily out of range and prevent when there is no vehicle ahead.

  • Page 263: Parking Your Vehicle

    Parking Your Vehicle When Stopped 1. Always use the parking brake when you park your vehicle. 1Parking Your Vehicle 2. Make sure the parking brake is set firmly, or your vehicle may roll if parked on an Do not park your vehicle near flammable objects, incline.

  • Page 264: Rearview Camera

    Rearview Camera About Your Rearview Camera 1About Your Rearview Camera Models with navigation system For models with the navigation system, see the Navigation System Manual. The view provided by the rear camera is restricted. You cannot see the corner ends of the bumper and Models without navigation system what is underneath the bumper.

  • Page 265: Refueling

    Refueling Fuel Information ■ Fuel recommendation 1Fuel Information Premium unleaded gasoline, pump octane number 91 or higher NOTICE We recommend quality gasoline containing Your vehicle is designed to operate on premium unleaded gasoline with pump detergent additives that help prevent fuel system and octane of 91 or higher.

  • Page 266: How To Refuel

    For further important fuel-related information for your vehicle, or on information on gasoline that does not contain MMT, visit My Acura at owners.acura.com. In Canada, visit www.acura.ca for additional information on gasoline. For more information on top tier gasoline, visit www.toptiergas.com.
  • Page 267 uuRefuelinguHow to Refuel 4. Press the area indicated by the arrow to 1How to Refuel Fuel Fill Door release the fuel fill door. You will hear a Use the master door lock switch to unlock the fuel fill click. door. The vehicle doors and fuel fill door automatically relock if the remote unlock function is used.

  • Page 268: Fuel Economy

    Fuel Economy Improving Fuel Economy Fuel economy depends on several conditions, including driving conditions, your 1Improving Fuel Economy driving habits, the condition of your vehicle, and loading. Depending on these and Direct calculation is the recommended method to other conditions, you may or may not achieve the rated fuel economy of this vehicle. determine actual fuel consumed while driving.

  • Page 269: Accessories And Modifications

    Acura Genuine accessories are recommended to Modifications ensure proper operation on your vehicle. Do not modify your vehicle or use non-Acura components that can affect its handling, stability, and reliability. Overall vehicle performance can be affected. Always make sure all equipment is properly installed and maintained, and that it meets federal, state, province, territory, and local regulations.
  • Page 271 Maintenance This chapter discusses basic maintenance. Before Performing Maintenance Changing the Engine Oil and Oil Filter ..283 DOT Tire Quality Grading (U.S. Vehicles) ..303 Inspection and Maintenance .... 270 Engine Coolant ........ 285 Wear Indicators ....... 305 Safety When Performing Maintenance..271 Transmission Fluid......

  • Page 272: Before Performing Maintenance

    Before Performing Maintenance Inspection and Maintenance For your safety, perform all listed inspections and maintenance to keep your vehicle 1Inspection and Maintenance in good condition. If you become aware of any abnormality (noise, smell, insufficient U.S. models brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer. Maintenance, replacement, or repair of emissions control devices and systems may be (Note, however, that service at a dealer is not mandatory to keep your warranties in...

  • Page 273: Vehicle Safety

    uuBefore Performing MaintenanceuSafety When Performing Maintenance Safety When Performing Maintenance Some of the most important safety precautions are given here. 1Safety When Performing Maintenance However, we cannot warn you of every conceivable hazard that can arise in WARNING performing maintenance. Only you can decide whether or not you should perform a given task.

  • Page 274: Parts And Fluids Used In Maintenance Service

    Performing MaintenanceuParts and Fluids Used in Maintenance Service Parts and Fluids Used in Maintenance Service The use of Acura genuine parts and fluids is recommended when maintaining and servicing your vehicle. Acura genuine parts are manufactured according to the same...

  • Page 275: Maintenance Minder

    Maintenance Minder If the engine oil life is less than 15%, you will see the Maintenance Minder messages appear on the multi-information display every time you turn the ignition switch to ON w . The messages notify you when to change the engine oil, or when to bring your vehicle to a dealer for indicated maintenance services.
  • Page 276 uuMaintenance Minder uTo Use Maintenance Minder ■ Maintenance Minder Messages on the Multi-Information Display Maintenance Message Oil Life Display Explanation Information SERVICE DUE SOON 15 % The remaining engine oil life is 15 to The engine oil is approaching the end 6 percent.
  • Page 277 uuMaintenance Minder uTo Use Maintenance Minder ■ 1Maintenance Service Items Maintenance Service Items • Independent of the Maintenance Minder information, replace the brake fluid every 3 years. System Message • Inspect idle speed every 160,000 miles (256,000 Maintenance Minder Indicator km).

  • Page 278: Resetting The Display

    uuMaintenance Minder uTo Use Maintenance Minder ■ 1Resetting the Display Resetting the Display NOTICE Reset the engine oil life display if you have performed the maintenance service. Failure to reset the engine oil life after a maintenance service results in the system showing incorrect maintenance intervals, which can lead to serious mechanical problems.

  • Page 279: Maintenance Under The Hood

    Maintenance Under the Hood Maintenance Items Under the Hood Engine Oil Fill Cap Brake Fluid Engine Oil Dipstick (Black Cap) (Orange Handle) Washer Fluid Battery (Blue Cap) Automatic Transmission Fluid Dipstick (Yellow Loop) Power Steering Fluid (Black Cap) Engine Coolant Reservoir Radiator Cap...

  • Page 280: Opening The Hood

    uuMaintenance Under the HooduOpening the Hood Opening the Hood 1. Park the vehicle on a level surface, and set 1Opening the Hood the parking brake. Hood Release NOTICE Handle 2. Pull the hood release handle under the Do not open the hood when the wiper arms are lower left corner of the dashboard.

  • Page 281: Engine Compartment Covers

    uuMaintenance Under the HooduEngine Compartment Covers Engine Compartment Covers The component parts in the engine compartment are protected by three covers. 1Engine Compartment Covers You may need to remove the covers when you perform certain maintenance work. When removing the clip, insert a flat-tip screwdriver, To remove the covers: then lift and remove the central pin.

  • Page 282: Recommended Engine Oil

    This seal indicates the oil is energy conserving and that it meets the American Petroleum Institute’s latest requirements. Use a Genuine Acura Motor Oil or another commercial engine oil of suitable viscosity for the ambient temperature as shown. Ambient Temperature ■...

  • Page 283: Oil Check

    uuMaintenance Under the HooduOil Check Oil Check We recommend that you check the engine oil level every time you refuel. 1Oil Check Park the vehicle on level ground. If the oil level is near or below the lower mark, slowly Wait approximately three minutes after turning the engine off before you check the add oil being careful not to overfill.

  • Page 284: Adding Engine Oil

    uuMaintenance Under the HooduAdding Engine Oil Adding Engine Oil 1. Unscrew and remove the engine oil fill cap. 1Adding Engine Oil 2. Add oil slowly. If any oil spills, wipe it up immediately. Spilled oil may 3. Reinstall the engine oil fill cap, and tighten damage the engine compartment components.

  • Page 285: Changing The Engine Oil And Oil Filter

    uuMaintenance Under the HooduChanging the Engine Oil and Oil Filter Changing the Engine Oil and Oil Filter You must change the engine oil and oil filter regularly in order to maintain the 1Changing the Engine Oil and Oil Filter engine’s lubrication. The engine may be damaged if they are not changed regularly. NOTICE You may damage the environment if you do not Change the oil and filter in accordance with the maintenance message on the multi-...
  • Page 286 uuMaintenance Under the HooduChanging the Engine Oil and Oil Filter 4. Remove the oil filter and dispose of the 1Changing the Engine Oil and Oil Filter remaining oil. You will need a special wrench to replace the oil 5. Check that the filter gasket is not stuck to filter.

  • Page 287: Engine Coolant

    uuMaintenance Under the HooduEngine Coolant Engine Coolant 1Engine Coolant Specified coolant: Honda Long Life Antifreeze/Coolant Type 2 If Honda antifreeze/coolant is not available, you may This coolant is premixed with 50% antifreeze and 50% water. Do not add any use another major brand non-silicate coolant as a temporary replacement.
  • Page 288 uuMaintenance Under the HooduEngine Coolant ■ 1Radiator Radiator WARNING 1. Make sure the engine and radiator are cool. Radiator Cap Removing the radiator cap while the 2. Turn the radiator cap counterclockwise and engine is hot can cause the coolant to spray relieve any pressure in the coolant system.

  • Page 289: Transmission Fluid

    Any damage caused by using a transmission fluid that Perform step 3 after waiting for about 60 is not equivalent to Acura ATF DW-1 is not covered seconds (less than 90 seconds). by Acura’s new vehicle warranty.

  • Page 290: Brake Fluid

    uuMaintenance Under the HooduBrake Fluid Brake Fluid 1Brake Fluid Specified fluid: Honda Heavy Duty Brake Fluid DOT 3 NOTICE ■ Checking the Brake Fluid Brake fluid marked DOT 5 is not compatible with your vehicle’s braking system and can cause extensive The fluid level should be between the MIN damage.

  • Page 291: Power Steering Fluid Check

    Under the HooduPower Steering Fluid Check Power Steering Fluid Check 1Power Steering Fluid Check Specified fluid: Acura Power Steering Fluid NOTICE We recommend that you check the power steering fluid level every time you refuel. Turning the steering wheel to full left or right lock Check when the engine is not running.

  • Page 292: Refilling Window Washer Fluid

    uuMaintenance Under the HooduRefilling Window Washer Fluid Refilling Window Washer Fluid If the washer fluid is low, a message appears on the multi-information display. 1Refilling Window Washer Fluid Pour the washer fluid carefully. Do not overflow the reservoir. NOTICE Do not use engine antifreeze or a vinegar/water solution in the windshield washer reservoir.

  • Page 293: Replacing Light Bulbs

    Replacing Light Bulbs Headlight Bulbs When replacing, use the following bulbs. 1Headlight Bulbs High/Low beam headlight: 35W (D2S for high voltage discharge type) NOTICE The headlight aim is set by the factory, and does not ■ High/Low Beam Headlights need to be adjusted. However, if you regularly carry heavy items in the cargo area or tow a trailer, have High voltage can remain in the circuit for a long period of time after the light is the aiming readjusted at a dealer or by a qualified...
  • Page 294 uuReplacing Light BulbsuFog Light Bulbs Fog Light Bulbs When replacing, use the following bulbs. 1Fog Light Bulbs Fog Light: 55 W (H11) NOTICE Halogen bulbs get very hot when lit. Oil, perspiration, 1. Remove the clip using a flat-tip screwdriver, or a scratch on the glass can cause the bulb to Under Cover and lower the under cover.
  • Page 295 uuReplacing Light BulbsuFront Turn Signal/Parking Light and Front Side Marker Light Bulbs Front Turn Signal/Parking Light and Front Side Marker Light Bulbs When replacing, use the following bulbs. Front Turn Signal/Parking Light: 28/8 W (Amber) Front Side Marker Light: 5W 1.
  • Page 296 5. Insert a new bulb into hole and turn it to the right. 6. Insert the coupler into the connector of the bulb. Coupler Side Turn Signal/Emergency Indicator Light Bulbs Door mirrors have the side turn lights. Have an authorized Acura dealer inspect and replace the light bulbs.
  • Page 297 uuReplacing Light BulbsuStop/Taillight, Rear Turn Signal Light and Rear Side Marker Light Bulbs Stop/Taillight, Rear Turn Signal Light and Rear Side Marker Light Bulbs When replacing, use the following bulbs. Stop/Taillight: 21/5 W Rear Turn Signal Light: 21 W Rear Side Marker Light: 3 CP 1.
  • Page 298 uuReplacing Light BulbsuBack-Up Light Bulbs Back-Up Light Bulbs When replacing, use the following bulbs. Back-Up Light: 21W 1. Remove the cover by prying on the edge of Cover the cover using a flat-tip screwdriver. 2. Turn the socket to the left and remove it. 3.
  • Page 299 2. Turn the socket to the left and remove it. 3. Remove the old bulb and insert a new bulb. Socket Bulb High-Mount Brake Light Bulb High-mount brake light bulbs are LED type. Have an authorized Acura dealer inspect and replace the light bulbs.

  • Page 300: Checking And Maintaining Wiper Blades

    Checking and Maintaining Wiper Blades Checking Wiper Blades If the wiper blade rubber has deteriorated, it will leave streaks and the metal wiper arm may scratch the window glass. Changing the Wiper Blade Rubber 1Changing the Wiper Blade Rubber 1. Lift the driver side wiper arm first, then the NOTICE passenger side.
  • Page 301 uuChecking and Maintaining Wiper BladesuChanging the Wiper Blade Rubber 4. Slide the wiper blade out from its holder by pulling the tabbed end out. Blade 5. Remove the retainers from the rubber blade that has been removed, and mount to a Retainer new rubber blade.

  • Page 302: Checking And Maintaining Tires

    Checking and Maintaining Tires Checking Tires To safely operate your vehicle, your tires must be of the proper type and size, in 1Checking Tires good condition with adequate tread, and properly inflated. WARNING ■ Inflation guidelines Using tires that are excessively worn or Properly inflated tires provide the best combination of handling, tread life, and comfort.

  • Page 303: Tire And Loading Information Label

    uuChecking and Maintaining TiresuTire and Loading Information Label Tire and Loading Information Label The label attached to the driver’s doorjamb provides necessary tire and loading 1Tire and Loading Information Label information. The tire and loading information label attached to the driver’s doorjamb contains: The number of people your vehicle can carry.
  • Page 304 uuChecking and Maintaining TiresuTire Labeling ■ 1Tire Identification Number (TIN) Tire Identification Number (TIN) DOT B97R FW6X 2209 The tire identification number (TIN) is a group of numbers and letters that look like DOT: This indicates that the tire meets all the example in the side column.

  • Page 305: Dot Tire Quality Grading (U.s. Vehicles)

    uuChecking and Maintaining TiresuDOT Tire Quality Grading (U.S. Vehicles) DOT Tire Quality Grading (U.S. Vehicles) The tires on your vehicle meet all U.S. Federal Safety Requirements. All tires are also graded for treadwear, traction, and temperature performance according to Department of Transportation (DOT) standards.
  • Page 306 uuChecking and Maintaining TiresuDOT Tire Quality Grading (U.S. Vehicles) ■ 1Traction Traction Warning: The traction grade The traction grades, from highest to lowest, are AA, A, B, and C. assigned to this tire is based on Those grades represent the tire’s ability to stop on wet pavement straight-ahead braking traction tests, as measured under controlled conditions on specified and does not include acceleration,...

  • Page 307: Wear Indicators

    uuChecking and Maintaining TiresuWear Indicators Wear Indicators The groove where the wear indicator is Example of a Wear located is 1/16 inch (1.6 mm) shallower than Indicator mark elsewhere on the tire. If the tread has worn so that the indicator is exposed, replace the tire. Worn out tires have poor traction on wet roads.

  • Page 308: Tire And Wheel Replacement

    uuChecking and Maintaining TiresuTire and Wheel Replacement Tire and Wheel Replacement Replace your tires with radials of the same size, load range, speed rating, and 1Tire and Wheel Replacement maximum cold tire pressure rating (as shown on the tire’s sidewall). Using tires of a WARNING different size or construction can cause the ABS and VSA®...

  • Page 309: Tire Rotation

    uuChecking and Maintaining TiresuTire Rotation Tire Rotation Rotating tires according to the maintenance messages on the multi-information 1Tire Rotation display helps to distribute wear more evenly and increase tire life. Tires with directional tread patterns should only be rotated front to back (not from one side to the other). ■...

  • Page 310: Winter Tires

    uuChecking and Maintaining TiresuWinter Tires Winter Tires If driving on snowy or frozen roads, mount all season marked M+S tires, snow tires, 1Winter Tires or tire chains; reduce speed; and maintain sufficient distance between vehicles when WARNING driving. Using the wrong chains, or not properly Be particularly careful when operating the steering wheel or brakes to prevent installing chains, can damage the brake skidding.

  • Page 311: Battery

    Battery Checking the Battery Check the battery condition monthly. Look at the test indicator window and check 1Battery the terminals for corrosion. WARNING If your vehicle’s battery is disconnected or goes dead: The battery gives off explosive hydrogen • The audio system is disabled. gas during normal operation.

  • Page 312: Remote Transmitter Care

    Remote Transmitter Care Replacing the Button Battery If the indicator does not come on when the button is pushed, replace the battery. 1Replacing the Button Battery NOTICE ■ Retractable Master Key An improperly disposed of battery can damage the environment. Always confirm local regulations for Battery type: CR1616 battery disposal.
  • Page 313 uuRemote Transmitter CareuReplacing the Button Battery ■ Keyless Access Remote Battery type: CR2032 1. Remove the built-in key. Press 2. Remove the upper half by carefully prying on the edge with a coin. Wrap a coin with a cloth to prevent scratching the transmitter.

  • Page 314: Climate Control System Maintenance

    Climate Control System Maintenance Dust and Pollen Filter The climate control system is equipped with a dust and pollen filter that collects 1Dust and Pollen Filter pollen, dust, and other debris in the air. The Maintenance Minder messages will let Using an air freshener may reduce the deodorizing you know when to replace the filter.

  • Page 315: Cleaning

    Cleaning Interior Care Use a damp cloth with a mixture of mild detergent and warm water to remove dirt. 1Interior Care Use a clean cloth to remove detergent residue. Do not spill liquids inside the vehicle. Electrical devices and systems may malfunction if ■...
  • Page 316 uuCleaninguInterior Care ■ 1Floor Mats Floor Mats If you use any floor mats that were not originally The floor mats hook over the floor anchors, provided with your vehicle, make sure they are which keep the mat from sliding forward. To designed for your specific vehicle, fit correctly, and remove a mat for cleaning, turn the anchor are securely anchored by the floor anchors.

  • Page 317: Exterior Care

    uuCleaninguExterior Care Exterior Care Dust off the vehicle body after you drive. Regularly inspect your vehicle for scratches on painted surfaces. A scratch on a painted surface can result in body rust. If you find a scratch, promptly repair it. ■...
  • Page 318 uuCleaninguExterior Care ■ 1Applying Wax Applying Wax NOTICE A good coat of automotive body wax helps protect your vehicle’s paint from the Chemical solvents and strong cleaners can damage elements. Wax will wear off over time and expose your vehicle’s paint to the the paint, metal, and plastic on your vehicle.

  • Page 319: Engine Does Not Start

    Handling the Unexpected This chapter explains how to handle unexpected troubles. Tools Overheating If the Low Tire Pressure/TPMS Indicator Types of Tools ........318 How to Handle Overheating..... 332 Comes On or Blinks ....... 337 If a Tire Goes Flat Indicator, Coming On/Blinking Fuses If the Low Oil Pressure Indicator Comes...

  • Page 320: Types Of Tools

    Tools Types of Tools 1Types of Tools 2 How to Set Up the Jack P. 323 Wheel Nut Wrench/ Jack Jack Handle Jack Handle Bar Extension Bar...

  • Page 321: If A Tire Goes Flat

    If a Tire Goes Flat Changing a Flat Tire If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually 1Changing a Flat Tire to reduce speed. Then, stop in a safe place. Replace the flat tire with a compact Periodically check the tire pressure of the compact spare tire.
  • Page 322 uuIf a Tire Goes FlatuChanging a Flat Tire ■ Getting Ready to Replace the Flat Tire 1Changing a Flat Tire NOTICE 1. Push the rear edge of the handle on the Do not use the jack if it doesn’t work properly. Call front cargo floor lid and open the lid.
  • Page 323 uuIf a Tire Goes FlatuChanging a Flat Tire 4. Put the extension bar with the wheel nut Extension Bar wrench on the hoist shaft. Wheel Nut Turn the wrench to the left to lower the Wrench spare tire to the ground. 5.
  • Page 324 uuIf a Tire Goes FlatuChanging a Flat Tire 8. Place the compact spare tire (wheel side up) under the vehicle body, near the tire that needs to be replaced. 9. Loosen each wheel nut about one turn using the wheel nut wrench.
  • Page 325 uuIf a Tire Goes FlatuChanging a Flat Tire ■ 1How to Set Up the Jack How to Set Up the Jack WARNING 1. Place the jack under the jacking point closest to the tire to be changed. The vehicle can easily roll off the jack, seriously injuring anyone underneath.
  • Page 326 uuIf a Tire Goes FlatuChanging a Flat Tire ■ 1Replacing the Flat Tire Replacing the Flat Tire Do not over tighten the wheel nuts by applying extra 1. Remove the wheel nuts and flat tire. torque using your foot or a pipe. 2.
  • Page 327 uuIf a Tire Goes FlatuChanging a Flat Tire ■ Storing the Flat Tire 1Storing the Flat Tire WARNING 1. Remove the center cap and place the flat Extension Bar tire face up under the hoist. Loose items can fly around the interior in a Wheel Nut 2.

  • Page 328: Checking The Engine

    Engine Does Not Start Checking the Engine If the engine does not start, turn the ignition switch to START e and check the 1Checking the Engine starter. If you must start the vehicle immediately, use an assisting vehicle to jump start it. 2 Jump Starting P.

  • Page 329: If The Keyless Access Remote Battery Is Weak

    uuEngine Does Not StartuIf the Keyless Access Remote Battery is Weak If the Keyless Access Remote Battery is Weak If the beeper sounds and the CHANGE KEYLESS REMOTE BATTERY message 1If the Keyless Access Remote Battery is Weak appears on the multi-information display and the indicator on the Inserting the remote does not charge the remote ENGINE START/STOP button flashes and the engine won’t start, start the engine as battery.

  • Page 330: Emergency Engine Stop

    uuEngine Does Not StartuEmergency Engine Stop Models with keyless access remote Emergency Engine Stop 1Emergency Engine Stop If you cannot stop the engine by pressing the ENGINE START/STOP button, do Do not press the button while driving unless it is either of the following operations: absolutely necessary for the engine to be switched off.

  • Page 331: Jump Starting

    Jump Starting ■ 1Jump Starting Jump Starting Procedure WARNING Turn off the power to electric devices, such as audio and lights. Turn off the engine, then open the hood. A battery can explode if you do not follow 1. Connect the first jumper cable to your the correct procedure, seriously injuring vehicle’s + terminal.
  • Page 332 uuJump Startingu ■ What to Do After the Engine Starts Once your vehicle’s engine has started, remove the jumper cables in the following order. 1. Disconnect the jumper cable from your vehicle’s ground. 2. Disconnect the other end of the jumper cable from the assisting vehicle’s - terminal.

  • Page 333: Shift Lever Does Not Move

    Shift Lever Does Not Move Follow the procedure below if you cannot move the shift lever out of the P position. ■ Releasing the Lock 1. Set the parking brake. Cover Models without keyless access remote 2. Remove the key from the ignition switch. Models with keyless access remote 2.

  • Page 334: How To Handle Overheating

    Overheating How to Handle Overheating Overheating symptoms are as follows: 1How to Handle Overheating • The temperature gauge needle is at the mark or the engine suddenly loses WARNING power. • Steam is coming out of the engine compartment. Steam and spray from an overheated engine can seriously scald you.
  • Page 335 uuOverheatinguHow to Handle Overheating ■ Next thing to do 1How to Handle Overheating 1. Check that the cooling fan is operating and Reserve Tank WARNING stop the engine once the temperature gauge needle comes down. Removing the radiator cap while the If the cooling fan is not operating, engine is hot can cause the coolant to spray immediately stop the engine.

  • Page 336: Indicator, Coming On/Blinking

    Indicator, Coming On/Blinking If the Low Oil Pressure Indicator Comes On ■ Reasons for the indicator to come on 1If the Low Oil Pressure Indicator Comes On Comes on when the engine oil pressure is low. NOTICE ■ What to do as soon as the indicator comes on Running the engine with low oil pressure can cause 1.

  • Page 337: If The Malfunction Indicator Lamp Comes On Or Blinks

    uuIndicator, Coming On/BlinkinguIf the Malfunction Indicator Lamp Comes On or Blinks If the Malfunction Indicator Lamp Comes On or Blinks ■ Reasons for indicator lamp to come on or blink 1If the Malfunction Indicator Lamp Comes On or Blinks • Comes on when there is a problem with the engine emissions control NOTICE system, or the fuel fill cap is missing, or loose.

  • Page 338: If The Brake System Indicator (Red) Comes On

    uuIndicator, Coming On/BlinkinguIf the Brake System Indicator (Red) Comes On If the Brake System Indicator (Red) Comes On ■ Reasons for the indicator to come on 1If the Brake System Indicator (Red) Comes On U.S. • The brake fluid is low. Have your vehicle repaired immediately.

  • Page 339: If The Low Tire Pressure/Tpms Indicator Comes On Or Blinks

    uuIndicator, Coming On/BlinkinguIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks If the Low Tire Pressure/TPMS Indicator Comes On or Blinks 1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ■ NOTICE Reasons for the indicator to come on or blink Driving on an extremely underinflated tire can cause A tire pressure is significantly low.

  • Page 340: Fuse Locations

    Fuses Fuse Locations If any electrical devices are not working, turn the ignition switch to LOCK 0 check to see if any applicable fuse is blown. ■ 1Primary Engine Compartment Fuse Box Primary Engine Compartment Fuse Box Fuse locations are shown on the fuse box cover. Located on the passenger’s side.
  • Page 341 uuFusesuFuse Locations ■ Driver Side Interior Fuse Box 1Driver Side Interior Fuse Box Fuse locations are shown on the label under the Located under the dashboard. steering column. Locate the fuse in question by the fuse number and box cover number. ■...

  • Page 342: Circuit Protected And Amps For Each Fuse

    uuFusesuCircuit Protected and Amps for Each Fuse Circuit Protected and Amps for Each Fuse The current rating in brackets indicate that ■ Primary Engine Compartment Circuits Protected Amps. you may find a fuse in the location even if Trailer Small Lights 7.5 A your particular model is not equipped with Circuits Protected...
  • Page 343 uuFusesuCircuit Protected and Amps for Each Fuse ■ ■ Secondary Engine Driver Side Interior Circuits Protected Amps. Compartment Accessory Power Socket 15 A Circuits Protected Amps. (Console Box) Circuits Protected Amps. Front Seat Heaters and Seat 7.5 A Left Front Power Window 20 A VSA Motor 40 A...
  • Page 344 uuFusesuCircuit Protected and Amps for Each Fuse ■ Passenger Side Interior Circuits Protected Amps. Right Daytime Running 10 A Light Right Small Light (Exterior) 10 A Right Front Fog Light 10 A Right Headlight 15 A − − Right Small Light (Interior) 7.5 A −...

  • Page 345: Inspecting And Changing Fuses

    uuFusesuInspecting and Changing Fuses Inspecting and Changing Fuses 1. Turn the ignition switch to LOCK 0 . Turn 1Inspecting and Changing Fuses Fuse Blown Fuse headlights and all accessories off. NOTICE 2. Remove the fuse box cover. Replacing a fuse with one that has a higher rating greatly increases the chances of damaging the electrical system.

  • Page 346: Emergency Towing

    Emergency Towing Call a professional towing service if you need to tow your vehicle. 1Emergency Towing NOTICE ■ Flat bed equipment Trying to lift or tow your vehicle by the bumpers will The operator loads your vehicle on the back of a truck. cause serious damage.
  • Page 347 uuEmergency Towingu 2. Remove the towing hook and wheel Front wrench placed behind a cover under the cargo area. 3. Screw the towing hook into the hole, and Rear tighten it with the wheel nut wrench. Towing Hook Towing Hook...

  • Page 348: When You Cannot Unlock The Fuel Fill Door

    When You Cannot Unlock the Fuel Fill Door ■ 1What to Do When Unable to Unlock the Fuel Fill Door What to Do When Unable to Unlock the Fuel Fill Door After taking these steps, contact a dealer to have the If you cannot unlock the fuel fill door, use the following procedure.

  • Page 349: When You Cannot Open Or Close The Tailgate

    When You Cannot Open or Close the Tailgate ■ 1When You Cannot Open or Close the Tailgate When You Cannot Open or Close the Tailgate What to do-Following up If you cannot open or close the tailgate, use the following procedure. After taking these steps, contact a dealer to have the 1.

  • Page 351: Information

    Information This chapter includes your vehicle’s specifications, locations of identification numbers, and other information required by regulation. Specifications ........350 Emissions Testing Identification Numbers Testing of Readiness Codes....354 Vehicle Identification Number (VIN)..351 Warranty Coverages ......356 Engine Number and Transmission Authorized Manuals......

  • Page 352: Specifications

    ■ Vehicle Specifications Washer Fluid Rear Differential Fluid Model Acura ZDX Tank Capacity 5.2 US qt (4.9 ℓ) Specified Acura All Wheel Drive Fluid (DPSF) ■ No. of Passengers: Capacity Change 2.67 US qt (2.53 ℓ) Light Bulbs ■ Front...

  • Page 353: Identification Numbers

    Identification Numbers Vehicle Identification Number (VIN) Your vehicle has a 17-digit vehicle identification number (VIN) used to register your vehicle for warranty purposes, and for licensing and insuring your vehicle. See the image below for the VIN locations. Engine Number and Transmission Number See the image below for the locations of your vehicle’s engine number and transmission number.

  • Page 354: Devices That Emit Radio Waves

    Devices that Emit Radio Waves The following products and systems on your vehicle emit radio waves when in operation. U.S. AcuraLink Audio System Blind Spot Information System Bluetooth® Audio Bluetooth® HandsFreeLink® Collision Mitigation Braking System HomeLink® Universal Transceiver Immobilizer System Keyless Access System Remote Transmitter Tire Pressure Monitoring System (TPMS)

  • Page 355: Reporting Safety Defects

    Reporting Safety Defects In the U.S. If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying American Honda Motor Co., Inc.

  • Page 356: Emissions Testing

    Emissions Testing Testing of Readiness Codes Your vehicle uses “readiness codes,” as part of its onboard self diagnostic system. 1Testing of Readiness Codes Some states refer to these codes during testing to see if your vehicle’s emissions The readiness codes are erased when the battery is components are working properly.
  • Page 357 uuEmissions TestinguTesting of Readiness Codes 7. Select a nearby, lightly traveled major highway where you can maintain a speed of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in D . Do not use cruise control. When traffic allows, drive for 90 seconds without moving the accelerator pedal.

  • Page 358: Warranty Coverages

    Rust Perforation Limited Warranty – all exterior body panels are covered for rust-through from the inside for the specified time period with no mileage limit. Accessory Limited Warranty – Acura accessories are covered under this warranty. Time and mileage limits depend on the type of accessory and other factors. Please read your warranty booklet for details.
  • Page 359 Replacement Muffler Lifetime Limited Warranty – provides coverage for as long as the purchaser of the muffler owns the vehicle. Restrictions and exclusions apply to all these warranties. Please read the 2012 Acura warranty information booklet that came with your vehicle for precise information on warranty coverages.

  • Page 360: Authorized Manuals

    31SZN620 2012 Acura ZDX Owner’s Manual Si vous avez besoin d’un Manuel du Conducteur en 31SZN820 2012 Acura ZDX Navigation System Owner’s Manual français, veuillez demander à votre concessionnaire de commander le numéro de pièce 33SZNC20 31SZNM20 2012 Acura ZDX Maintenance Journal...

  • Page 361: Client Service Information

    Vehicle Identification Number 2 Vehicle Identification Number (VIN) dealership’s service manager or general manager. If you are dissatisfied with the P. 351 decision made by the dealership’s management, contact Acura Client Services. • Date of purchase • Odometer reading of your vehicle •...

  • Page 363: Index

    Index Airbags ............35 USB Flash Drives ........194 Advanced Airbags ........41 Authorized Manuals ........ 358 ABS (Anti-lock Brake System)....255 After a Collision........30, 39 Auto Door Locking/Unlocking....113 Accessories and Modifications ....267 Airbag Care..........49 Automatic Lighting ........132 Accessory Power Sockets ......
  • Page 364 Brake Assist System ......... 256 Child Safety..........50 Coolant (Engine) ........285 Fluid ............288 Childproof Door Locks......112 Adding to the Radiator ......286 Foot Brake ..........254 Child Seat............ 50 Adding to the Reserve Tank ....285 Indicator ..........68, 336 Booster Seats ..........
  • Page 365 Lockout Prevention System ..... 107 Overheating ..........332 Front Seats ..........143 DOT Tire Quality Grading......303 Temperature Gauge ........87 Adjusting ..........143 Driving ............209 Engine Oil ..........280 Fuel............14, 263 Automatic Transmission ......227 Adding ............ 282 Economy ..........
  • Page 366 Security System Alarm....... 76 SH-AWD® ......... 77, 245 Halogen Bulbs........... 292 Identification Numbers ......351 Shift Position..........70 Handling the Unexpected ......317 Engine and Transmission ......351 Side Airbag Off ........48, 75 HandsFreeLink® (HFL) ....... 197 Vehicle Identification ....... 351 Supplemental Restraint System ...
  • Page 367 Keys............103 Lockout Prevention System...... 107 Mirrors ............141 Lockout Prevention ......... 107 Low Battery Charge........334 Adjusting ..........141 Number Tag..........105 Low Fuel Indicator ........71 Door ............142 Rear Door Won’t Open ......112 Low Oil Pressure Indicator ....68, 334 Exterior ...........
  • Page 368 Rearview Mirror with Rearview Camera Installing a Child Seat with a Lap/ Display............. 262 Shoulder Seat Belt ........58 Paddle Shifters Refueling ..........263 Pregnant Women........33 (Sequential Shift Mode) ......230 Fuel Gauge..........87 Reminder ..........28 Panic Mode ..........122 Gasoline..........
  • Page 369 Off Indicator ..........44 Temperature Number........... 351 Side Curtain Airbags ........45 Outside Temperature Display ..... 91 Sequential Shift Mode ......230 Side Storage Compartment ..... 155 Temperature Sensor ......... 166 Shift Position Indicator....... 70, 229 Snow Tires ..........308 Time (Setting) ...........
  • Page 370 Vehicle Identification Number....351 Wipers and Washers......... 134 Vehicle Stability Assist (VSA®) ....243 Checking and Replacing Wiper Blades ..298 Off Button ..........244 WMA ..........177, 183 Off Indicator ..........72 Worn Tires ..........300 System Indicator ........72 Viscosity (Oil)........

Table of Contents
