Frigidaire FGTC2349K S Specification Sheet page 2

Side-by-Side Refrigerator Specifications
• Panel kit-ready refrigerator doors require installation
of either optional Door Panel Kit or custom-built door panels.
(For details, refer to Door Panel Installation on this page.)
Product Shipping Weight (approx.) – 325 Lbs.
•
• Voltage Rating – 120V / 60 Hz / 15 or 20 Amps
• Connected Load (kW Rating) @ 120 Volts = 1.02 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
• Amps @ 120 Volts = 8.5 Amps
• Always consult local and national electric & plumbing codes.
• Floor should be level surface of hard material, capable of supporting
fully loaded refrigerator.
When installing refrigerator adjacent to wall, cabinet or other appliance
•
that extends beyond front edge of unit, 20" minimum clearance
recommended to allow for optimum 120° to 180° door swing, providing
complete drawer / crisper access and removal. (Absolute 4-1/2"
minimum clearance will ONLY allow for 90° door swing which will
provide drawer / crisper access with restricted removal.)
• To ensure optimum performance, avoid installing in direct sunlight or
close proximity to range, dishwasher or other heat source.
For proper ventilation, front grille MUST remain unobstructed.
•
• Recess electrical outlet when possible.
Water recess on rear wall recommended to prevent water line damage.
•
• Water Pressure – Cold water line must provide between 30 and 100
pounds per square inch (psi).
FRIGIDAIRE®
USA 250 Bobby Jones Expressway Martinez, GA 30907
• •
CANADA 5855 Terry Fox Way Mississauga, ON L5V 3E4
• •
FGTC2349K 06/09
Note: Optional Collar Kit available to complete
"built-in look" for Panel Kit-Ready Refrigerator.
For specifications, refer to Collar Kit (CK23CDS)
Installation Specifications page on web.
• Copper tubing with 1/4" O.D. recommended for water supply line
with length equal to distance from rear of unit to household water
supply line plus 7 additional feet. Optional Water Supply Installation
Kits available.
• Adjustable front rollers to assist with door alignment.

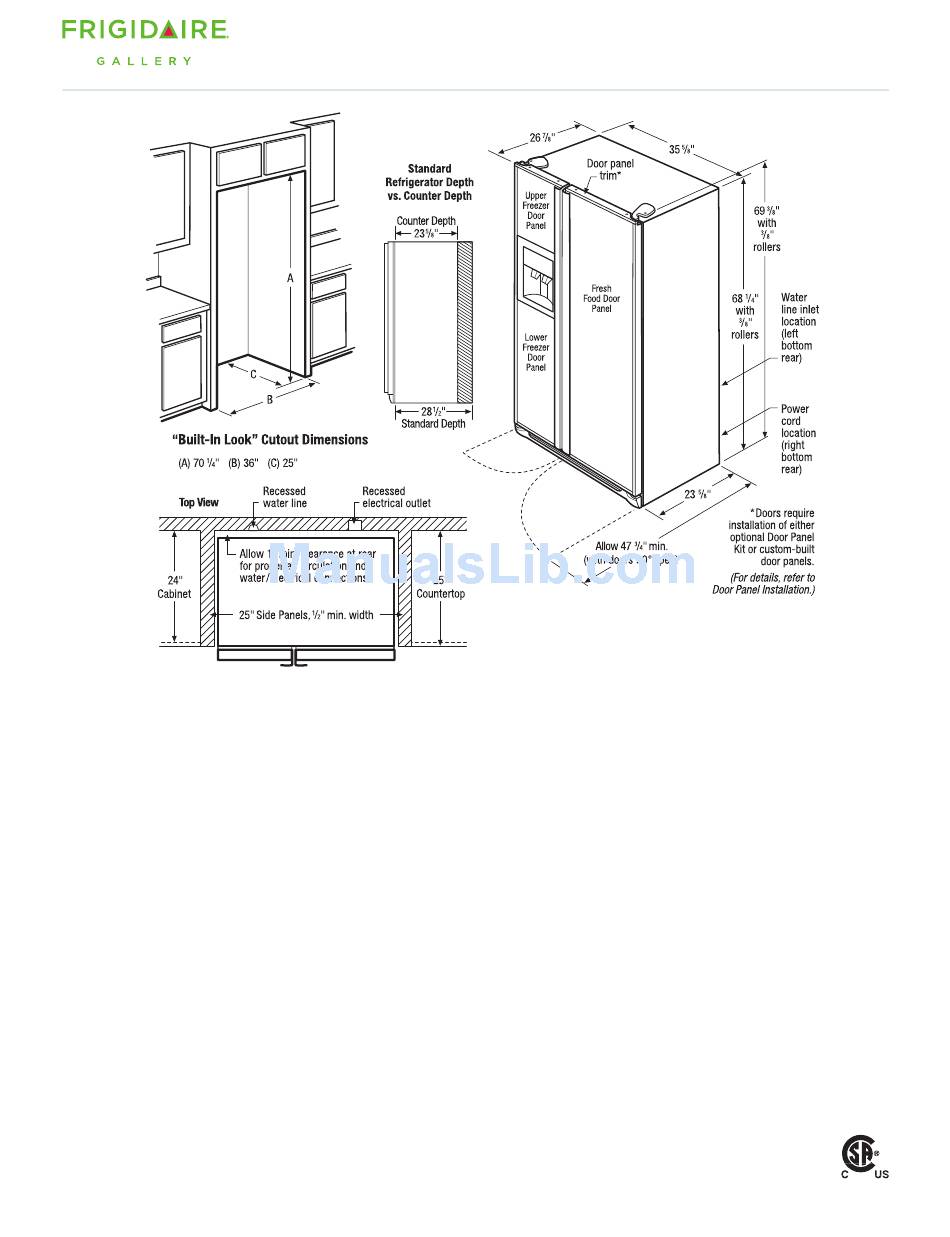

"Built-In Look" Specifications
Minimum opening of 70-1/4" H x 36" W x 25" D required to allow for
•
ease of installation, proper air circulation, and plumbing / electrical
connections.
If optional Collar Kit (PN # CK23CDS) is to be used, different cutout
•
dimensions are required. (Refer to Collar Kit CK23CDS Installation
Specifications page on web.)
• Remove all wall / floor molding prior to installation.
Door Panel Installation
• Removable door trim is designed to accept either optional stainless
steel Door Panel Kit or custom-built door panels to match cabinetry
or other decor. (For complete custom panel construction and
installation details, refer to Panel Kit-Ready Refrigerator Door Panel
Installation page on web; for complete Door Panel Kit installation
refer to detailed instructions on web or included with kit.)
Note: For planning purposes only. Refer to Product Installation Guide
Optional Accessories
• Stainless Steel Door Panel Kit – (PN # PK23CDS).
• Stainless Look Collar Kit – (PN # CK23CDS).
1-800-FRIGIDAIRE frigidaire.com
• •
1-800-265-8352 frigidaire.ca
• •
© 2009 Electrolux Home Products, Inc.
Side-by-Side Refrigerator
FGTC2349K S
on the web at frigidaire.com for detailed instructions.
23 Cu. Ft. Counter-Depth
Specifications
subject to change.
Printed in the U.S.A.
