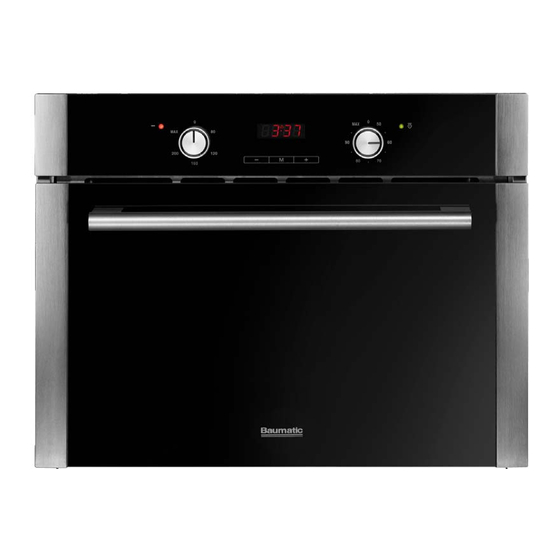

- Page 1 BGS460SS 46 cm Steam oven with grill...
-
Page 2: Grill Function
User Manual for your Baumatic BGS460SS 46 cm Steam oven with grill function NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;... -
Page 3: Table Of Contents
Contents Environmental note Important safety information 5 – 7 Specifications 8 - 9 Product and aperture dimensions Product specifications Standard accessories Electrical details Description of the oven and accessories 10-11 Oven timer Timer symbols Using your oven for the first time 11-16 Before first use 11-12... -
Page 4: Environmental Note
Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
Baumatic’s Conditions Of Guarantee. The foregoing does not affect your statutory rights. o Repairs may only be carried out by Baumatic service engineers or their authorised service agent. - Page 6 Warning and safety instructions o This appliance complies with all current European safety legislation. Baumatic do wish to emphasise that this compliance does not remove the fact that the appliance surfaces will become hot during use and retain heat after operation.
- Page 7 This appliance must be correctly installed by a suitably qualified person, strictly in accordance with the manufacturer’s instructions. o Baumatic Ltd. declines any responsibility for injury or damage, to person or property, as a result of improper use or installation of this appliance.
-
Page 8: Specifications
Specifications Product Dimensions Height: 460 mm Width: 597 mm Depth: 550 mm (without front panel) Aperture Dimensions: Height: 445 mm (built-in) 460 mm (built under) Width: 560 mm Depth: 560 mm Product specifications o Energy efficiency class: A o Gross oven capacity: 31 litres o Net oven capacity: 27 litres o Steam cooking function o Grill cooking function... -
Page 9: Standard Accessories
o LED full programmer o Safety lock o Double-glazed removable door Standard accessories o Removable side racks o 1 x Inox perforated deep tray o 1 x Inox baking tray o Safety shelf Electrical details Rated Voltage: 220 - 240 Vac 50 - 60 Hz Supply Connection: 13 A (double pole switched fused outlet with 3mm contact gap) -
Page 10: Description Of The Oven And Accessories
Description of the oven and accessories 1) Control panel 2) Water jug compartment 3) Water jug 4) Safety shelf 5) Oven door 6) Oven door glass 7) Oven cavity 8) Side racks Oven timer 1) Automatic cooking symbol 2) Oven in use symbol 3) Decimal point symbol 4) Minute minder symbol 5) Minus button... -
Page 11: Timer Symbols
The symbols on the timer display Automatic program is working. The appliance is ready for manual use (not automatic). When blinking, the programmer is in setting the hour mode. Timer function set. Decreasing numbers when setting the timer. Also for selecting your desired sound level. -
Page 12: Switching On The Appliance
o We would recommend that an appropriate stainless steel cleaner and polish is regularly used on the stainless steel surfaces of this appliance. Switching on the appliance o When the oven is switched on for the first time, or after a power cut, the numbers and the automatic cooking symbol (1) on the LCD display will flash. -
Page 13: Setting The Duration Function
o Important: If the oven is in use, then it will continue to heat once the alarm has been silenced. If you have finished cooking, then you should turn the relevant thermostat knob to the off position. Setting the duration function This function will allow you to set a countdown time similar to the minute minder function. -
Page 14: Setting The End Cook Function
Setting the end cook function This function is similar to the duration function, however instead of selecting a period of time that you wish the oven to switch off after. You select the time of day that you wish the oven to switch off at. -
Page 15: Setting The Start And End Time Function
Setting the start and end time function This function will allow you to set a time in the future that the oven switches on at and a time that the oven will switch off at. o Use either the oven thermostat knob or grill thermostat knob to set the temperature that you require. -
Page 16: Cancelling A Timer Function
o Important: If you do not turn the thermostat control knob and oven function selector knob to zero. Then the appliance will continue to operate as soon as you press the manual operation button. Cancelling a timer function o To delete a semi-automatic or automatic cooking program, press the plus (7) and minus (5) buttons together for two seconds. -
Page 17: Steam Oven Cooking Function
Steam oven cooking function This cooking function uses steam to cook the food. During steam cooking, the steam flows from the boiler into the oven cavity. The steam heats the oven cavity and cooks the food. This type of cooking is ideal for cooking any type of vegetables and fish, preserving the colour, taste and goodness of the food. -
Page 18: Grill Cooking Function
o IMPORTANT: The water jug should be emptied after cooking. Grill cooking function This cooking function uses the upper heating element to cook the food. This type of cooking is ideal for grilling medium to large portions of sausages, bacon, steaks etc. o If you are using the grill function, whilst this doesn’t involve steam, you can leave the water jug inside of the water jug compartment. -
Page 19: Warnings
Warnings o Keep the oven door closed when using any cooking function. o Do not use aluminium foil to cover the trays supplied with the oven. o You should also never line the base of your oven with aluminium foil. o During cooking, never place pans or cookware directly onto the bottom of your oven. -
Page 20: Cooking Charts
o The inox baking tray has raised edges, which can be used as a support surface for any single level cooking container. o It can also be used as a drip tray, for collecting cooking juices or fat that may be generated during the steam cooking function. o The shelf should be used as a support surface;... -
Page 21: Cleaning And Maintenance
Swiss Chard MAX. 35 minutes Steam Stalks Green beans MAX. 40 minutes Steam Fennels MAX. 40 minutes Steam Potatoes MAX. 50 minutes Steam Peppers MAX. 25 minutes Steam Leeks MAX. 40 minutes Steam Rice MAX. 35 minutes Steam Celery MAX. 35 minutes Steam Spinach... -
Page 22: Oven Cavity Cleaning Cycle
Any damage that is caused to the appliance by a cleaning product will not be fixed by Baumatic free of charge, even if the appliance is within the guarantee period. Oven cavity cleaning cycle The purpose of this feature is to facilitate the removal of food and grease from the oven cavity after cooking. -
Page 23: Removing The Side Racks
Removing the side racks o Turn the front nut (D) anticlockwise and remove it from the oven cavity. o Remove the side racks (G) one at a time by pulling them away from the oven cavity. o To replace the side racks, insert them back into the oven cavity. o IMPORTANT: The indent on one end of the side racks, must be positioned at the front of the oven cavity (as shown in the above picture). -
Page 24: Replacing The Light Bulb
Replacing the light bulb The appliance MUST be disconnected from your mains supply before carrying out this procedure. o Remove the glass (A) using a screwdriver (C) then remove the bulb (B) by turning it in an anti-clockwise direction. o After replacing bulb, reassemble... -
Page 25: Installation
o You should grip the sides of the door at the centre and then incline it slightly towards the oven cavity. By pulling the lower part of the oven door away from the oven, the hinges will disengage from the holes that they are located in. o IMPORTANT: You should make sure that the door is supported at all times and that you place the door on some padded material whilst cleaning it. - Page 26 Care must be taken to ensure that the temperature of the mains supply cable does not exceed 50°C. o If the mains supply cable is damaged, then it must be replaced by an appropriate replacement which can be obtained from the Baumatic Spares Department.
-
Page 27: Installing The Oven Into The Kitchen Cabinet
Installing the oven into the kitchen cabinet Positioning the appliance o Ensure that the aperture that you will be fitting the oven into is of the size given in the above diagram. o The oven must be fitted into an oven housing with the ventilation cut-outs shown in the “Ventilation requirements”... -
Page 28: Ventilation Requirements
Ventilation requirements (Figure shows the ventilation and cut-out requirements for the installation of the appliance into a standard kitchen unit). (Figure shows ventilation and cut- out requirements for the installation of the appliance into a tall housing unit). o Ensure that the oven has been securely fixed into the housing unit. -
Page 29: My Appliance Isn't Working Correctly
My appliance isn’t working correctly Error codes chart Number of red Cause Solution light flashes The steam boiler Check that there is water in the water 2 Flashes does not have jug. sufficient water to Check that the water jug is inserted Pause generate steam. - Page 30 * Check that the oven door is completely shut. * Check whether the oven door seal is damaged or cracked. If it is, then contact the Baumatic Customer Care Department. o What happens if power is cut to the appliance * It will be necessary to set the time of day again.
- Page 31 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.
-
Page 32: Contact Details
United Kingdom Czech Republic Baumatic Ltd., Baumatic CR spol s.r.o. Baumatic Buildings, Lípovà 665 6 Bennet Road, 460 01 Liberec 4 Reading, Berkshire Czech Republic RG2 0QX United Kingdom +420 483 577 200 Sales Telephone www.baumatic.cz (0118) 933 6900 Sales Fax...
