Summary of Contents for SPI Infrared Thermal Infrared Camera

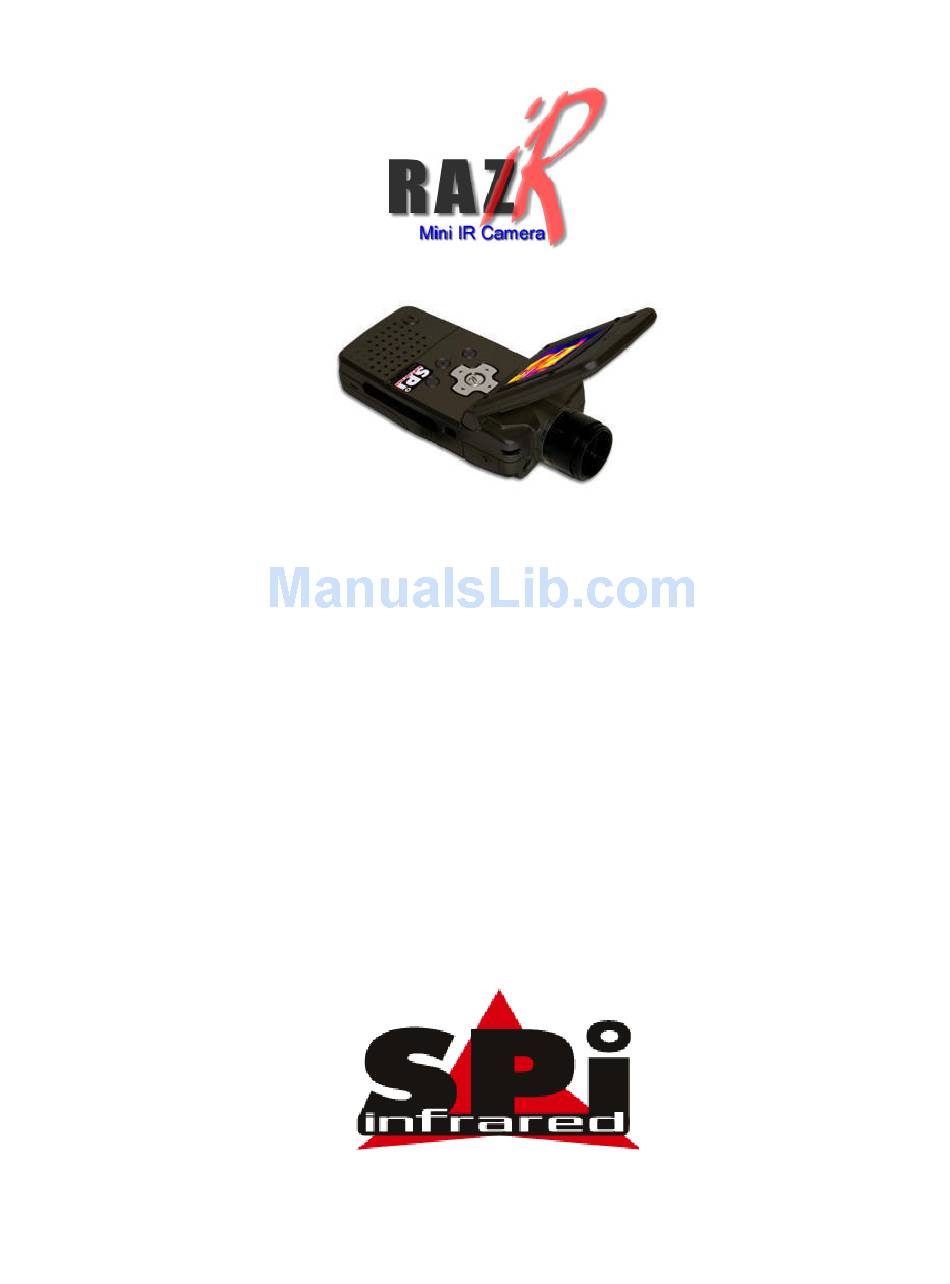

Page 1 Thermal Infrared Camera USER MANUAL...
Page 2 USER MANUAL Sierra Pacific Innovations Corp 6620 S Tenaya Way, Bldg #100-110 Las Vegas, NV 89113 USA (702) 369-3966 (702) 369-3977 Fax www.imaging1.com ® SPI Corp Products mentioned herein are not available for export from the USA. Publication No: raz9959 M4 UM 008 Notices: The RAZ-IR is an ISO9001:2000 certified instrument based upon its design, manufacture, in-house repair support, warranty practices, and other criteria that are of...
Page 3: Table Of Contents
USER MANUAL Table of Contents Introduction ........................4 Precautions........................4 Maintenance ........................ 5 Calibration and Repair Philosophy ................5 Technical Support ......................6 Feedback to Us ......................6 System overview ......................6 Customer Benefits ....................... 7 System Configuration ....................7 Technical Specifications ....................
Page 4: Introduction
USER MANUAL Introduction This publication provides the necessary information required to safely operate the RAZ-IR thermal camera. Compared to previous publications, this edition has been revised based upon recent camera modifications, such as the extended temperature range improvements up to the procedure for choosing and displaying temperatures in Celsius and ℃...
Page 5: Maintenance
USER MANUAL The RAZ-IR thermal camera incorporates precision optical equipment and • static-sensitive electronics which should be protected from shock and vibration at all times. Do not cover, impede or otherwise block the air ventilation ports on the RAZ-IR • thermal camera body.
Page 6: Technical Support
USER MANUAL If your camera needs repair or servicing, contact SPI to arrange for the instrument to be returned. Caution The RAZ-IR thermal camera does not incorporate any user serviceable parts. Never attempt to disassemble or modify the camera. Opening the unit housing voids the warranty.
Page 7: Customer Benefits
USER MANUAL imaging where never possible before. Options Available: -Direct live real-time Camera to PC USB interface module available for digital snapshot or video image capture. -Telephoto Afocal Germanium Long Range NFOV optics lens. Customer Benefits As an ultra-portable IR camera with big-camera power, the RAZ-IR thermal camera provides outstanding thermal imaging of the highest quality and presents a range of benefits to the customer such as: Ultra-compact, lightweight &...
Page 8: Technical Specifications
USER MANUAL Technical Specifications Image Performance Thermal: Detector type: Microbolometer UFPA (160 x 120 pixels, 35µm) Spectral Range: 8-14µm Field of View/ Focus: 25° x 19° /12.6mm Thermal Sensitivity: ≤120mk @30 ℃ Image display: 256 level, 8 palettes (Rainbow, iron, B&W, etc) Electronic Zoom: 2×...
Page 9: Camera Features
USER MANUAL using external battery charger Power consumption: 2W Environmental Specification: Operating Temperature: -10 ℃ - +50 ℃ Storage Temperature: -20 - +60 ℃ ℃ Humidity: Operating and storing 10% to 95%, non- condensing Encapsulation: IP54 Shock: Operational: 25g, IEC 68-2-29 Vibration: Operational: 2g, IEC 68-2-6 Interfaces: USB1.1: Image (thermal &...
Page 10 USER MANUAL Replay • Saved images can be replayed on the camera or externally on your computer. • Voice annotation and saved images can be simultaneously replayed on the camera and on a computer monitor. • Replayed images on the camera can also be processed right in the camera. •...
Page 11: Quick Start Guide
USER MANUAL Quick Start Guide • Be certain that the battery is fully charged and properly installed in the camera; • Power on the RAZ-IR thermal camera; • Flip open the top half of the RAZ-IR thermal camera to view the display screen; •...
Page 12: Control Keys Quick Reference Table
USER MANUAL Control Keys Quick Reference Table ABBREVIATION DESCRIPTION On/Off Power Key Menu Key Up Arrow Key ▲ Down Arrow Key ▼ Left Arrow Key ◄ Right Arrow Key ► Confirm Key Cancel Key • • To lighten or darken the display screen Left Right To lighten or darken the display screen...
Page 13: Introduction To Selection Keys
USER MANUAL Introduction to Selection Keys KEYS FUNCTION On/ Off Power on/off To enter menus and sub-menus To select a sub-menu or option under a menu To confirm parameter setup To toggle between four spots or four areas for spot or area analysis Up Arrow Key ▲...
Page 14: Using The Camera - In Detail
USER MANUAL To stop recording a voice annotation To save a voice annotation together with an image after recording or replaying the recording To delete an image when previewing saved images To switch between “changing area location” and “adjusting area size” under area analysis To lighten or darken the display screen Left...
Page 15 USER MANUAL lowest and highest temperatures, respectively. • The center temperature is displayed at the top of the screen. Setting the temperature range • There are two modes available - Auto and Manual. • • To switch between one mode and the other, press and hold the Key for three seconds.
Page 16 USER MANUAL ▲ • In Auto Mode, if you highlight the upper or lower limits of the palette and press ▼ Keys to change its value, the mode will change to Manual Mode automatically. • Press either OK or C Keys to confirm the selection. Static Temperature Measurement •...
Page 17 USER MANUAL • Analysis Spot: Allows up to four spot measurements to take place on saved or frozen images. • Analysis Line: Allows line profile measurement to take place on saved or frozen images • Analysis Area: Allows up to four rectangular area measurements to take place on saved or frozen images, displaying maximum, minimum and mean temperatures.
Page 18 USER MANUAL or off. • To turn off the laser locator option, press the M Key to bring up the main menu, then ▲ ▼ ◄ ► press the Keys to highlight the “Setup Analysis” option, then select by pressing the M or OK Keys. •...
Page 19 USER MANUAL • Under the heading named “Voice Annotat”, you can toggle between “on” and “off” by ◄ ► using the Keys. The selection “on” is confirmed by pressing the M or OK Keys. • Once the voice annotation option is selected and set, it will remain as selected until changed by the operator.
Page 20 USER MANUAL screen when completed. • This calibration process only takes a couple of seconds to complete. For the best results and most accurate calibration, point the camera at an object with an even or consistent temperature range throughout the image (no hot or cold spots) and an object with an ambient temperature range similar to the area where the camera is being used, such as a wall, ceiling or floor.
Page 21 USER MANUAL ► • Press the Key to go to the Analysis option, then select by pressing the M or OK Keys. ▲ ▼ ◄ ► • Press the Keys to switch between each option. Press the Keys to change the setting of the highlighted option. •...
Page 22 USER MANUAL • Data Bkgrd: To turn on or off the data background. If Data Bkgrd is set to “on”, the data on the image will be highlighted by a black background so that the data is easy to read. •...
Page 23 USER MANUAL • Filter: Set it as 1 or 2 according to its corresponding temperature range. • Emissivity: Set emissivity value between 0.01 and 0.99. • Relative Humidity: Set humidity percentage value between 1 and 99 percent. • Distance: Set distance from target in meters. •...
Page 24 USER MANUAL ▲ ▼ • The setup parameters menu will be displayed. Press Keys to move ◄ ► between each setting, then press the Keys to alter the values. • Press the M or OK Keys to confirm the changes for the “Time Setup” menu. •...
Page 25 USER MANUAL • Press the M or OK Key. Then a NUC is performed automatically. • After NUC, all settings are restored to the manufacturer’s default settings. Analysis Menu ▲ ▼ • Press the M Key to bring up the main menu. Press the Keys to highlight and select the “Analysis”...
Page 26 USER MANUAL at the top of the screen. The one without any mark indicates the point with maximum temperature on the screen, and its temperature is shown in the right corner above the palette. ▲ ▼ ◄ ► • Press the Keys to move the spot indicator to the desired position on the display screen - the corresponding spot temperature is shown at the top of the screen.
Page 27 USER MANUAL • The first point of the line can be positioned by the operator to the desired position by ▲ ▼ ◄ ► pressing the Keys. Confirm the starting position by pressing the M Key. ▲ ▼ ◄ ► •...
Page 28 USER MANUAL ► ▼ • Press the M or Keys to enter the “Analysis” menu. Press the Key to highlight and select “Area”, then press the M or OK Keys. • Areas A, B, C, and D will appear. Four corresponding temperatures will be shown respectively at the top of the screen as well as the temperature measurement type, Minimum, Mean or Maximum.
Page 29 USER MANUAL • Rectangular areas can be set to display the Maximum, Mean or Minimum ▼ temperatures. Press the M Key to bring up the main menu, then press the Key to highlight and select the Setup option, then select “Analysis” by pressing the M or OK Keys.
Page 30 USER MANUAL ▲ ▼ • Press the Keys to set the maximum temperature of the isotherm band, ◄ ► then press the Keys to set the minimum temperature of the isotherm band. • There are three Isotherm colors to choose from. To select them, press the M Key to ▼...
Page 31 USER MANUAL Browse Sub-menu ▼ • Press the Key to highlight and select “Browse”, then press the M or OK Keys. • The list of saved images is displayed on the screen. The icon indicates that the file contains voice annotation. Displayed in the lower right corner of the screen is the file number selected followed by the total number of files stored.
Page 32 USER MANUAL image. If voice annotation has been recorded, it will playback automatically when a saved image is opened. Repeat the above operation to open other file images. To exit and return to the file list, press the C Key. ▲...
Page 33 USER MANUAL Pressing the OK Key again will switch between the infrared image and the visual image. If voice annotation has been recorded it will playback automatically when a saved image is opened. Repeat the above procedures to open other image files. To exit and return to the image gallery, press the C Key.
Page 34 USER MANUAL • Pressing the C Key will exit the sub-menu. Transferring Files from the Camera to a Computer • Before transferring files to your computer, confirm that the Operating System of your ® Windows 2000 or higher and that the USB driver and SPI computer is Microsoft ®...
Page 35: Battery Charging
USER MANUAL • After viewing the live image, power off the camera, the monitor (or other recording device) and disconnect the cable. Note: • Caution - power off the camera before connecting it to a monitor or a recording device to avoid damaging the camera. •...
Page 36 USER MANUAL • Connect the AC adapter plug to a standard electrical wall outlet (96-250VAC). • When charging begins the white indicator light on the outer screen of the camera will blink. • When the white indicator light stops blinking, the battery is fully charged. •...
Page 37: Troubleshooting
USER MANUAL and seek proper medical care. Troubleshooting Battery improperly installed. Remove battery and The camera does not turn install correctly. Battery contacts are dirty. Clean battery contacts. Battery charge is low. Recharge battery or replace with fully charged battery. Battery performance is poor Battery may be defective.
Page 38: Emissivity
USER MANUAL Emissivity What Is Emissivity? The standard of radiation is "blackbody" radiation which exists in any enclosure whose walls are at a uniform temperature. The shape of the enclosure and the wall material have no effect on this radiation, it being a function of temperature alone. A small hole in such an enclosure only affects this radiation level very slightly.
Page 39 USER MANUAL c) Temperature d) Angle of view e) Wavelength For materials with smooth, clean (no oxidation) surfaces, emissivities are usually in the range 0.05 to 0.50 and are usually very wavelength dependent, being higher at shorter wavelengths. The appropriate settings for the RAZ-IR thermal camera are given in the following tables.
Page 40: Typical Emissivity Values
USER MANUAL Typical Emissivity Values Refractories Miscellaneous Alumina 0.40 Asphalt 0.90 Red Brick 0.93 Carbon >0.90 Graphite 0.85 Alloys Soot 0.95 Brass 0.10 Cement & Concrete 0.90 Oxidized 0.61 Cloth 0.85 Metals Aluminium 0.05 Oxidized 0.30 Chromium 0.15 Cobalt 0.18 Gold 0.02 Iron &...
Page 41 USER MANUAL © SPI Corp. Specifications subject to change without notice. This product is restricted from exportation outside the United States of America Page...
